Available Pin Counts : 3P, 4P, 5P, 6P
Type : Male
Wiring Method : Solder Type
Orientation : Right-Angle 90°
Applications : Power, Signal Transmission
90° Overmolded Type:

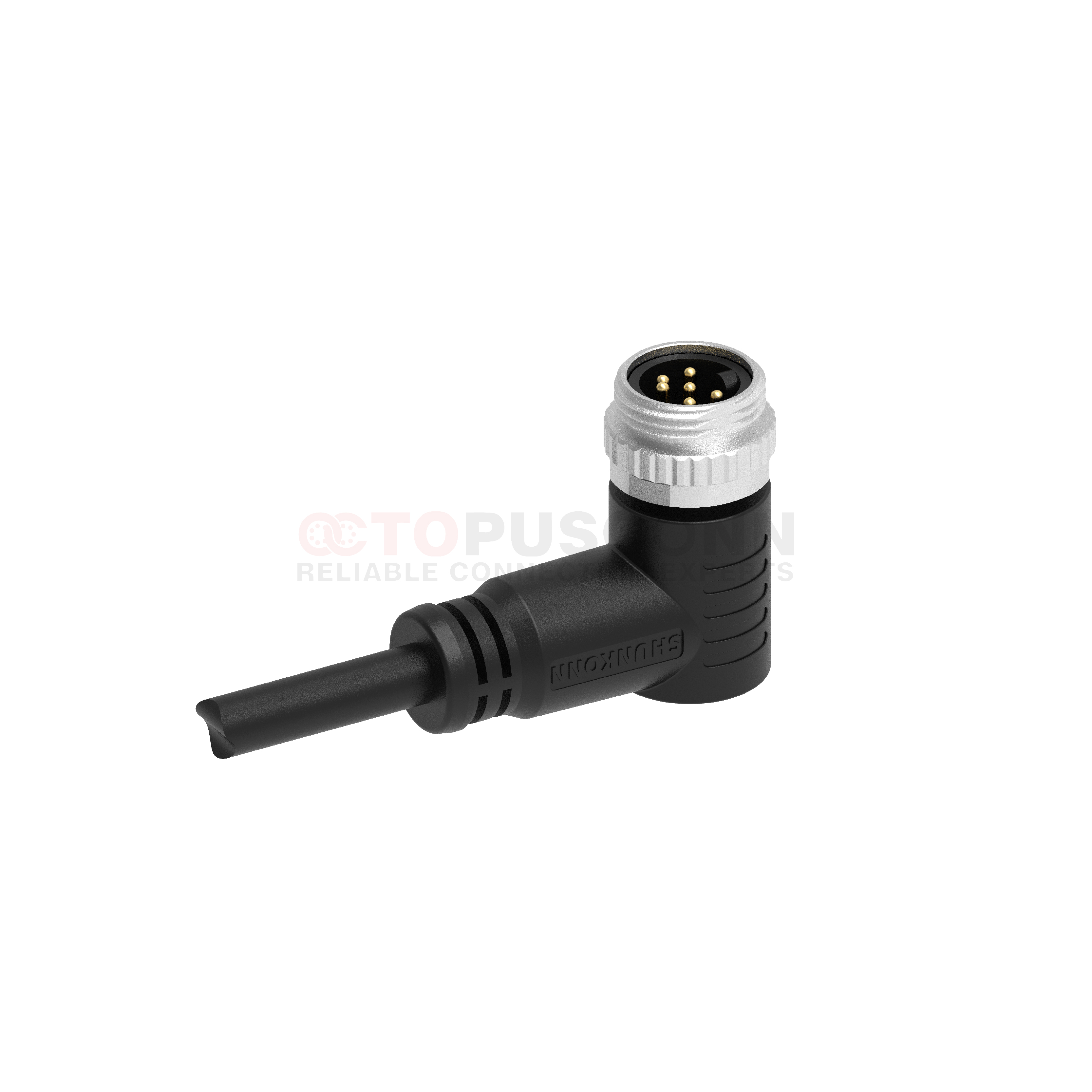

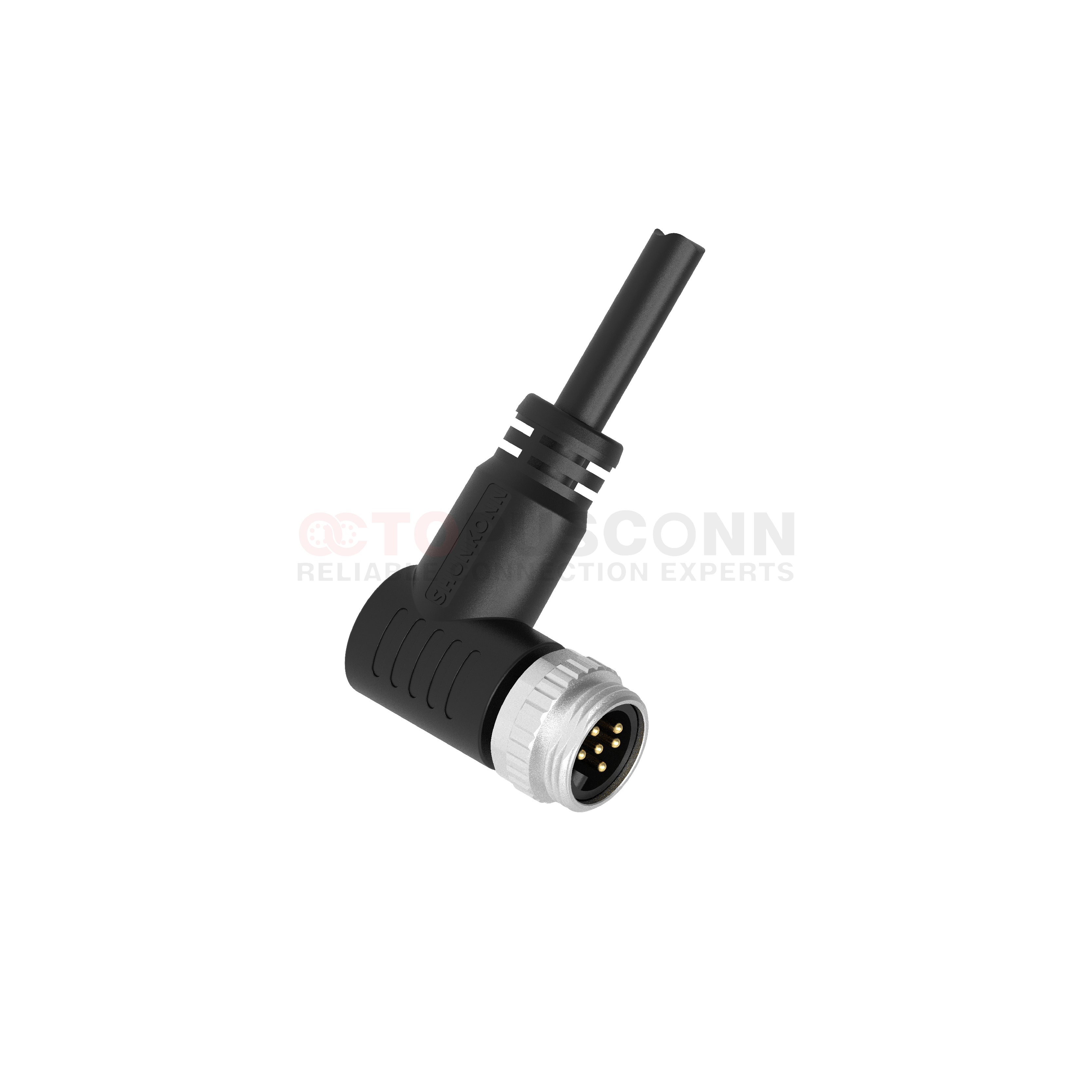

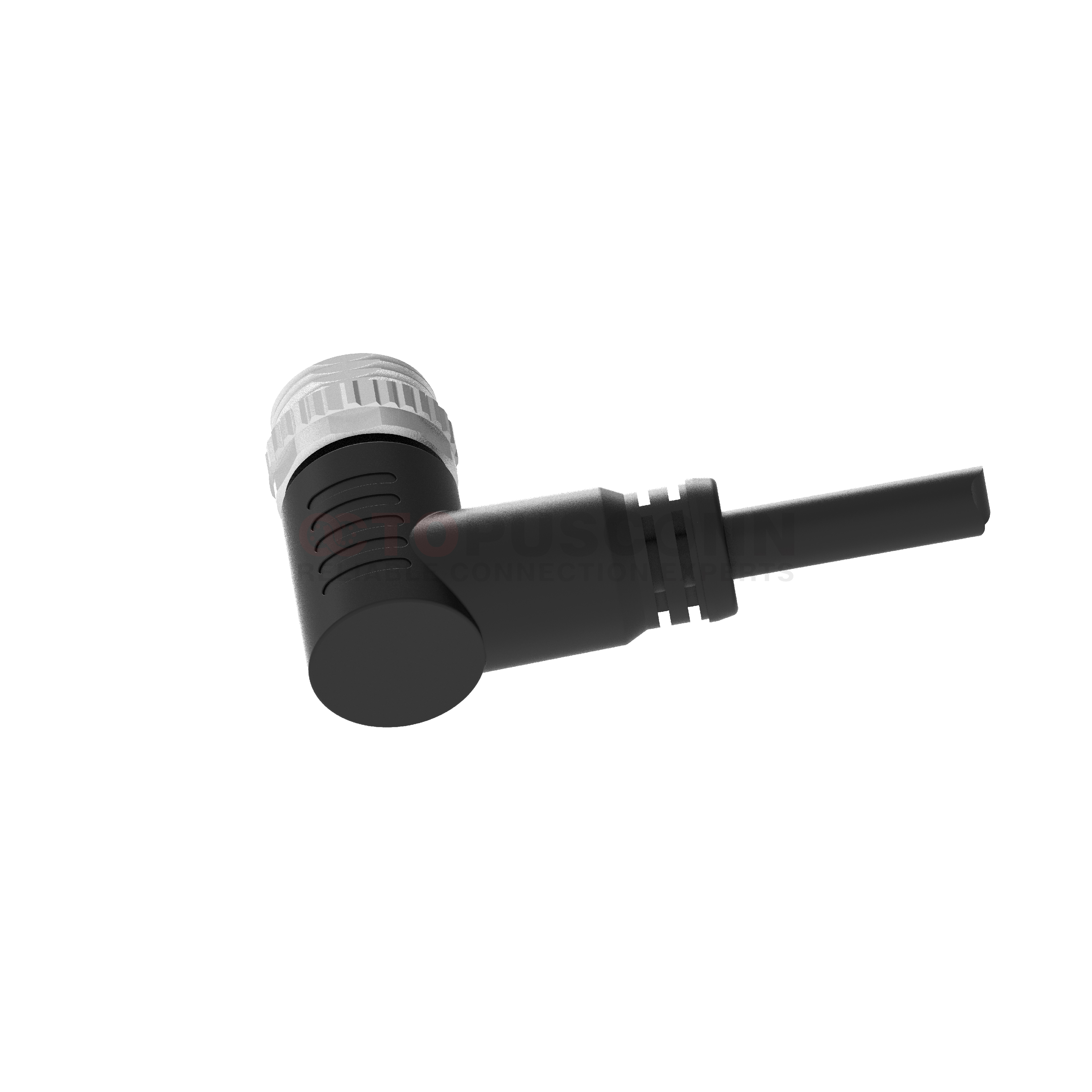

90° Angled Structure Adopts an L-shaped angled housing design, with the cable and connector forming a 90° perpendicular connection. Suitable for wiring scenarios in narrow spaces such as inside equipment and panel edges, it reduces the horizontal space occupied by cables while preventing core wire breakage or signal loss caused by long-term cable bending. High Protection Rating Achieves IP67 protection through a silicone sealing ring and overmolding process, capable of withstanding immersion in 1-meter deep water for 30 minutes. It effectively blocks the intrusion of dust, oil, and moisture, making it suitable for harsh industrial environments such as outdoor settings and humid workshops. Temperature Resistance & Environmental Adaptability Operating temperature range: -40℃ ~ 85℃, enabling stable operation in industrial scenarios with high/low temperatures and severe temperature fluctuations. Features UV resistance and acid-alkali corrosion resistance.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
13A
|
300V
|
300V
|
18
|
1
|
||
|
4
|
9A
|
300V
|
300V
|
18
|
1
|
||
|
5
|
9A
|
300V
|
300V
|
20
|
0.5
|
||
| MB78NM-065LSRAXXXXX01 |
6
|
9A
|
300V
|
300V
|
20
|
0.5
|
|
| Core | 3 | 4 | 5 | 6 |
| Male |
|
|
|
|
| Core | 3 | 4 | 5 | 6 |
| Female |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
