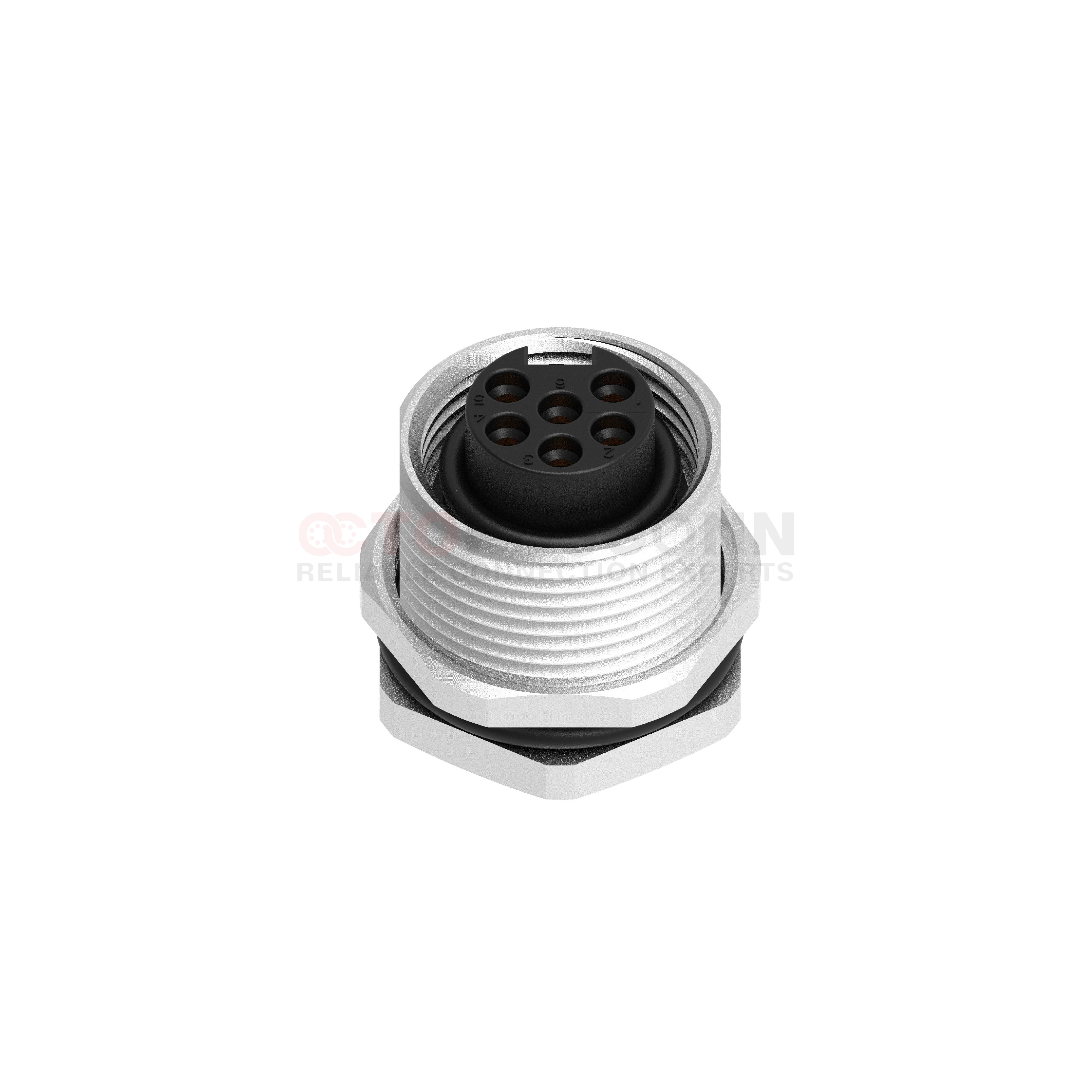

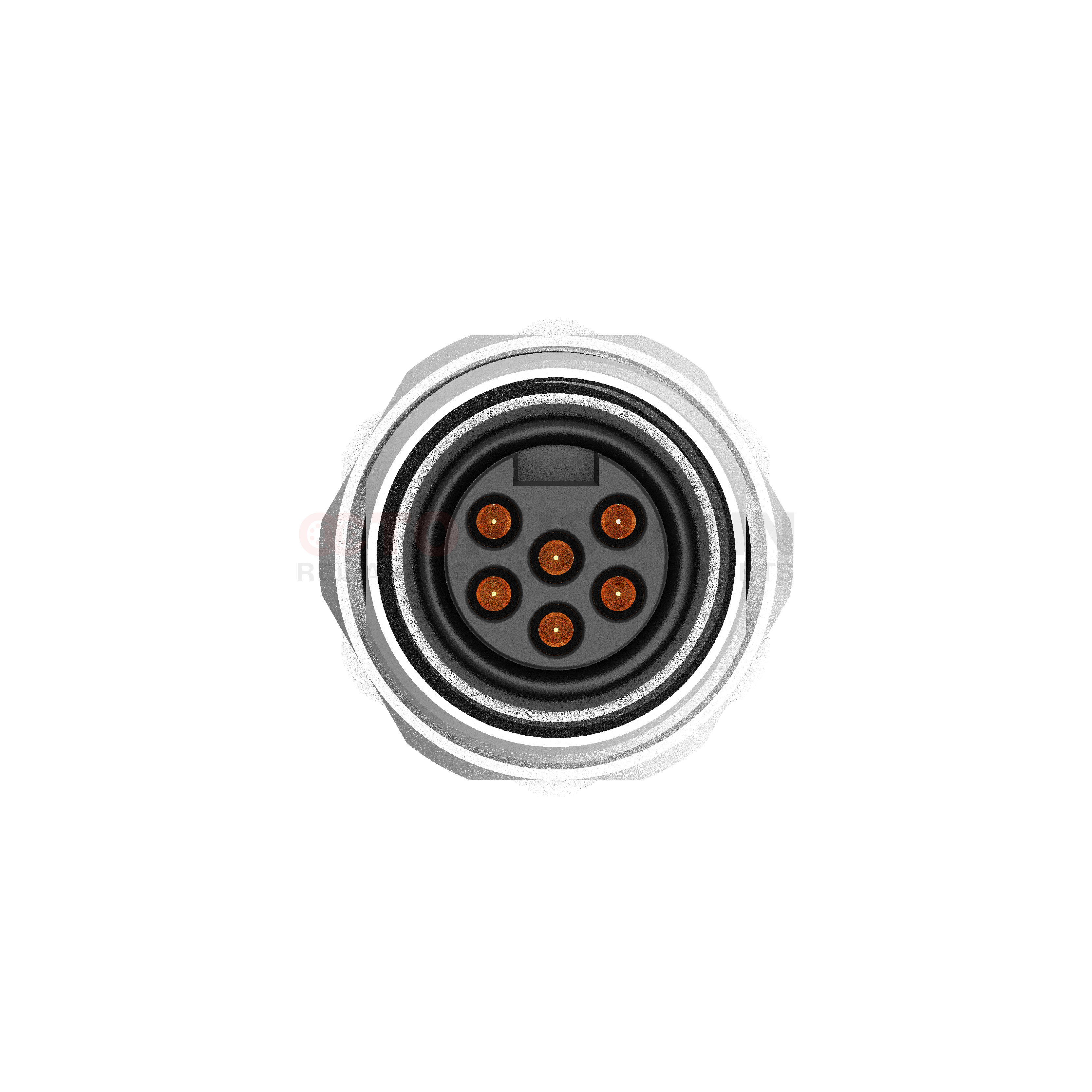

Available Pin Counts : 3P, 4P, 5P, 6P
Type : Female
Mounting Type : Rear Panel Mount
Wiring Method : Board Insertion Type
Applications : Power, Signal Transmission

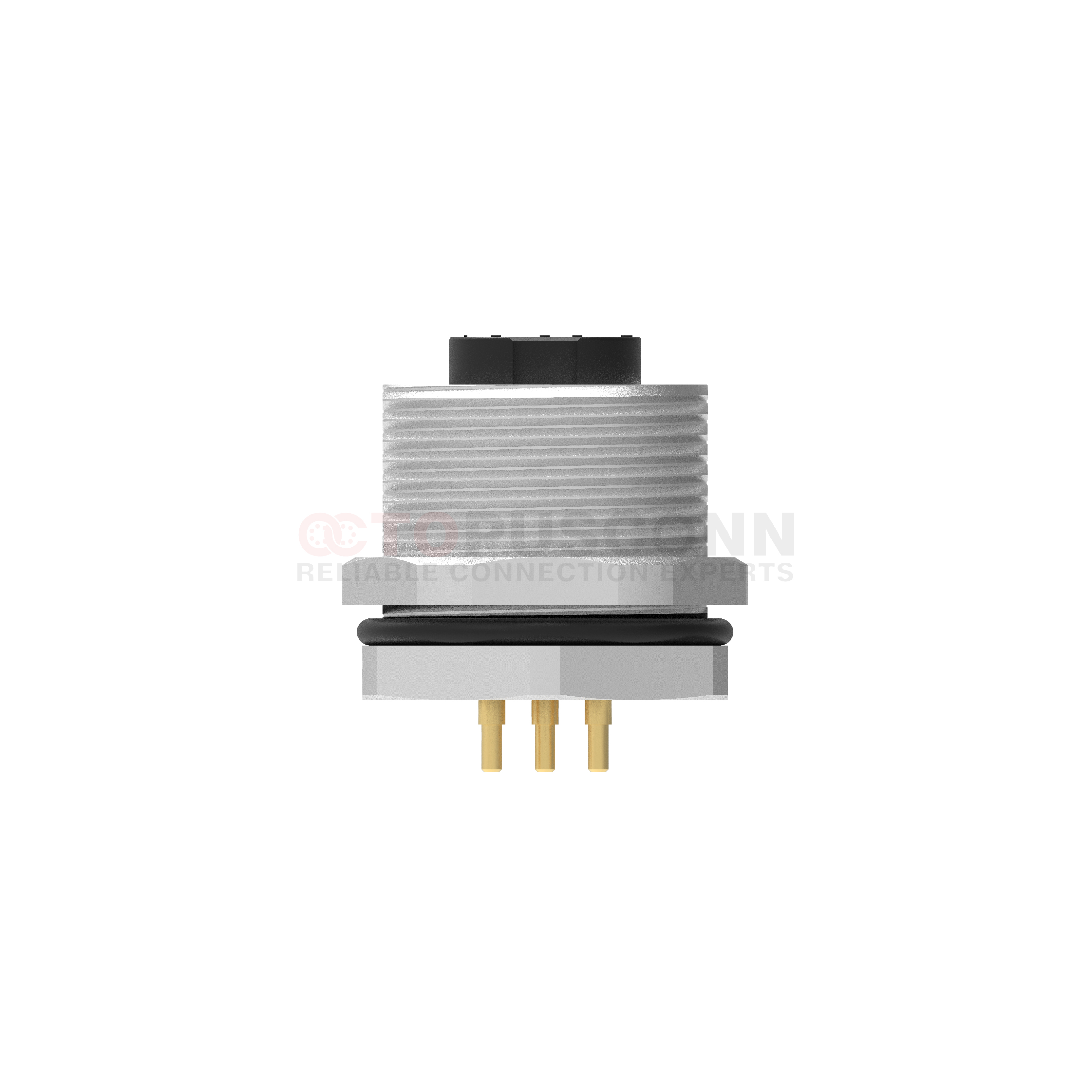

Rear-Panel Mount Press-Fit Type:

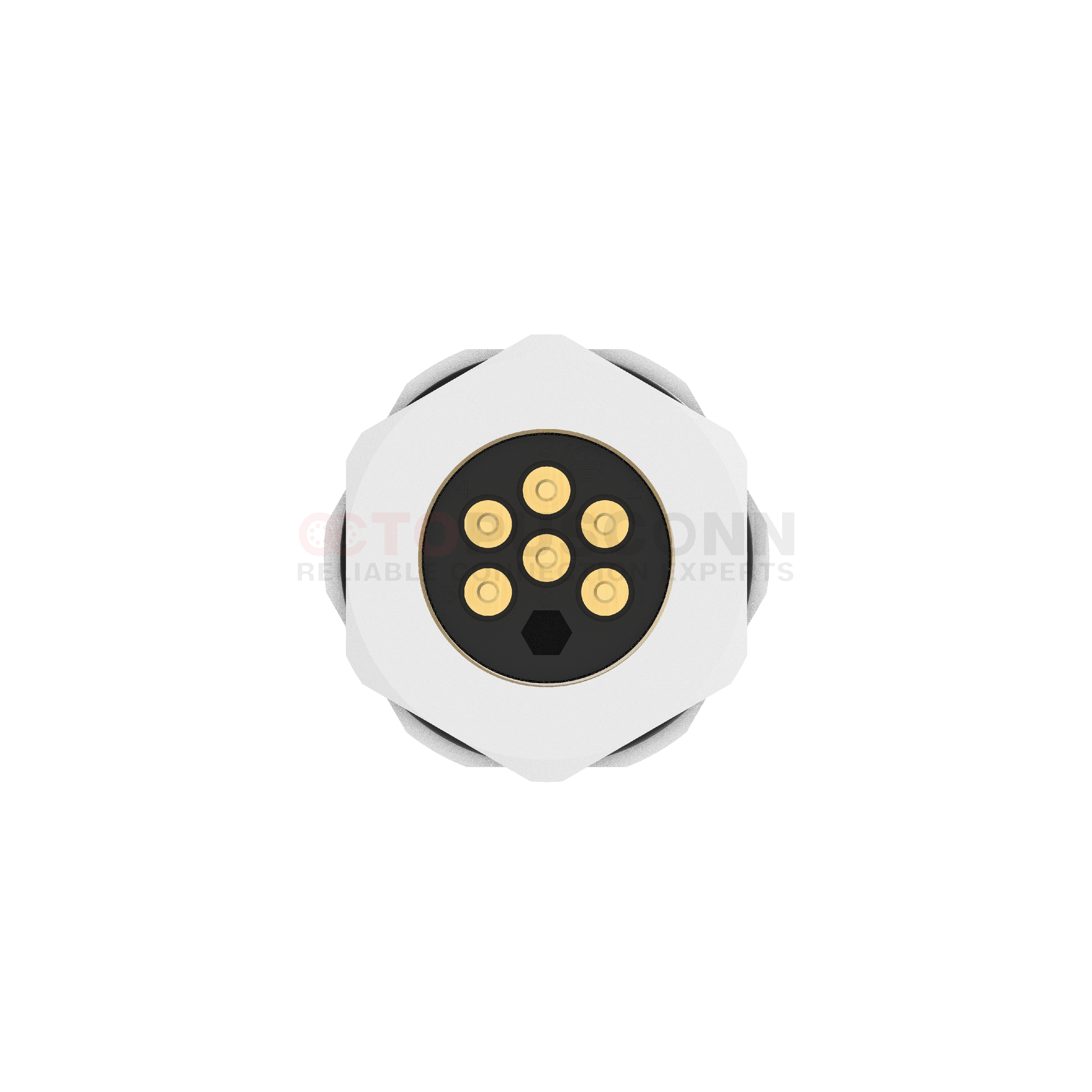

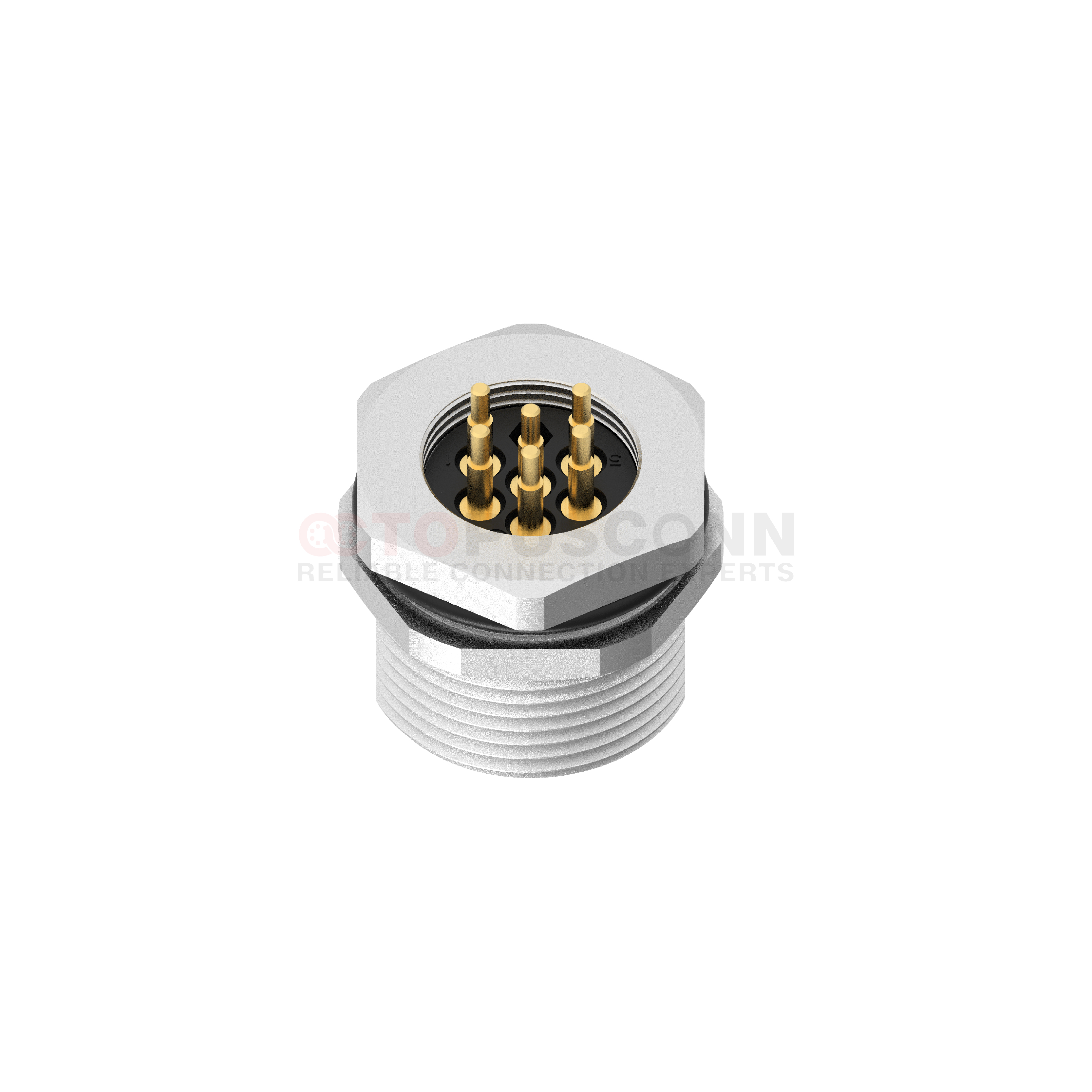

Rear-Panel Mounting Method Adopts a nut-locking mounting structure on the rear side of the panel, with fixation completed from the back of the equipment panel. Only the connector interface is exposed on the front side, avoiding interference from front-panel mounted components while ensuring a neater panel layout. Compatible with metal/plastic mounting panels of 1–5mm thickness. Press-Fit Contact Design The contacts feature a press-fit soldered structure, which can be directly inserted into the reserved slots on the PCB and fixed by soldering. Compared with traditional terminal blocks, the stability of electrical connection is improved by 40%. It also supports automated soldering processes, making it suitable for mass production. Widely used in power distribution modules of industrial machinery: the rear-panel mounting method saves internal equipment space, and the press-fit connection reduces the risk of circuit failures.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
13A
|
300V
|
300V
|
18
|
1
|
||
|
4
|
9A
|
300V
|
300V
|
18
|
1
|
||
|
5
|
9A
|
300V
|
300V
|
20
|
0.5
|
||
| MC78NF-06R2LDLNS1801 |
6
|
9A
|
300V
|
300V
|
20
|
0.5
|
|
| Core | 3 | 4 | 5 | 6 |
| Male |
|
|
|
|
| Core | 3 | 4 | 5 | 6 |
| Female |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
