Core Count : 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P
Category : Female
Installation Method : Plug-in type
Direction : 90°
Applications : Power, Signal

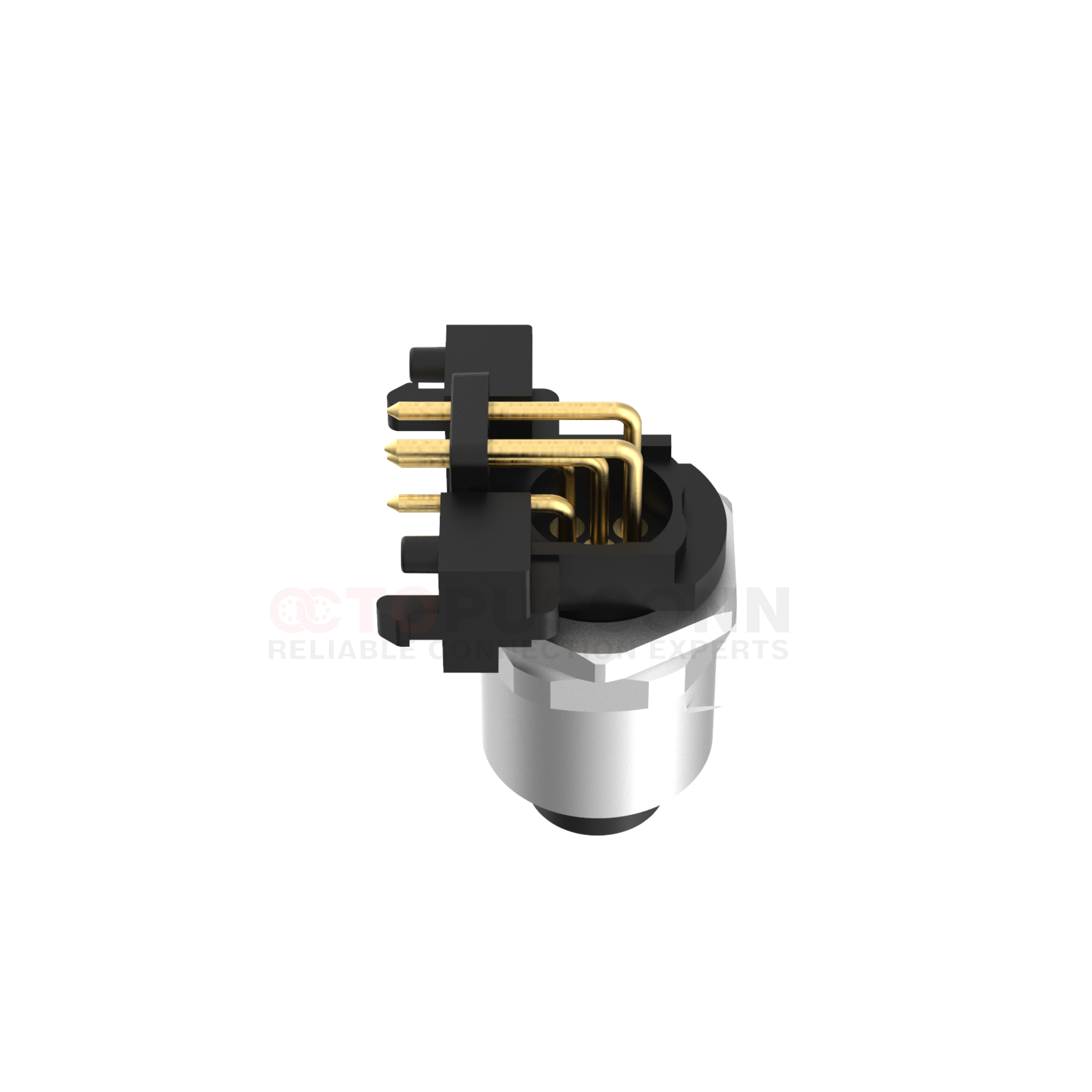

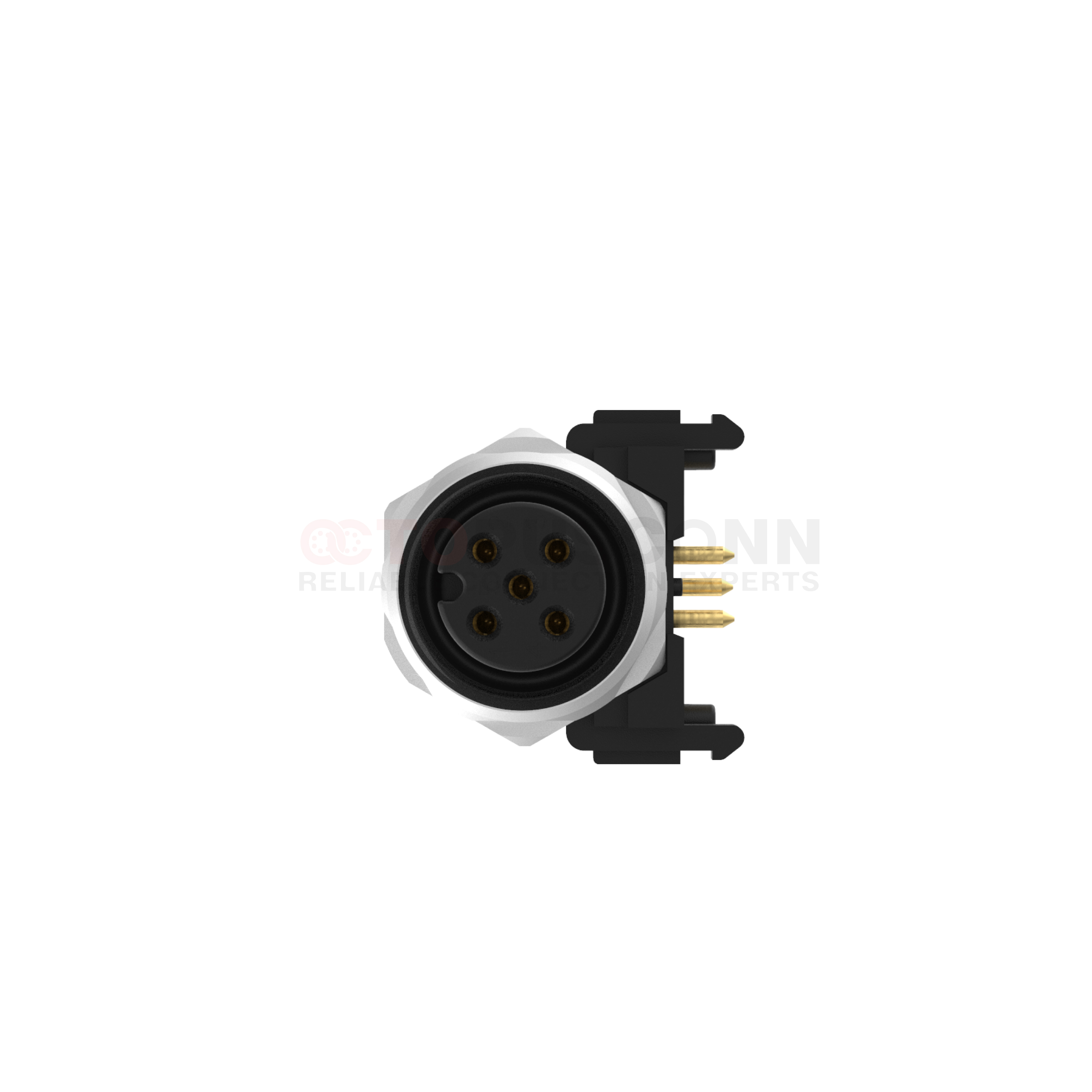

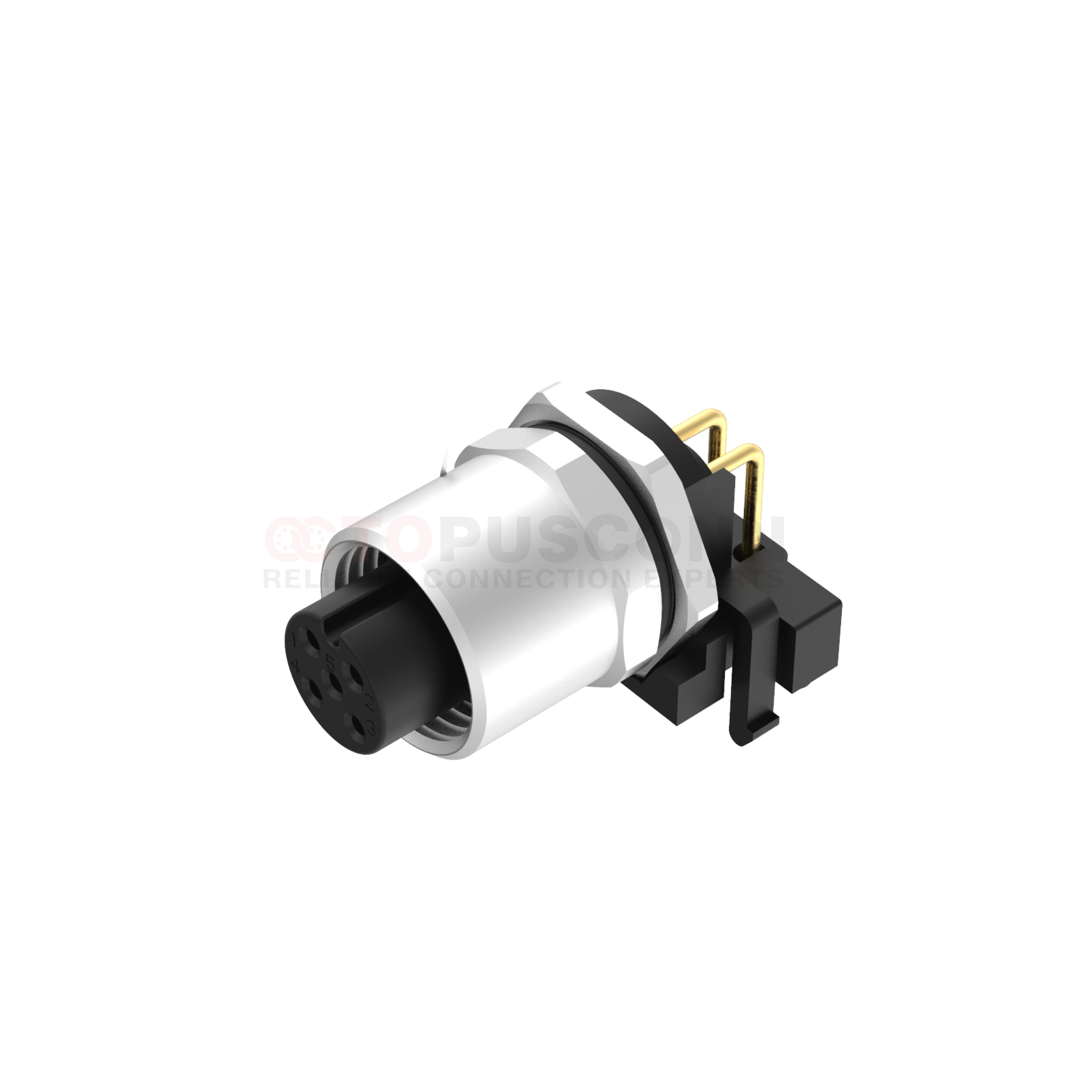

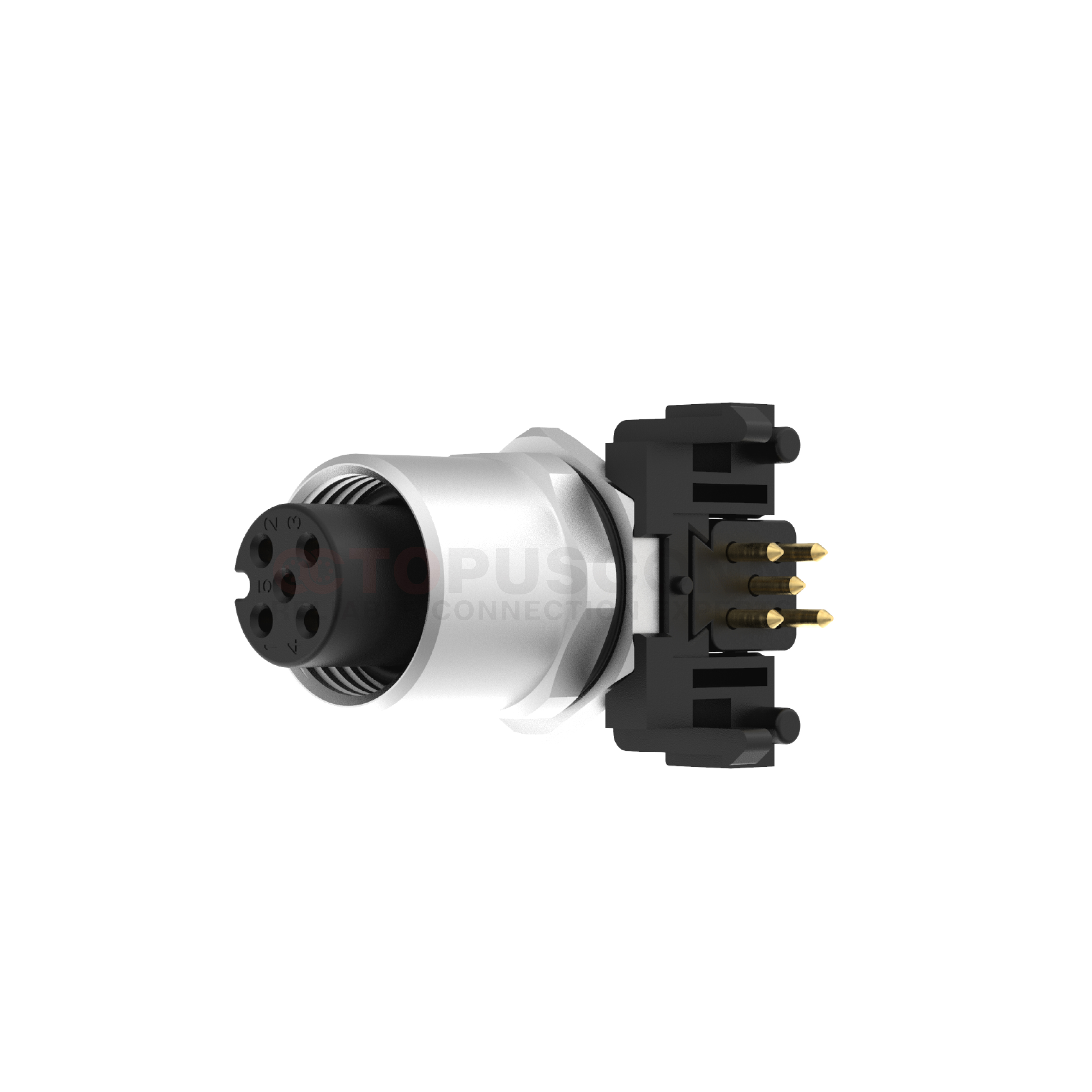

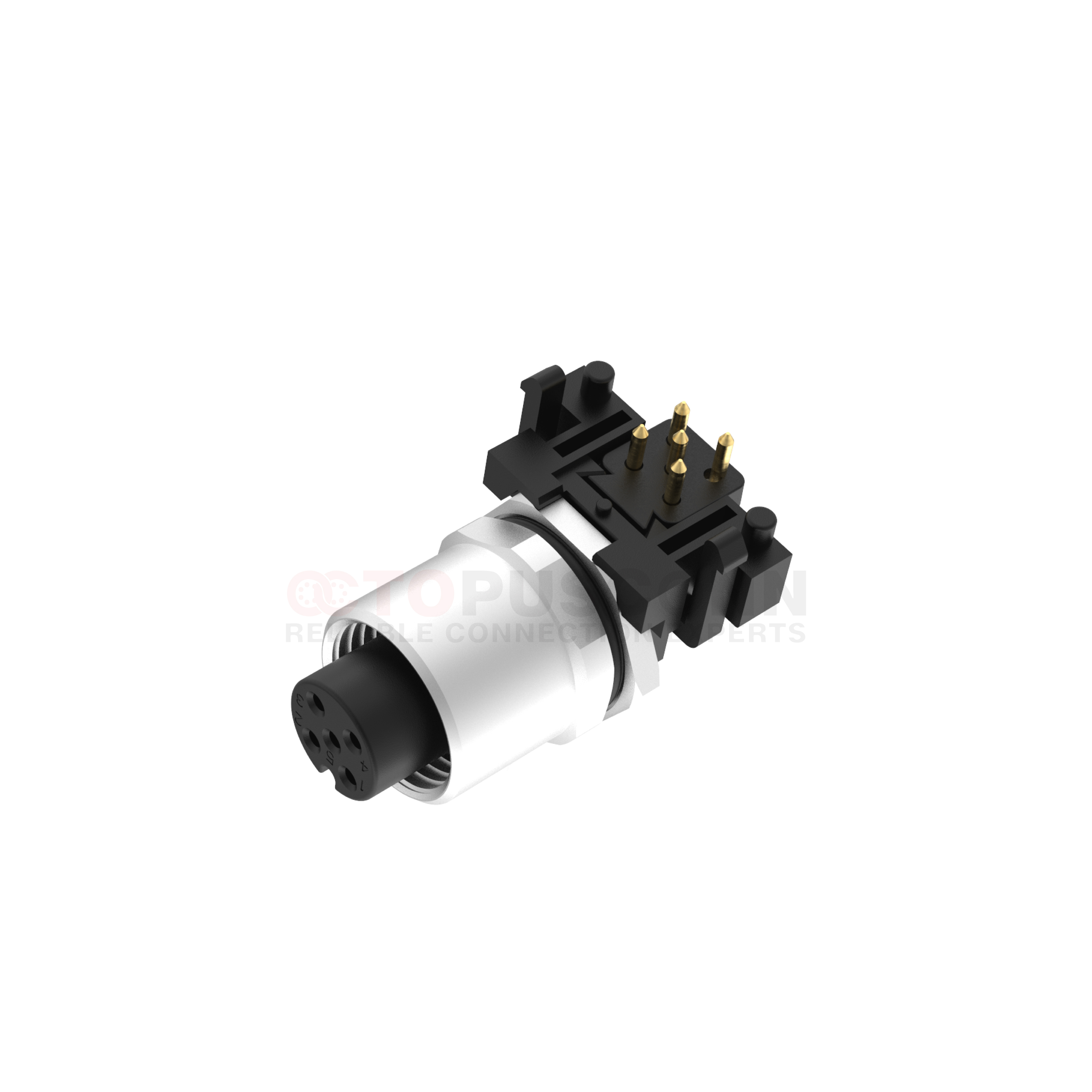

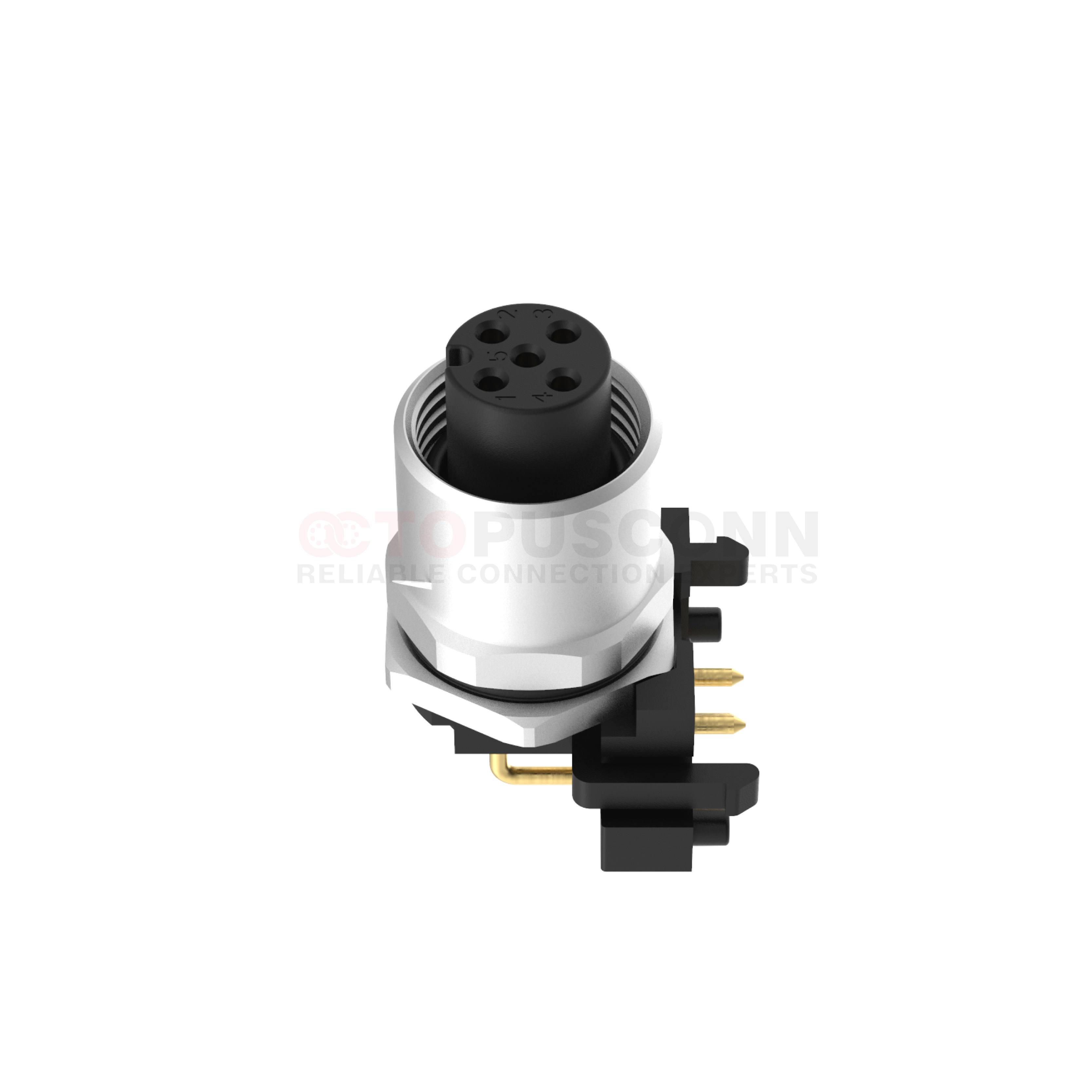

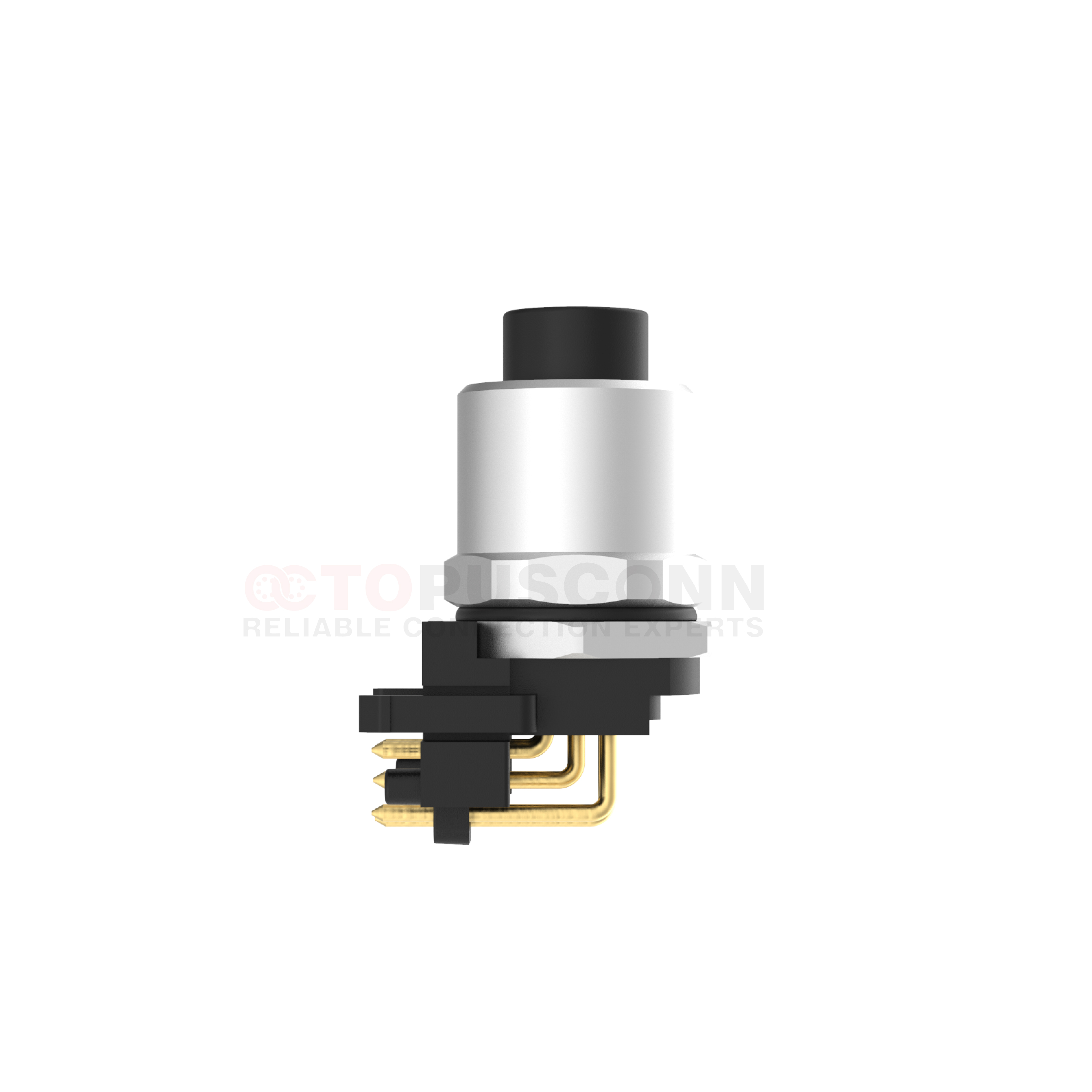

90-degree plug without shielding:
Installation and design: It is installed behind the board, compatible with PCB board connection, and equipped with a 90-degree elbow structure. This allows the cable to extend along the natural arc, avoiding the "hard bend" problem when using straight connector wiring. In scenarios with dense wiring such as control cabinets and sensors, it can save a lot of installation space. The connection form of the plug ensures the stability of the connection with the circuit board, without the need for complex fixation procedures. Without shielding design: Different from the shielded model, it eliminates the metal shielding layer and other structures, resulting in a smaller overall size and lower cost. However, it is only suitable for ordinary industrial environments with low electromagnetic interference and is not suitable for complex scenarios with strong electromagnetic interference such as around high-power equipment. This connector meets the basic connection requirements in the field of industrial automation and is commonly used in scenarios such as wiring of sensors and brakes, internal wiring of ordinary control cabinets, signal transmission of hydraulic machines, and connection of temperature transmitters.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AF-02U2LDLNR101 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-03U2LDLNR101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-04U2LDLNR101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-05U2LDLNR101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AF-06U2LDLNR101 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-08U2LDLNR101 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-12U2LDLNR101 |
12
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
