Core Count : 3P, 4P, 5P
Category : Female
Applications : Power, Signal

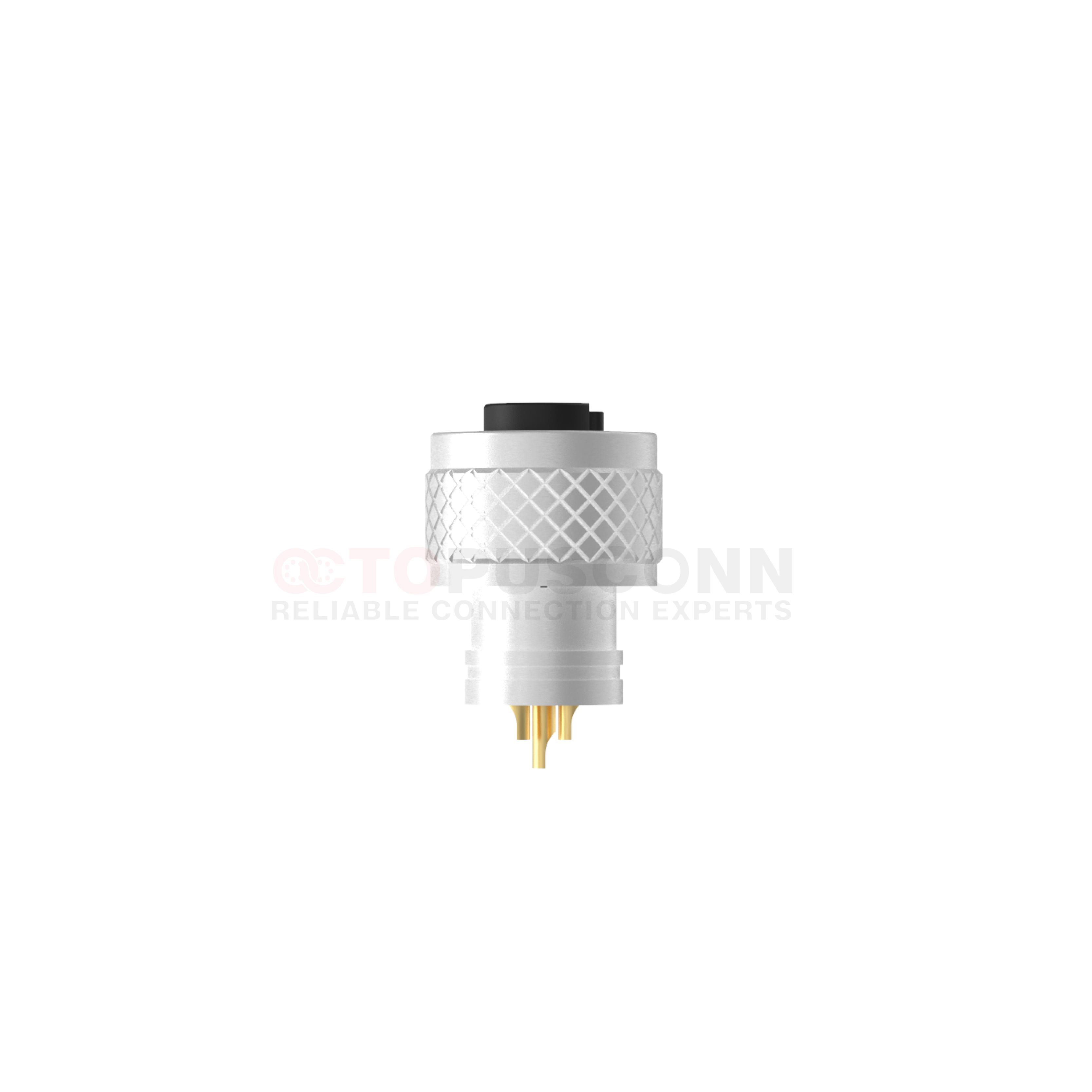

Standard rubber-coated soldered connection:
It is a connection component that uses M12 specification connecting threads, has B-code anti-misinsertion function, and adopts the rubber coating process at the connection part between the connector and the cable. It is mainly used for the transmission of low-speed bus signals in industrial environments, such as RS485, CAN bus signals, etc., and is suitable for scenarios such as industrial control cabinets. The appearance includes straight type and 90-degree elbow types. The rubber-coated part generally uses materials such as TPU, which can enhance the firmness of the connection between the connector and the cable, improve tensile and bending resistance performance, and also have certain waterproof and dustproof functions. Cable options: Products with or without cables can be selected. Cable types include PVC cables, PUR cables, etc. The colors are usually black, yellow, gray, etc. The cable length can be determined according to the user's requirements.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BF-03U5LSLSS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BF-04U5LSLSS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BF-05U5LSLSS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
