Core Count : 3P, 4P, 5P
Category : Male
Direction : 180°
Applications : Power, Signal

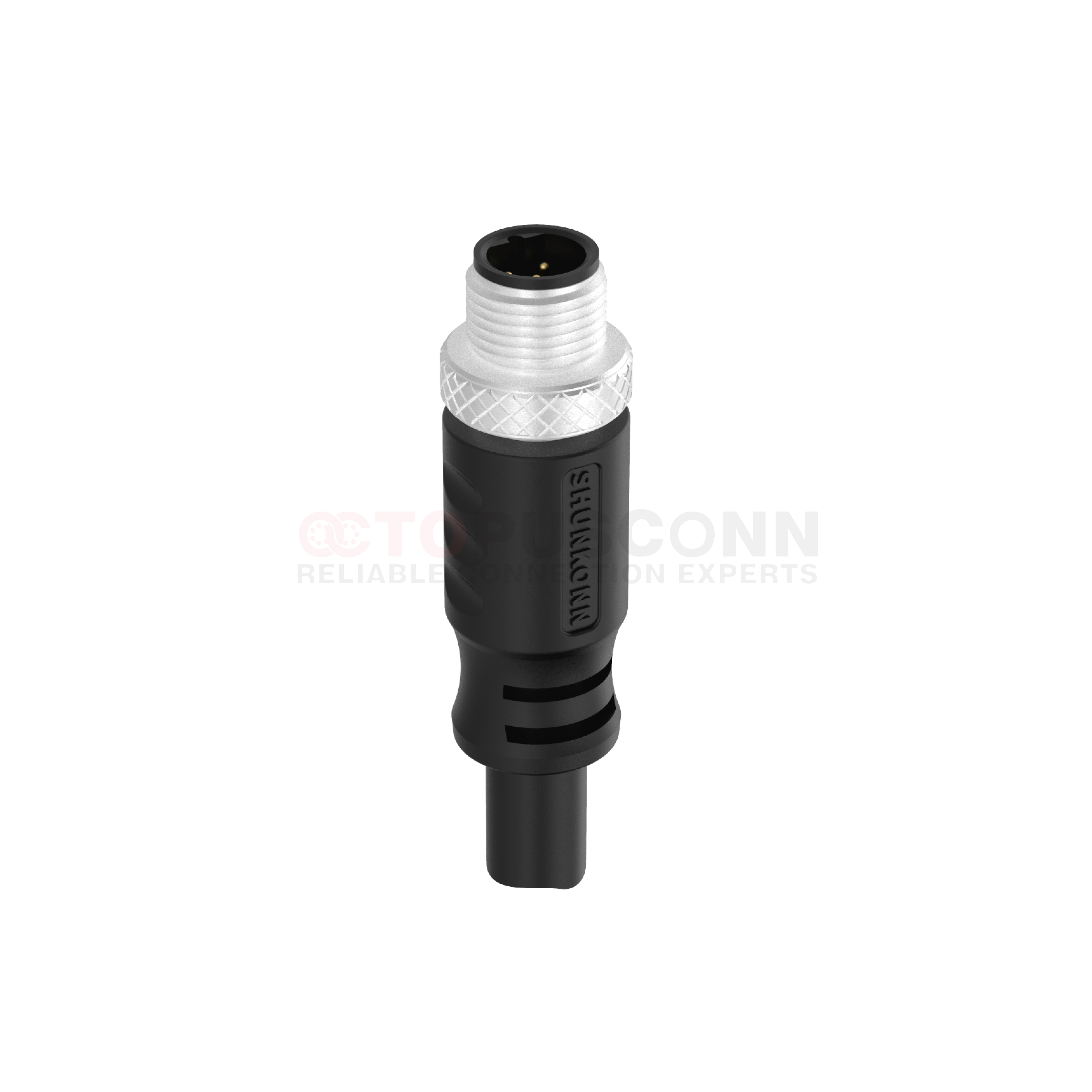

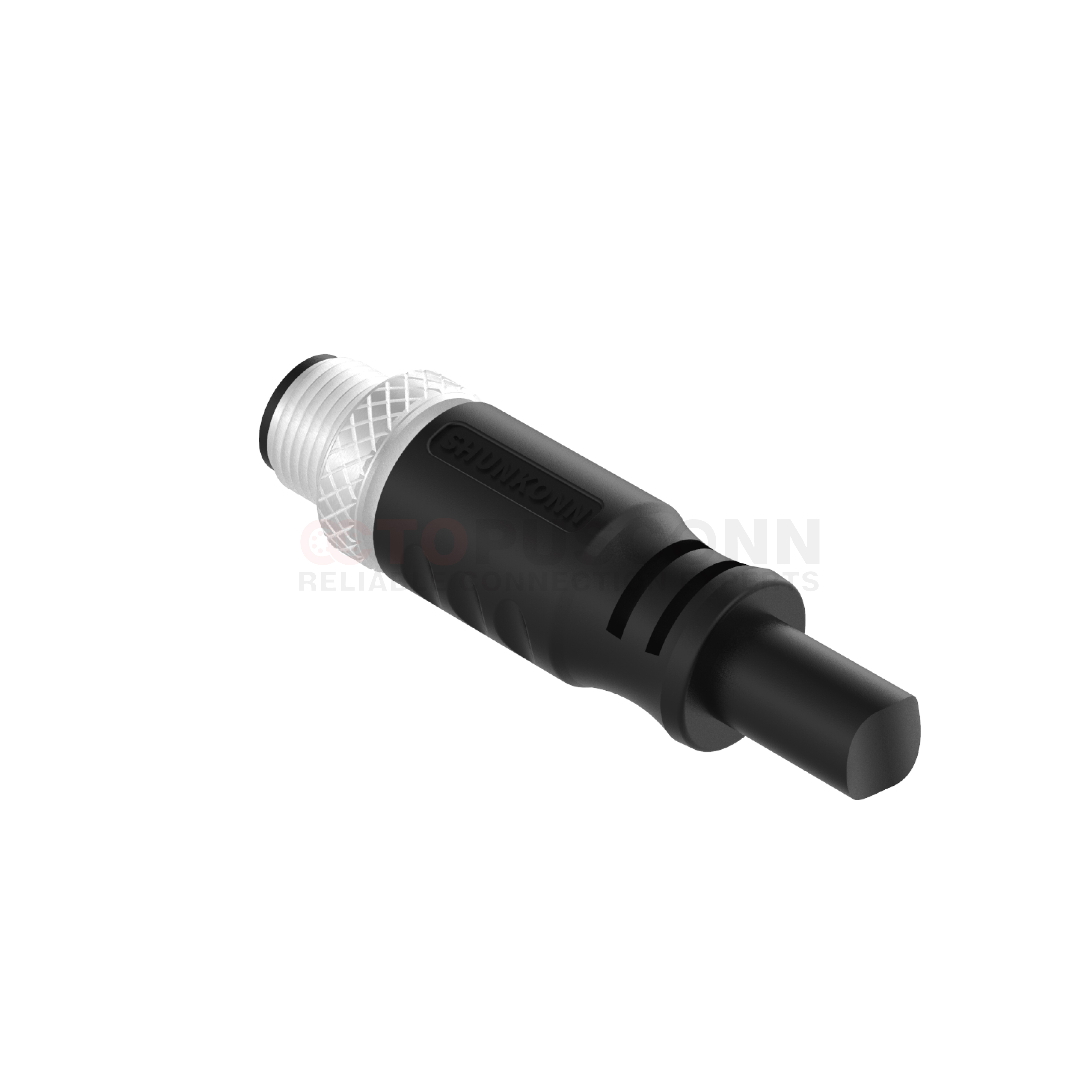

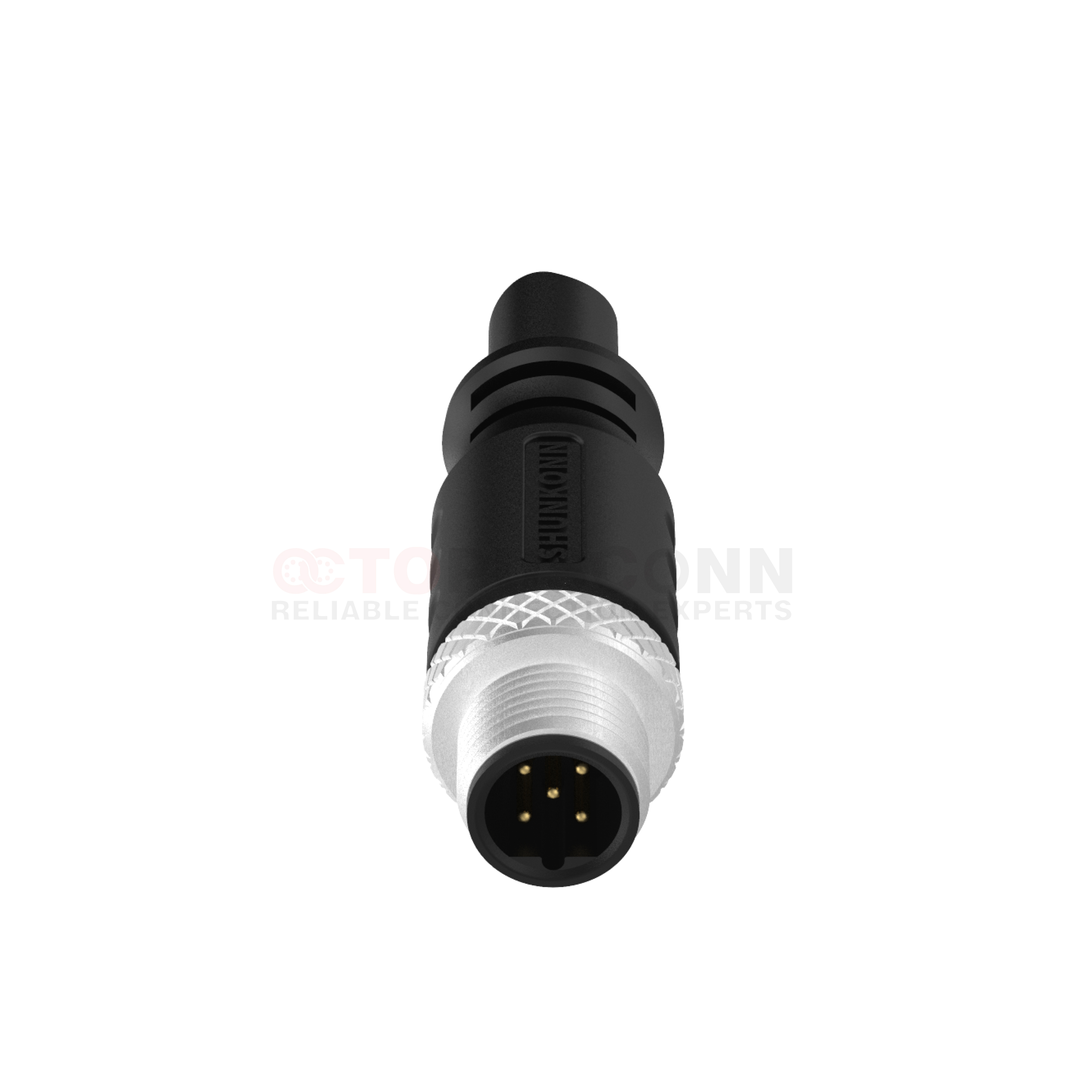

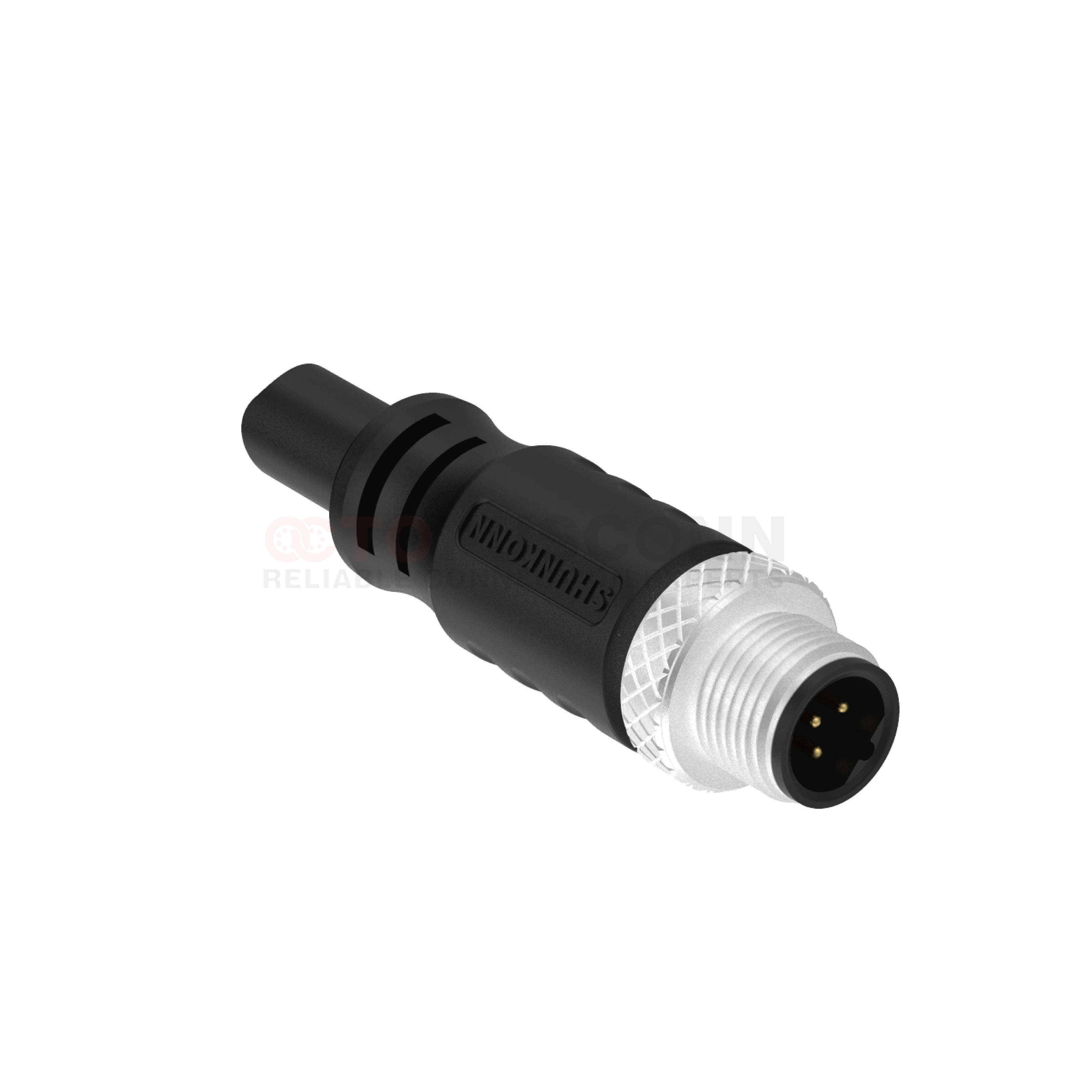

Vertical rubber-coated precast cable: Rubber coating + Vertical structure: Adopting a vertical (straight) design, the cables are arranged in a straight line with the connectors, suitable for installation scenarios without space limitations such as equipment surfaces and conventional junction boxes, avoiding cable bending and distortion; it can prevent water and dust from entering the interface, while enhancing the connection strength between the cable and the connector, preventing disconnection due to pulling. Environmental and mechanical properties: The protection level is generally up to IP67, and some models suitable for harsh environments can be higher, capable of coping with industrial dust, humidity and short-term immersion in water. Working temperature is generally within -40°C to 85°C. It is commonly used for signal connections of equipment such as sensors, actuators and PLC, industrial cameras, etc. in industrial automation production lines.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-035222ABSEP100B01 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-045222ABSEP100B01 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-055222ABSEP100B01 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
