Core Count : 3P, 4P, 5P
Category : Male
Direction : 90°
Applications : Power, Signal

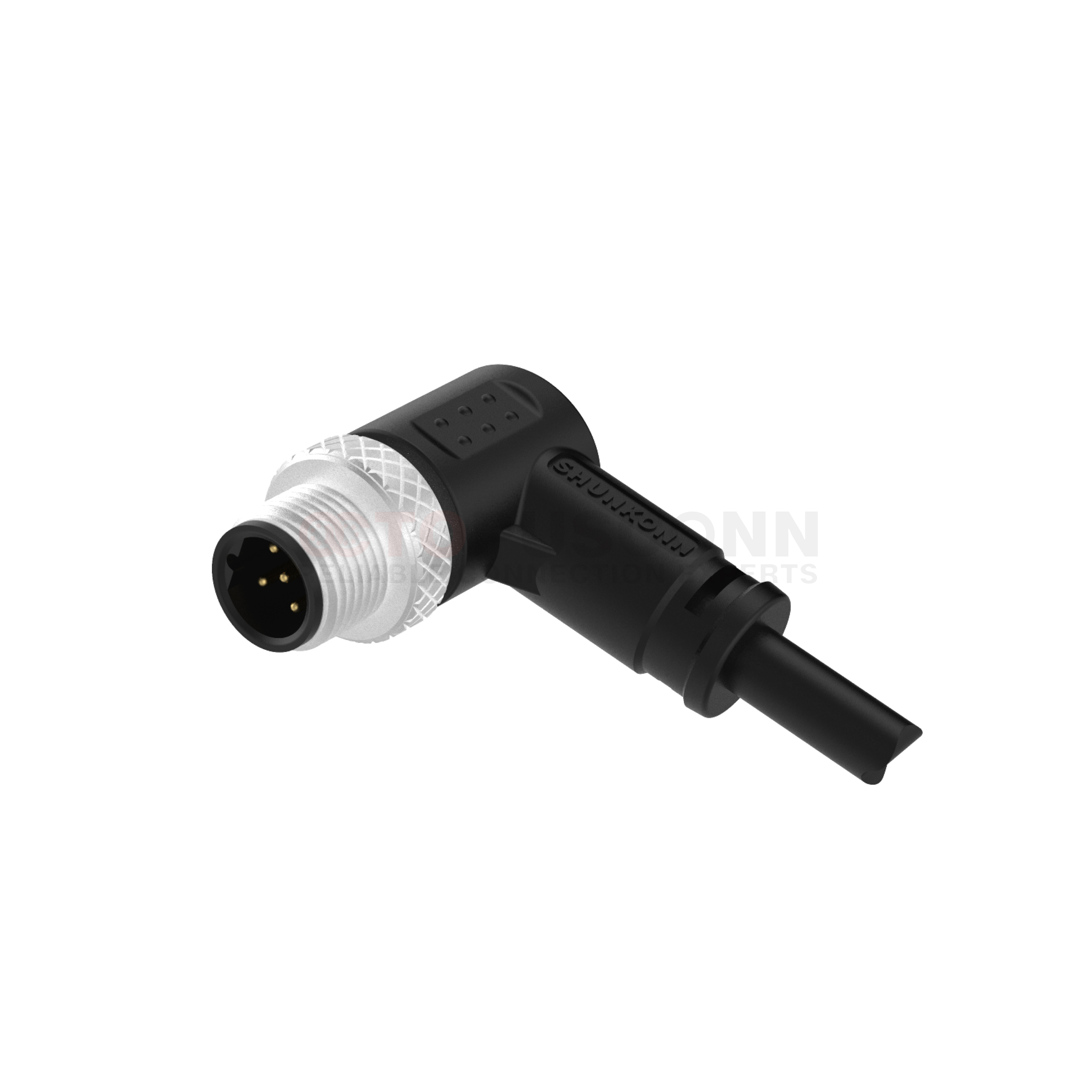

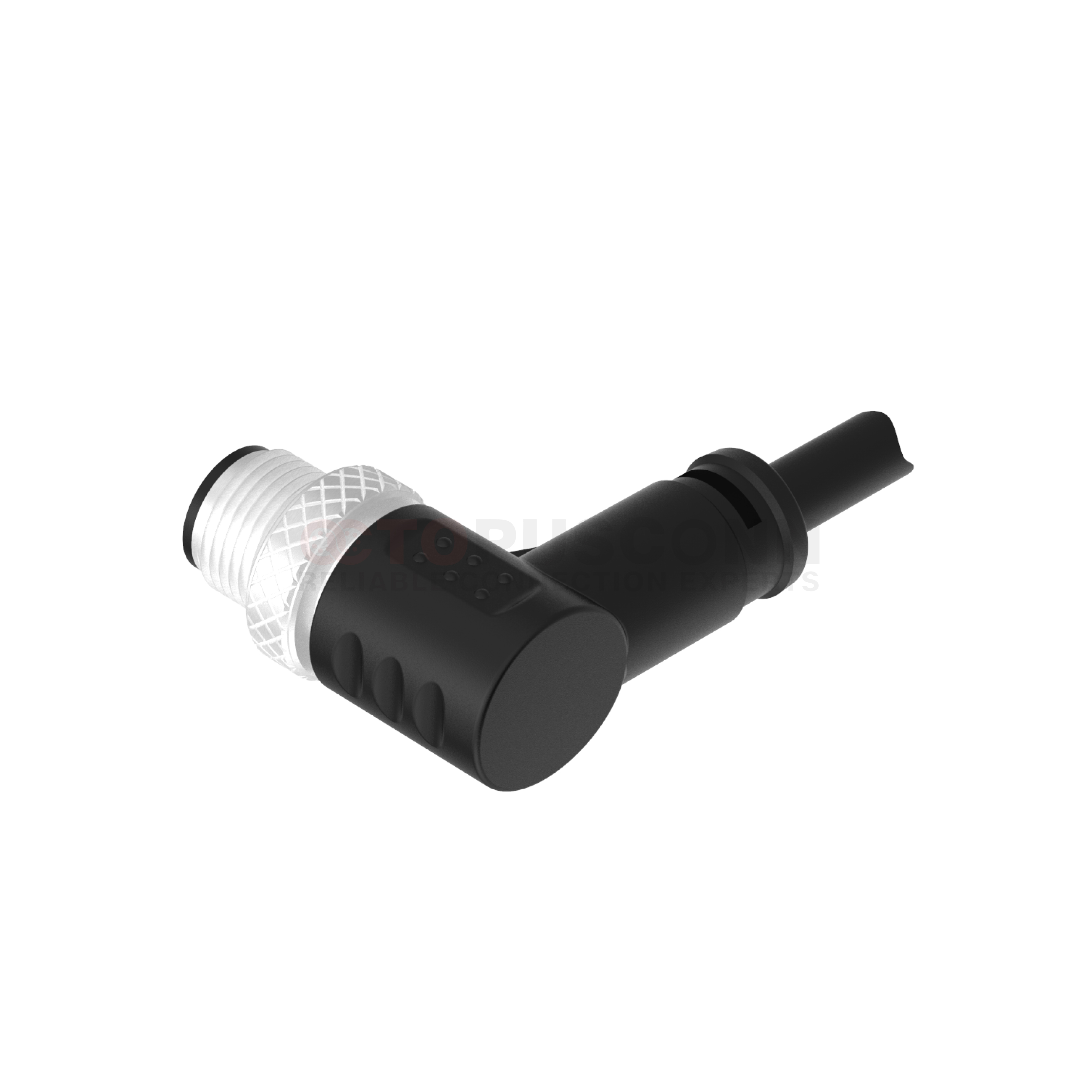

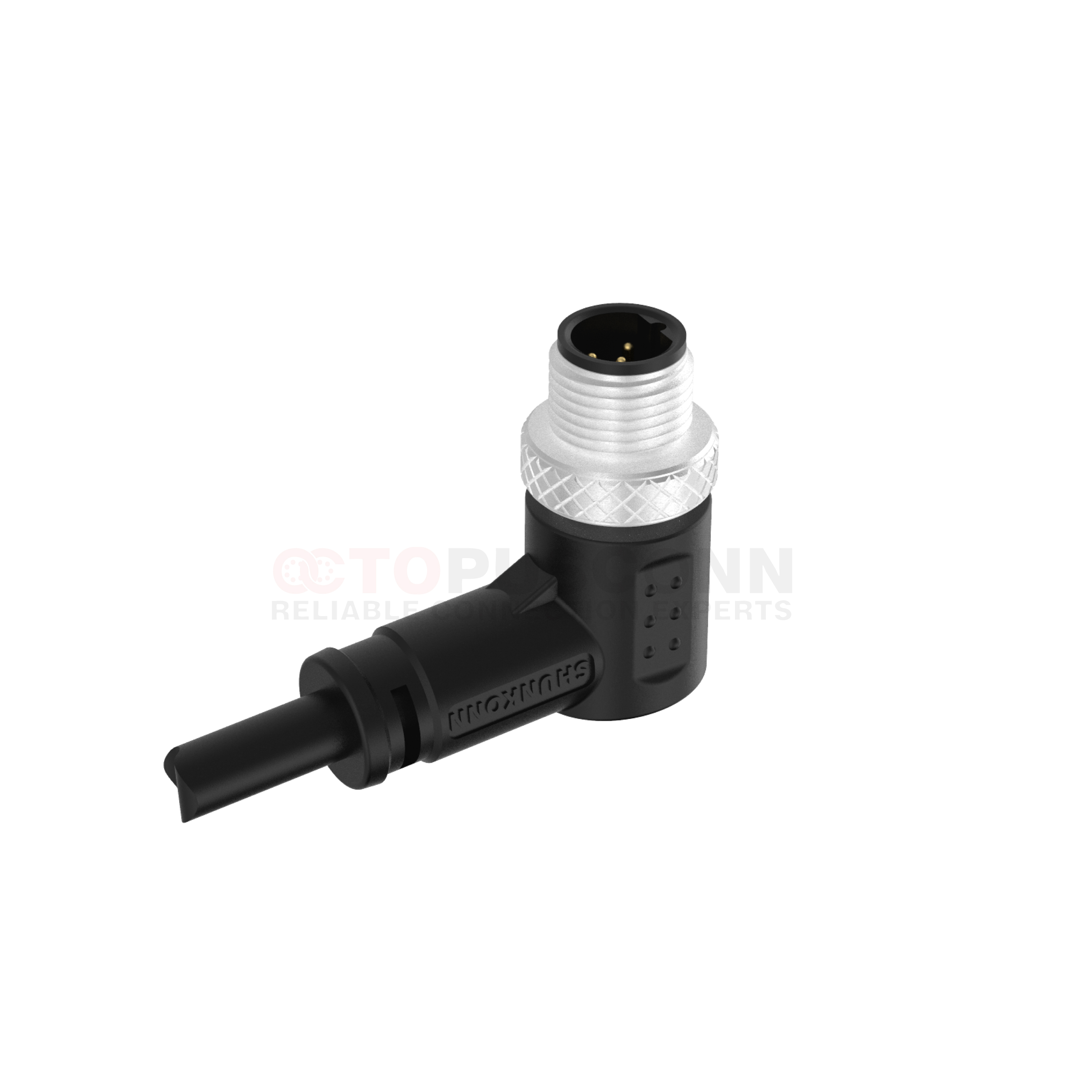

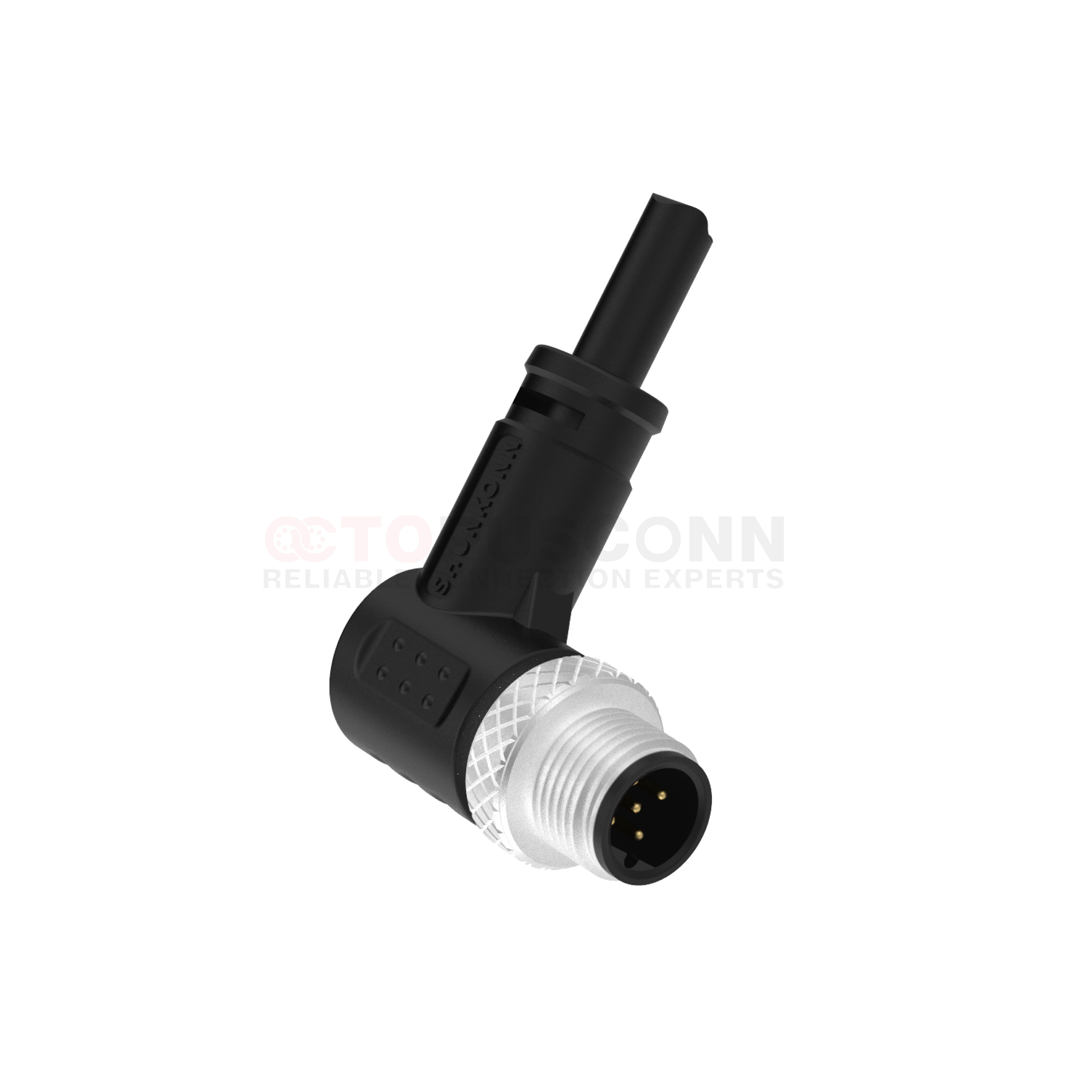

90° Rubber-Coated Molded Preformed Cable:
90° Curved + Rubber-Coated Molded Structure: The 90° curved design enables the cable to make a right-angle turn, which is particularly suitable for spaces with limited access such as equipment corners, densely wired areas, and small junction boxes, preventing the cable from being damaged due to excessive bending. The rubber-coated molding adopts an integrated injection molding process, encapsulating the connector and the cable interface with a special material, which not only enhances the tensile strength at the interface to prevent the cable from falling off, but also prevents dust and liquids from entering. It is also equipped with an M12×1 threaded locking structure, featuring vibration resistance, ensuring connection stability. Environmental and Mechanical Performance: The protection level is excellent, with mainstream reaching IP67, capable of withstanding harsh conditions such as high-pressure flushing, humidity, and high dust content; the working temperature range is typically -40°C to 85°C, widely used in the industrial automation field, being a common connection cable for sensors, actuators, PLCs, industrial cameras, etc., and suitable for packaging machinery, logistics automation equipment, small robots.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-035222ABREP100B01 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-045222ABREP100B01 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-055222ABREP100B01 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
