Core Count : 3P, 4P, 5P
Category : Female
Direction : 180°
Applications : Power, Signal

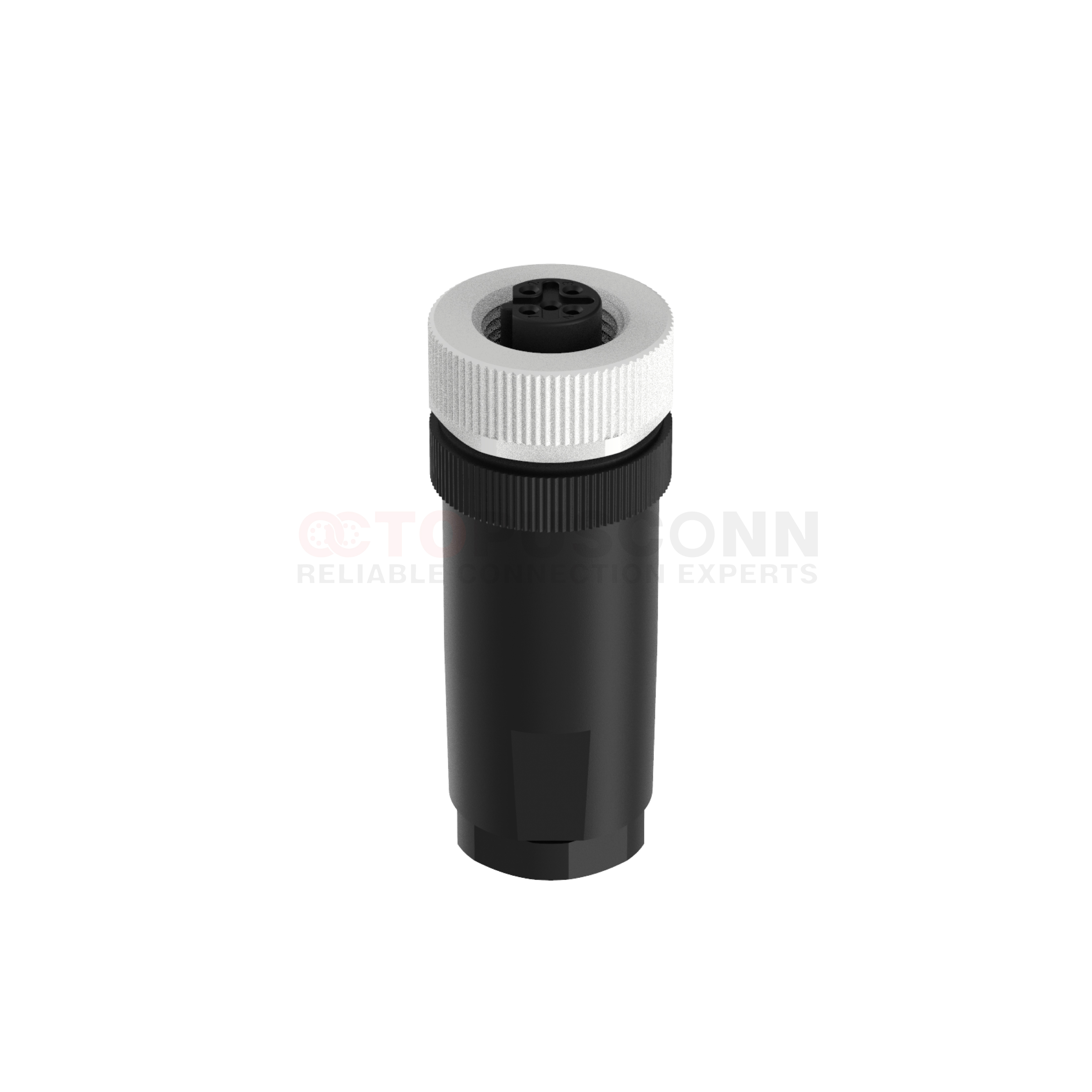

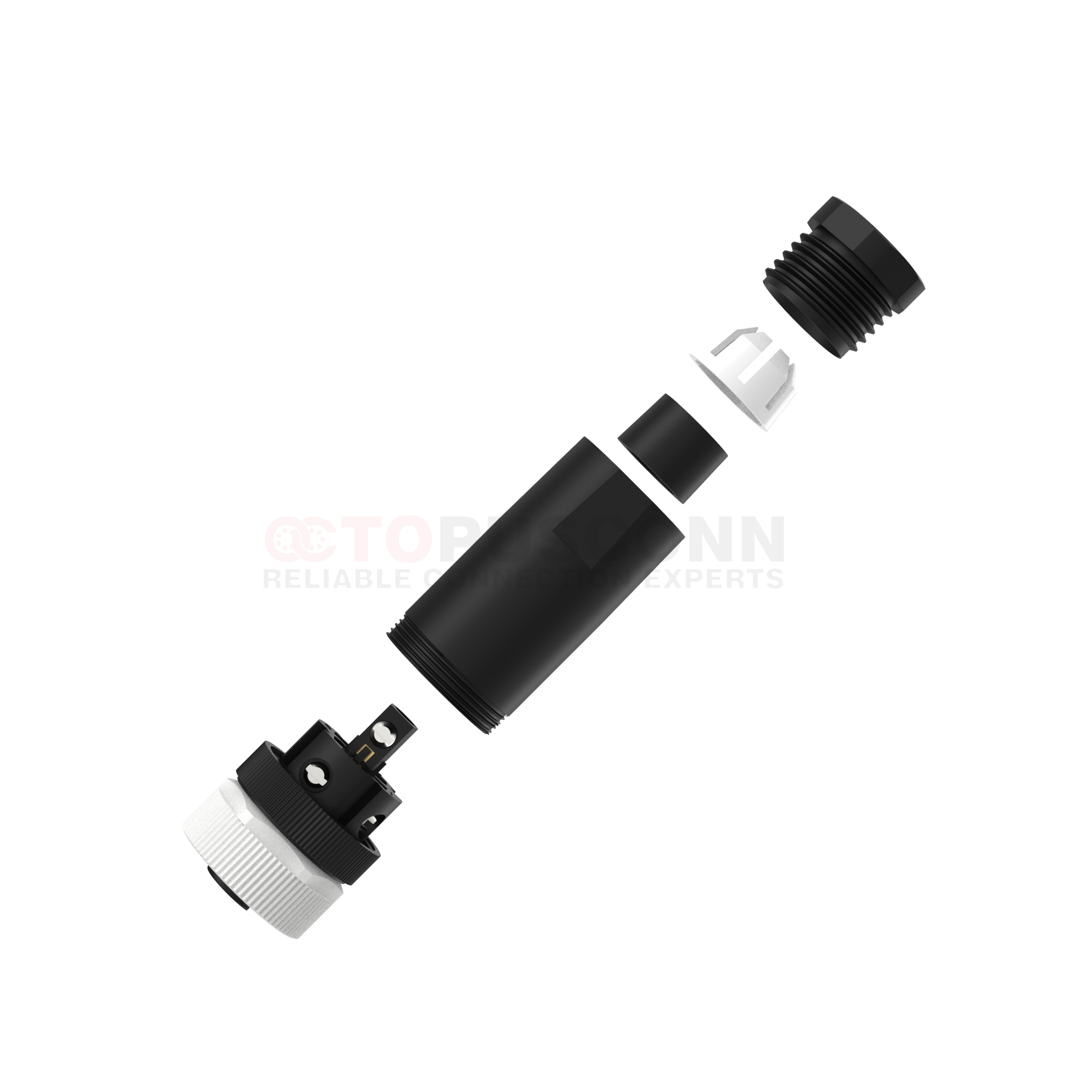

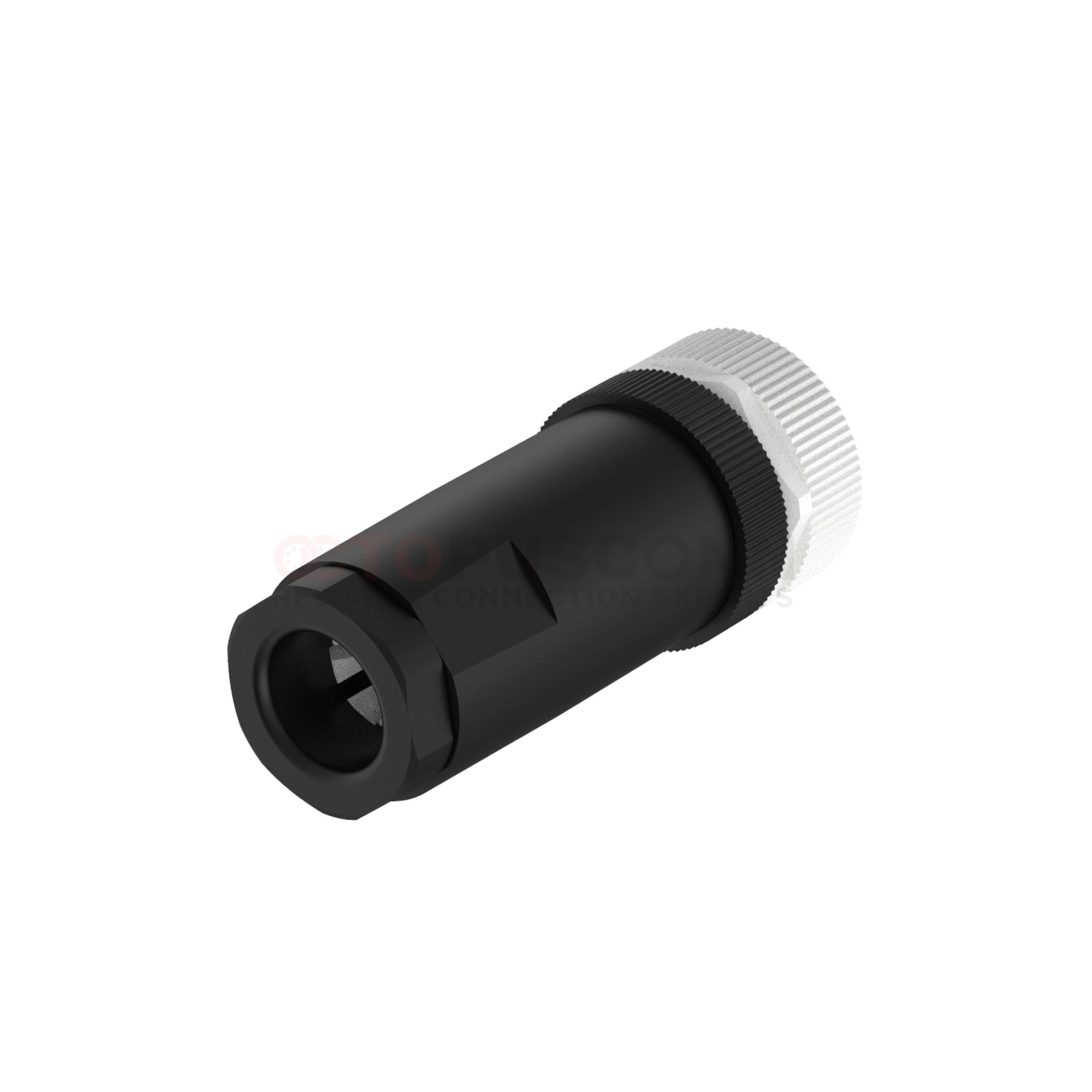

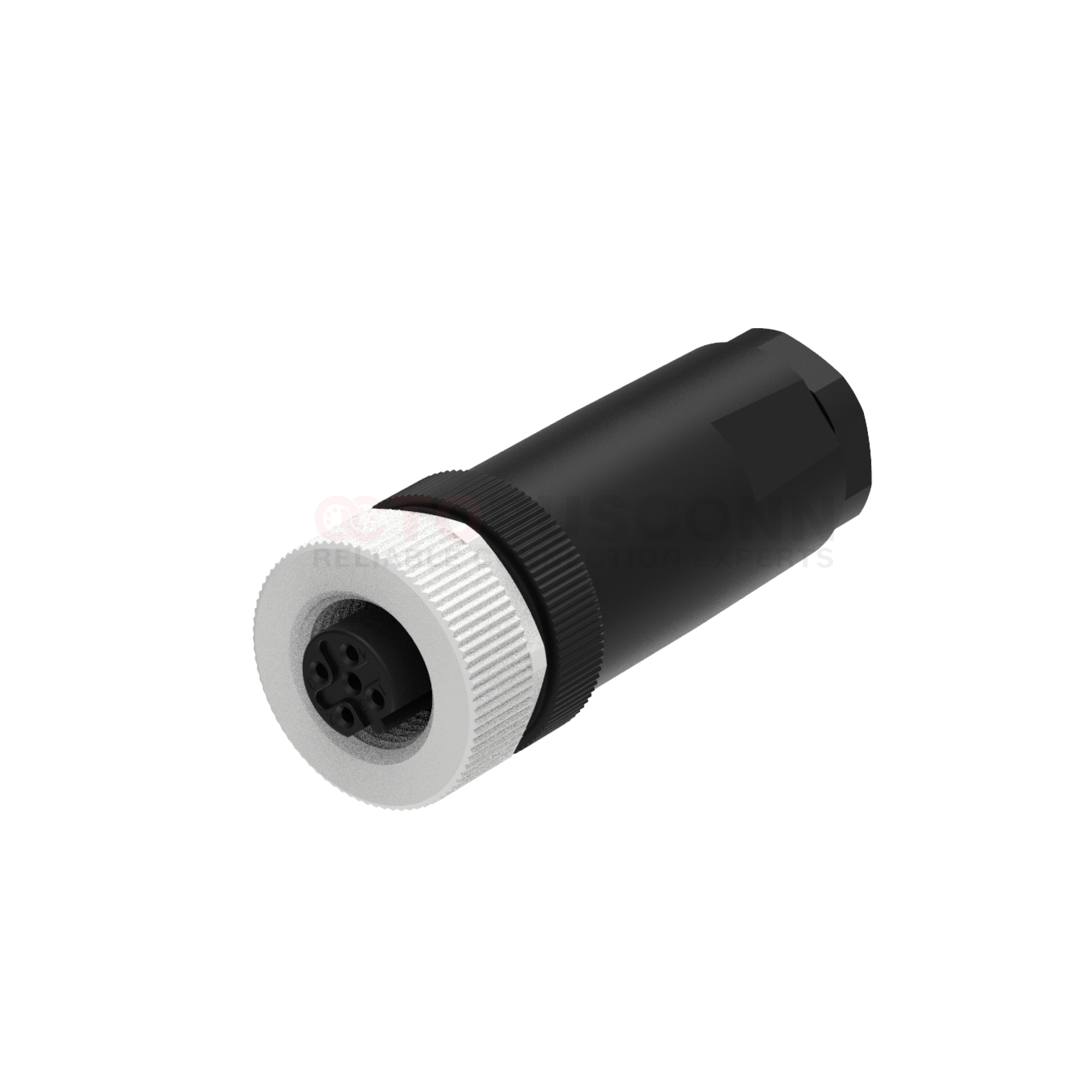

Plastic assembly with straight screw design:
Straight + screw assembly design: The straight structure enables the cables to be directly connected and laid out in a straight line, suitable for scenarios where there are no space limitations such as equipment surfaces and conventional junction boxes. During plugging and connecting, simply align the direction and it can be operated easily. The wiring is clamped using a screw, no welding is required, and the on-site assembly is convenient. If it needs to be disassembled later due to equipment maintenance or line adjustment, the operation is also very simple. Moreover, the screw locking can cope with slight vibrations in industrial scenarios, reducing the problem of poor contact. Environmental and mechanical performance: The protection level is mostly IP67, capable of handling industrial dust, humidity, and short-term immersion in water; the working temperature range is generally -40°C to +85°C. It is widely used in the industrial automation field, often used to connect sensors, actuators and other equipment, and is compatible with PROFIBUS bus systems. It is very common in signal transmission lines of ordinary intelligent manufacturing lines, packaging and printing equipment, industrial instruments and meters.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BF-03U1LJZNS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BF-04U1LJZNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BF-05U1LJZNS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
