Core Count : 3P, 4P, 5P
Category : Male
Direction : 90°
Applications : Power, Signal
Full metal bent assembly screw type:

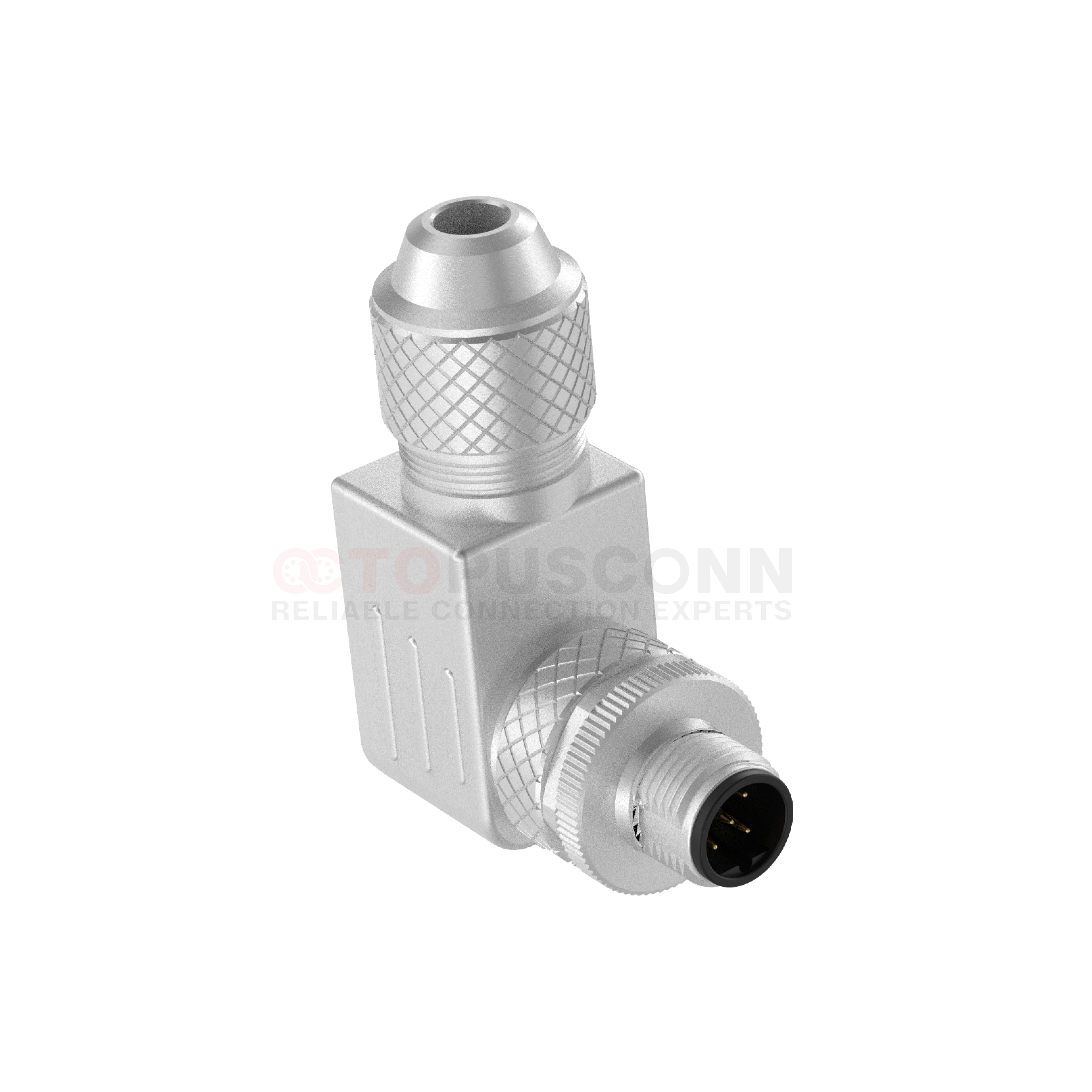

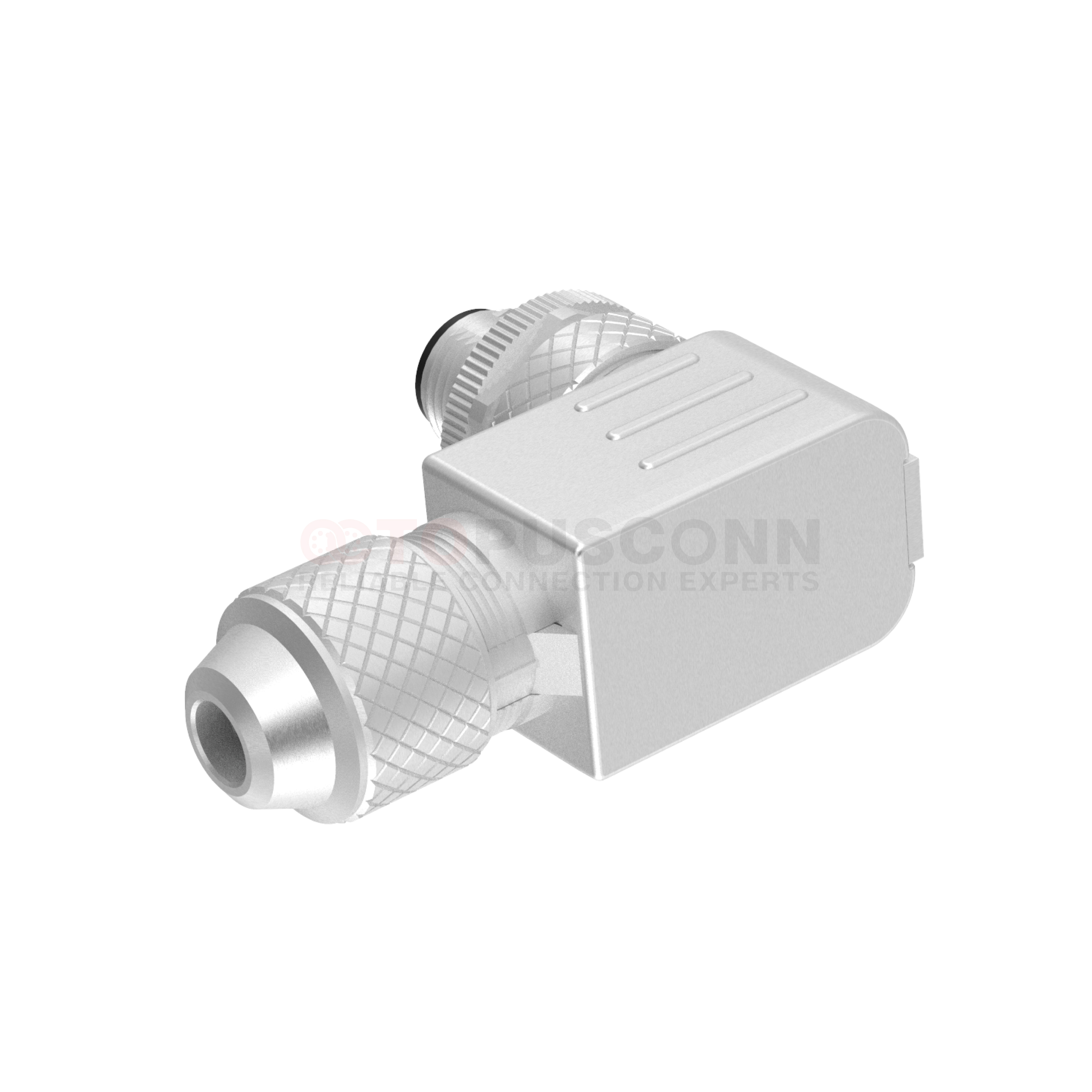

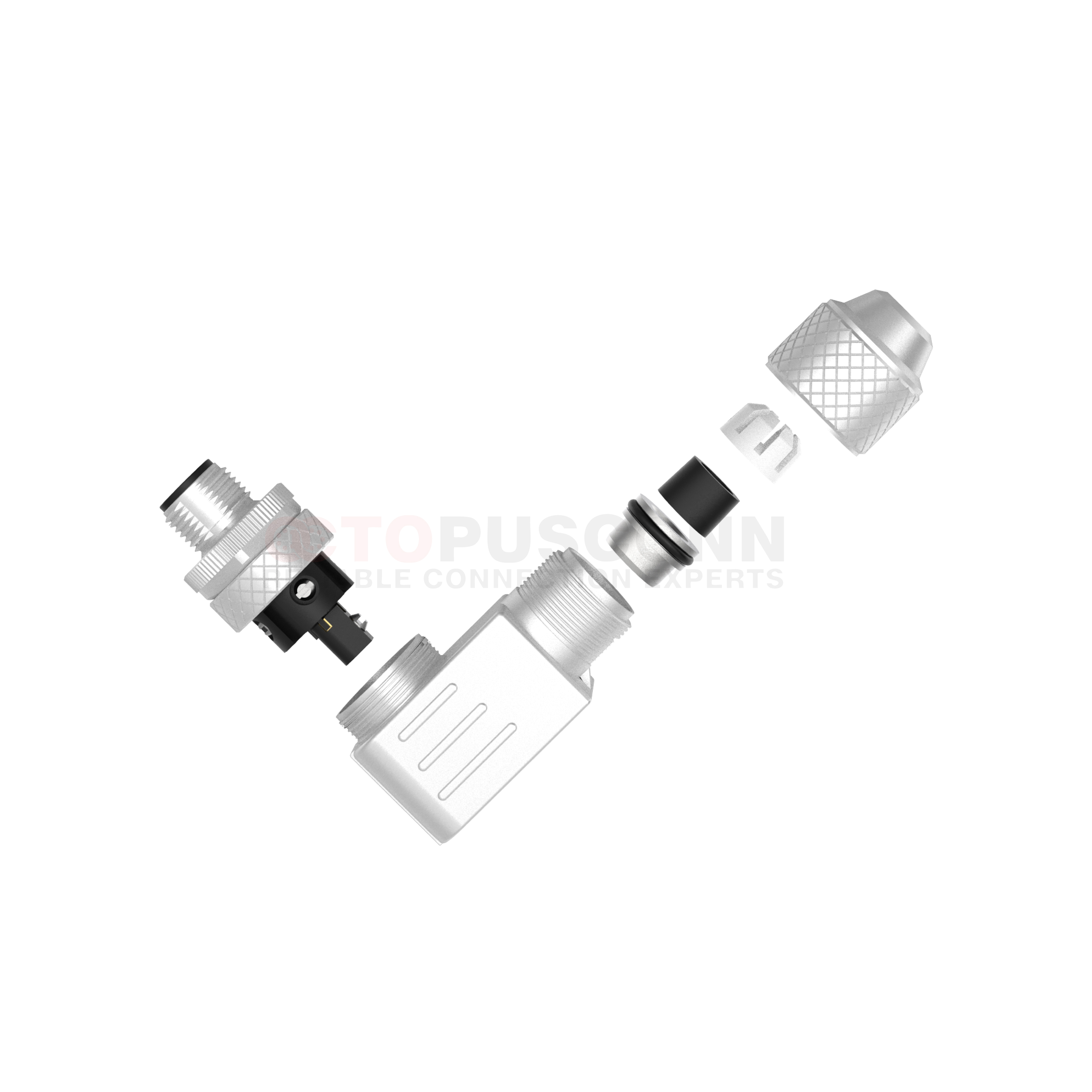

Full metal protective housing: The housing is mostly made of copper-plated nickel material, which not only enhances the resistance to wear and corrosion, but also enables 360° electromagnetic compatibility shielding, reducing the impact of electromagnetic interference in industrial environments on signal transmission. The housing and locking components take into account both protection and shielding. Bent + screw type design: The bent (right angle) structure allows the cable to make a 90° bend for wiring, which can easily adapt to space-constrained scenarios such as equipment corners and dense wiring; the assembly method supports on-site assembly, and the wiring is clamped using screws, without the need for welding. The wiring operation is convenient and the connection is firm, and it is also very convenient to disassemble and adjust during subsequent maintenance. It is widely used for connecting sensors, actuators, controllers and other devices, and is compatible with fieldbus systems such as PROFIBUS and Interbus. It is commonly used in intelligent manufacturing lines, robot equipment, factory automation control systems and other scenarios.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-03U4LJZSR102 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-04U4LJZSR102 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-05U4LJZSR102 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
