Core Count : 3P, 4P, 5P
Category : Male
Direction : 90°
Applications : Power, Signal

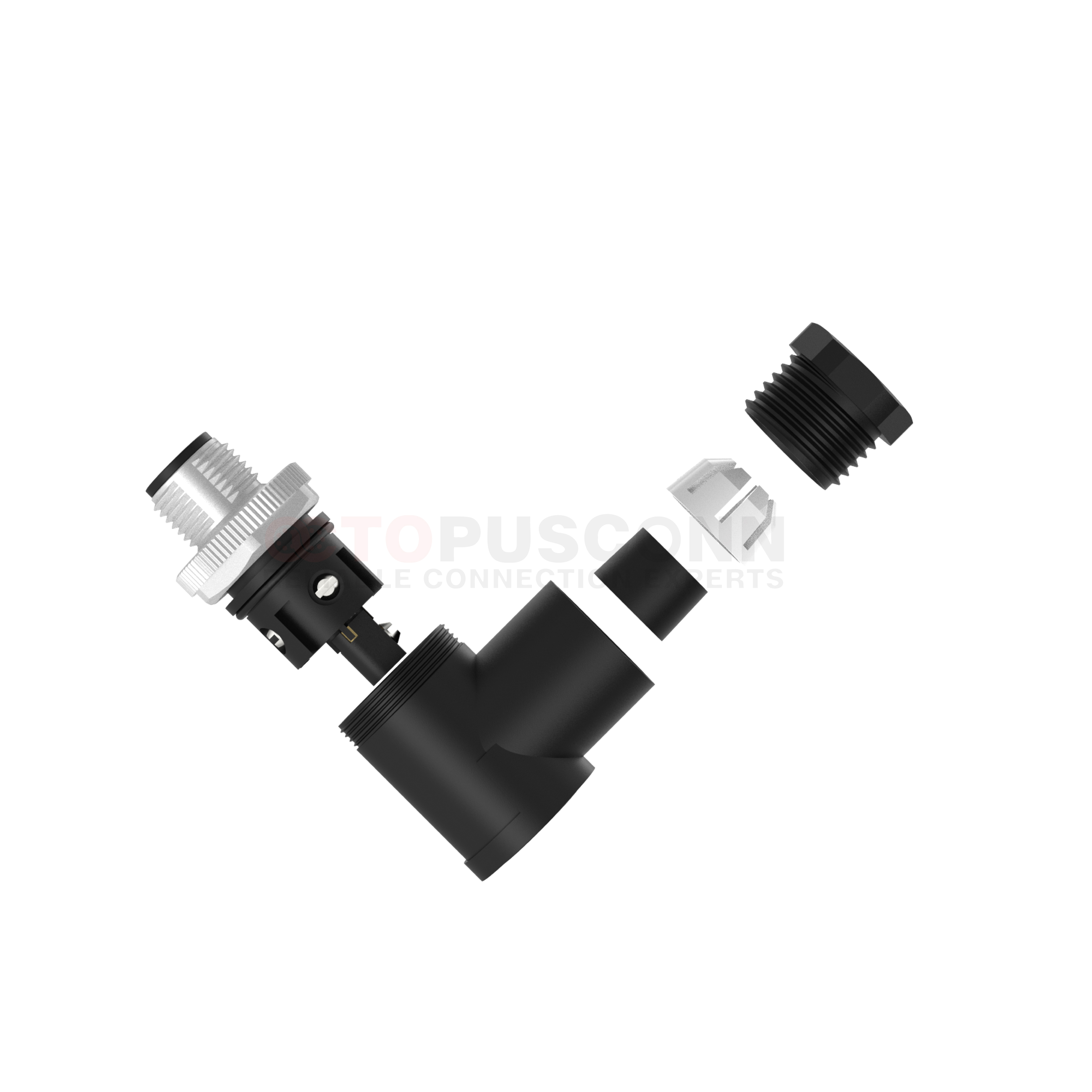

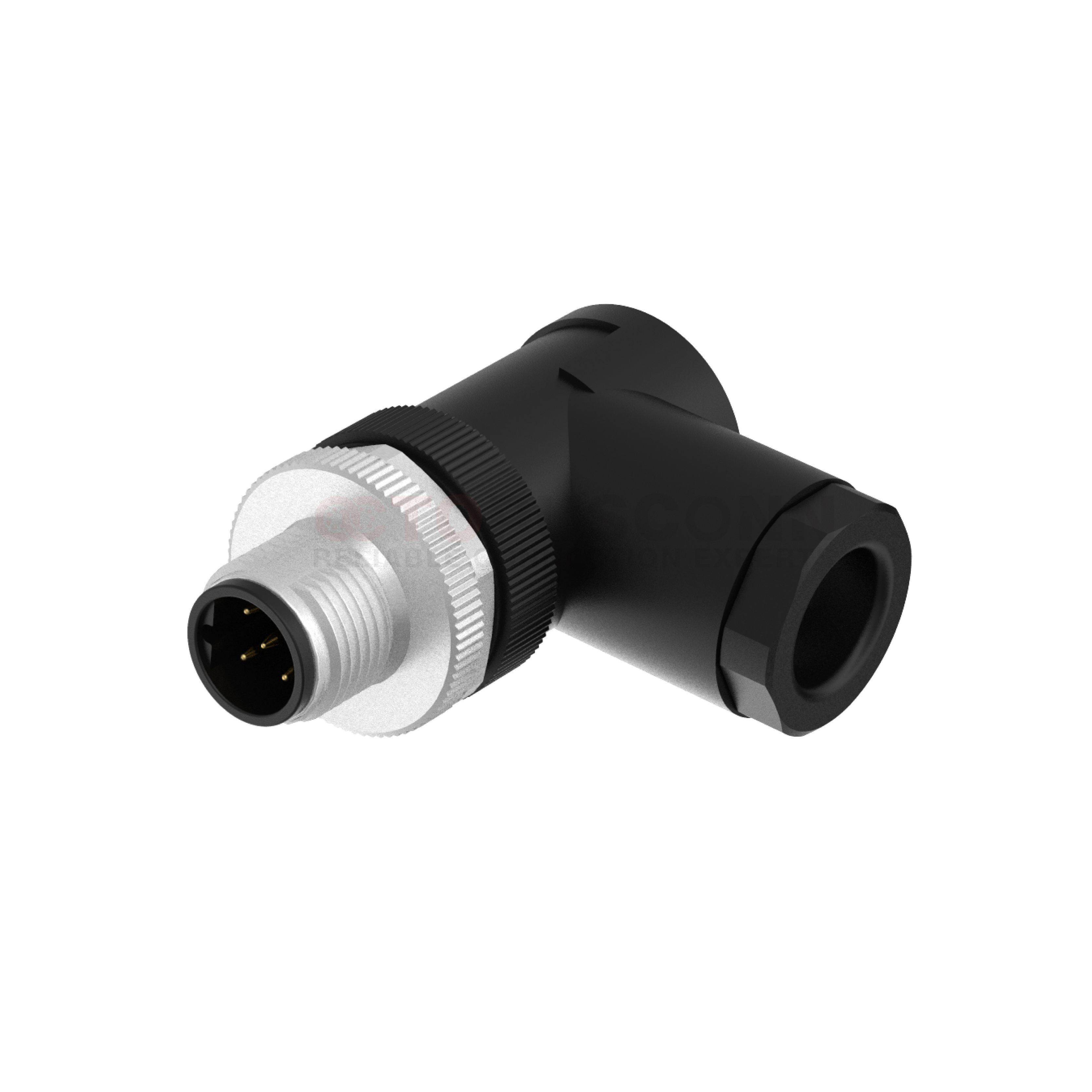

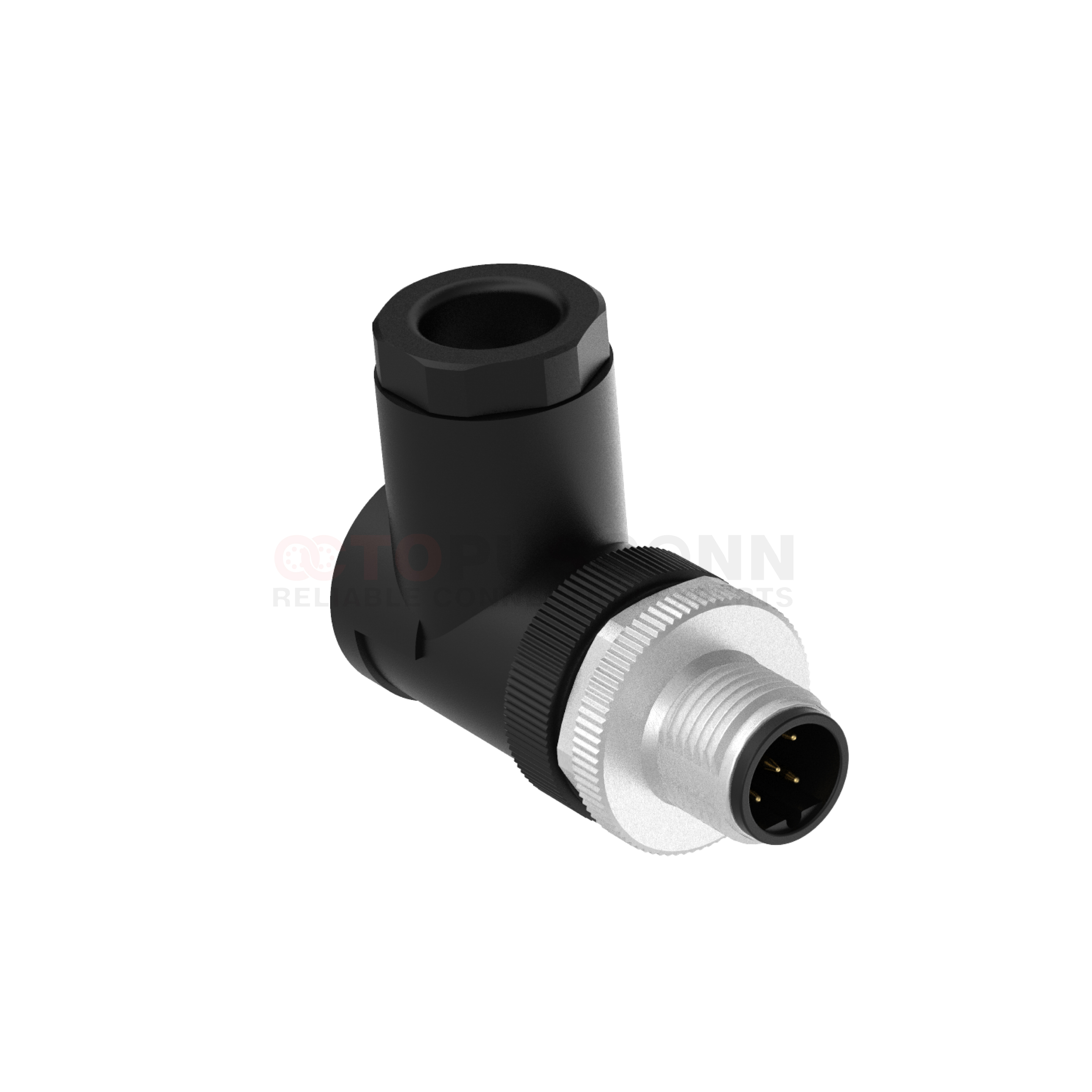

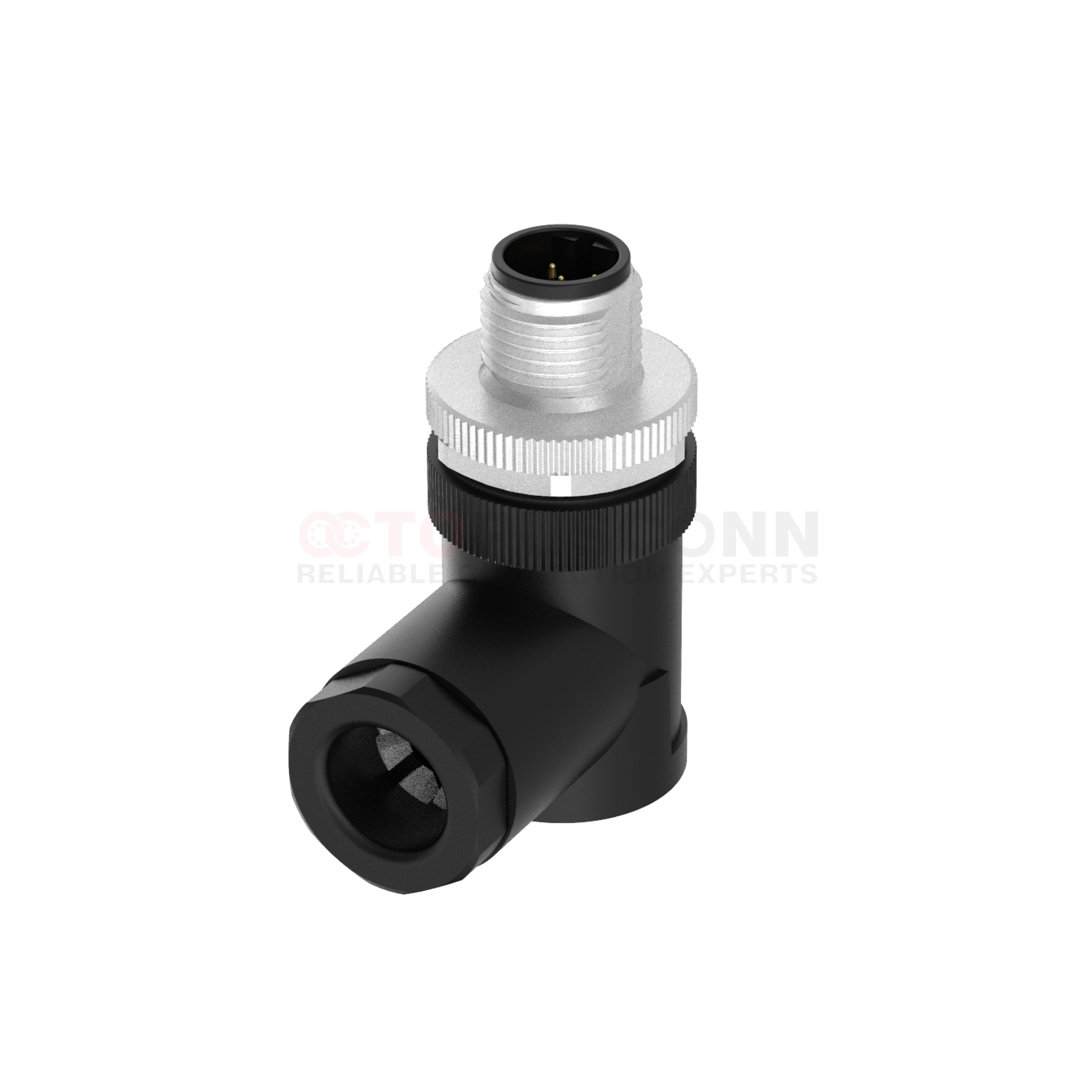

Plastic assembled bent 90° screw type:
90° bent + screw assembly design: The 90° bent structure enables the cable to make a right-angle turn for wiring, perfectly adapting to space-constrained scenarios such as equipment corners, densely wired areas, and small junction boxes. It can prevent excessive cable bending and damage. Assembly supports on-site operation. Wiring uses screw locking, no welding required. The installation process is simple, and disassembly is also convenient for subsequent equipment maintenance or line adjustments. At the same time, the screw fixation can cope with slight vibrations in industrial scenarios, reducing contact problems. Environmental and mechanical performance: The mainstream protection level is IP67, capable of handling industrial dust, humidity, and short-term immersion in water. Some plastic shell models also have certain resistance to oil and anti-cooling lubricant. In terms of working temperature, the regular models are mostly -40°C to +85°C.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-03U1LJZNR101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-04U1LJZNR101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-05U1LJZNR101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
