Core Count : 3P, 4P, 5P
Category : Male
Direction : 180°
Applications : Power, Signal

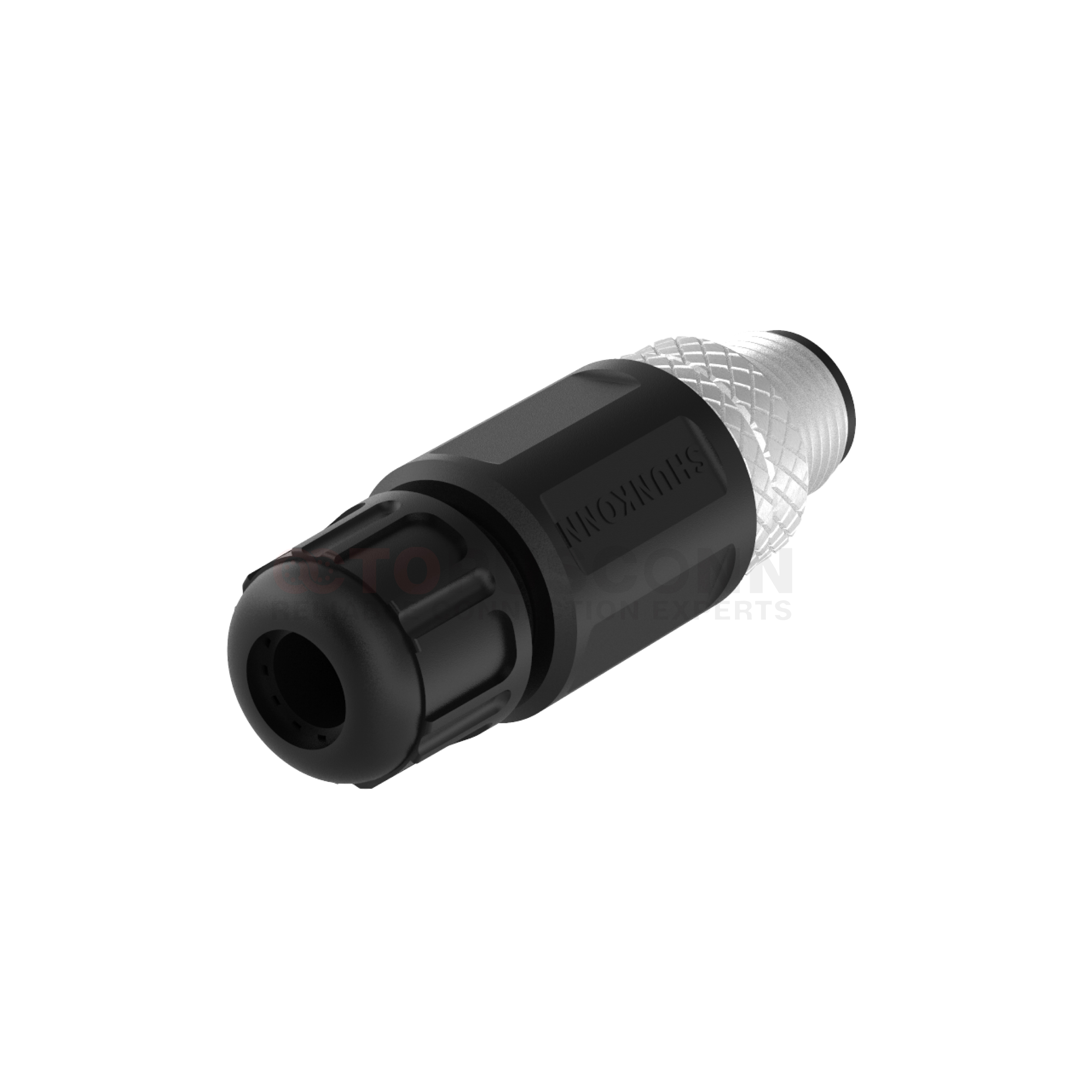

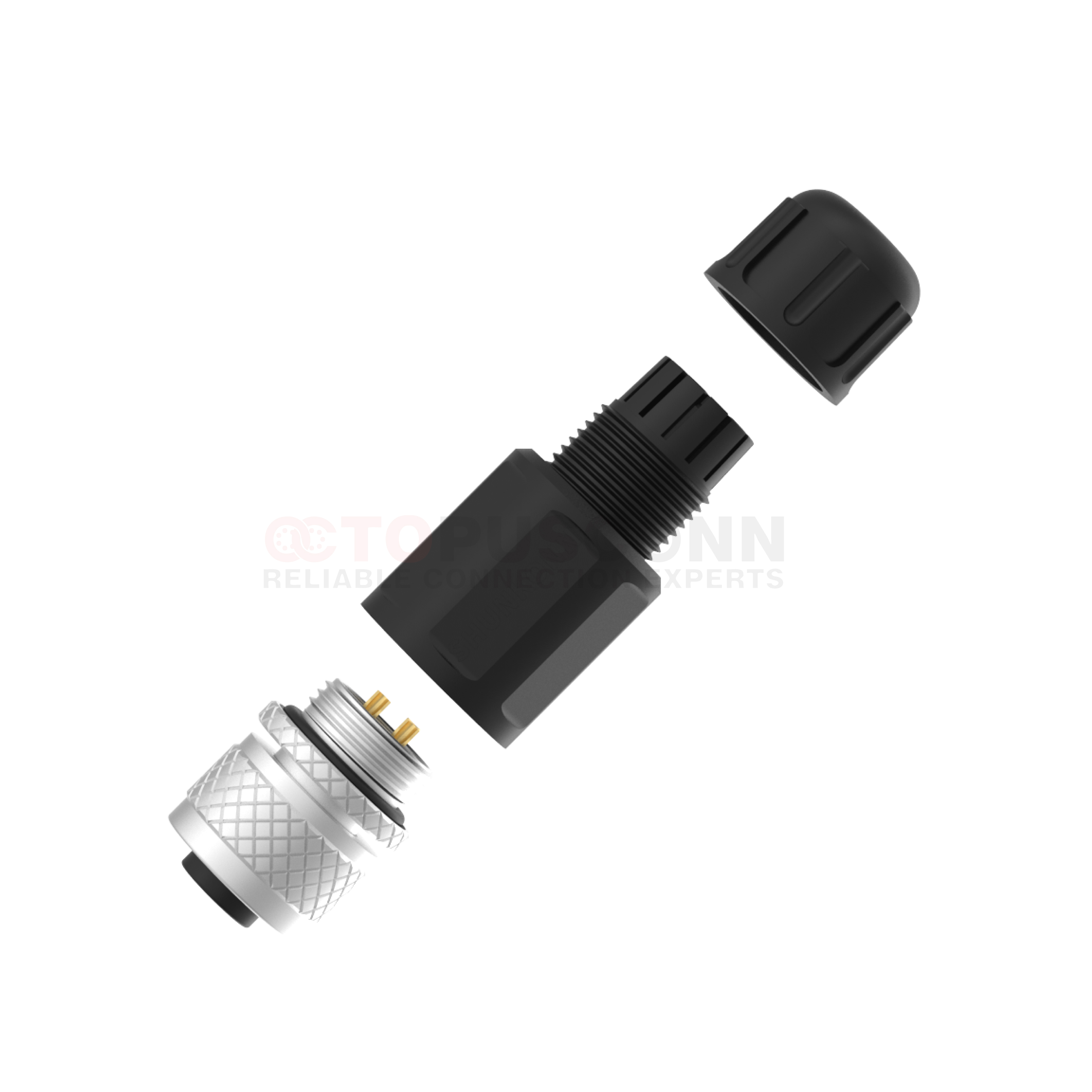

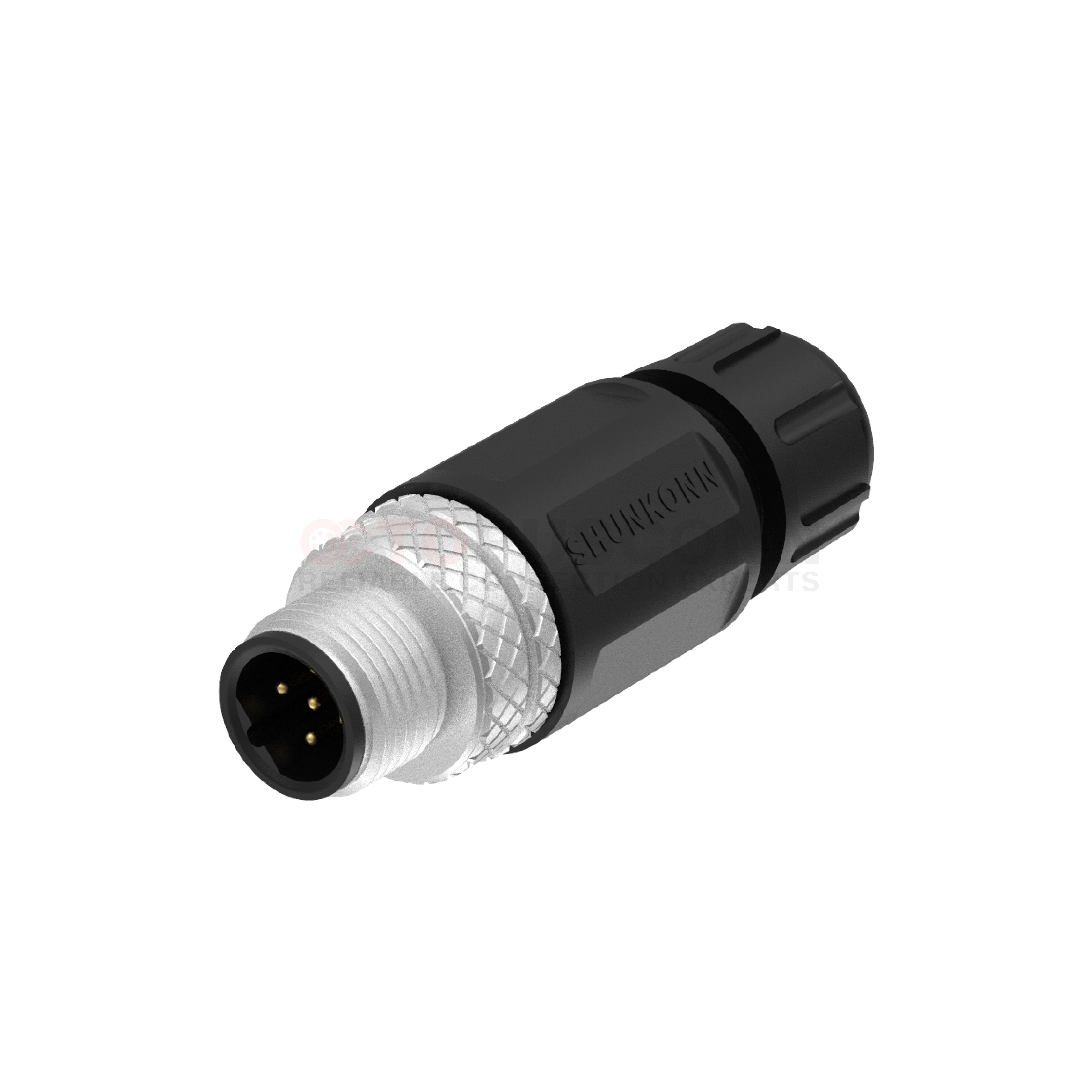

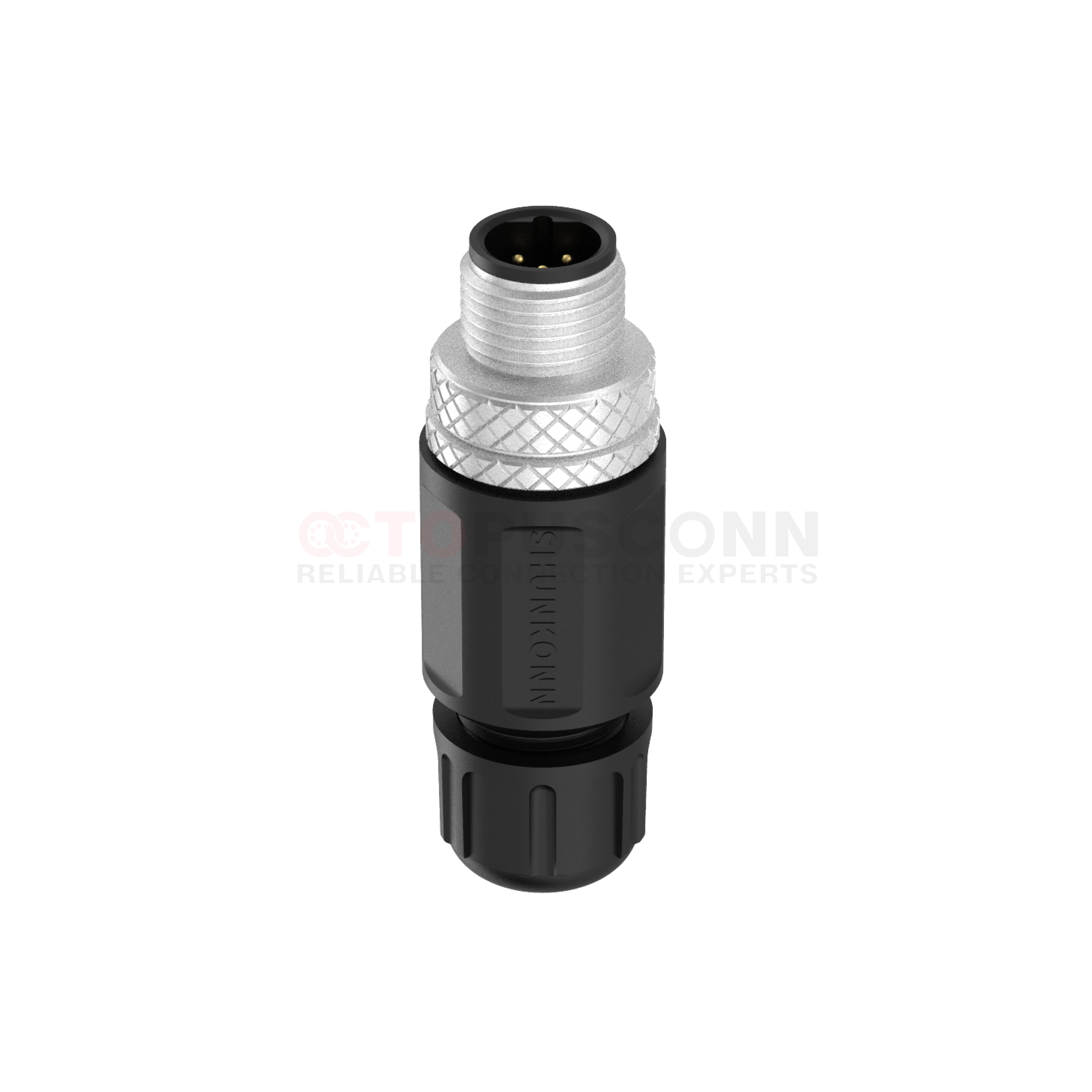

Plastic assembly - straight welding wire type:
Straight + welding wire assembly design: The straight structure enables the cable to be laid in a straight line, suitable for scenarios without space limitations such as equipment surfaces and conventional junction boxes. The plug-in and connection operation is convenient; the assembly method supports on-site assembly, and the wiring is done using the welding wire type. Although it is slightly more complex compared to the screw type operation, the connection after welding is more stable and less prone to contact failure due to vibration, making it suitable for scenarios with high requirements for connection reliability. Environmental and mechanical performance: The protection level is mostly IP67, which can achieve complete dust-proof and short-term immersion protection, suitable for humid and dusty basic industrial environments; the working temperature range is generally -40°C to 85°C. It is widely used in the industrial automation field. It is often used to connect sensors, actuators, encoders and other devices, and is suitable for factory automation control systems, packaging printing equipment, industrial instruments and meters, scenarios.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12BM-03U1LSLNS101 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-04U1LSLNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12BM-05U1LSLNS101 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
