Core Count : 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 17P
Category : Female
Direction : 90°
Applications : Power, Signal

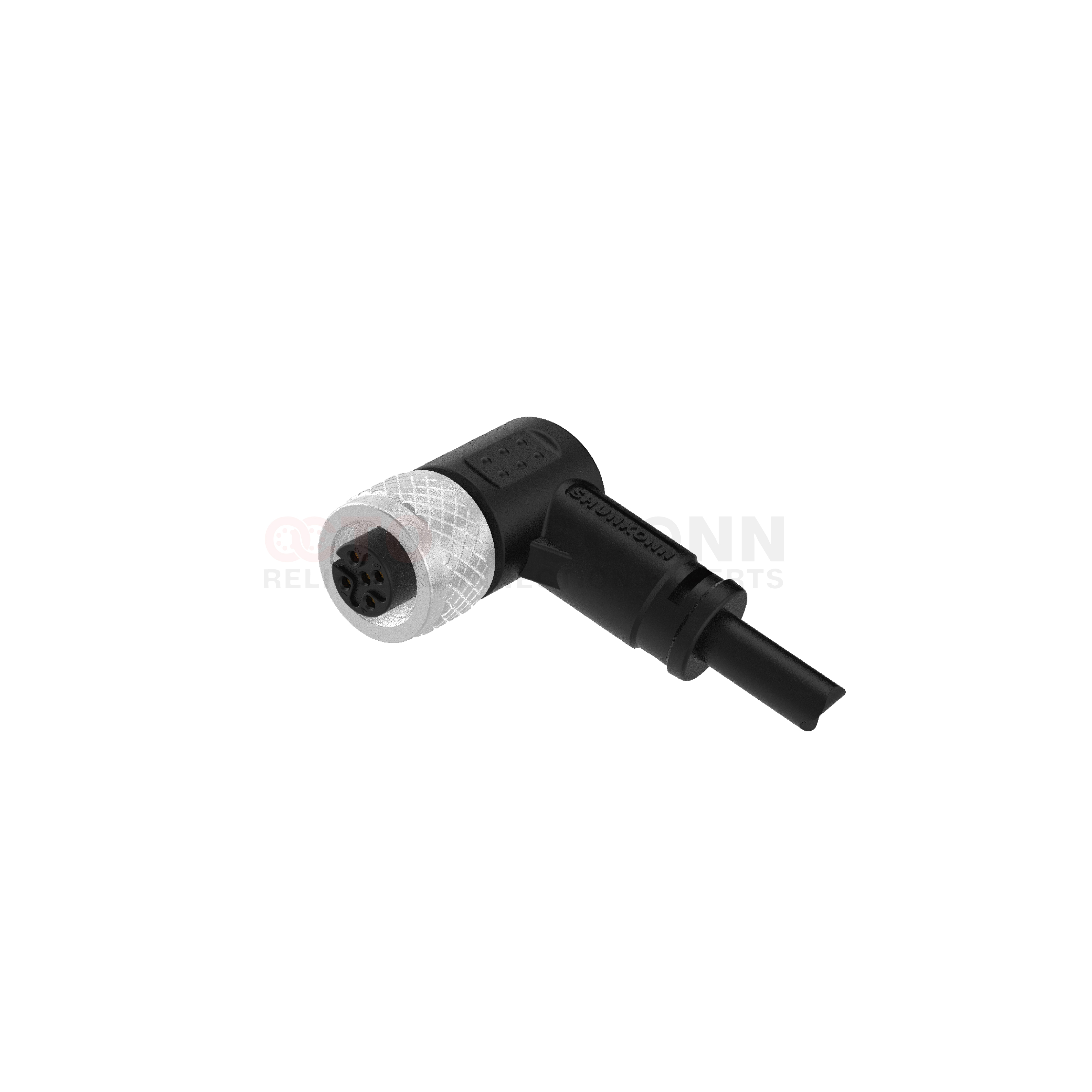

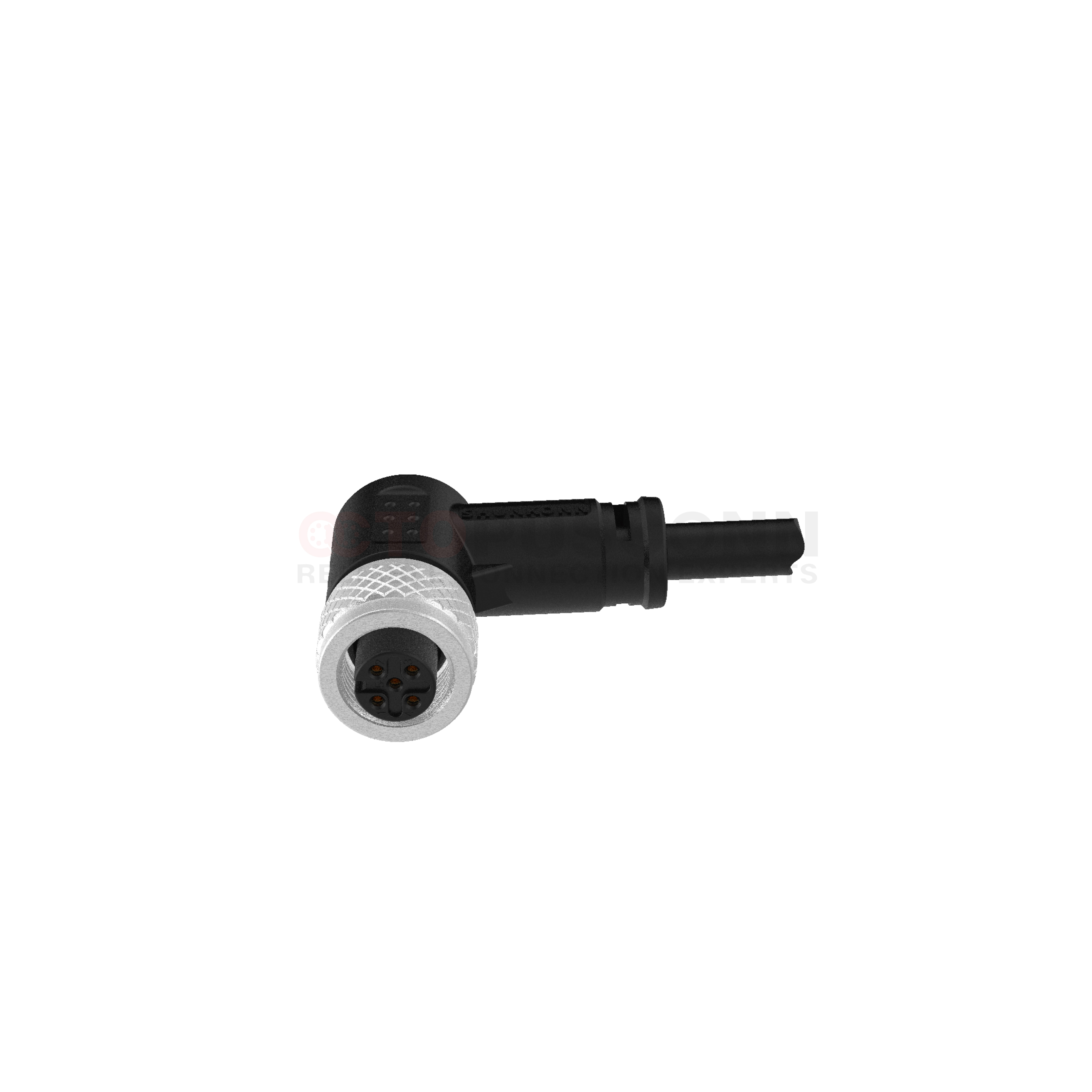

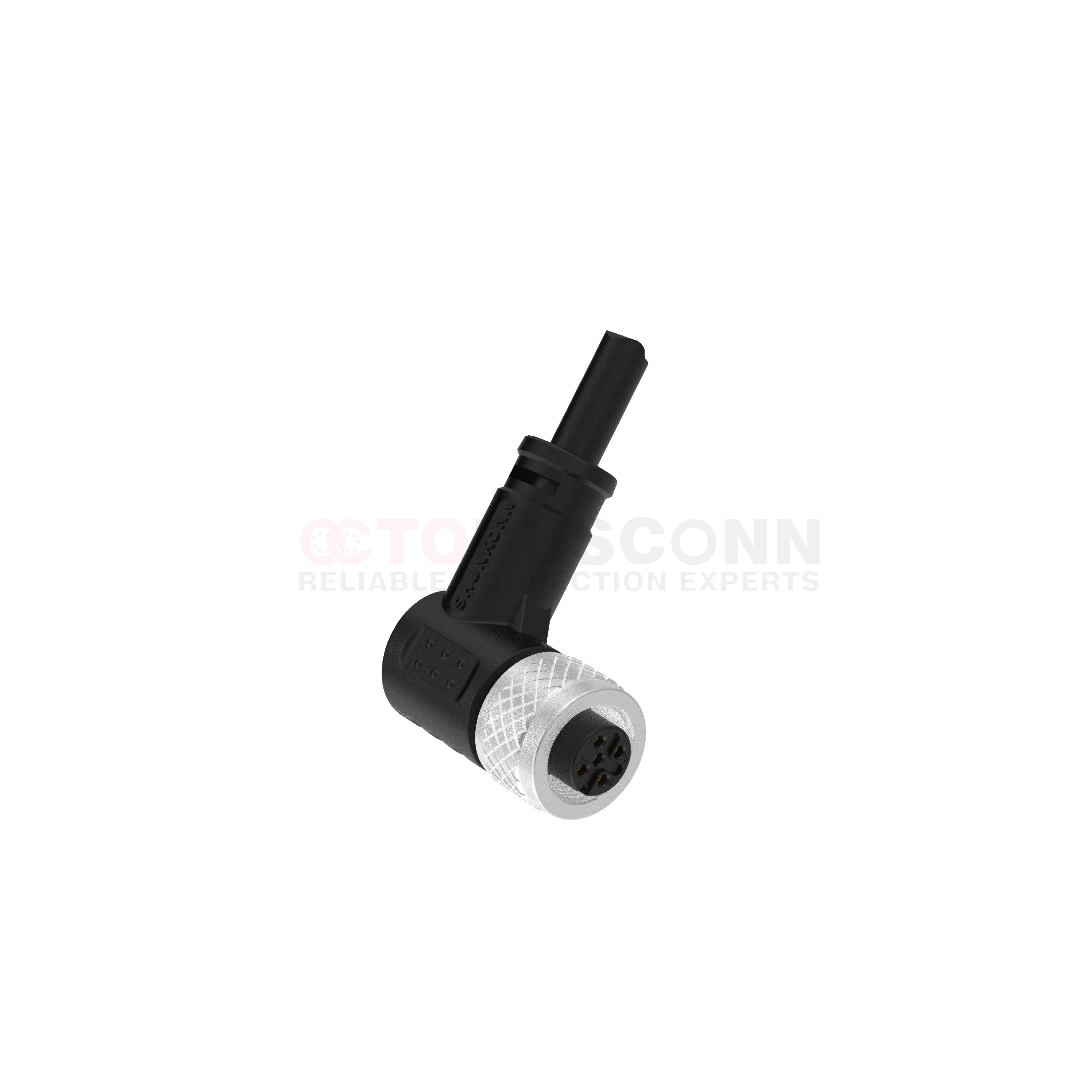

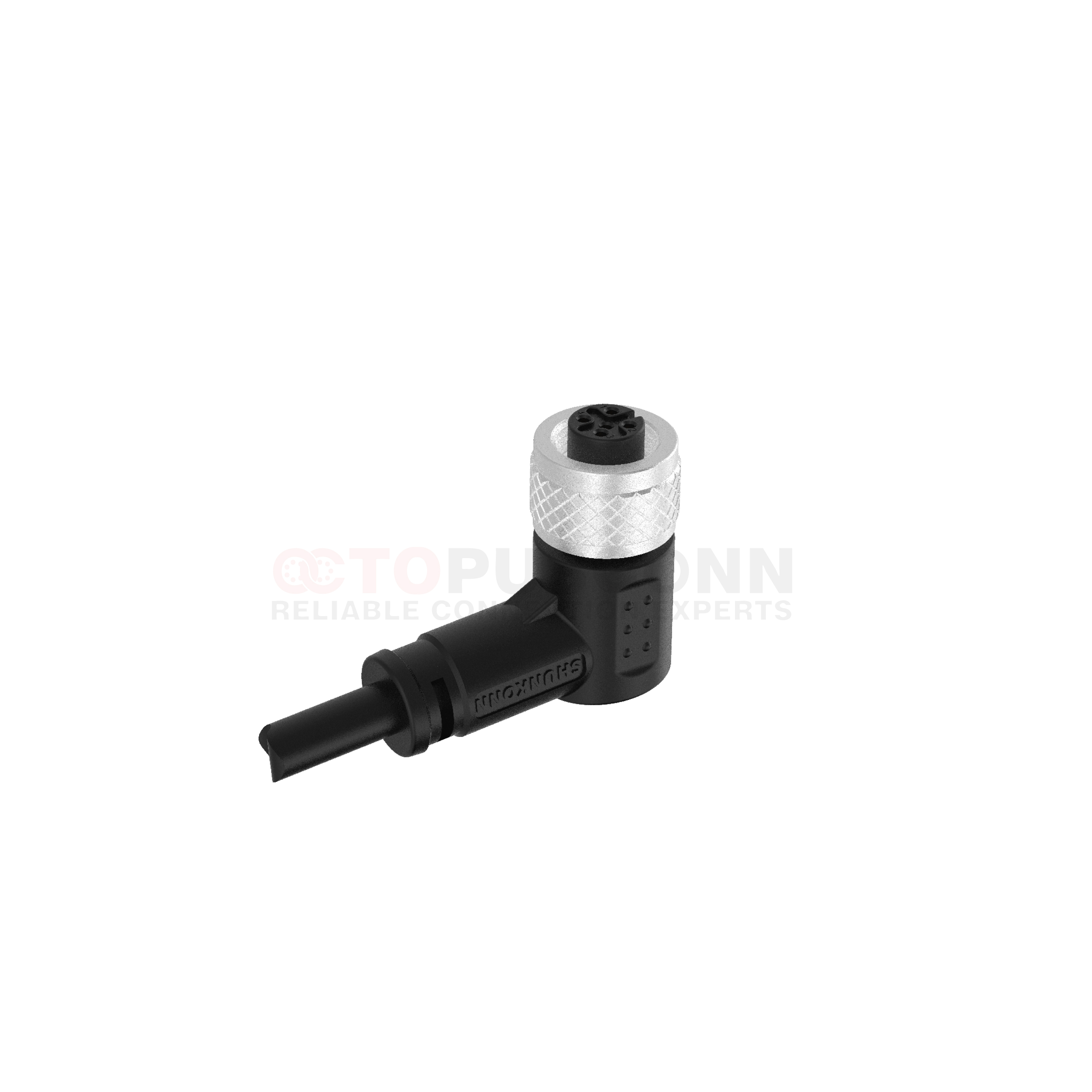

90-degree rubber-molded structure:
Strong space adaptability: The 90-degree folded connector structure enables the cable to run along the equipment panel or the side of the body, avoiding the awkward wiring problem that may occur in the upright configuration. It is particularly suitable for scenarios with limited space such as robot joints, AGV carts, and compact sensors, reducing cable bending damage and making the equipment wiring more orderly. Pre-cast without on-site processing: During factory prefabrication production, the 90-degree angle shaping, terminal gold plating, and rubber coating processes are completed, eliminating the need for on-site welding and assembly. It also supports customized cable length, with core numbers ranging from 2 to 17, capable of adapting to different power and signal transmission requirements, and avoiding human operational errors.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12AF-025222ABREP100B01 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-035222ABREP100B01 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-045222ABREP100B01 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12AF-055222ABREP100B01 |
5
|
4A
|
60V
|
60V
|
22
|
0.34
|
| MC12AF-065222ABREP100B01 |
6
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-085222ABREP100B01 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| MC12AF-125222ABREP100B01 |
12
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| MC12AF-175222ABREP100B01 |
17
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
