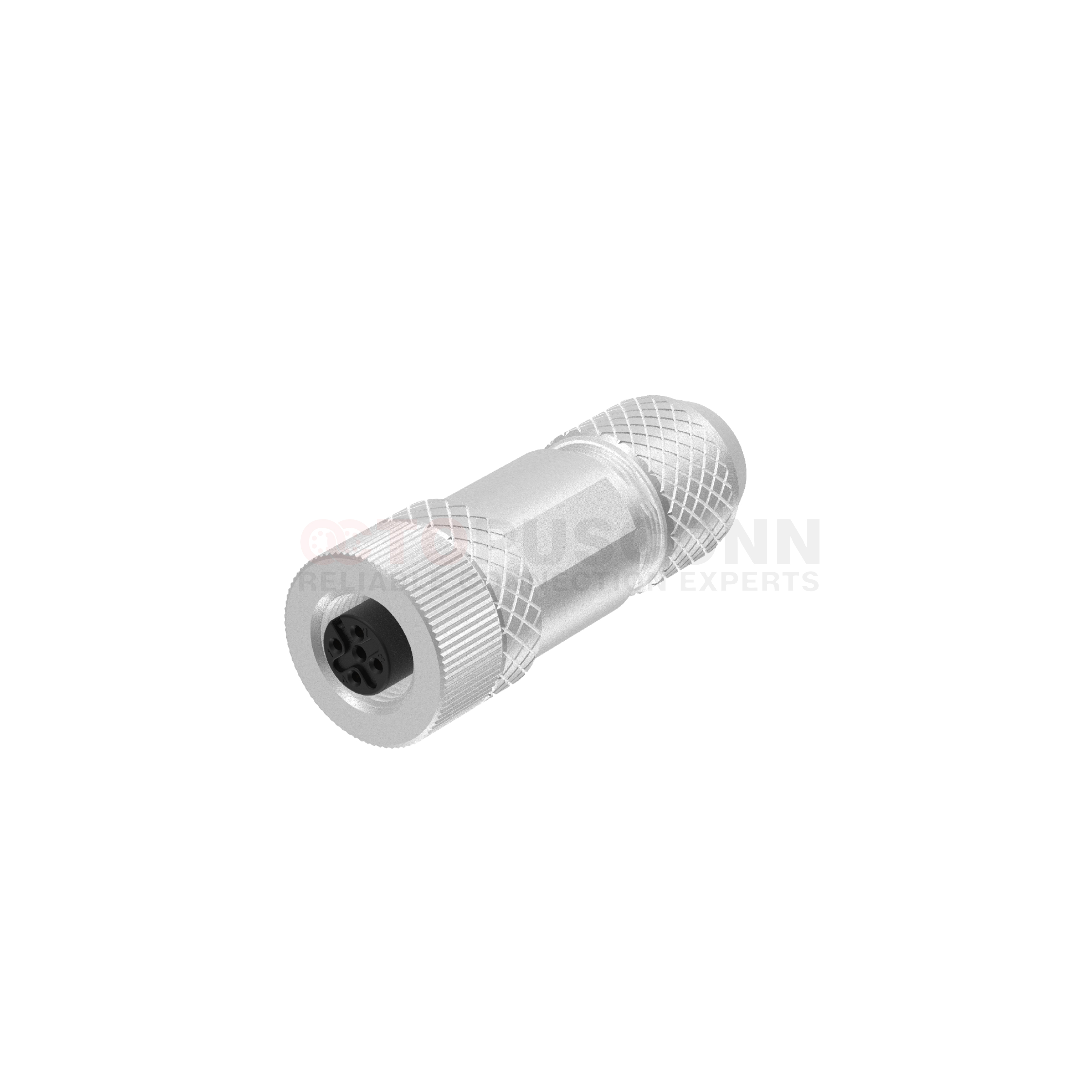

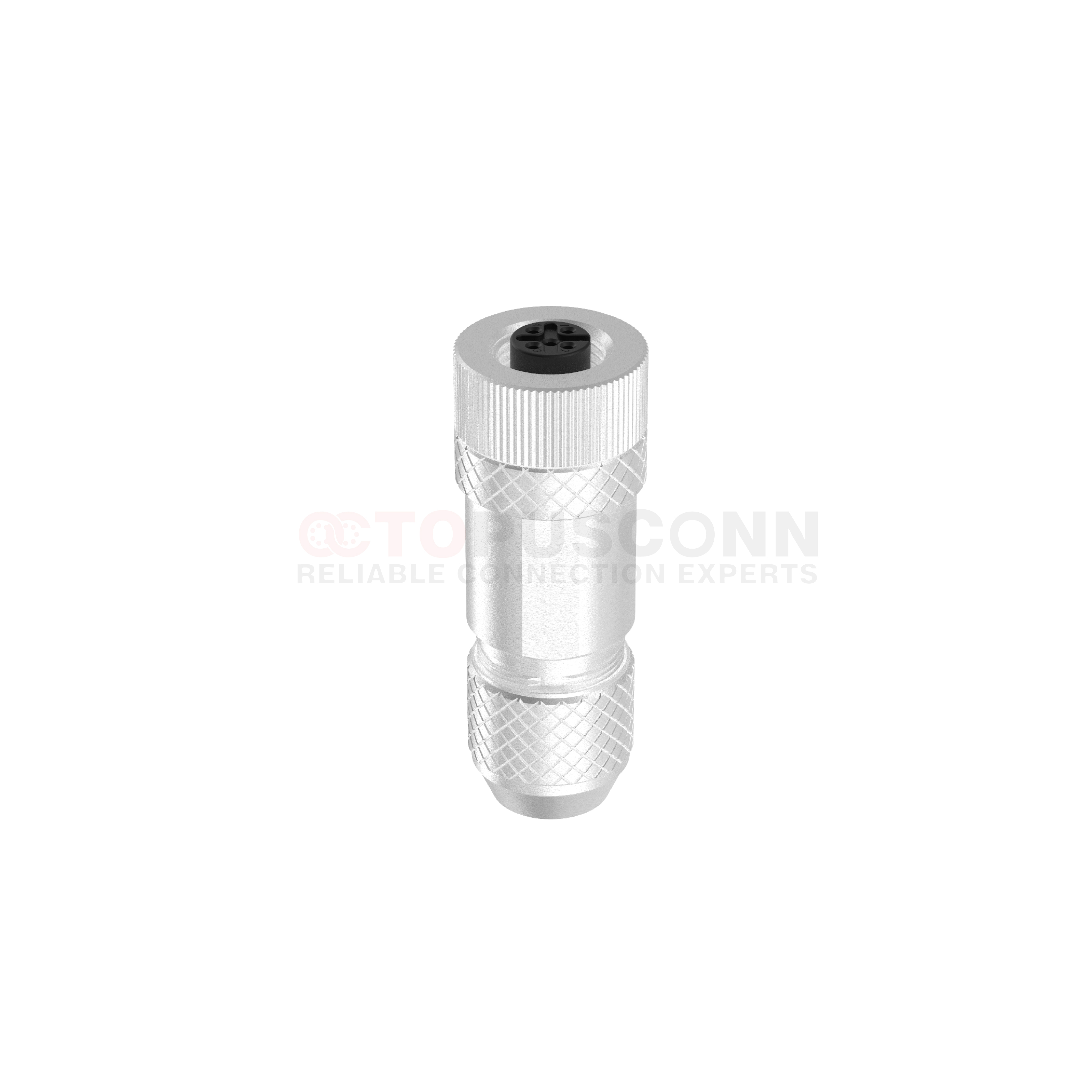

M12 A Coded Connectors Straight Metal Assembled 2-8PIN Female Screw type PG9

M12 A Coded Connectors Straight Metal Assembled 2-8PIN Female Screw type PG9

Serial Code : M12 Series Product Code : MC12AF-05U4LJZSS101 Product Info :

Core Count : 2P, 3P, 4P, 5P, 6P, 7P, 8P

Category : Male

Installation Method : Screw type

Direction : 180°

Applications : Power, Signal

Get a Quotation Sample Request

Product video

Straight all-metal screw type:
Full metal casing: Usually made of zinc alloy plated with nickel, it can effectively protect the internal connection components. Straight structure: The wiring direction is straight, which is convenient for the straight connection and layout of cables, suitable for scenarios with ample space and requiring straight wiring, reducing cable bending, lowering signal attenuation and the risk of cable damage. Screw connection method: The wires are tightened by screws, no welding tools are needed, the operation is simple and convenient, enabling quick connection of wires and connectors, and the connection is firm and reliable, effectively preventing contact failure due to vibration and other reasons. Locking and sealing: Generally equipped with a standard M12 threaded locking mechanism, which can be closely connected with the corresponding socket to prevent the connector from loosening during use. Application scenarios: Widely used in industrial automation, robotics, rail transportation.

Technical Information

Product type

M12 circular connector A code

Application

Electricity, signals

Sensor type

General

Contact component

Male

Core count

2-8Pin

Direction

180°

Protection level

IP67

Number of insertions and withdrawals

500 plug-in and unplugged cycles

Working temperature

-40℃ / 85℃

Product Specifications

Shell material

Copper plated with nickel

Flame retardant grade

V0 (Compliant with UL94P)

Sealing material

Epoxy resin/rubber

Contact material

Copper plated with gold

Contact component carrier material

PA9T

Electrical parameters

Product model	Core	Rated current	Rated voltage		Wire gauge / Dimension
Product model	Core	Rated current	A/C	D/C	AWG	mm²
MC12AF-02U4LJZSS101	2	4A	250V	250V	22	0.34
MC12AF-03U4LJZSS101	3	4A	250V	250V	22	0.34
MC12AF-04U4LJZSS101	4	4A	250V	250V	22	0.34
MC12AF-05U4LJZSS101	5	4A	60V	60V	22	0.34
MC12AF-06U4LJZSS101	6	2A	30V	30V	24	0.25
MC12AF-08U4LJZSS101	8	2A	30V	30V	24	0.25

Encoding parameters

Core	2A	3A	4A	5A
male end
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D

Core	2A	3A	4A	5A
female connector
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D

Safety Warning

The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.

The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.

Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.

Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.

When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.

The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
