Core Count : 4P
Category : Male
Direction :90°
Applications : Power, Signal

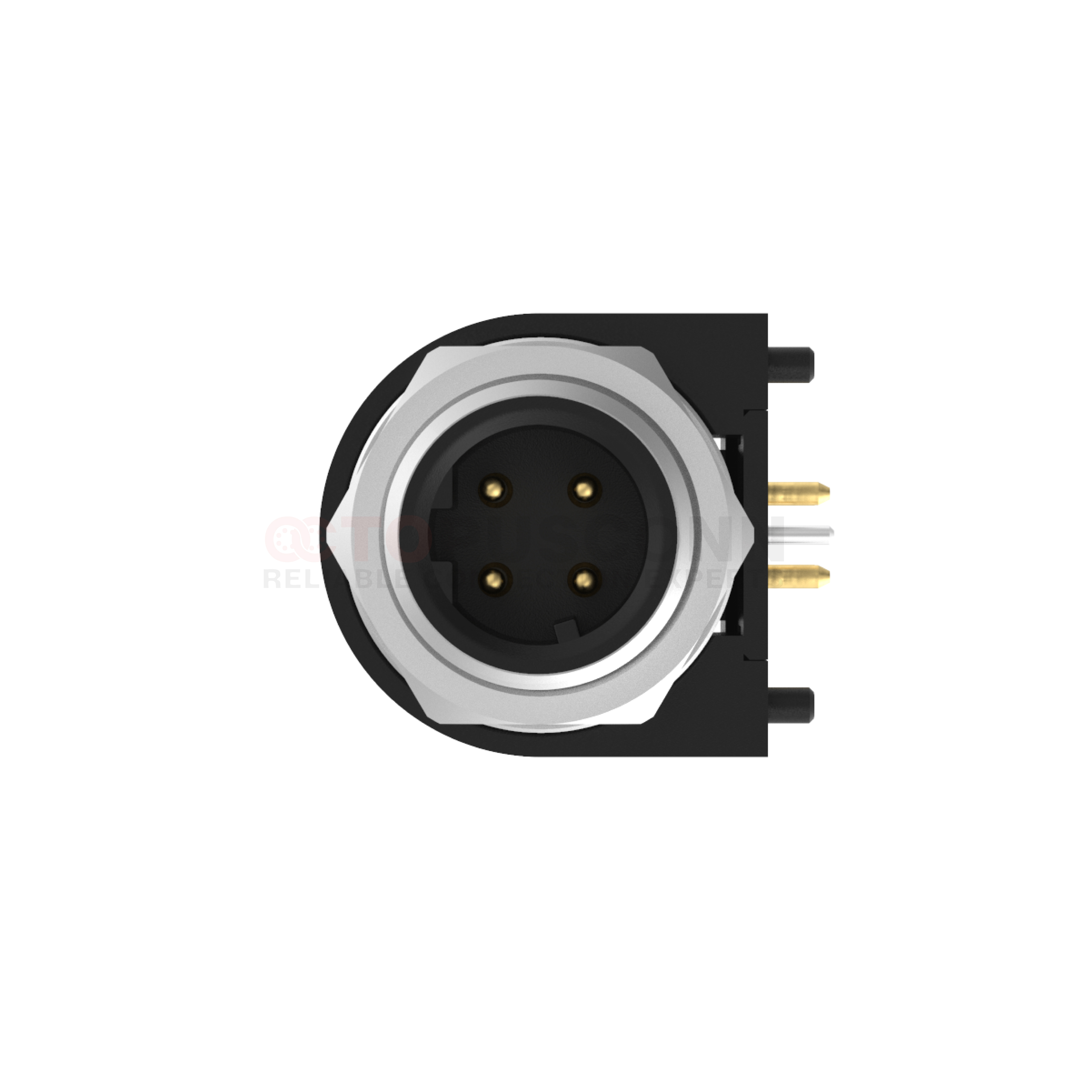

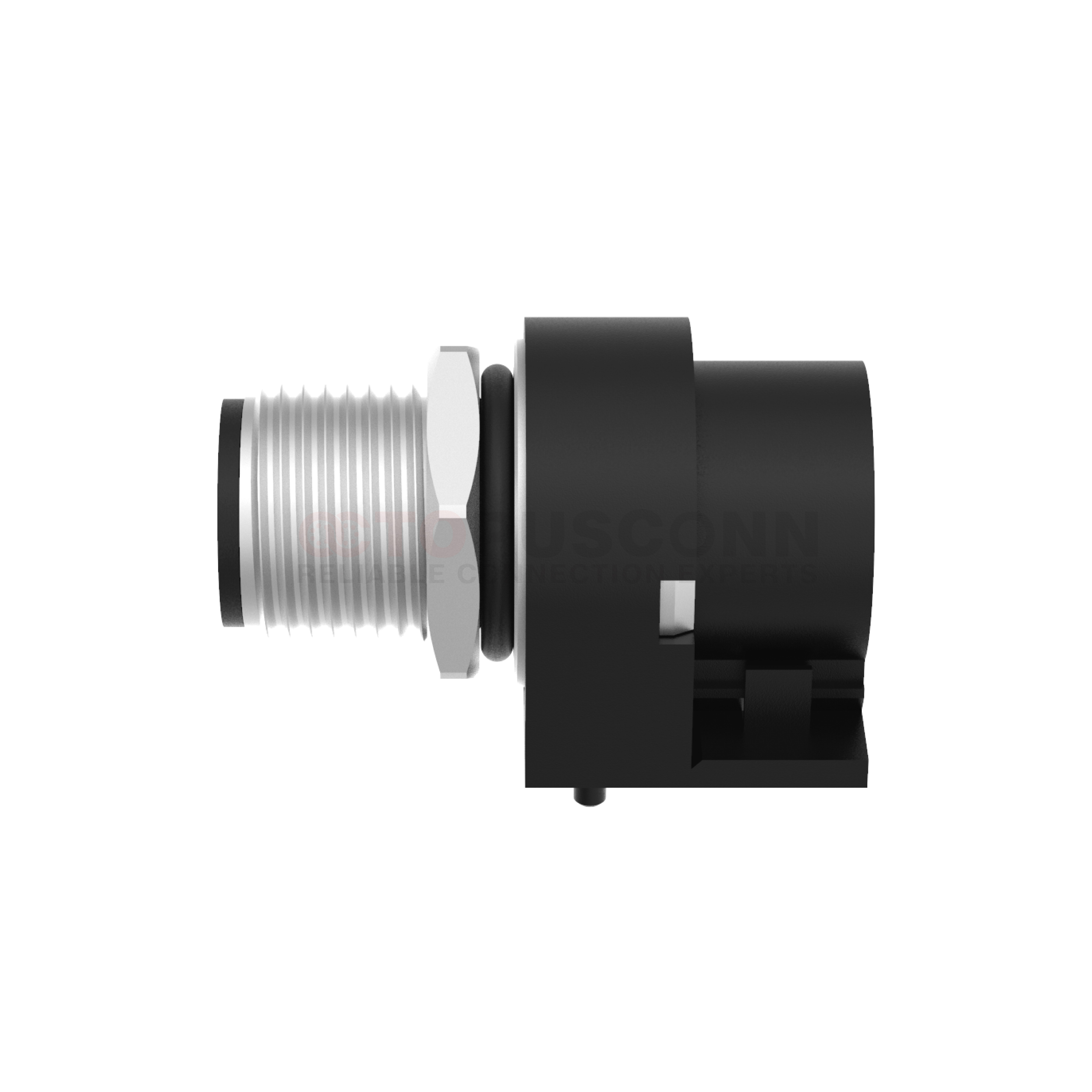

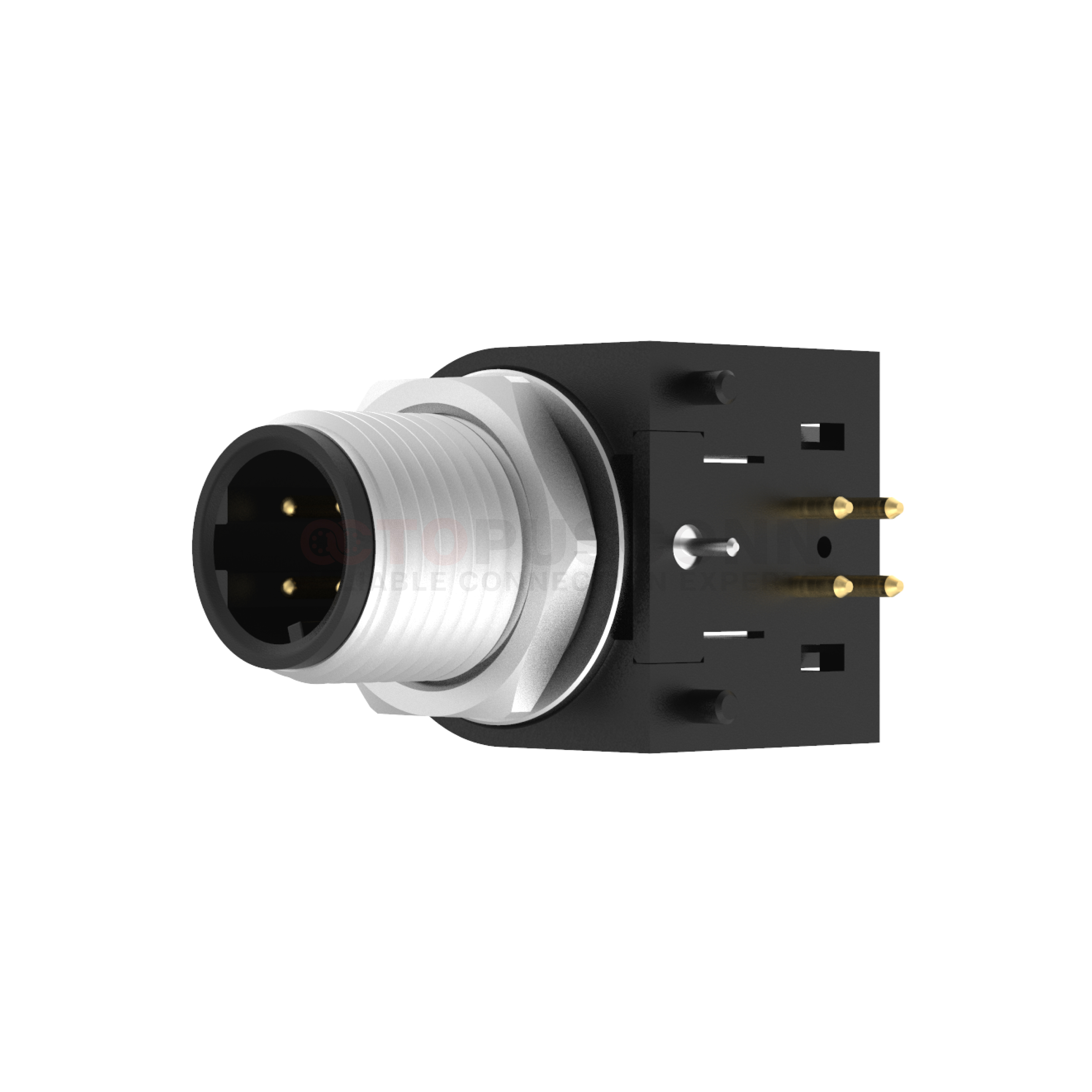

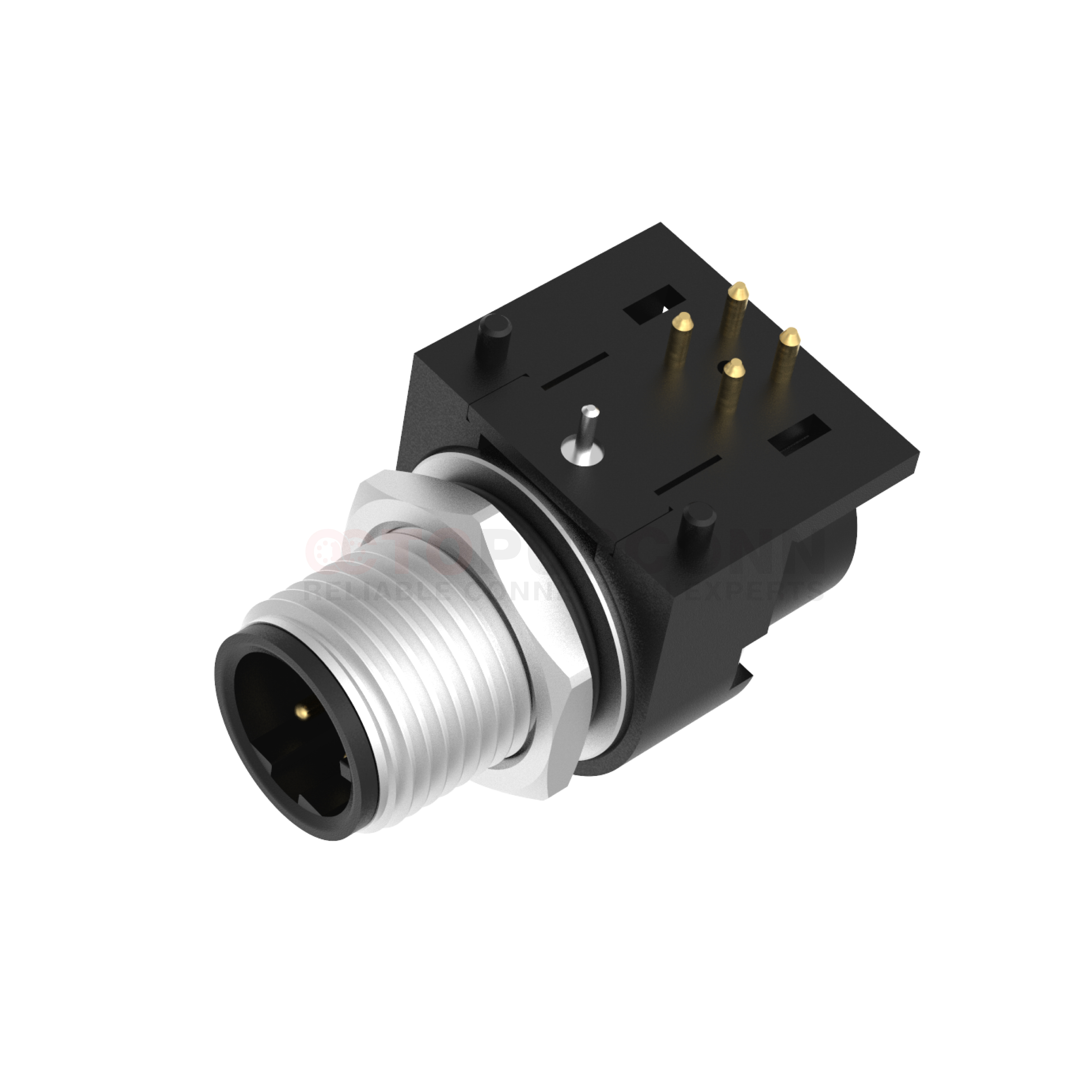

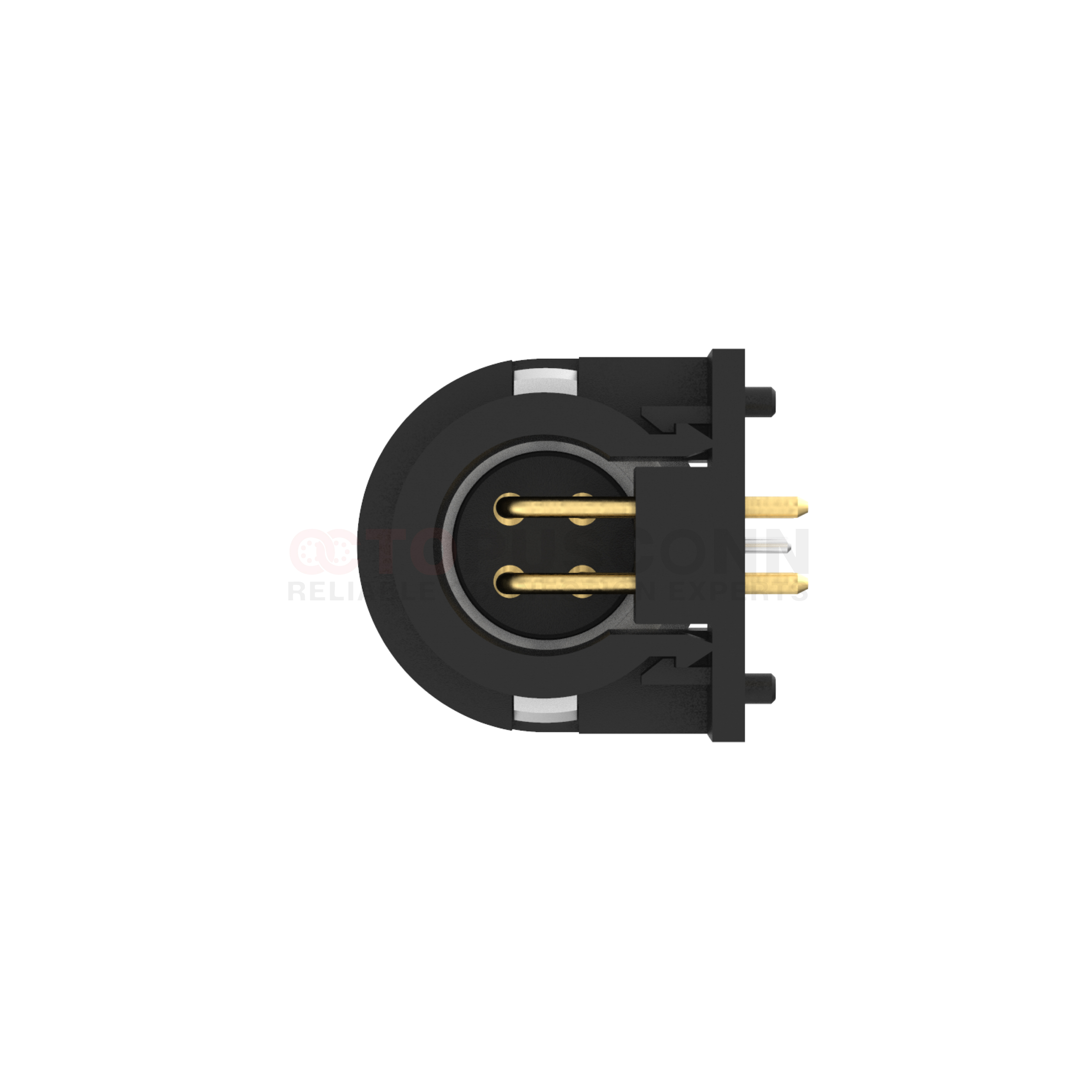

90-degree elbow plug-in type:
The space optimization design of the 90-degree elbow adopts an L-shaped structure. After the plug-in interface is vertically connected with the PCB board, the cables can extend parallel along the side wall of the equipment or the edge of the PCB board. Compared with the straight-plug connector, it reduces more than 60% of the longitudinal space occupation. Core application scenarios: Due to its space adaptability and connection reliability, this connector has become a "must-have component" in multiple industrial fields, especially performing outstandingly in scenarios with limited wiring and dense space; widely used in industrial automation equipment, consumer electronics and precision equipment, new energy and medical equipment.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12DM-04R2LDLSR201 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
