Core Count : 4P
Category : Female
Direction :180°
Applications : Power, Signal

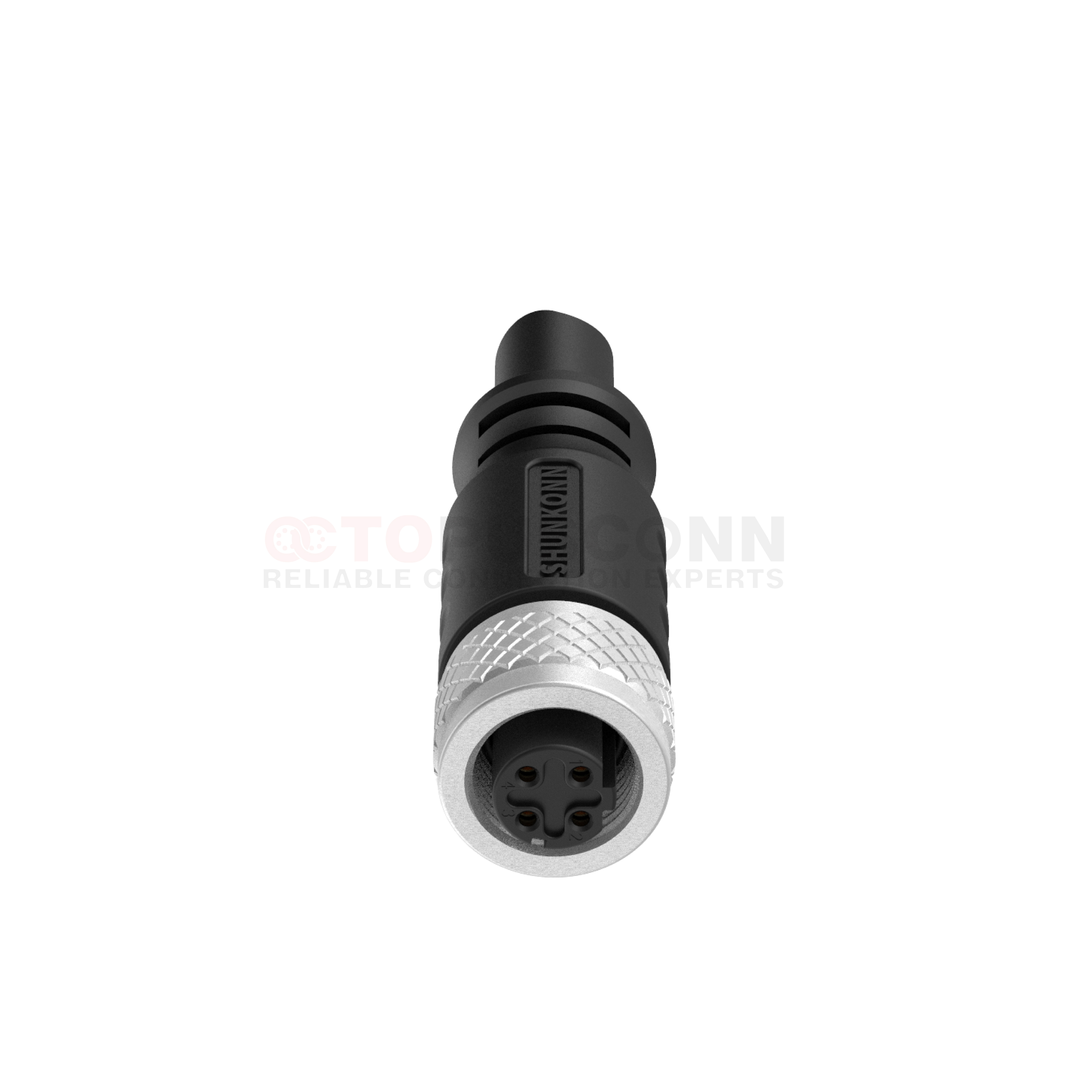

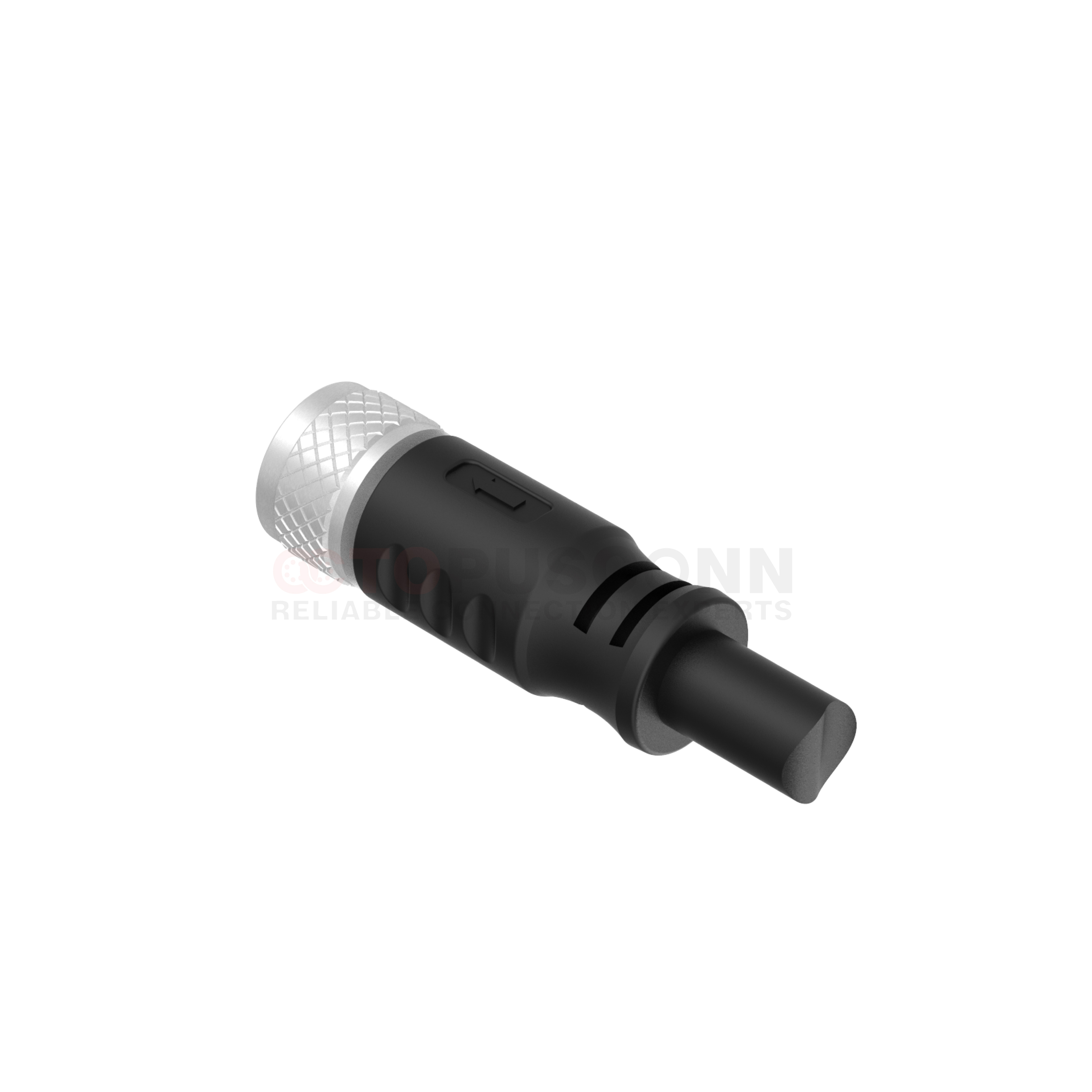

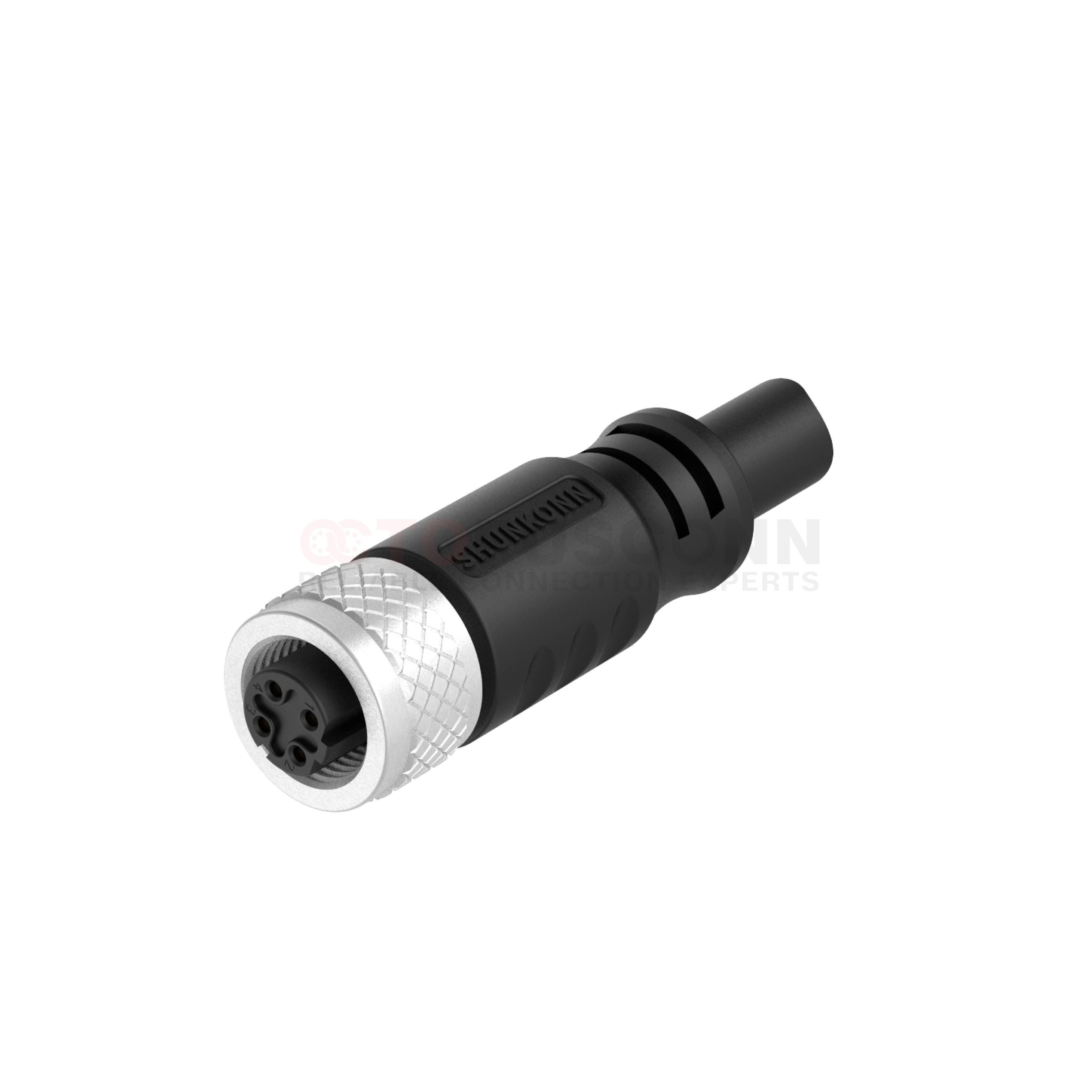

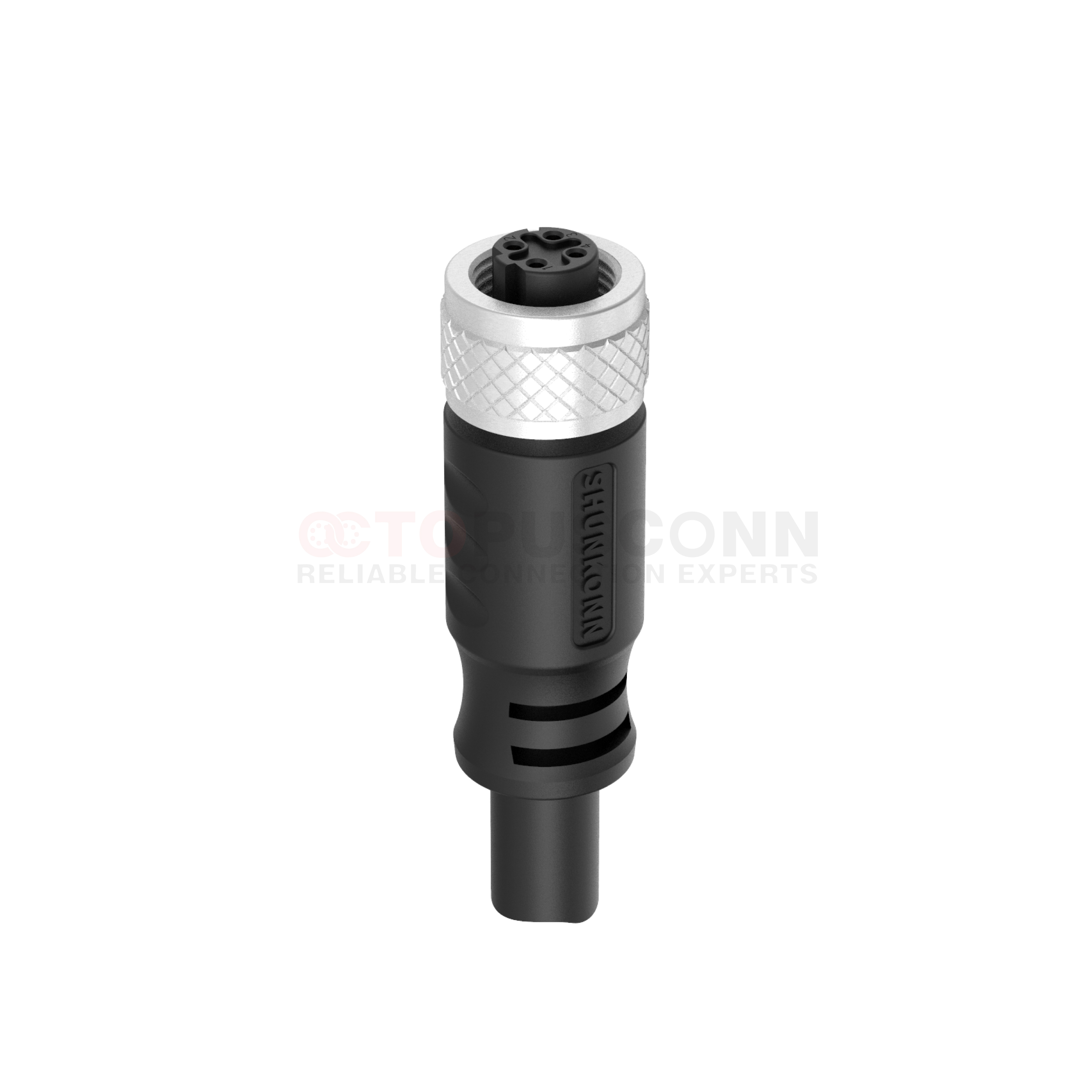

Vertical rubber molding type:
Structural layout adaptation requirements: The vertical design should reserve sufficient longitudinal space to avoid structural deformation caused by the equipment shell squeezing; ensure that the cables extend naturally, with the bending radius being ≥ 6 times the diameter of the cable to prevent force pulling and dragging. Assembly and fixation specifications: Modular assembly models need to ensure that all components are fully snapped together, especially the connection between the metal shell and the insulating base to avoid loosening and damage to the shielding performance; Force protection measures: Although the integrated design of rubber molding and other aspects improves stability, it is necessary to avoid severe external forces such as impacts and drops to prevent cracking of the rubber coating or detachment of internal solder joints; At the connection point of the cables and connectors, fixed clamps need to be installed to share the pulling force and extend the service life. - Inspection of sealing structure: Before installation, the waterproof sealing rubber ring must be checked to ensure there is no aging, damage, deformation, and that it is smoothly embedded in the slot; If the rubber ring becomes sticky, hard, or has cracks, it must be immediately replaced with the same specification part, and it is not allowed to use it勉强 (approximately meaning "barely" or "hesitantly" but not a standard English term).
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MB12DF-045LSSTXXXXX01 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
