Core Count : 4P
Category : Male
Direction :90°
Applications : Power, Signal

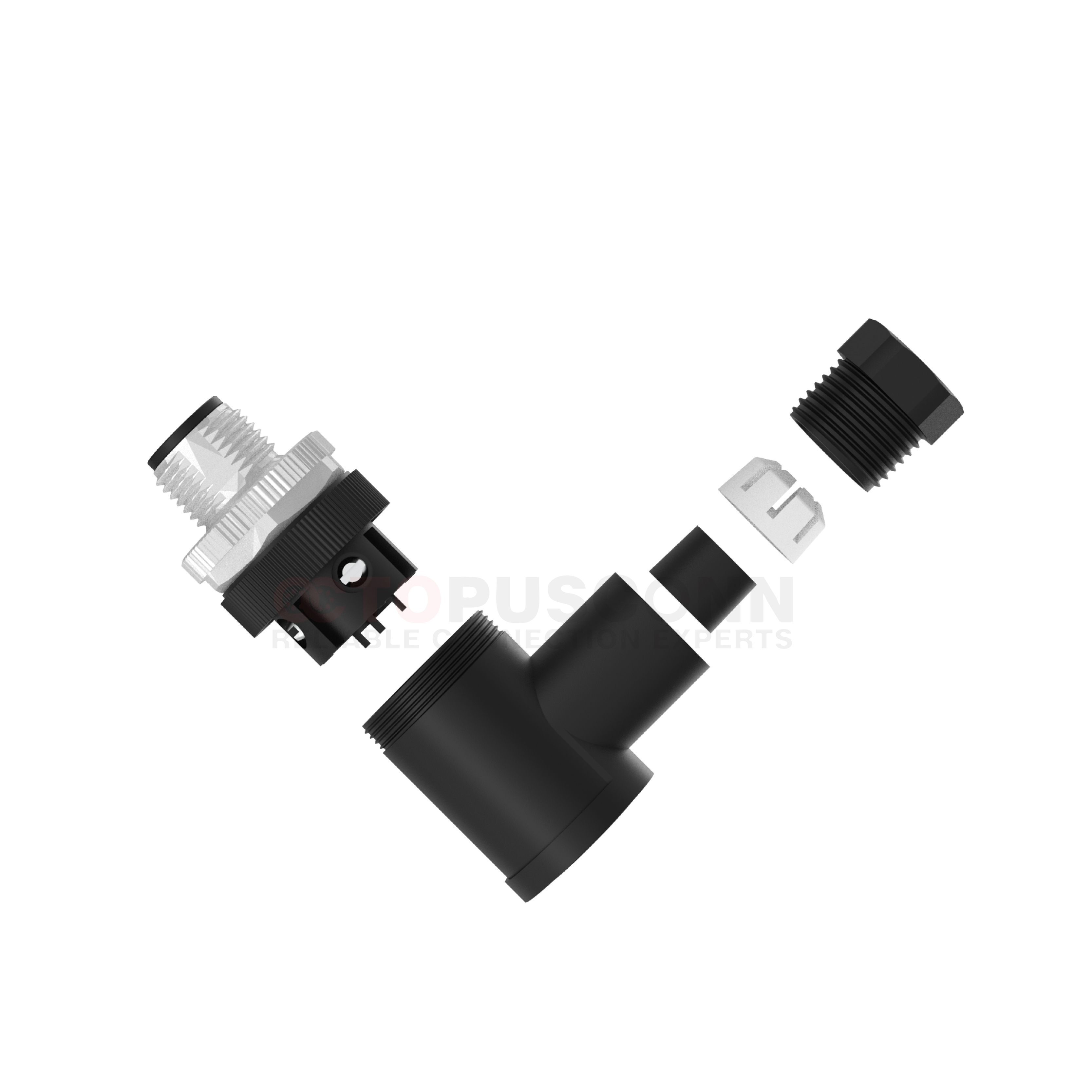

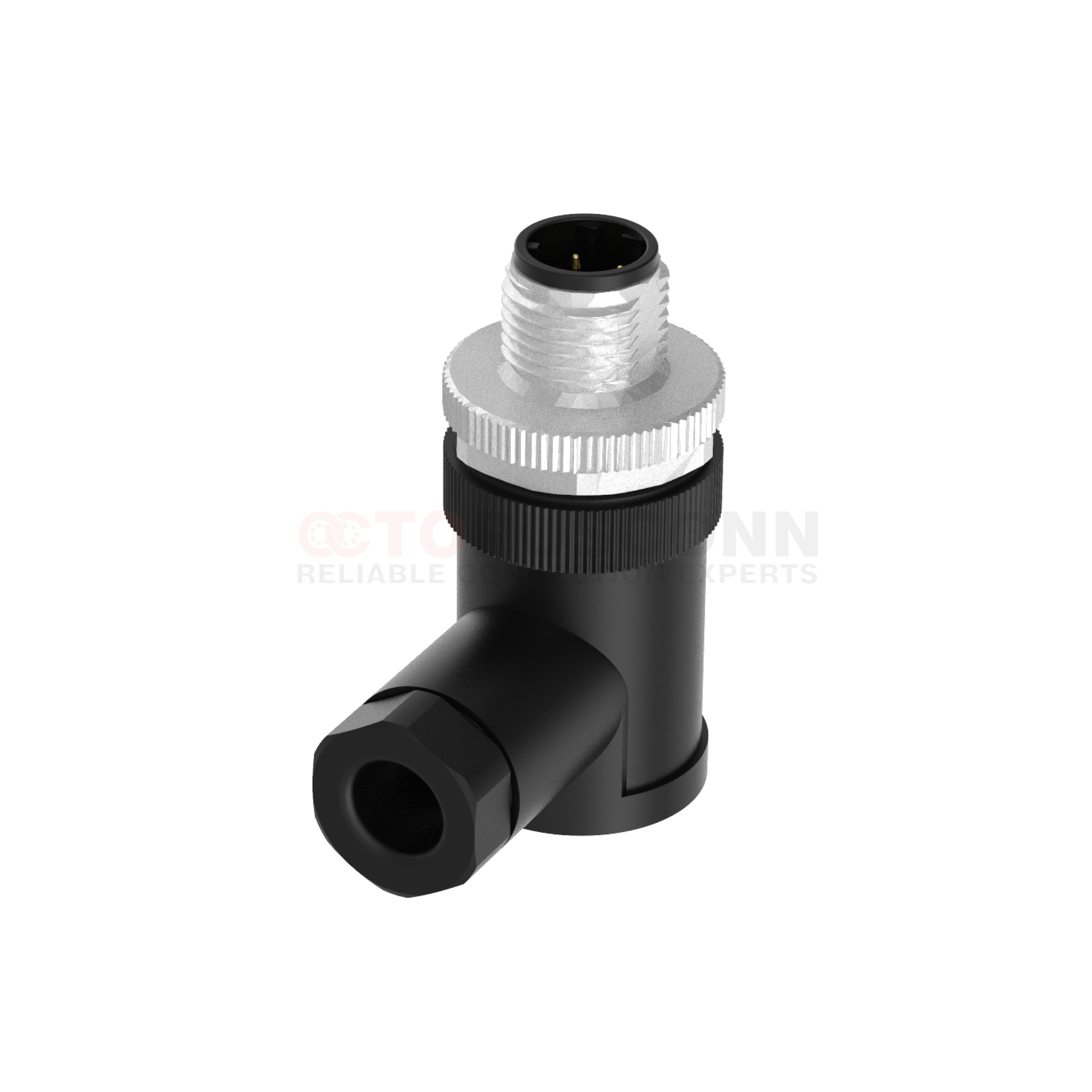

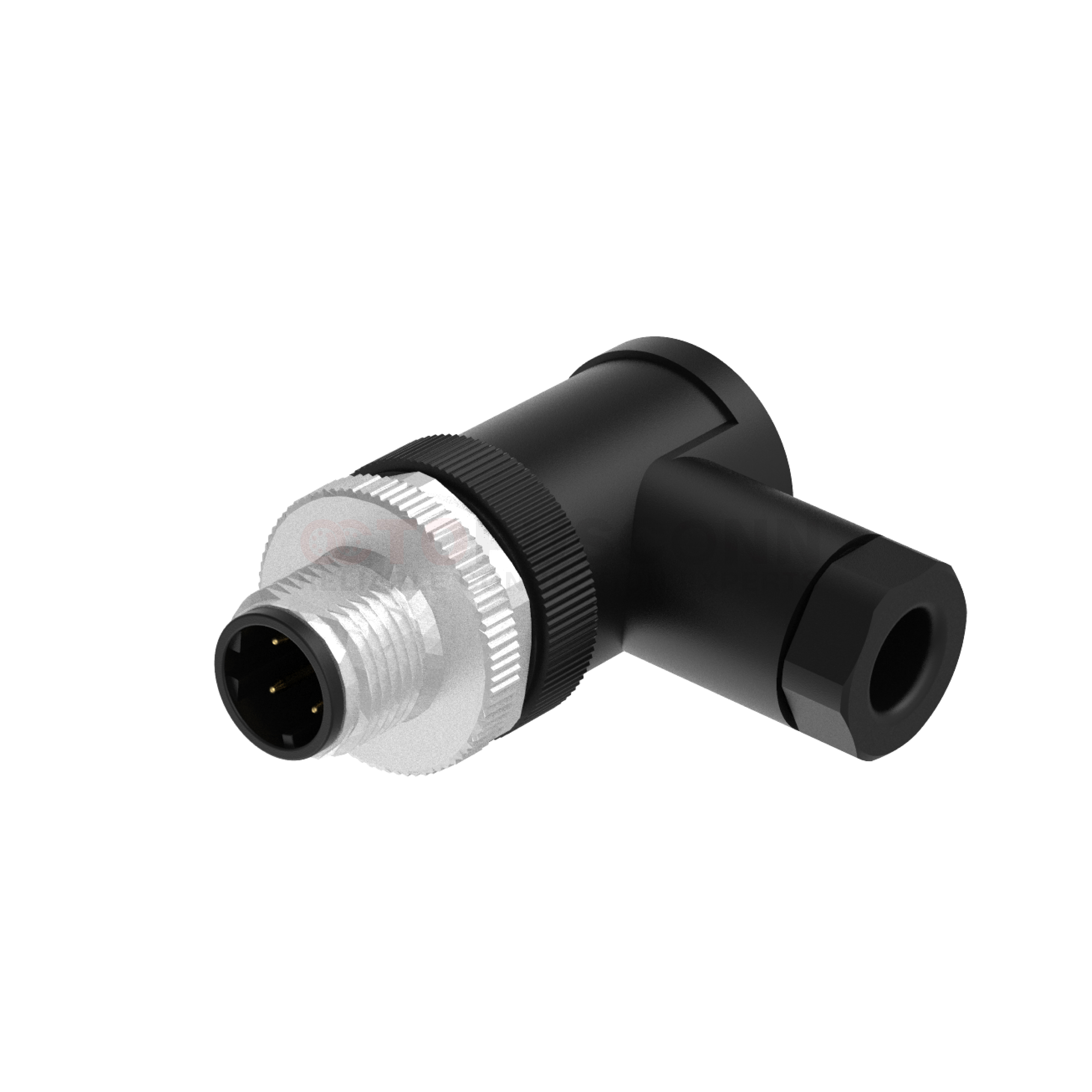

90-degree bent metal plastic assembly screw type:
The space adaptation value of the 90-degree bent structure. With the L-shaped 90-degree angle design, the main body of the connector and the extension direction of the cable are vertically distributed. Compared with the straight connector, it can reduce 70% of the longitudinal space occupation, perfectly adapting to wiring scenarios with limited space such as robot joints, equipment corners, and surrounding areas of dense PCB boards. D coding for error-free insertion and precise signal transmission. D coding is the core functional identifier, achieving physical interlock isolation with other codes such as A, B, X, etc. M12 connectors. This ensures that faults such as equipment short circuits and communication interruptions caused by incorrect insertion can be completely prevented from the root cause. Protection performance: Protection level IP67 (after connection); Working temperature -40°C to +85°C. Widely used in the core links of industrial automation and related fields, especially playing a key role in scenarios with limited wiring and complex environments.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12DM-04N1LJMNR601 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
