Core Count : 4P
Category : Male
Direction :180°
Applications : Power, Signal

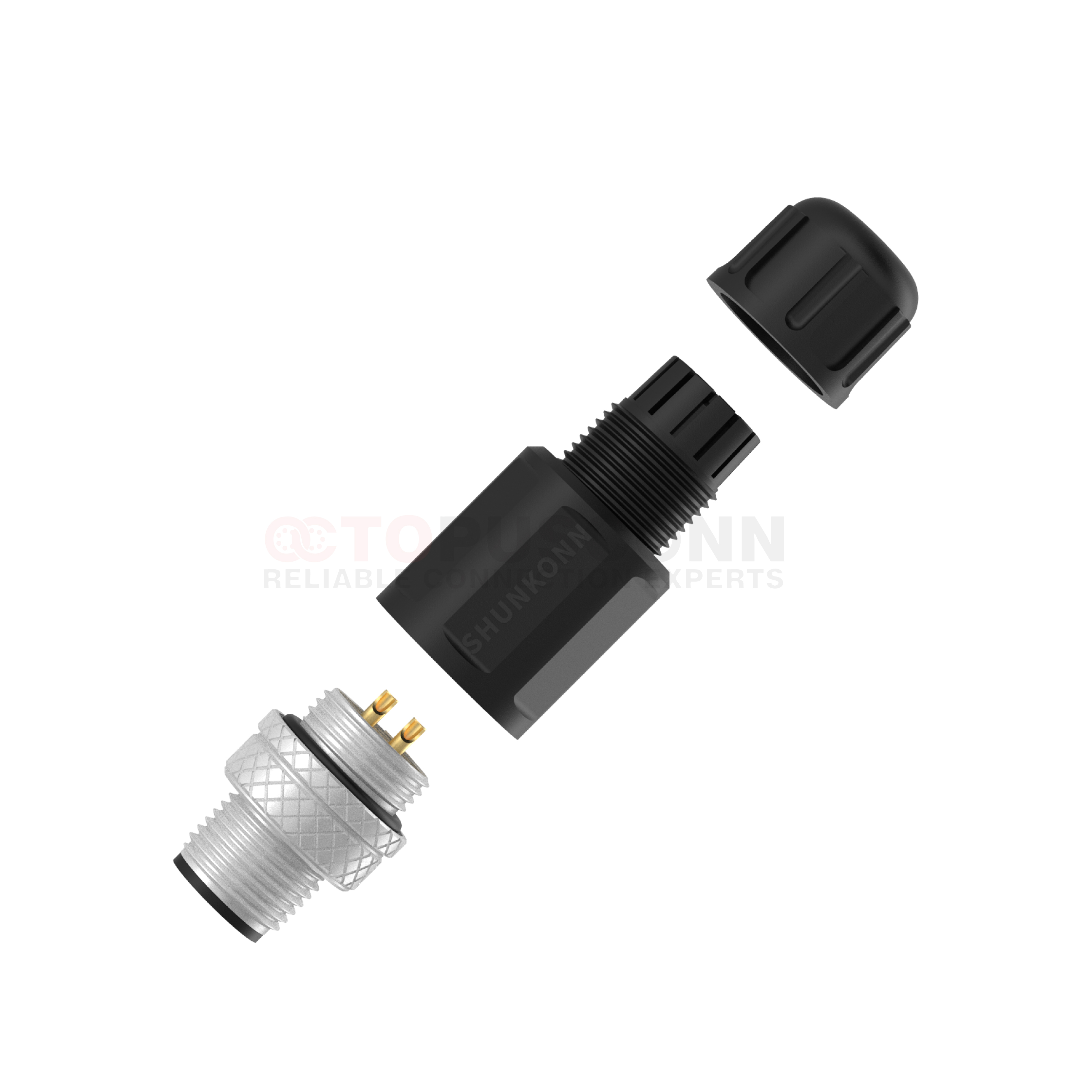

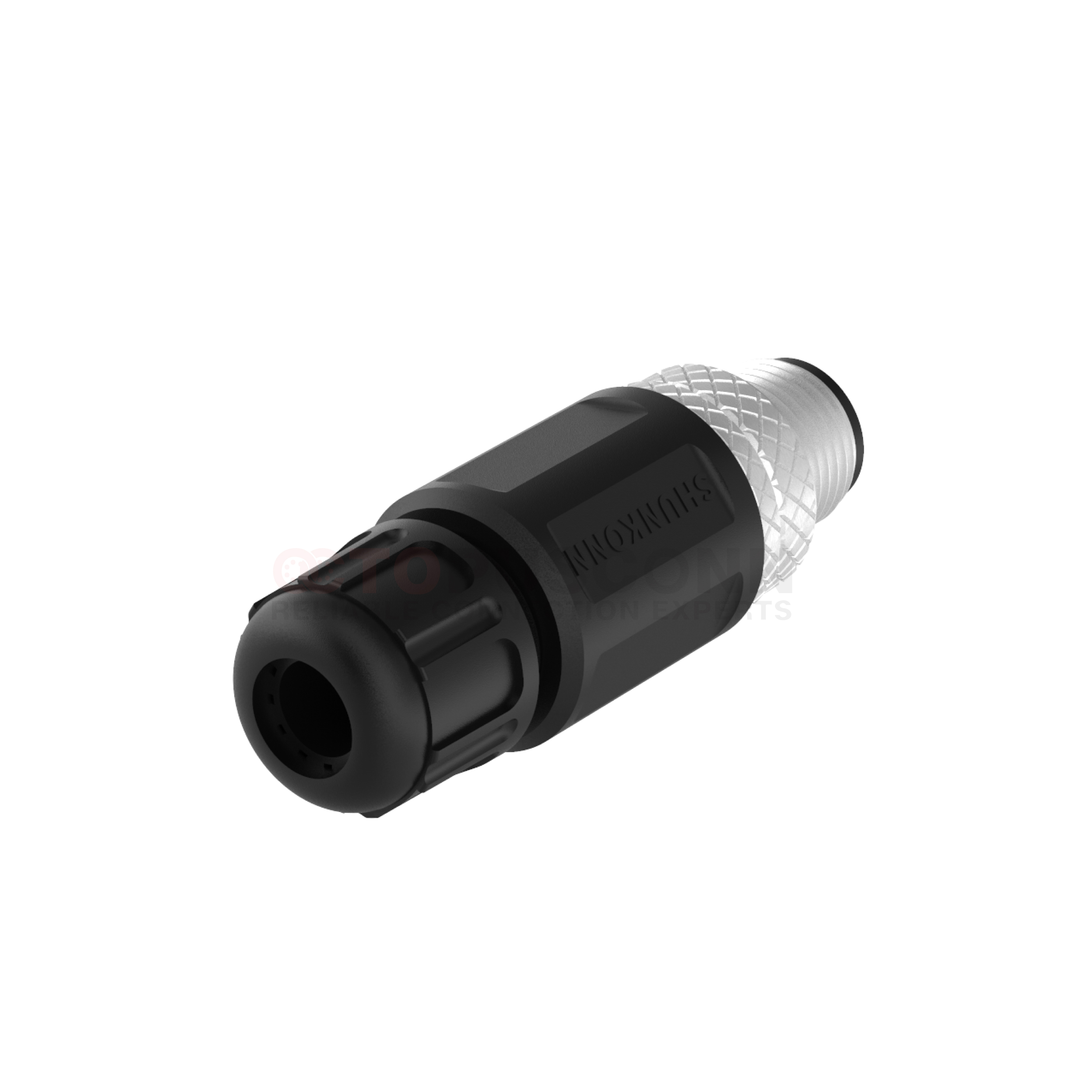

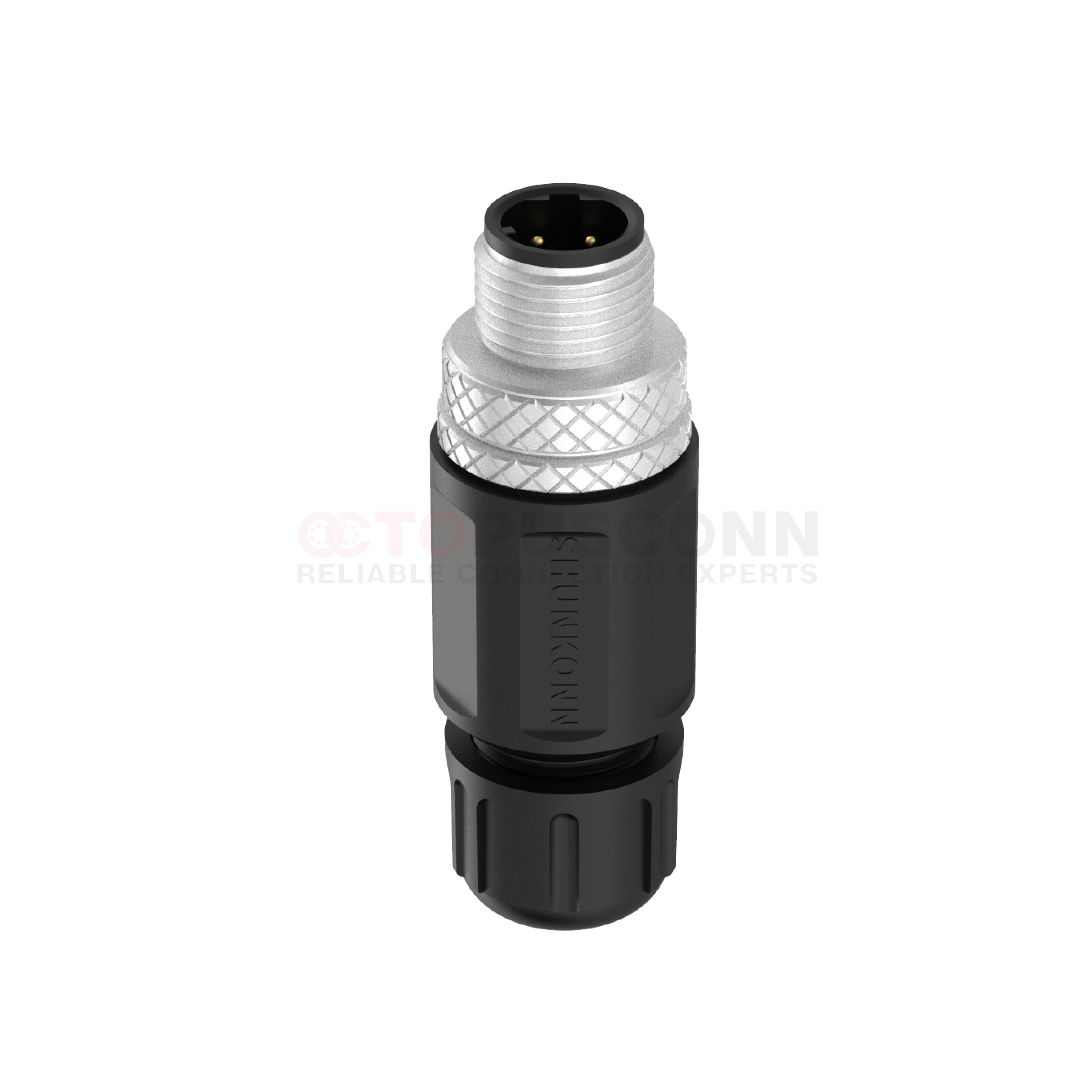

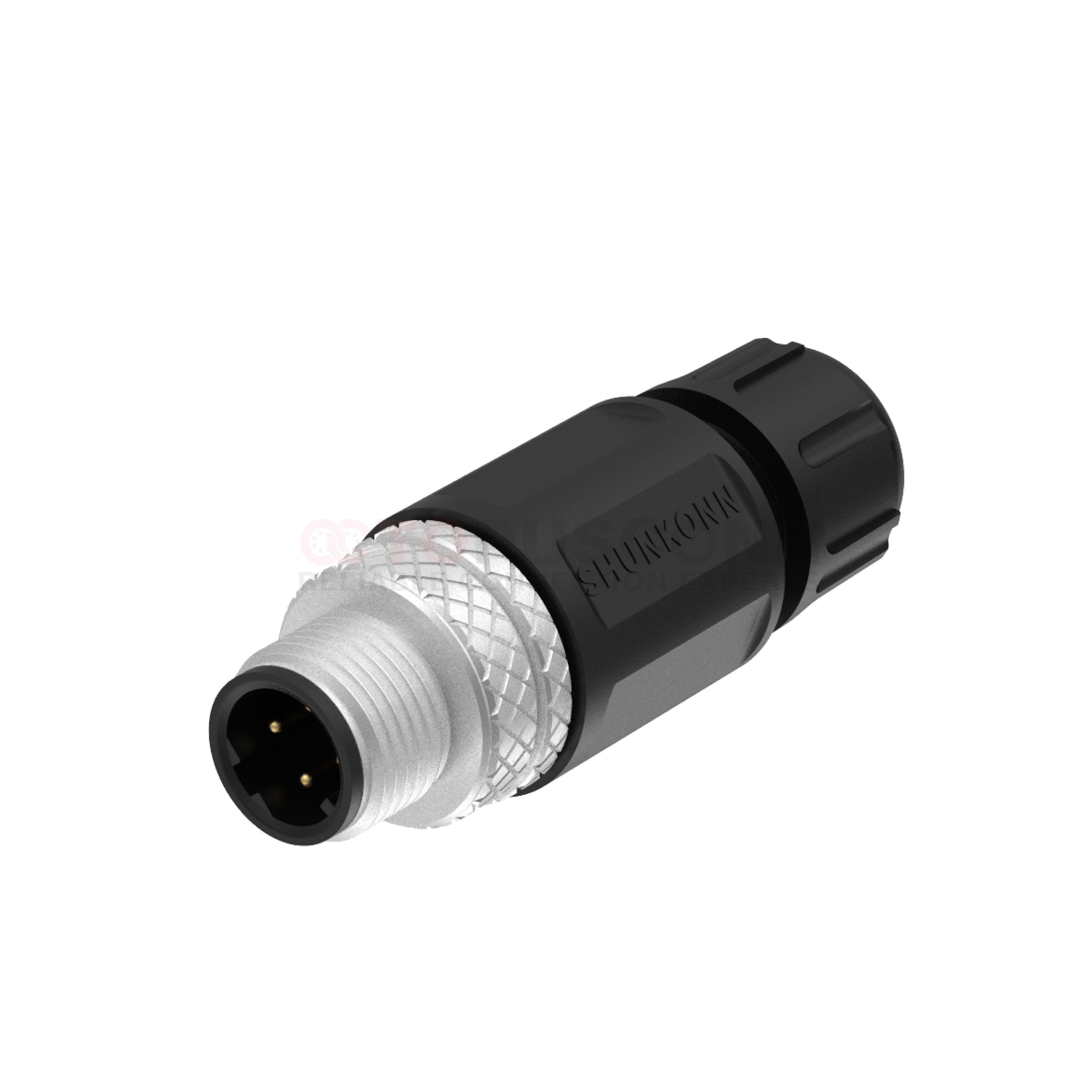

Straight-type metal-plastic assembly with soldering wire:
The D code is specifically designed for error prevention and signal compatibility. The D code serves as its core identification mark. Through the precise matching of specific keys on the housing and pins, it achieves physical error prevention for connections with other M12 connectors such as A (sensor/actuator), B (Profibus), X (Ethernet), etc., thereby fundamentally avoiding equipment downtime or communication failures due to incorrect connections. Straight-type metal-plastic composite structure. It adopts a modular assembly design of "metal housing + plastic insulating base", providing dual guarantees of "strength and insulation". The metal housing is made of nickel-plated brass, with a thickness of 1.2mm. This not only enhances the connector's impact resistance but also forms a natural electromagnetic shielding layer, effectively resisting electromagnetic interference (EMI) in industrial environments. IP67 waterproof rating: IP67 protection can achieve dust and water resistance, suitable for outdoor, humid, and oily environments, with a wide temperature range covering both high and low temperature industrial environments.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12DM-04N1LSMNS601 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
