Core Count : 4P
Category : Male
Direction :180°
Applications : Power, Signal

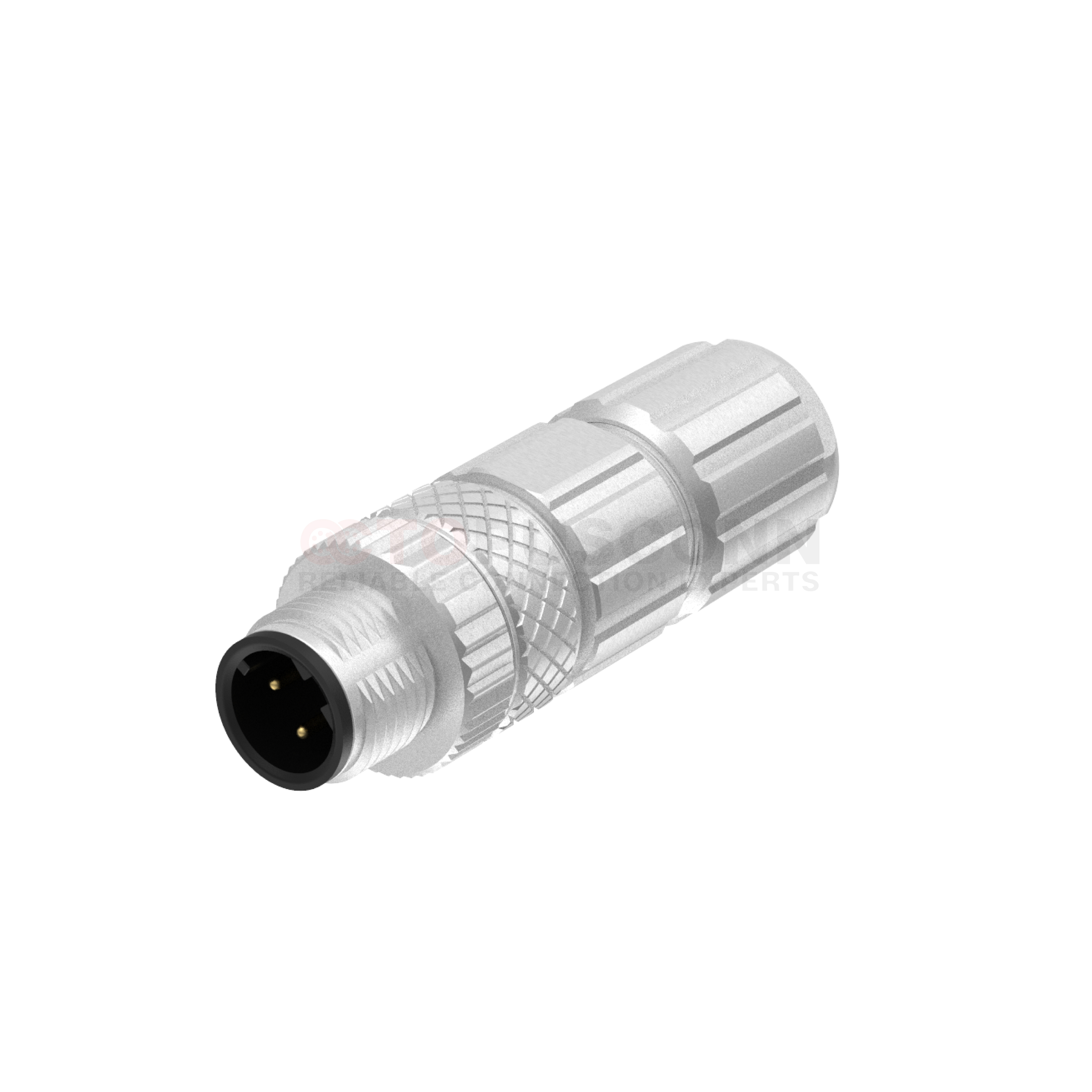

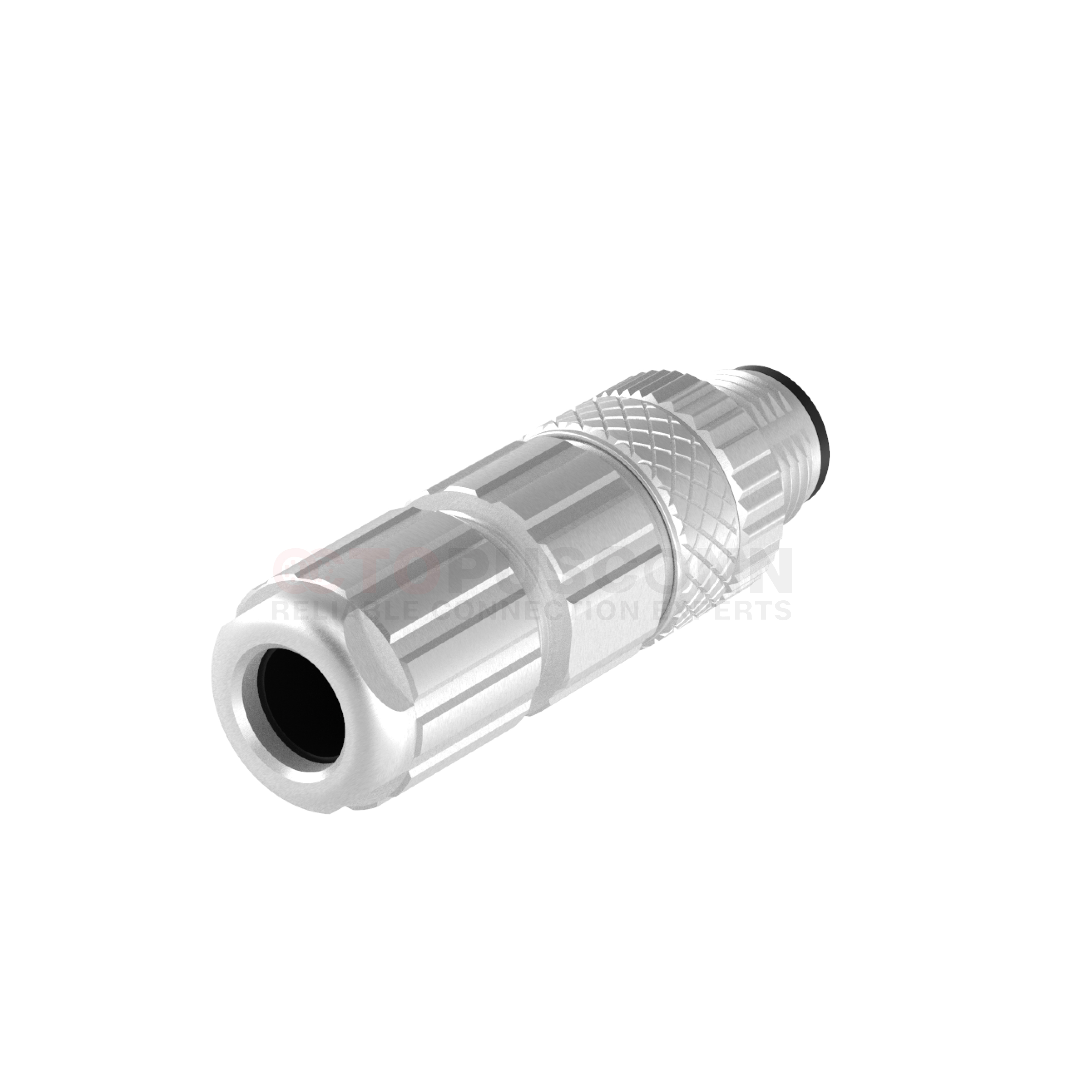

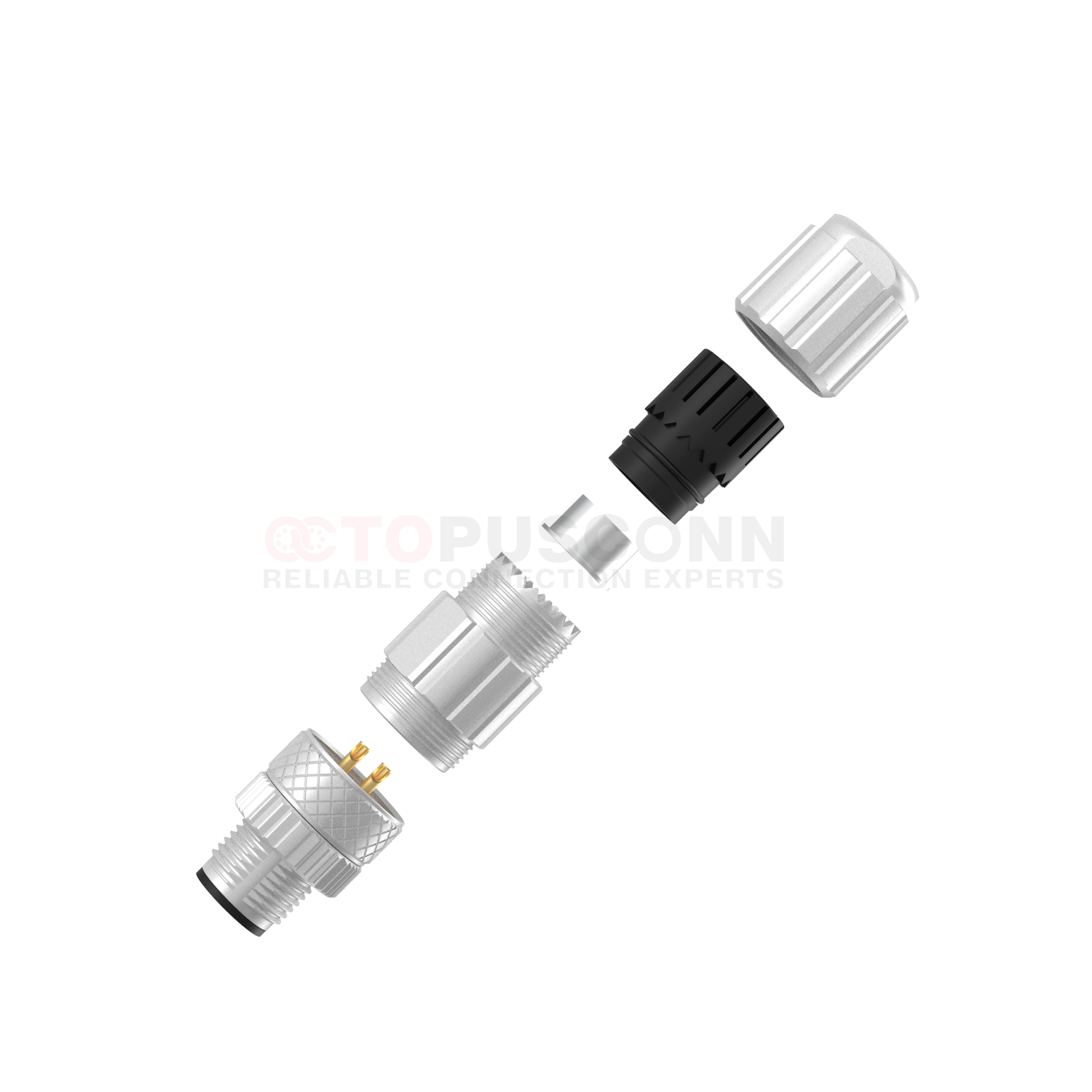

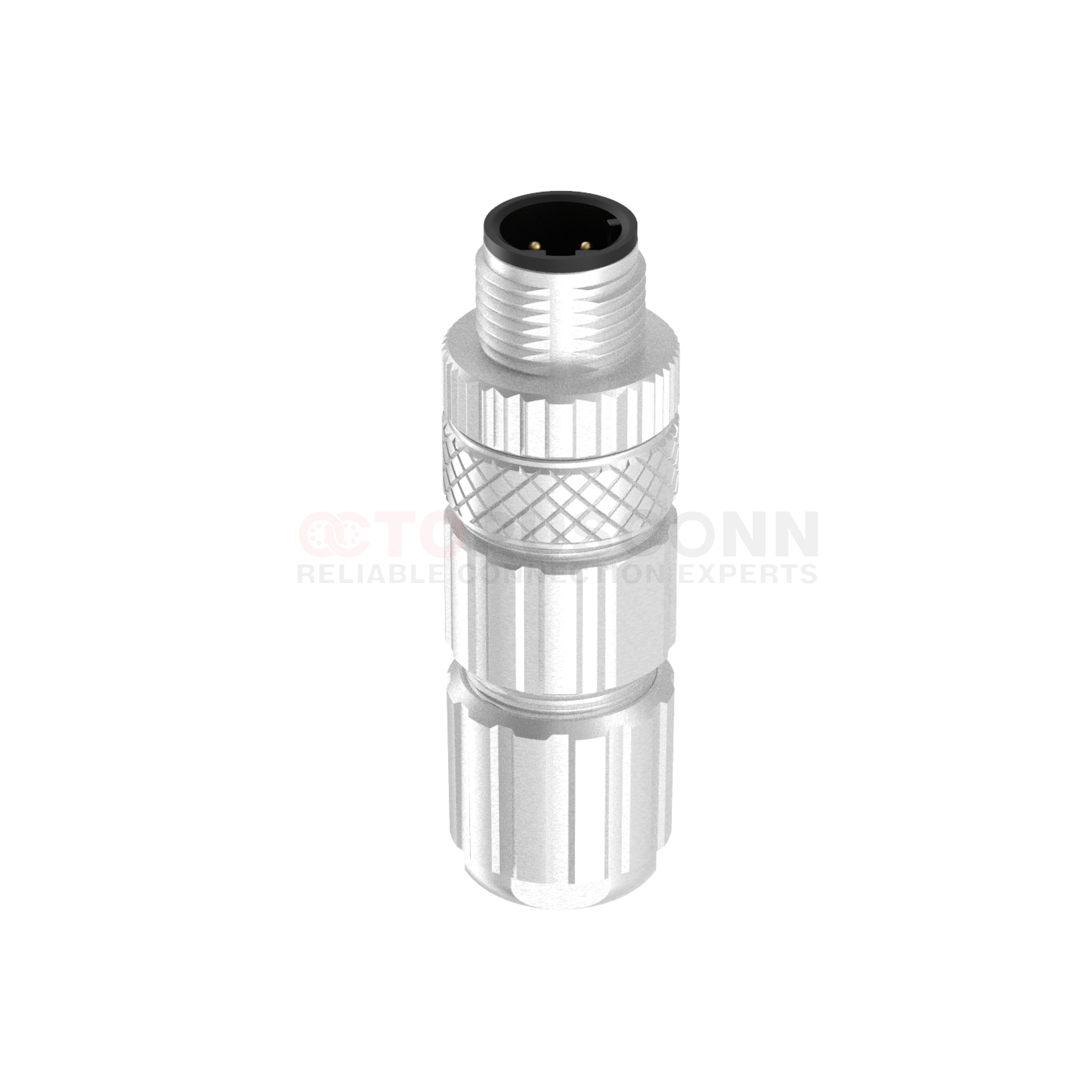

All-metal direct assembly wire-welding type:
The ultimate protection performance of the all-metal structure. Adopting an integrated all-metal design, the housing. The D code precisely prevents incorrect insertion and protocol adaptation. The D code is its exclusive function identifier. Through the specific key positions of the housing and the fixed definition of the 8-pin pins, it realizes physical interlock isolation with other encoded M12 connectors such as A (sensor/actuator), B (Profibus), X (Ethernet), etc., fundamentally eliminating equipment short circuits and communication interruptions caused by incorrect insertion, thereby reducing on-site debugging and maintenance costs. The value of the direct layout and wire-welding connection: Adopting a 180-degree direct structure, the connector axis is consistent with the PCB board and the cable direction, forming a straight transmission path, suitable for vertical wiring inside the control cabinet and linear installation space on the back of the equipment, reducing cable bending stress and avoiding aging and damage to the insulation layer. The gold-plated contacts enhance wear resistance, the all-metal structure extends service life, and the high locking torque enhances stability in vibration environments.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12DM-04N4LPLSS601 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
