Core Count : 4P
Category : Male
Applications : Power, Signal

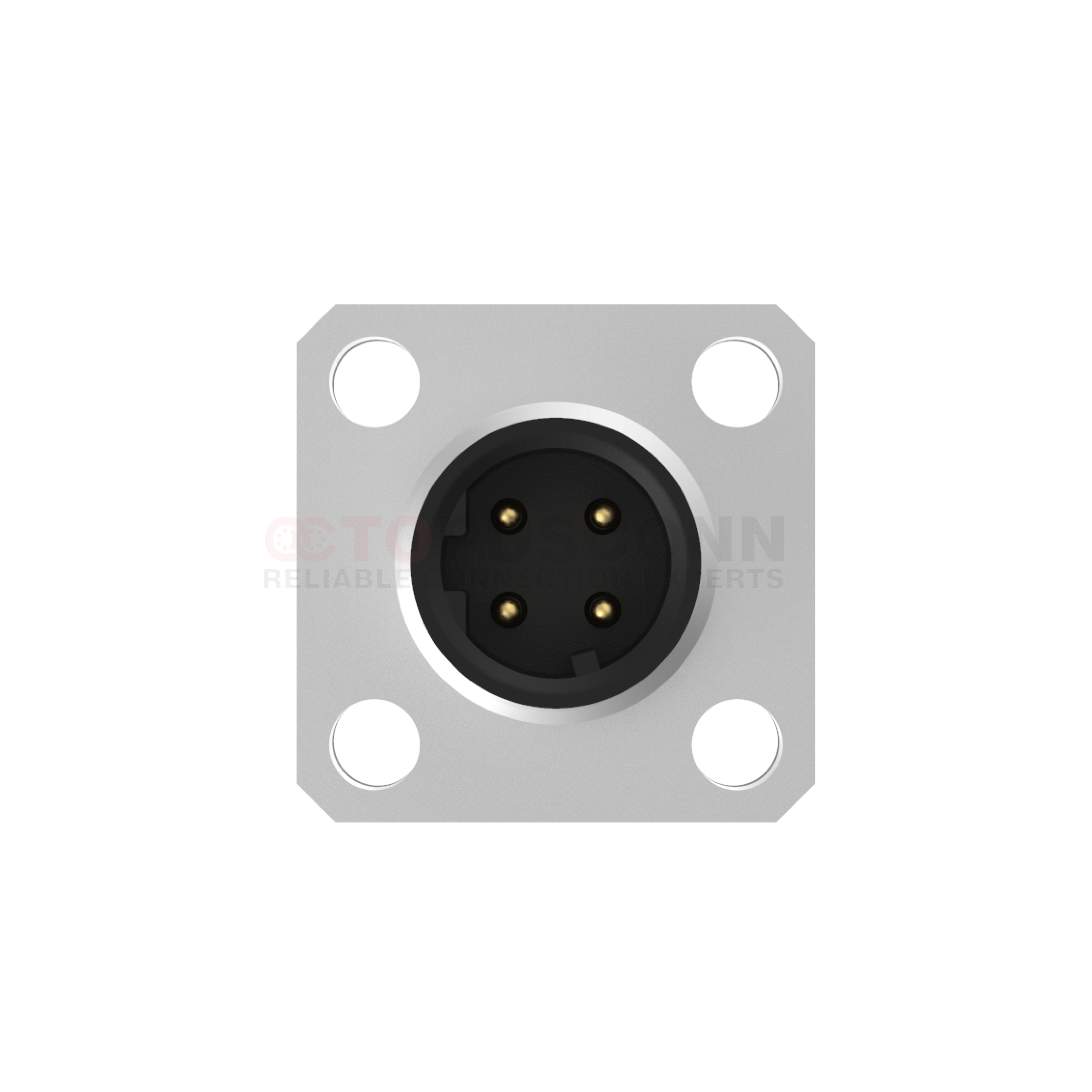

Encoding and Pin: D encoding prevents incorrect wiring. Standard 4-pin design, gold-plated / nickel-plated brass contacts, providing both conductivity and corrosion resistance; rated current 4A, rated voltage 250V, meeting the basic transmission requirements for 100Mbps Ethernet.

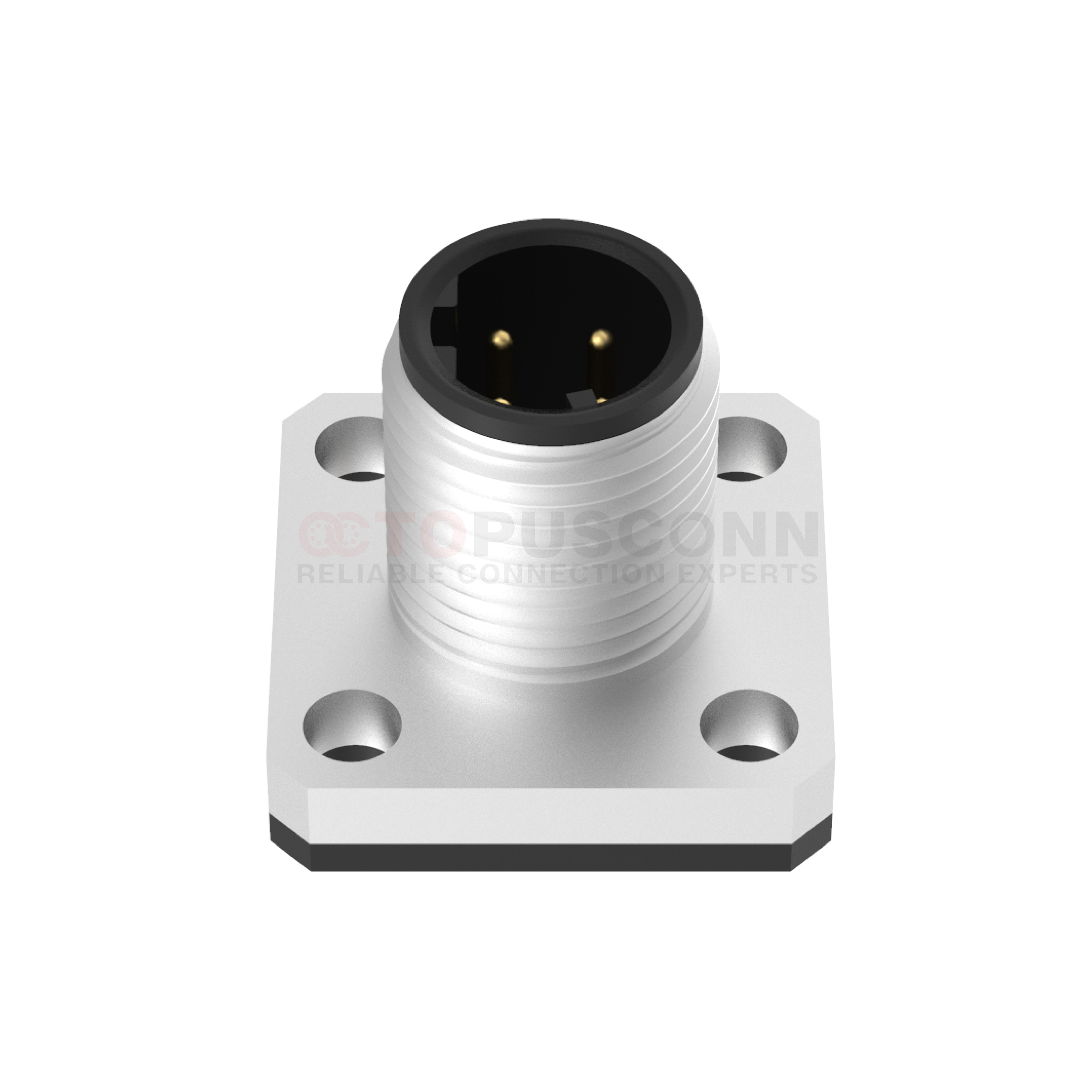

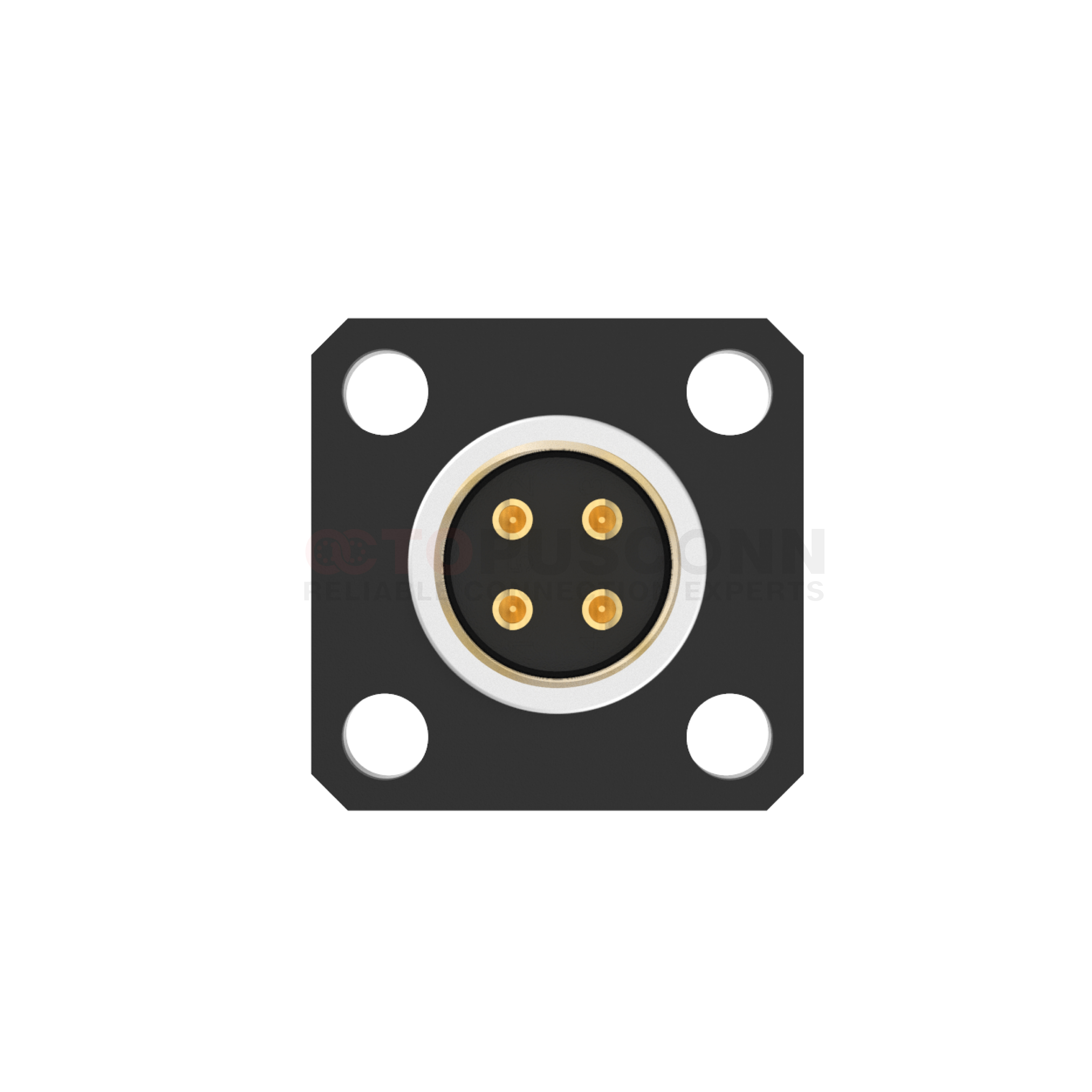

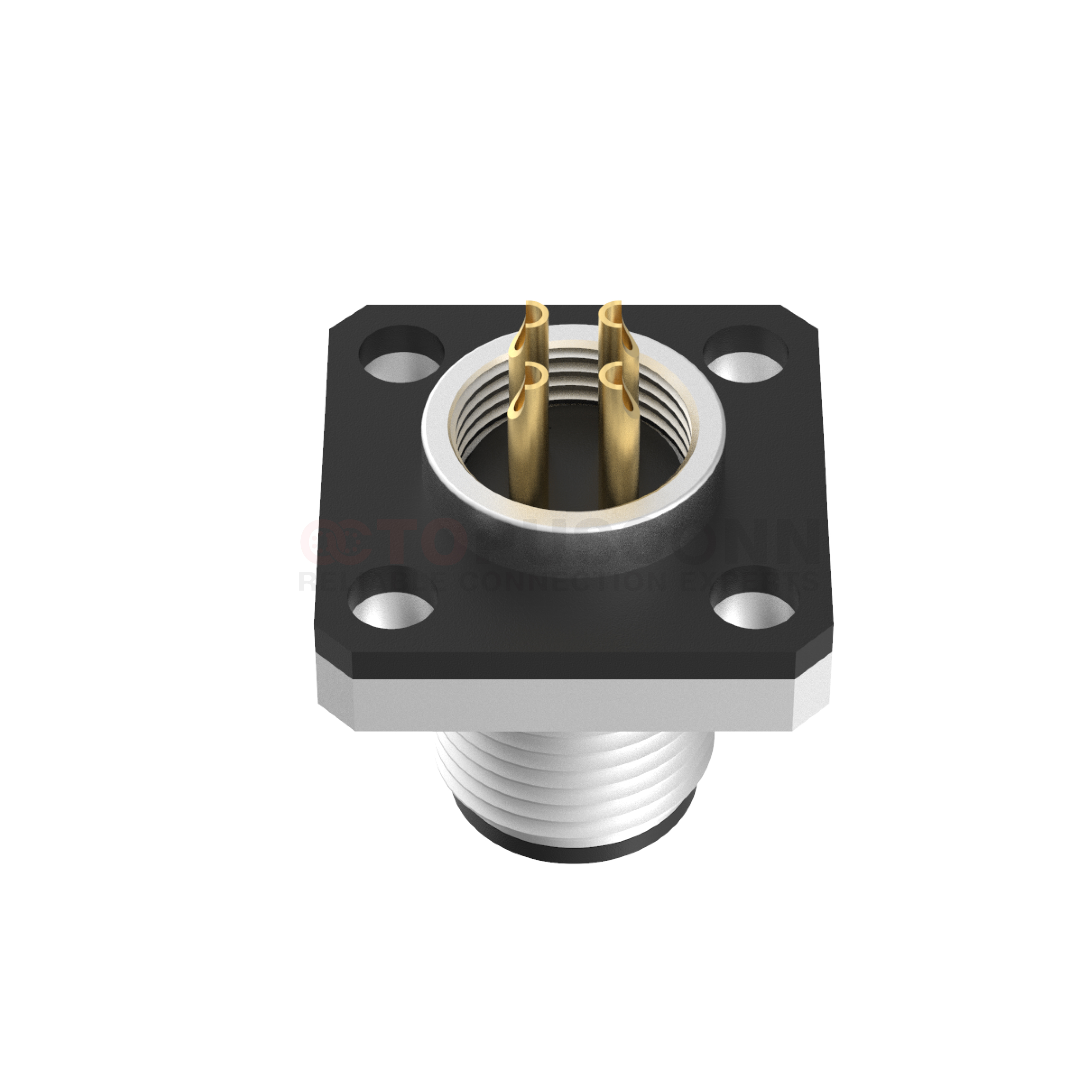

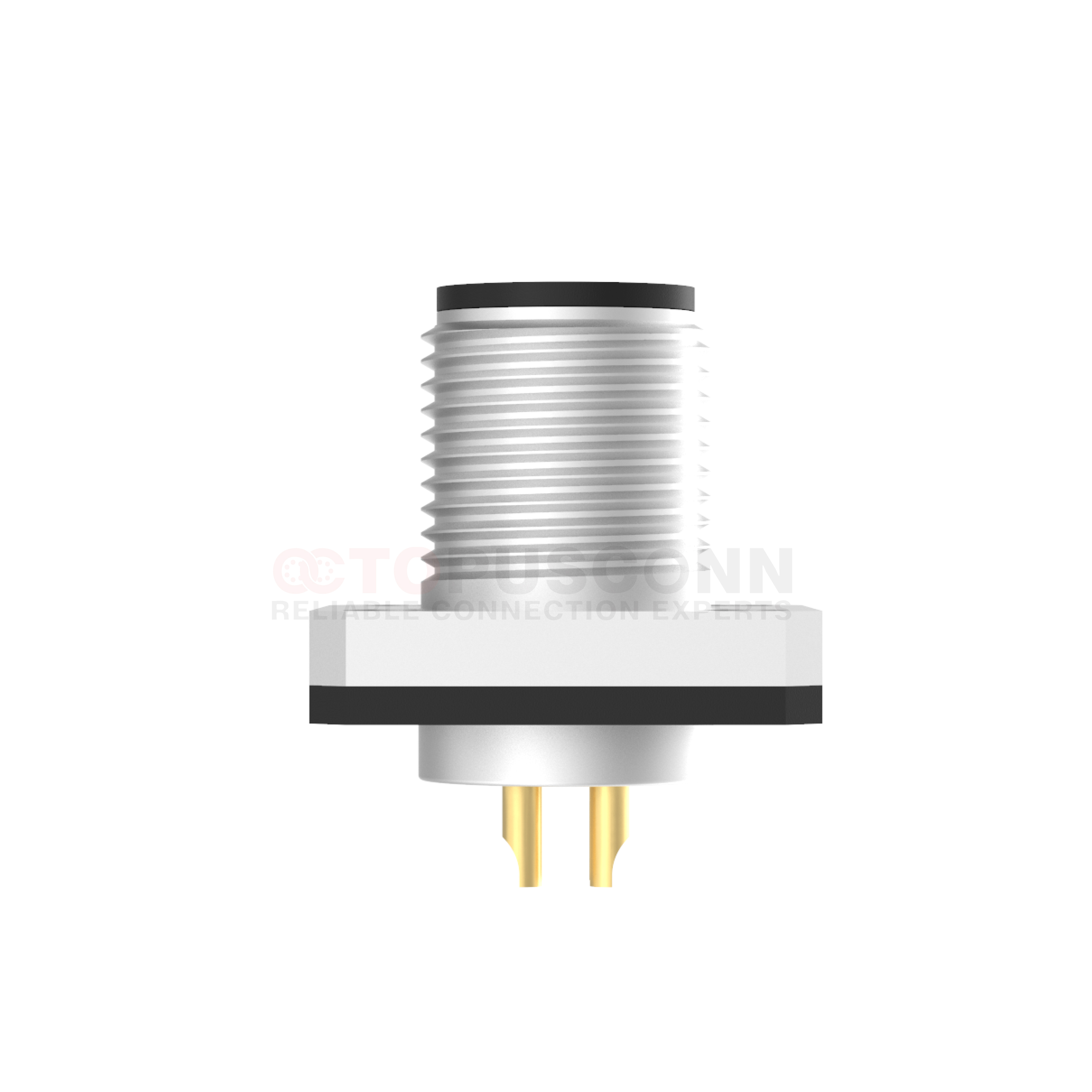

Square Flange and Installation: Square flanges (commonly 14×14mm, etc.) come with symmetrical mounting holes, suitable for panel / chassis fixation, paired with M12×1 threaded locking, ensuring stable installation and precise positioning. Stable Installation: The square flange fits tightly with the panel, resisting vibration / shock, suitable for long-term operation of equipment, especially suitable for control cabinets, robot joints, etc. with frequent vibration scenarios. Cable Optimization: Straight-out or 90-degree out-line options available, avoiding cable bending, suitable for compact spaces, reducing the risk of cable damage. Plug-and-Play: Threaded locking + flange fixation, convenient installation / disassembly, supporting quick maintenance without tools, suitable for industrial efficient assembly requirements. Protocol Compatibility: Compatible with mainstream industrial Ethernet protocols such as Profinet, Ethernet/IP, Modbus TCP, suitable for PLCs, sensors, I/O modules.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12DM-04F7LSLNS101 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
