Core Count : 3P, 4P
Category :Male
Connection method :Welding wire type
Applications : Power, Signal

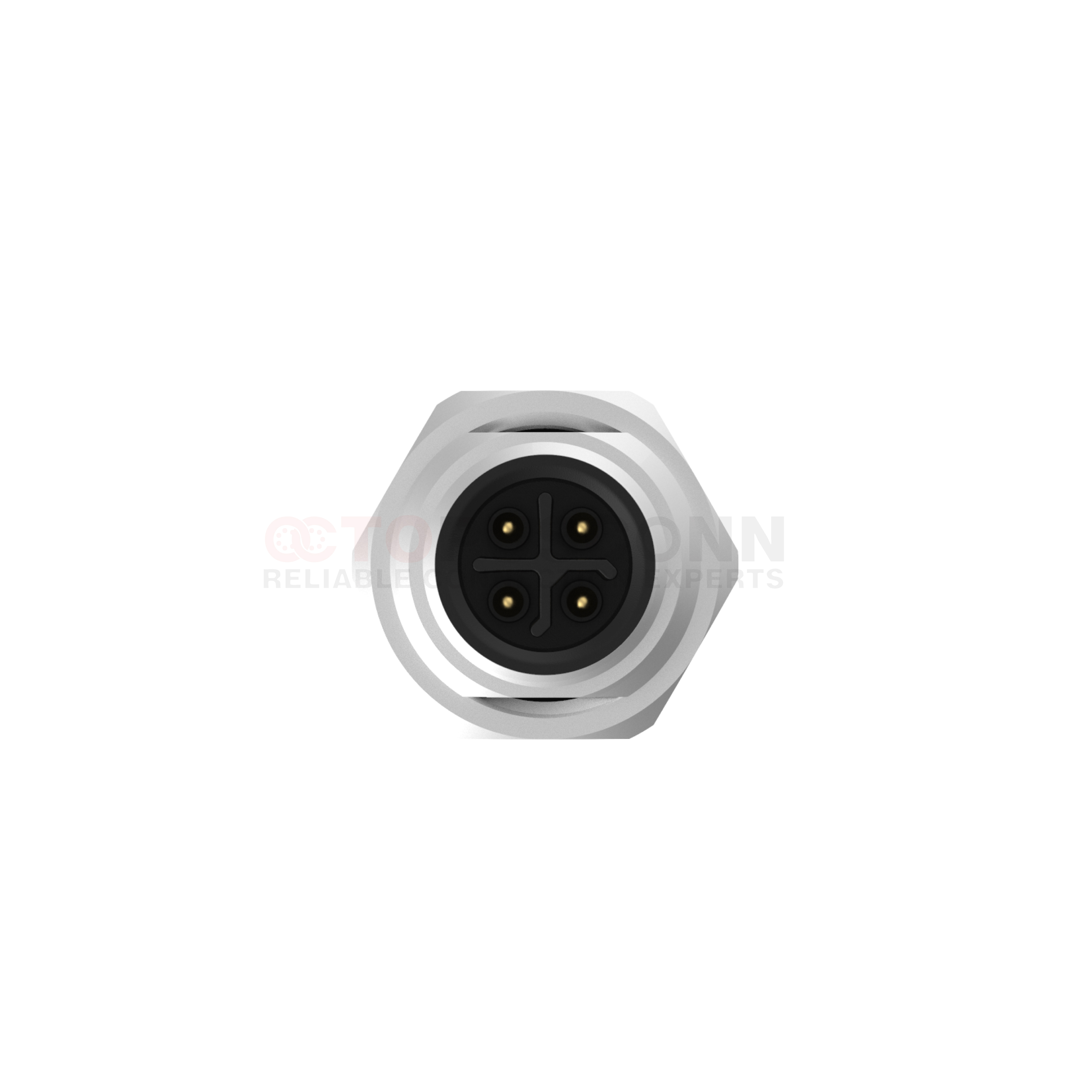

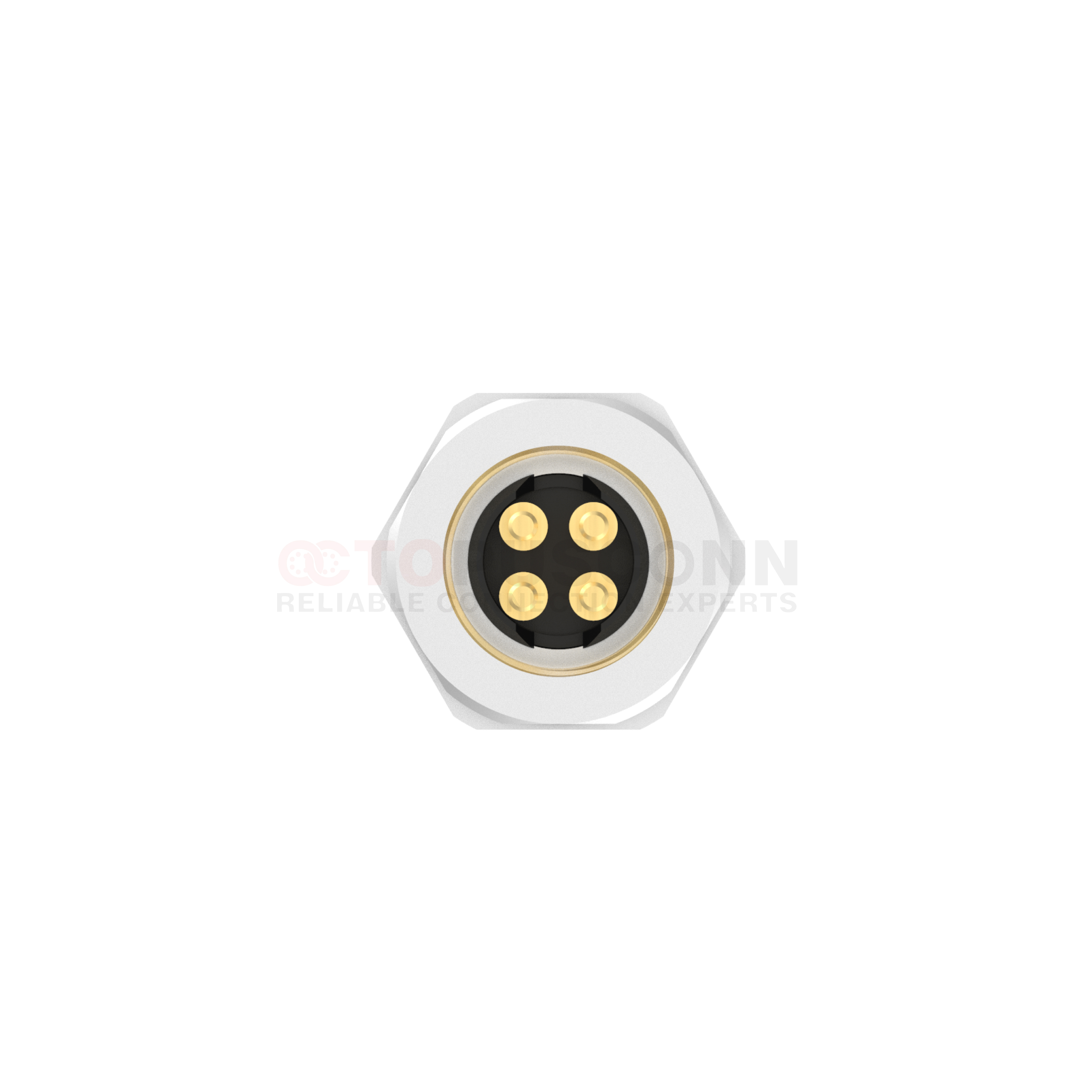

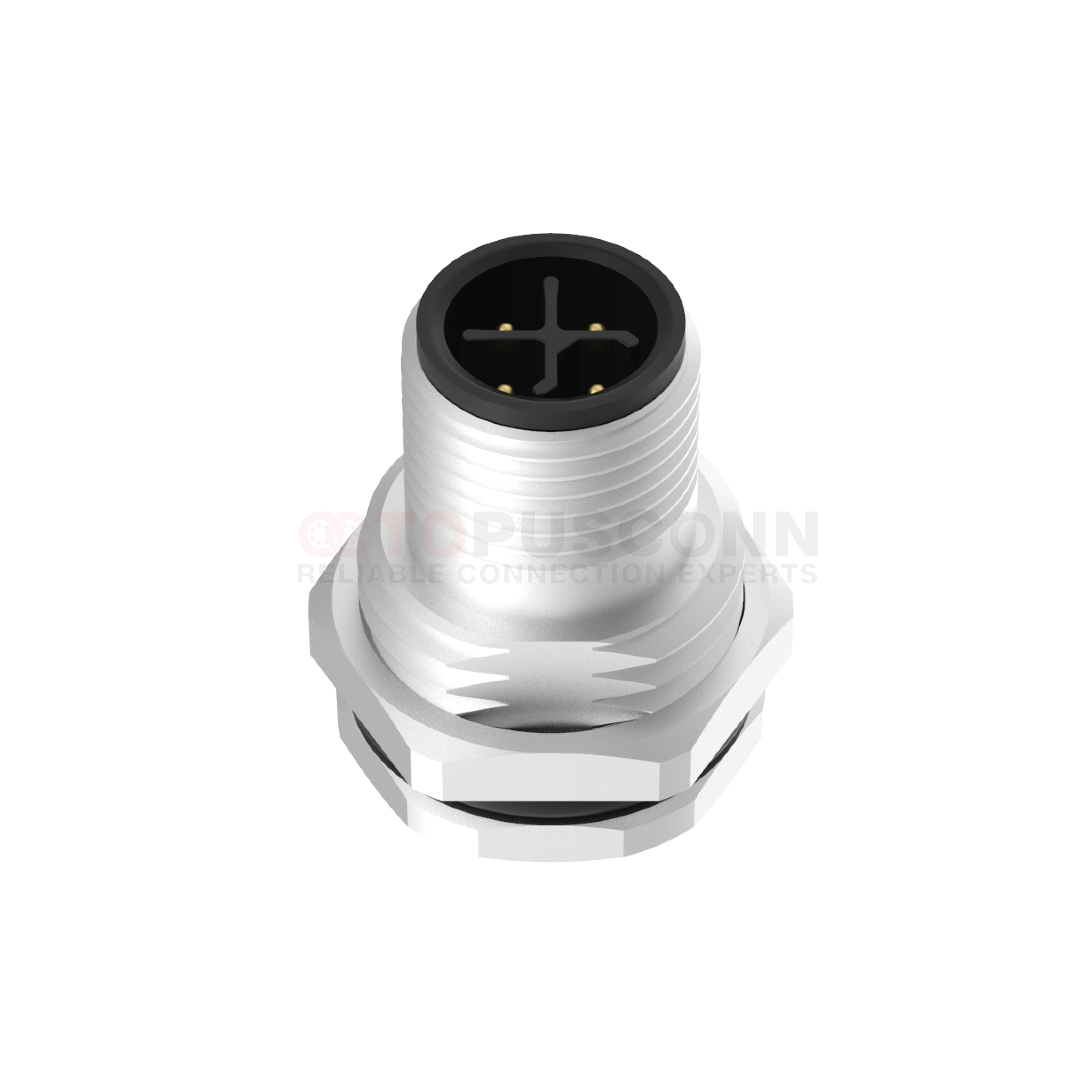

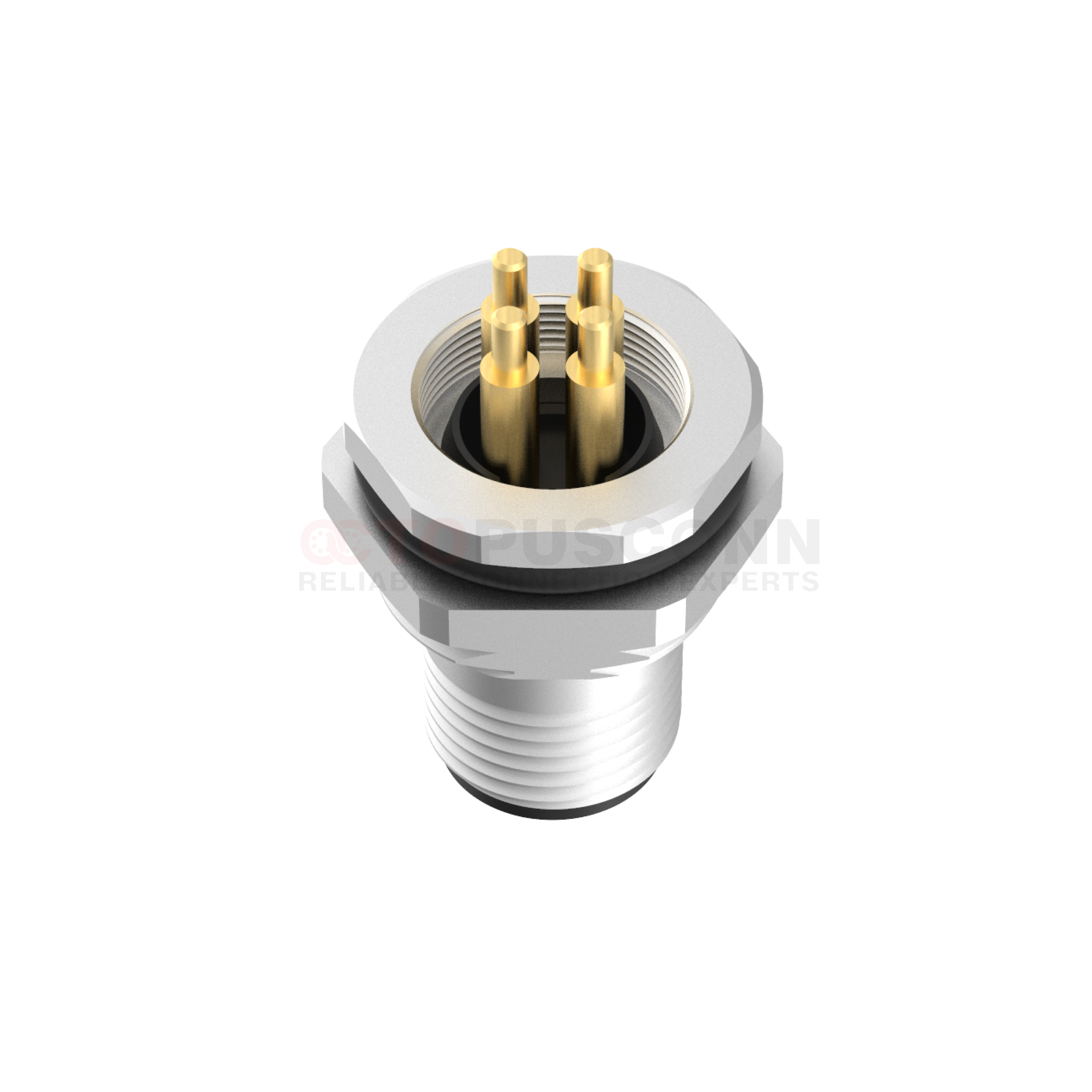

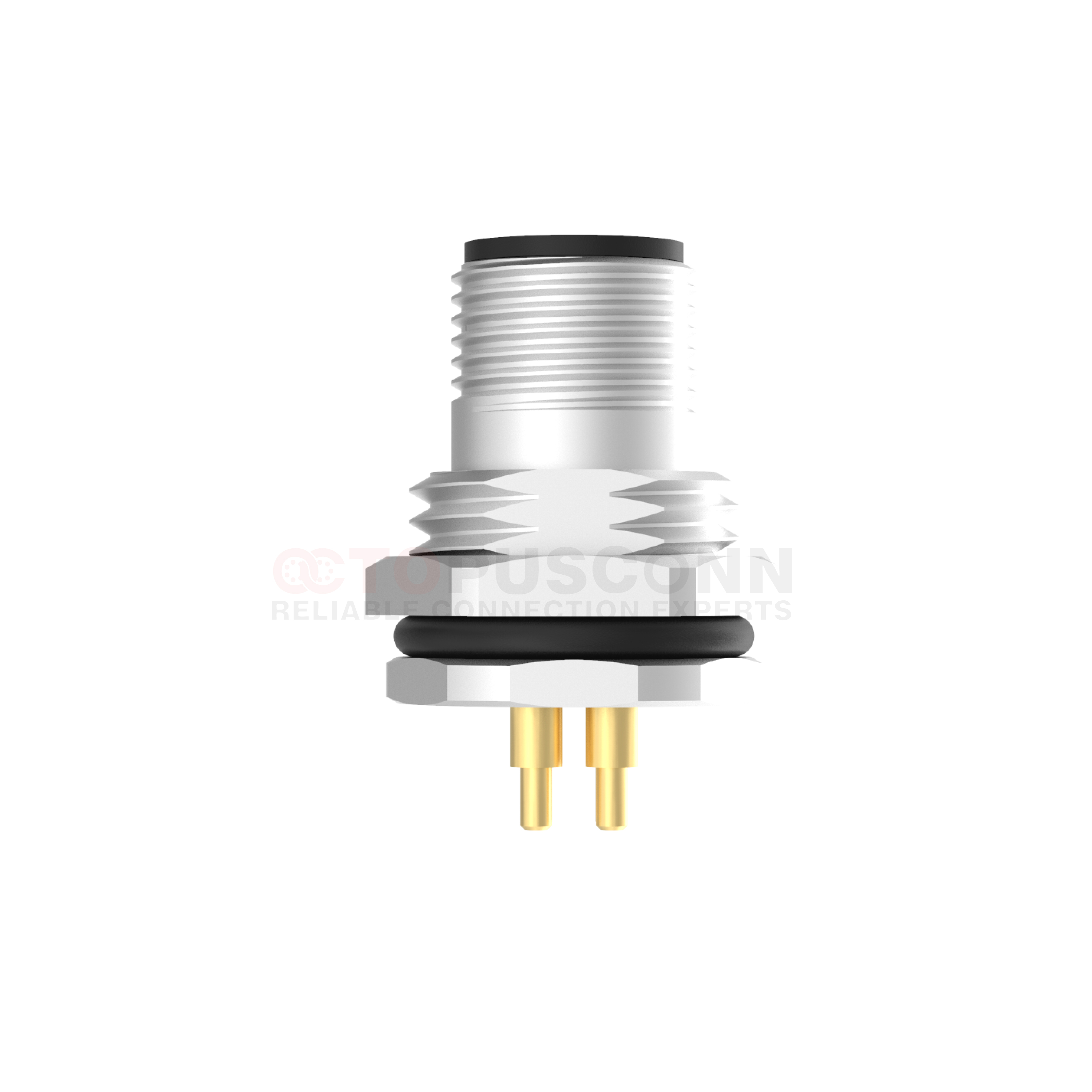

Panel-mounted plug-in type:
Power supply-specific compatibility to prevent incorrect insertion: The S code is an exclusive code for AC power transmission. Combined with the core number configurations of 2+PE and 3+PE, it can precisely match the AC power supply requirements of industrial drives, servo motors, and other equipment. At the same time, the exclusive code can prevent incorrect connections with connectors of A, D, etc. codes that transmit signals, avoiding power short circuits caused by incorrect insertion and thereby damaging the core components of the equipment. Stable connection with strong compatibility: The plug-in type uses PCB tin-plated welding connections. Compared to ordinary wiring methods, the connection between terminals and the circuit board is more secure, capable of withstanding the vibration during equipment operation and reducing the risk of terminal loosening. It is used for large-power AC power supply connection scenarios in the industrial field. For example, on an automated production line, it can be used as the power supply interface for servo motors and drives, simplifying the traditional bulky power connection structure..
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12SM-03R2LDLNS301 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12SM-04R2LDLNS301 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
