Core Count : 2P, 3P, 4P
Category :Female
Connection method :Panel-type
Applications : Power, Signal

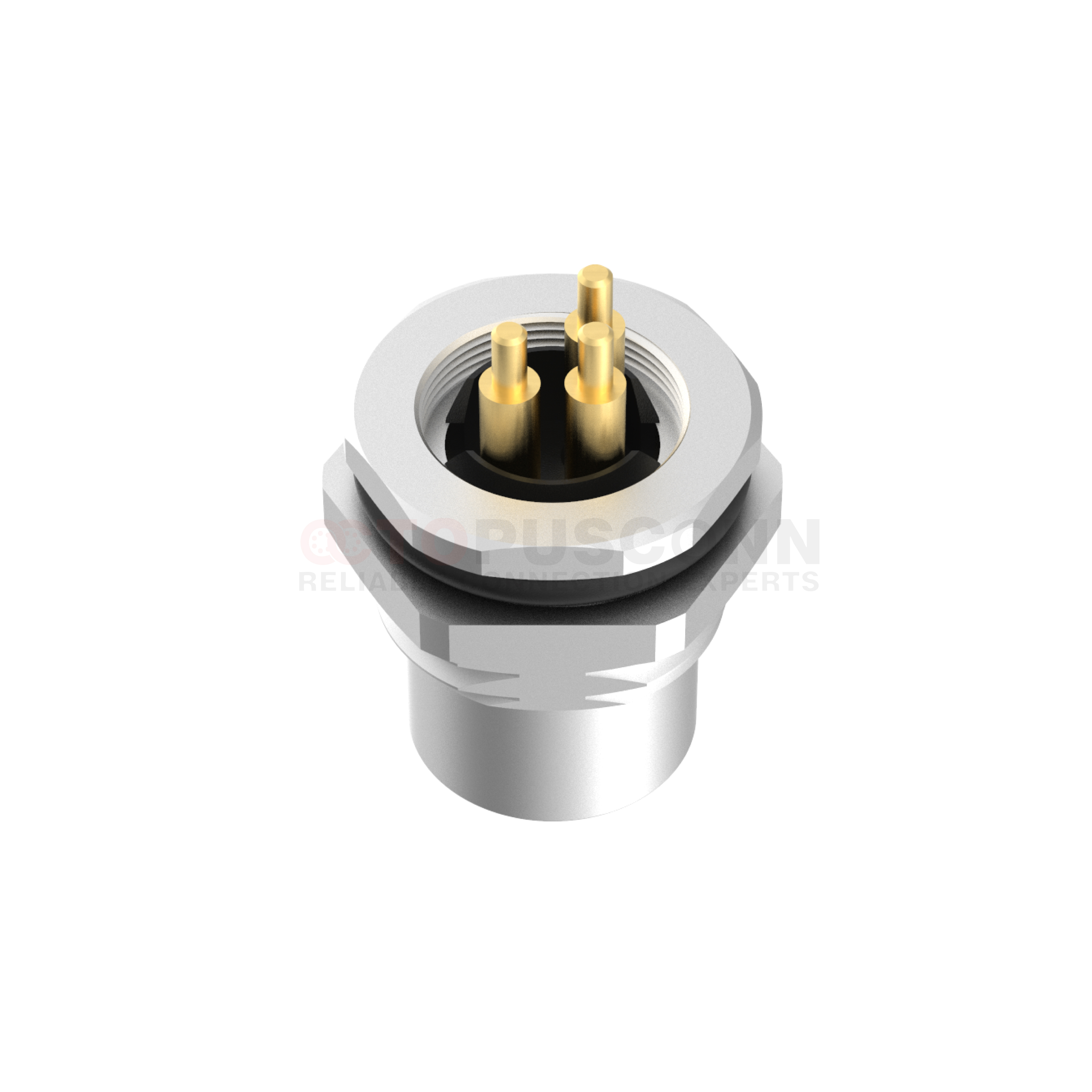

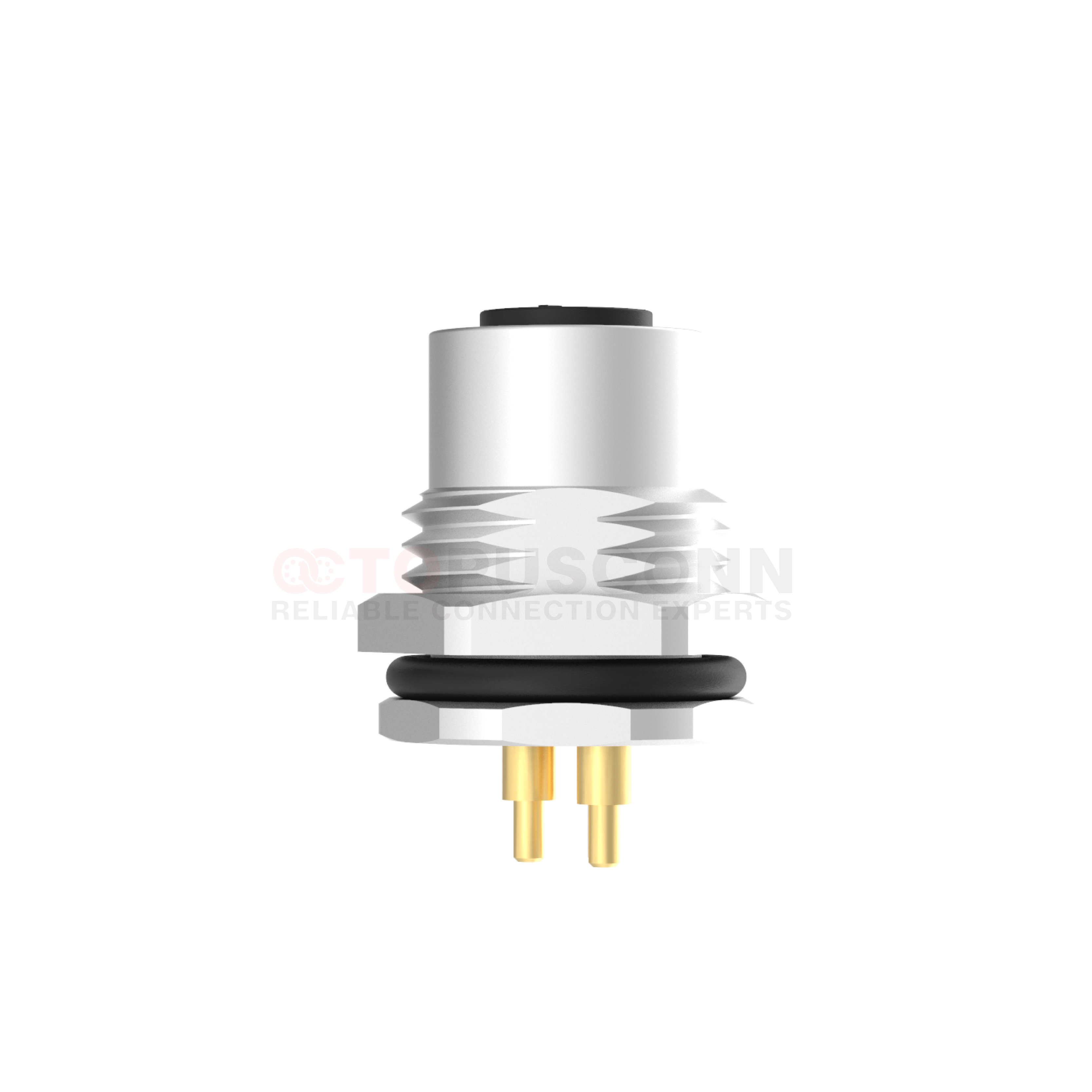

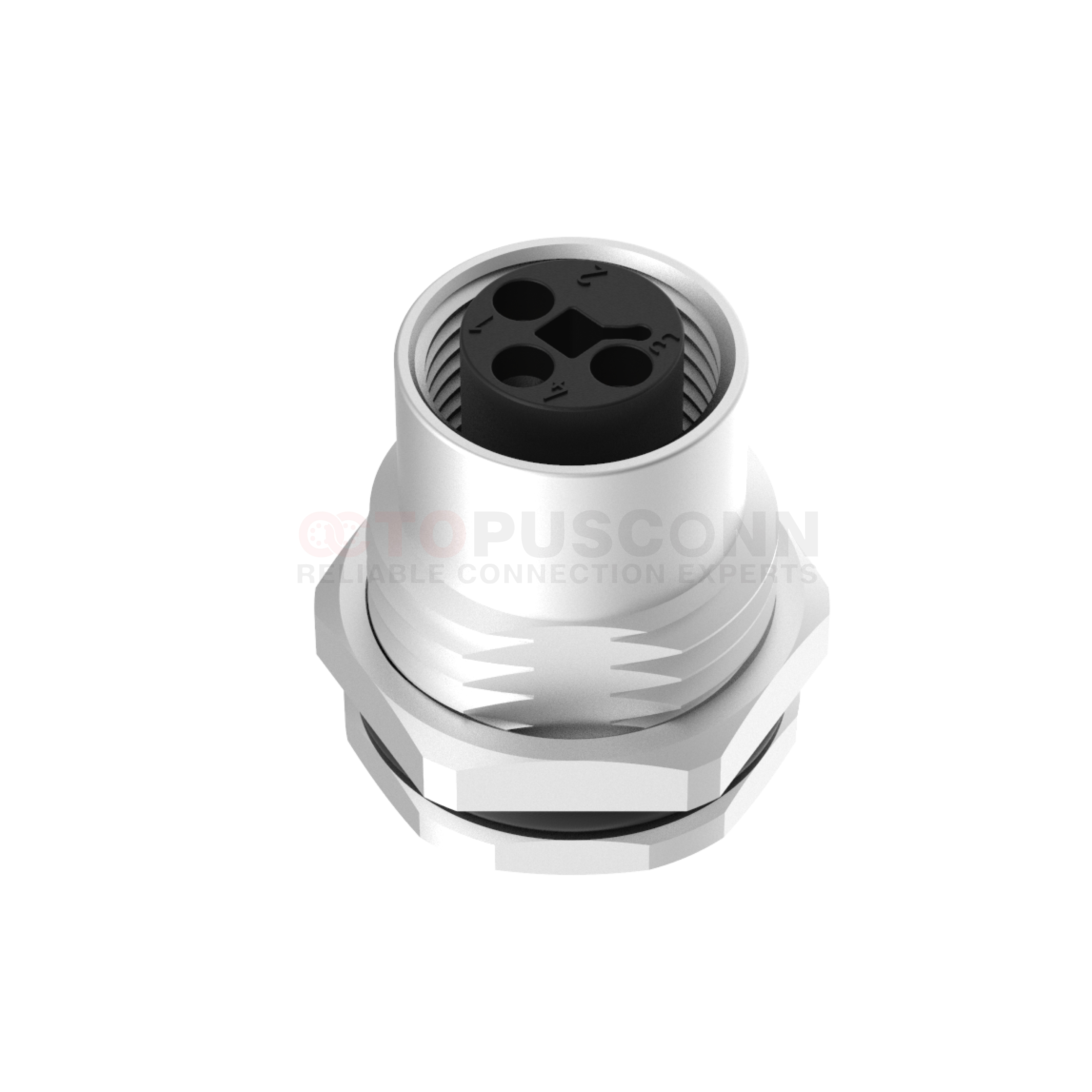

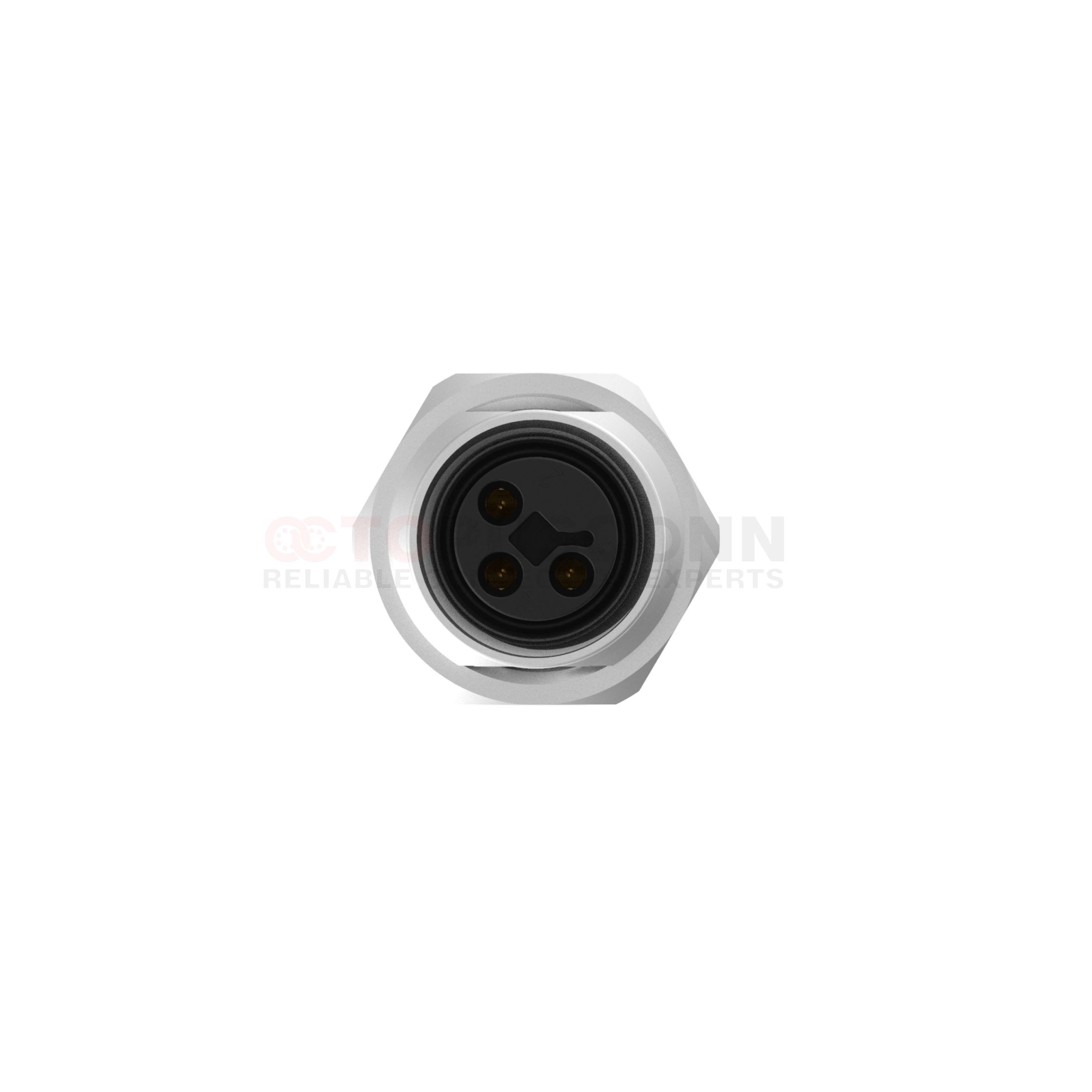

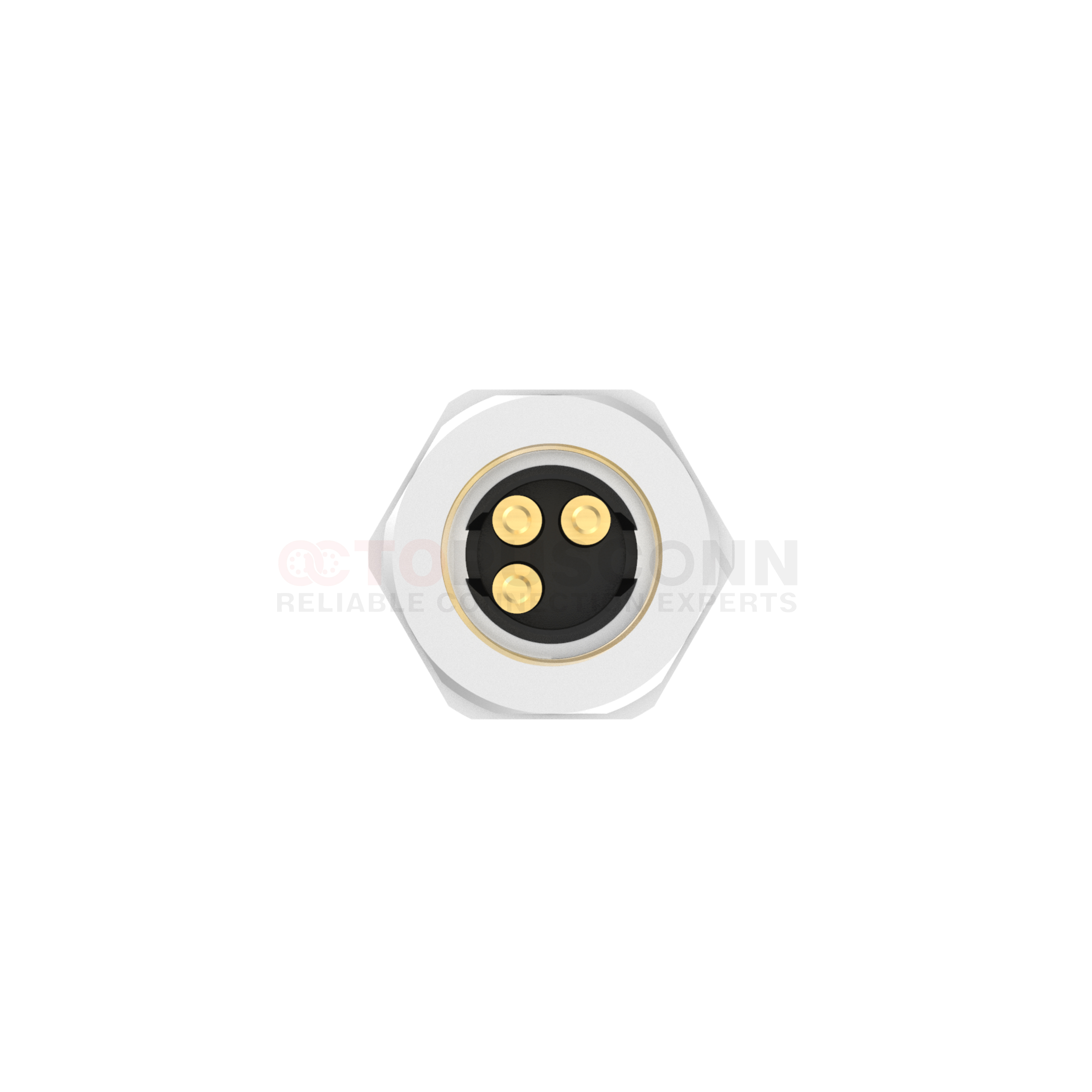

Panel-mounted plug-in type:
High integration, compact design: The plug-in structure can be directly integrated with the PCB board without the need for additional adapter components. Combined with the compact layout for panel mounting, it can significantly save internal space of the equipment, especially suitable for devices with densely arranged internal structures such as servo motors and industrial sensors. Stable connection, safer anti-misinsertion: The exclusive key position design with T coding can avoid misinsertion with other encoded M12 connectors such as S and A, preventing damage to the equipment due to incorrect power interface connection; the gold-plated brass terminals not only reduce contact resistance but also, after insertion, the structure is fixed with the panel, maintaining stable connection even under equipment vibration conditions.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12TF-02R2LDLNS301 |
2
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12TF-03R2LDLNS301 |
3
|
4A
|
250V
|
250V
|
22
|
0.34
|
| MC12TF-04R2LDLNS301 |
4
|
4A
|
250V
|
250V
|
22
|
0.34
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
