Core Count : 8P
Category : Female
Connection Method : Plug-in type
Application : Power, Signal

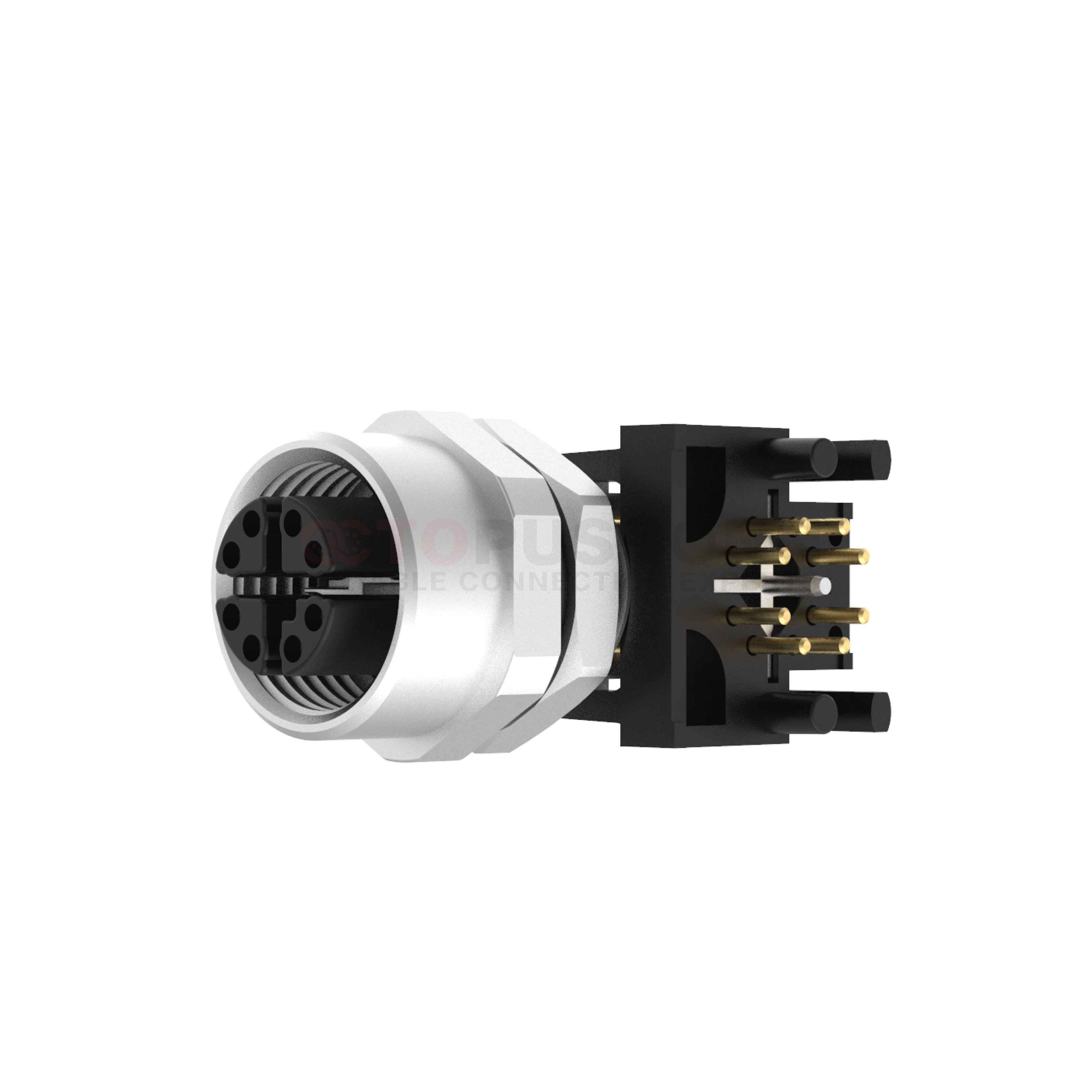

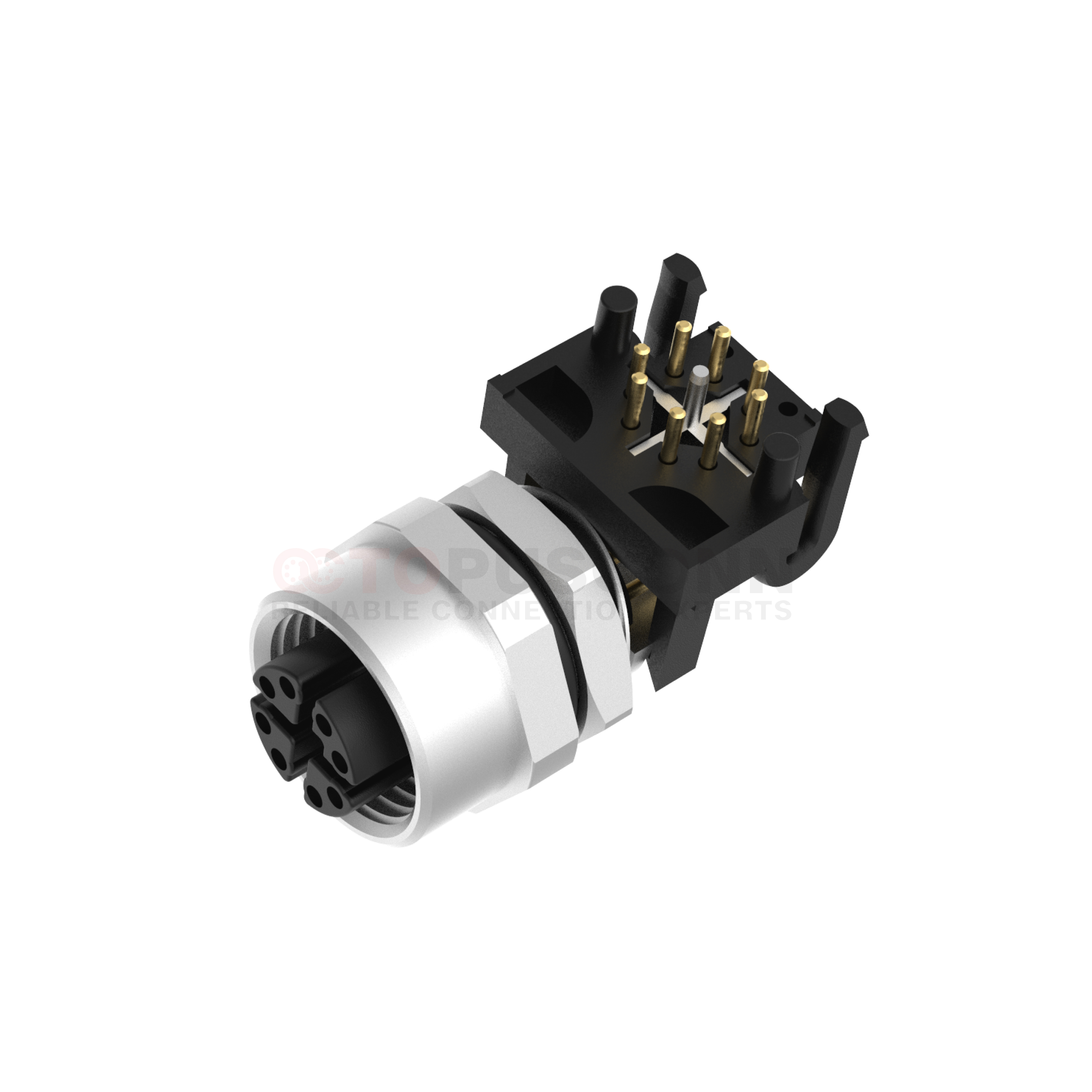

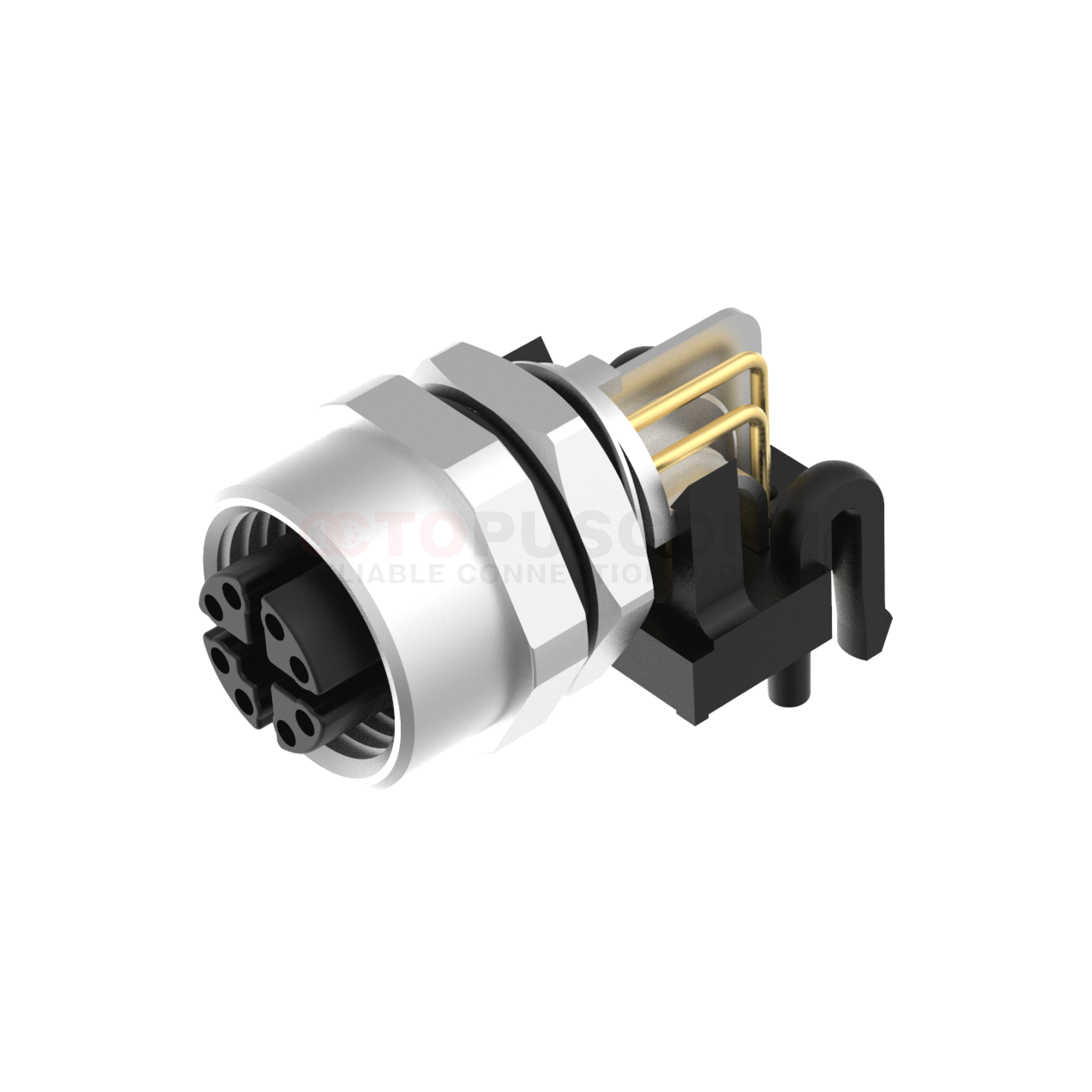

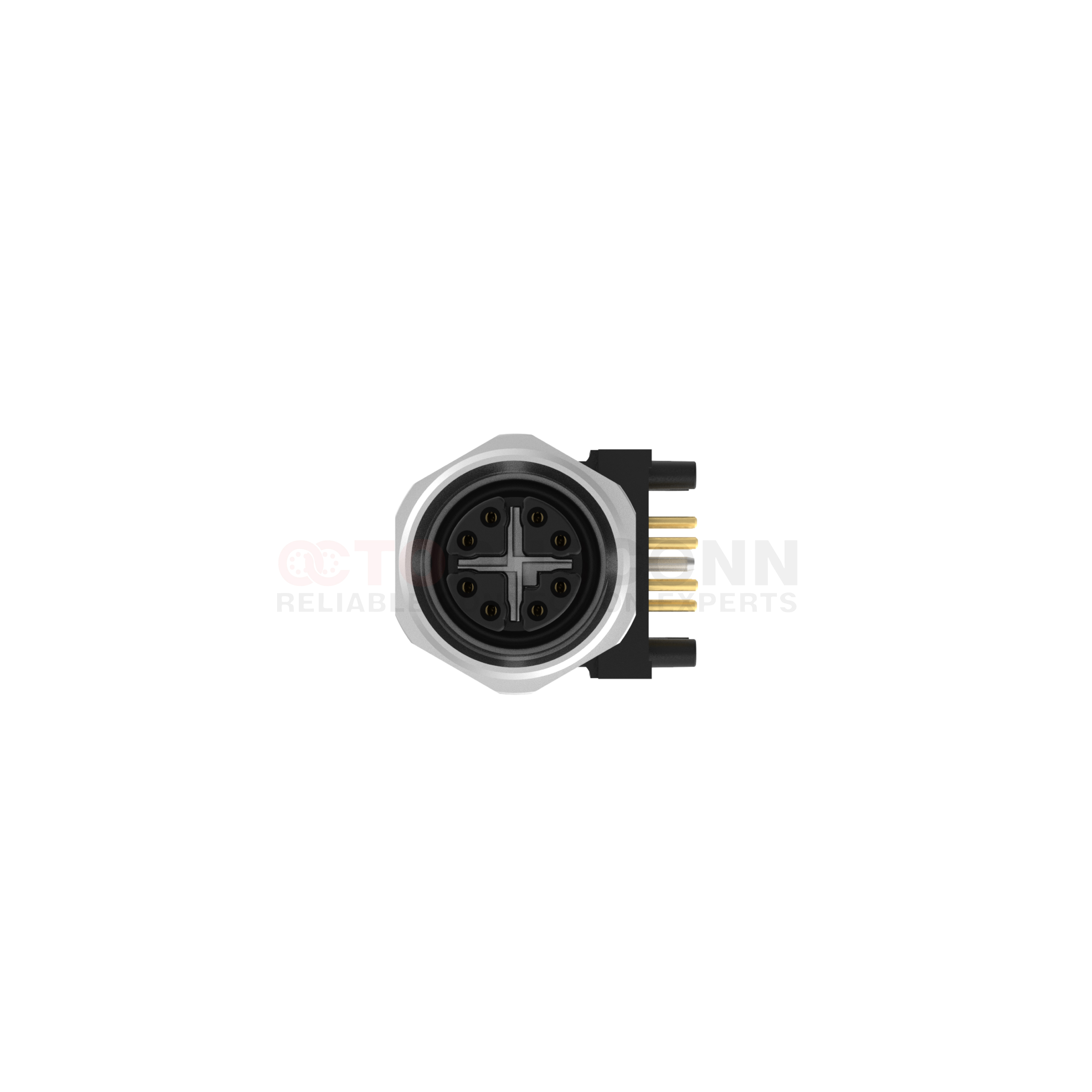

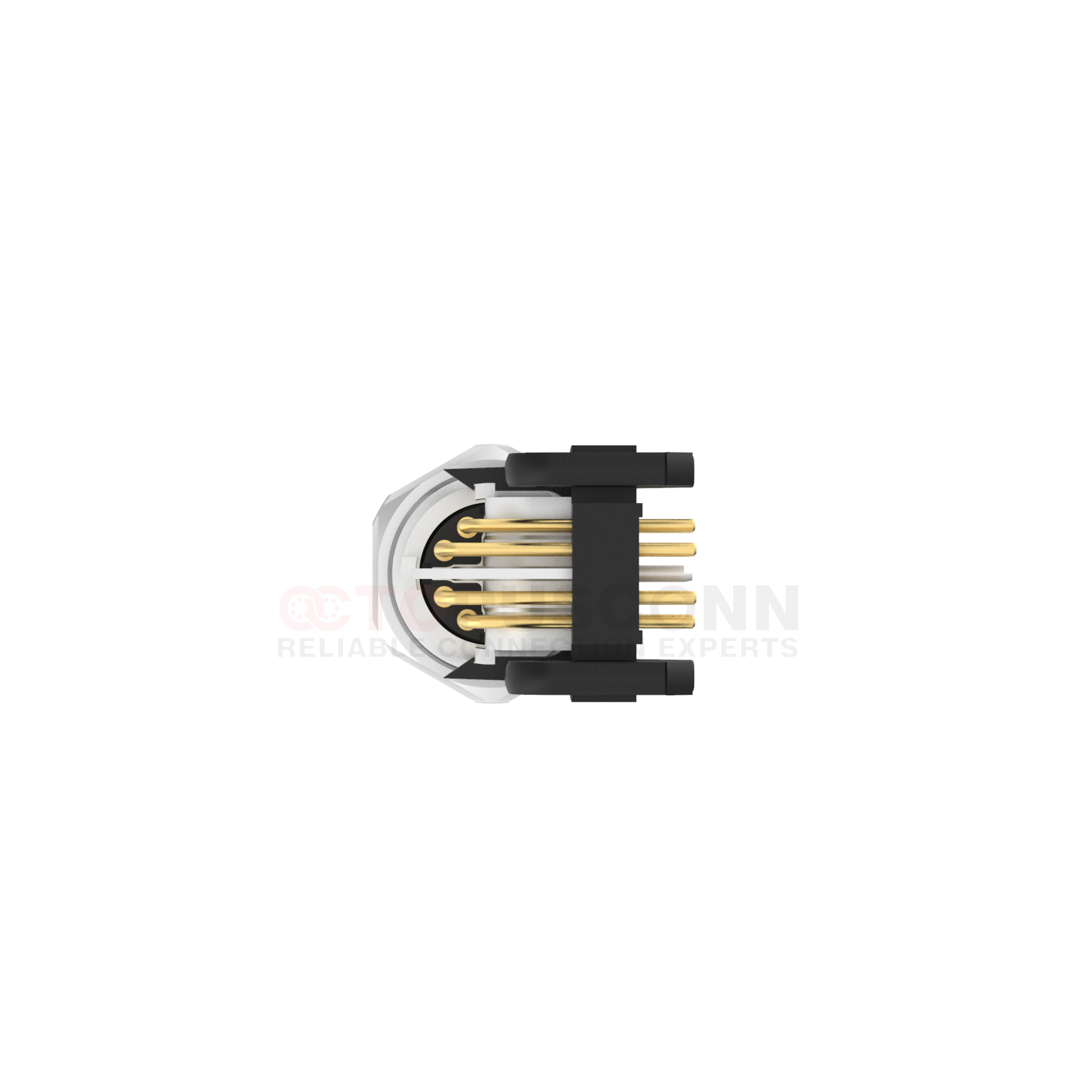

90-degree constellation plate PCB panel type with shielding and locking (short):
Compact space compatibility: The short size combined with the 90-degree bend can easily fit into equipment with limited internal space such as the end effector of an industrial robot or a small industrial switch. Compared to the long version, it can save approximately 15% of installation space. The bend design also prevents the cables from getting tangled with the moving parts of the equipment, reducing the risk of cable wear. The appearance and installation compatibility are flexible: The rear locking structure is fixed from the inside of the panel, and there are no protruding nuts on the outside of the panel. The overall appearance is neat, especially suitable for precision instruments and intelligent terminals with requirements for equipment appearance; although the installation requires removing the components inside the panel, it does not require frequent maintenance after the installation, and the stability is stronger. Transmission stable and anti-interference: The X-encoded high-density interface design ensures high-speed data transmission without packet loss, and combined with the fully enclosed shielding structure, it can effectively solve the electromagnetic interference problem caused by multiple devices working simultaneously in complex industrial environments. The direct soldering method of the PCB plate also reduces signal fluctuations caused by loose wiring.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12XF-08F2LMlNR101 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
