Core Count : 8P
Category : Male
Direction : 180°
Application : Power, Signal

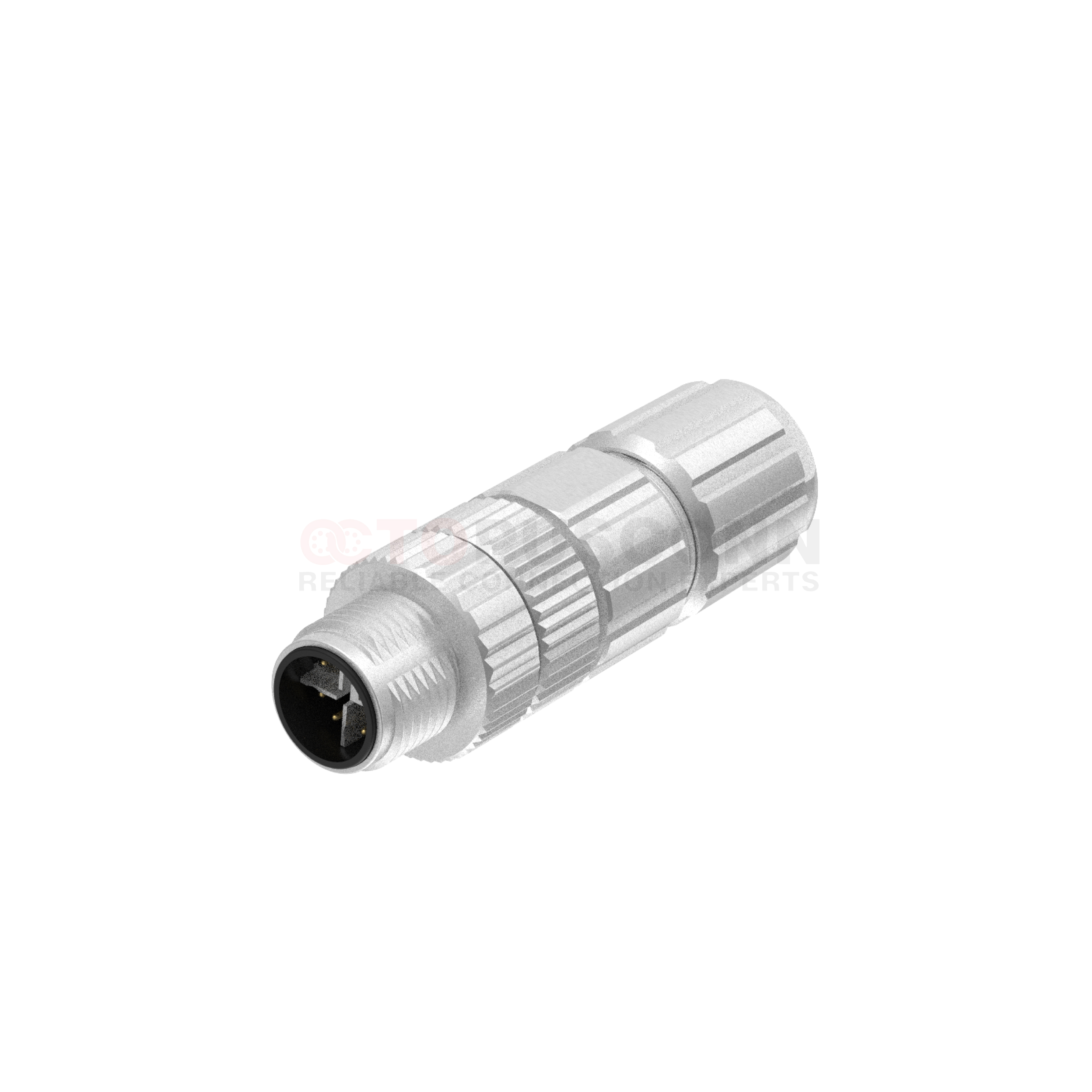

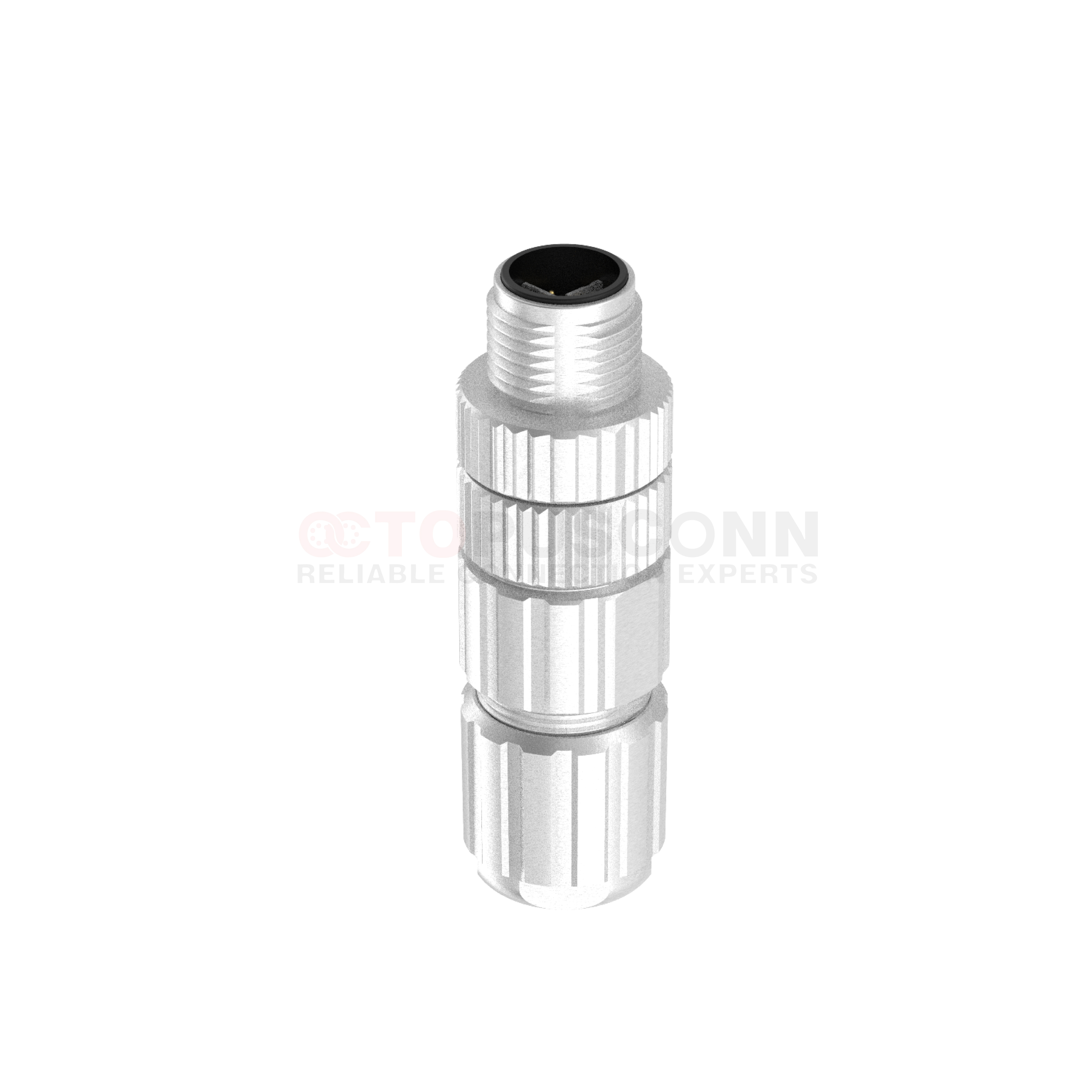

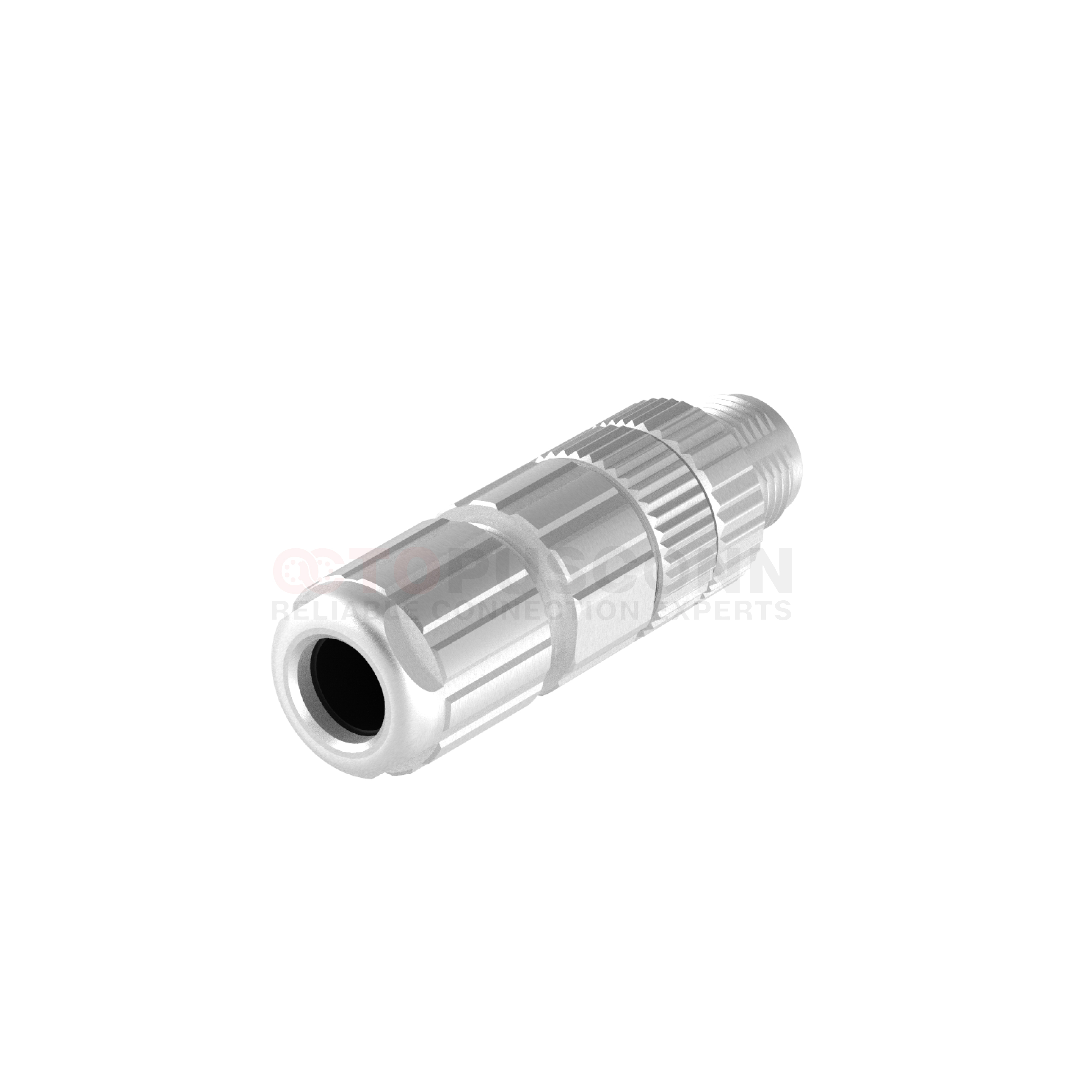

Upright 180-degree public socket metal band shielding:
Anti-interference capability at its peak: The all-metal casing and 360° shielding layer form a dual electromagnetic protection system, which can isolate the electromagnetic radiation generated by industrial site frequency converters, motors and other equipment, avoid signal crosstalk, and ensure the stability of 10Gb/s high-speed data transmission. It is particularly suitable for precise sensing data transmission scenarios. Stable structure and anti-vibration: The all-metal material is stronger than plastic casings. Combined with the threaded locking mechanism, it can avoid connection loosening in high-frequency vibration environments such as industrial robot motion joints and assembly line equipment. At the same time, the metal casing can disperse external forces and reduce the risk of damage during plugging and transportation. Suitable for various installation scenarios: The upright 180-degree design is compatible with both PCB board straight insertion welding and panel installation. No special angle reserved space is required. Combined with threaded fixation, it can be adapted to different thickness equipment panels, and the on-site assembly type can flexibly adapt to different lengths of cables, reducing the difficulty of construction and adaptation.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
||
|
A/C
|
D/C
|
AWG
|
mm²
|
|||
| MC12XM-08U2LSLSS101 |
8
|
2A
|
30V
|
30V
|
24
|
0.25
|
| Core | 2A | 3A | 4A | 5A |
| male end |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
||
| Core | 2A | 3A | 4A | 5A |
| female connector |
|
|
|
|
| 6A | 8A | 12A | 17A | |
|
|
|
|
|
|
| 4B | 5B | 3C | 4C | |
|
|
|
|
|
|
| 5C | 6C | 4D | ||
|
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
