M16 Panel-Mounted Installation Tool With Circular Handle And Stainless Steel

M16 Panel-Mounted Installation Tool With Circular Handle And Stainless Steel

Serial Code : M16 Product Code : MT16NM001 Product Info :

Material : Stainless Steel

Mounting Type : Panel Mount

Get a Quotation Sample Request

Product Video

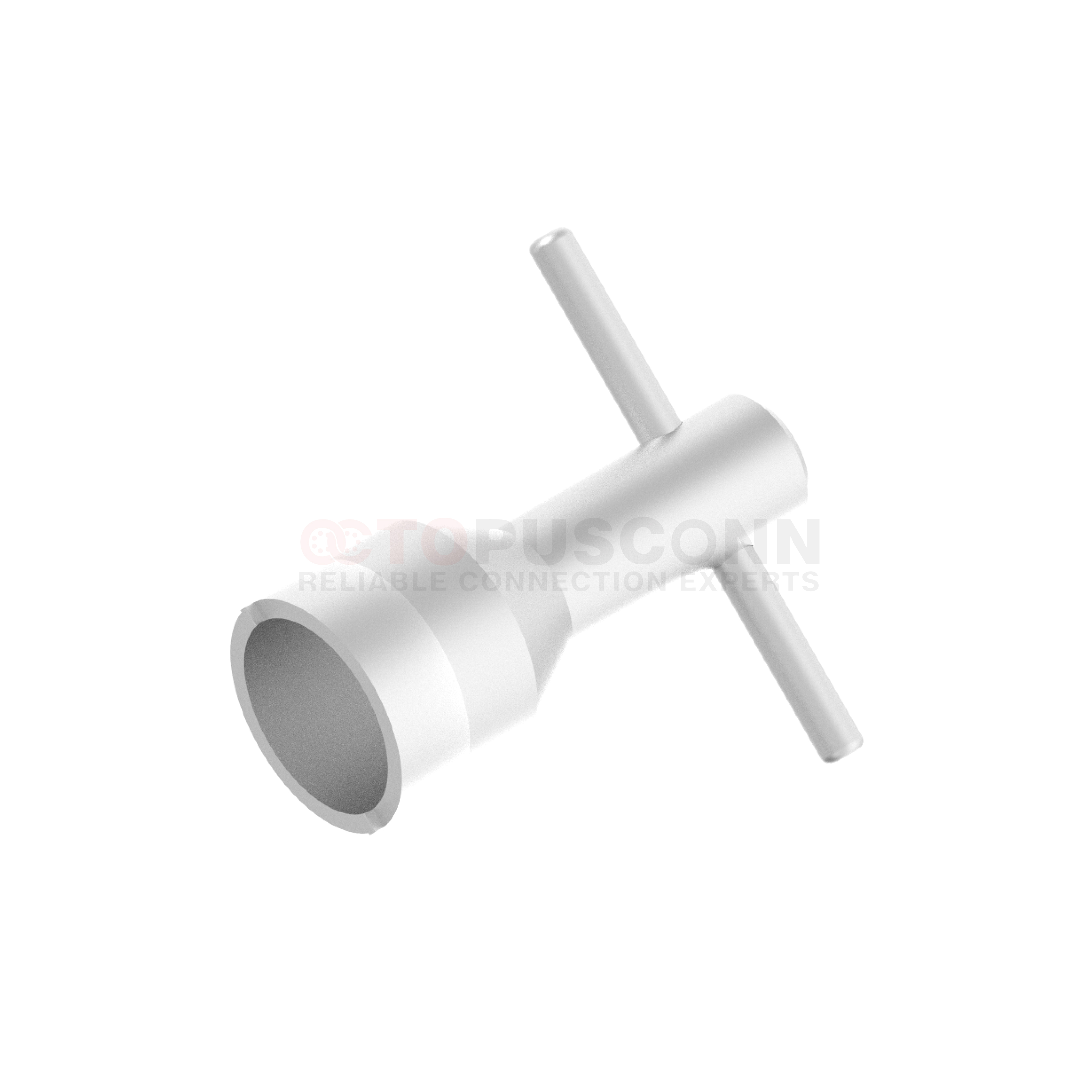

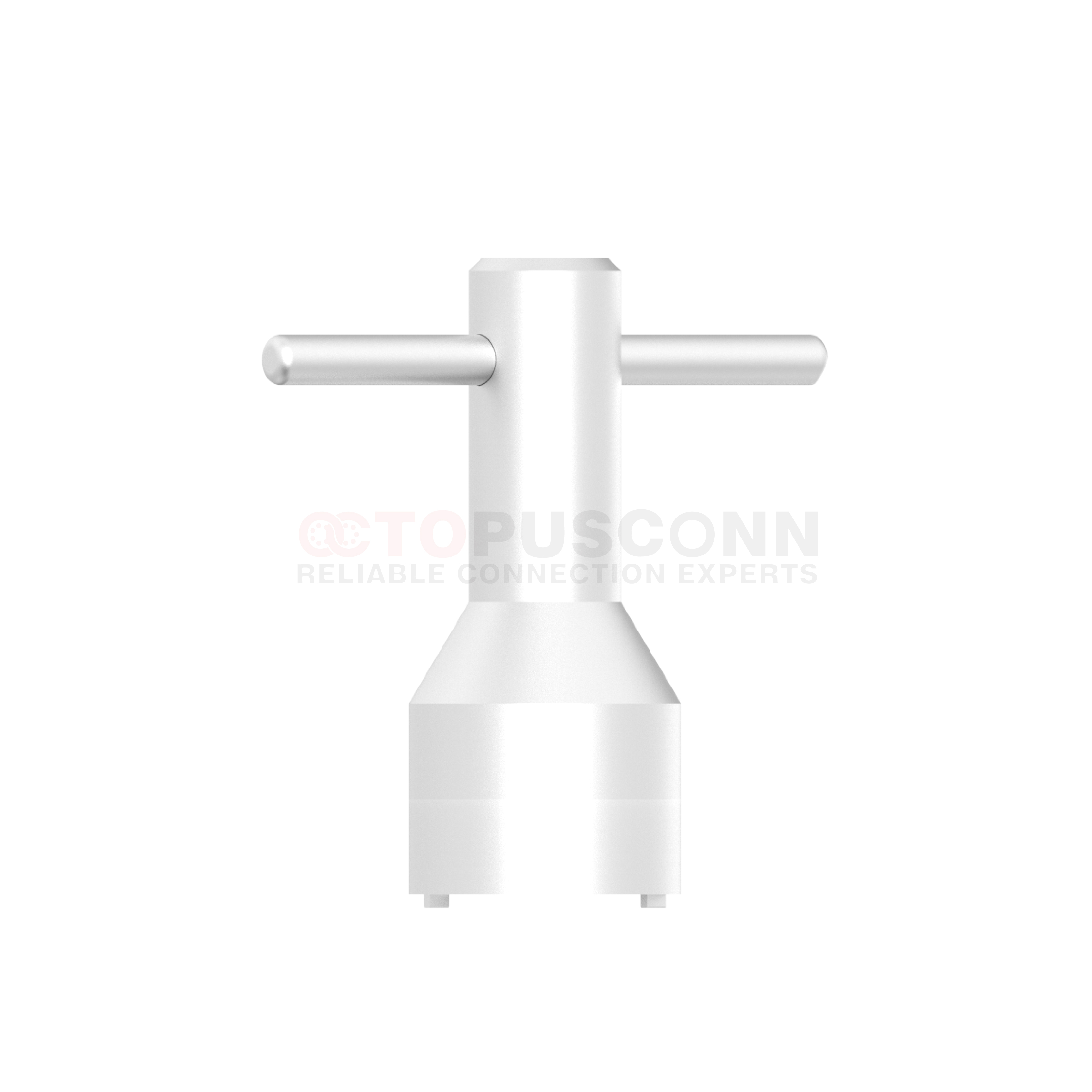

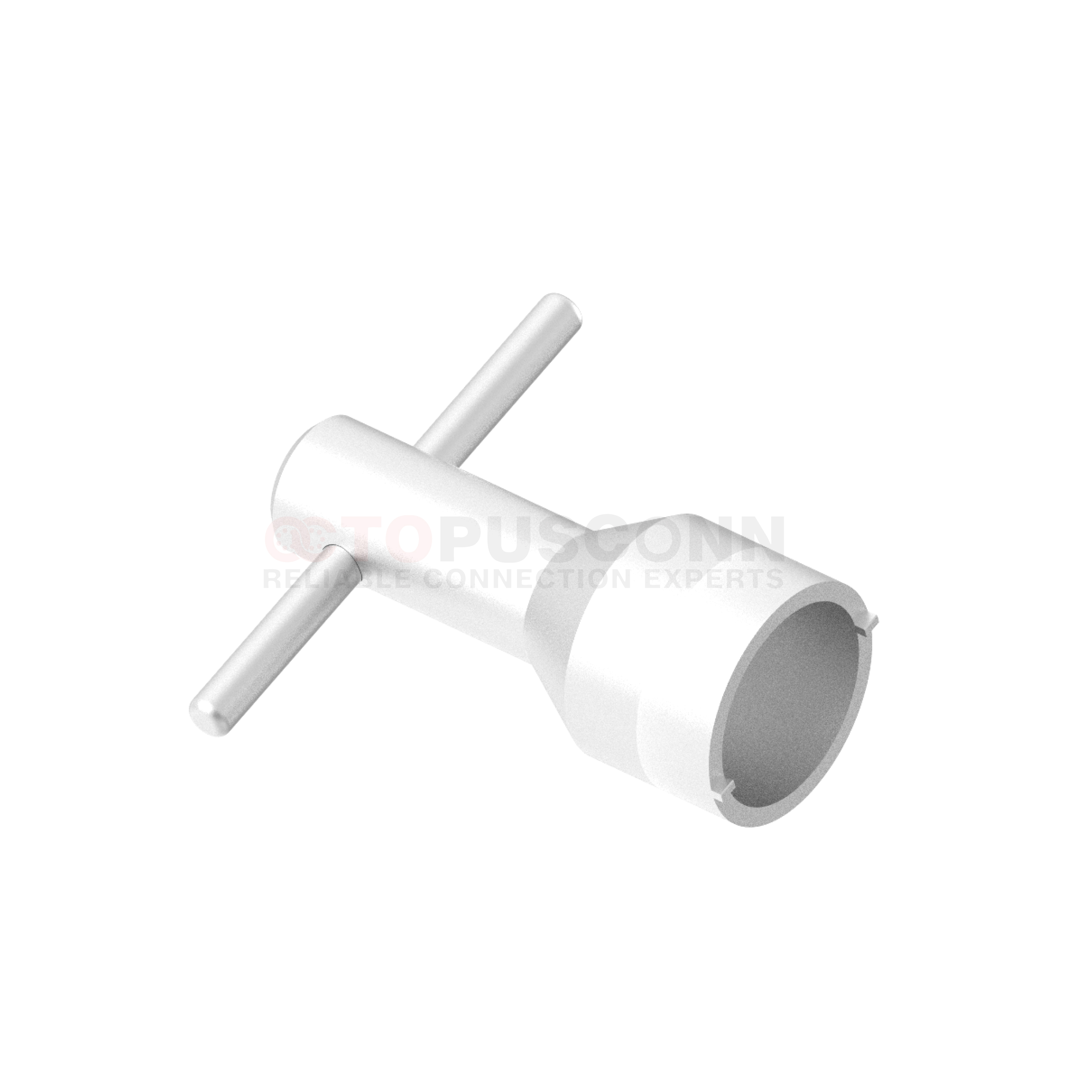

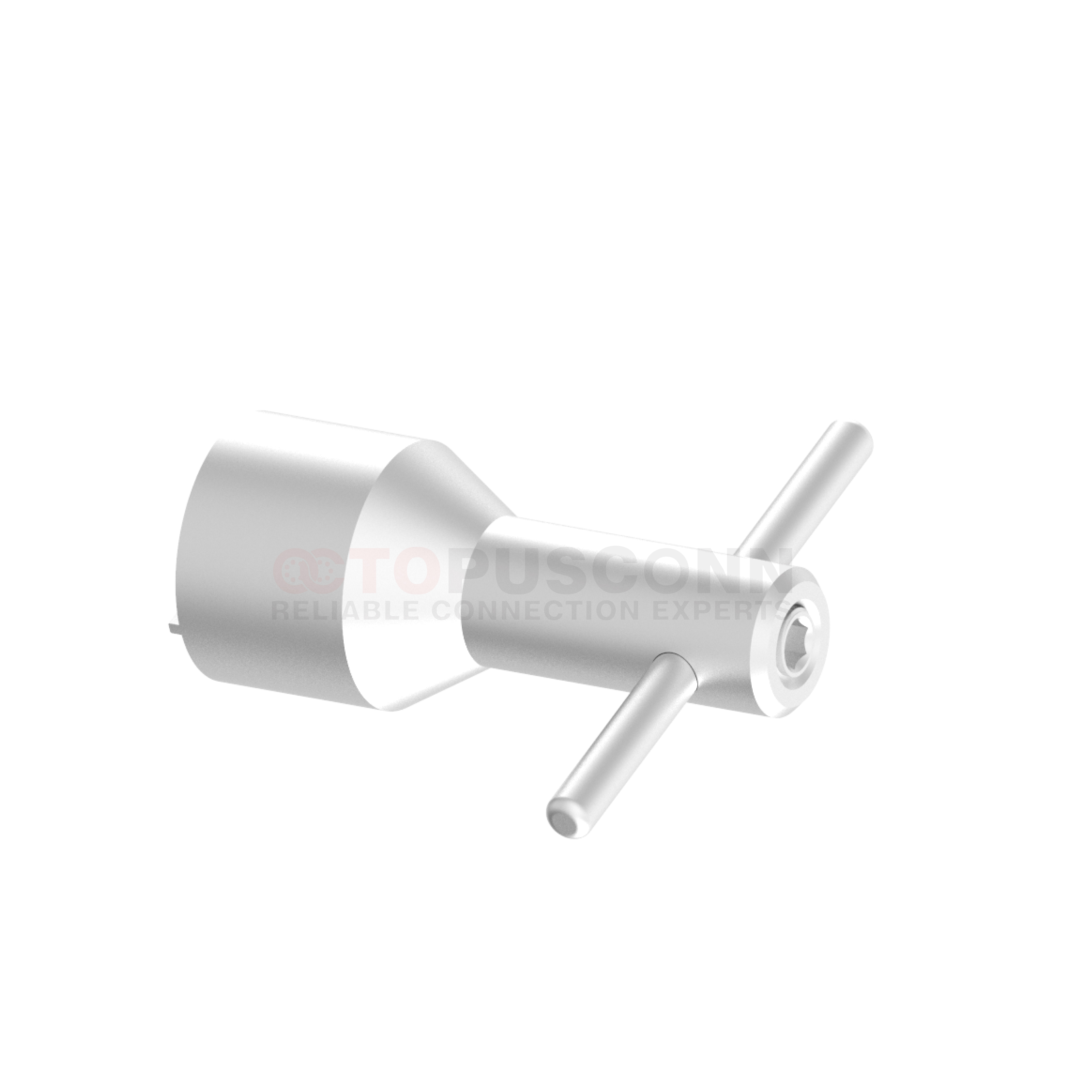

M16 Panel Mounting Tool, Circular with Handle, Stainless Steel:
The M16 Panel Mounting Tool (circular with handle, stainless steel version) is an industrial-grade assembly tool specifically designed for the panel mounting scenarios of M16 series connectors. Its core is made of full stainless steel with a circular clamping structure, and it is equipped with an ergonomic handle design. It combines high-strength durability and easy operation, enabling precise positioning, stable locking and non-destructive disassembly of M16 connectors. It is a core auxiliary tool for industrial automated production lines and equipment maintenance sites.

Product Attributes

Product Type

M16 Circular Connector Installation Tool

Application

M16 Circular Connector Front Panel Mounting M16 Circular Connector Rear Panel Mounting

Code

Regular

Product Specifications

Housing Material

Stainless Steel

Mounting Type

Front Panel Mounting Rear Panel Mounting

Safety Tips

The connector must not be unplugged or plugged in under load. Failure to comply and improper use can cause personal injury.

The connector was developed for application in factory engineering, control and electrical equipment construction.

Users are responsible for checking whether the connector can also be used in other applications.

Connectors used in circuits with dangerous voltages of electric shock can only be installed and used by personnel trained in electrical engineering, or under their supervision, while considering applicable regulations and standards.

Users must take appropriate safety precautions to ensure that the connector does not accidentally disconnect.

Install with moderate force, use special tools to tighten the nuts, avoid excessive force that causes the shell to deform or the pins to bend. Ensure that the plug and socket are fully engaged.

Do not power on when not locked. To prevent arcing due to poor contact, the shell protection grade is IP67 and IP68.

Plug connectors for use in water are not suitable. When used outdoors, the plug connector must be separately protected against corrosion. For further information on IP protection grades, please refer to "Technical Information".
