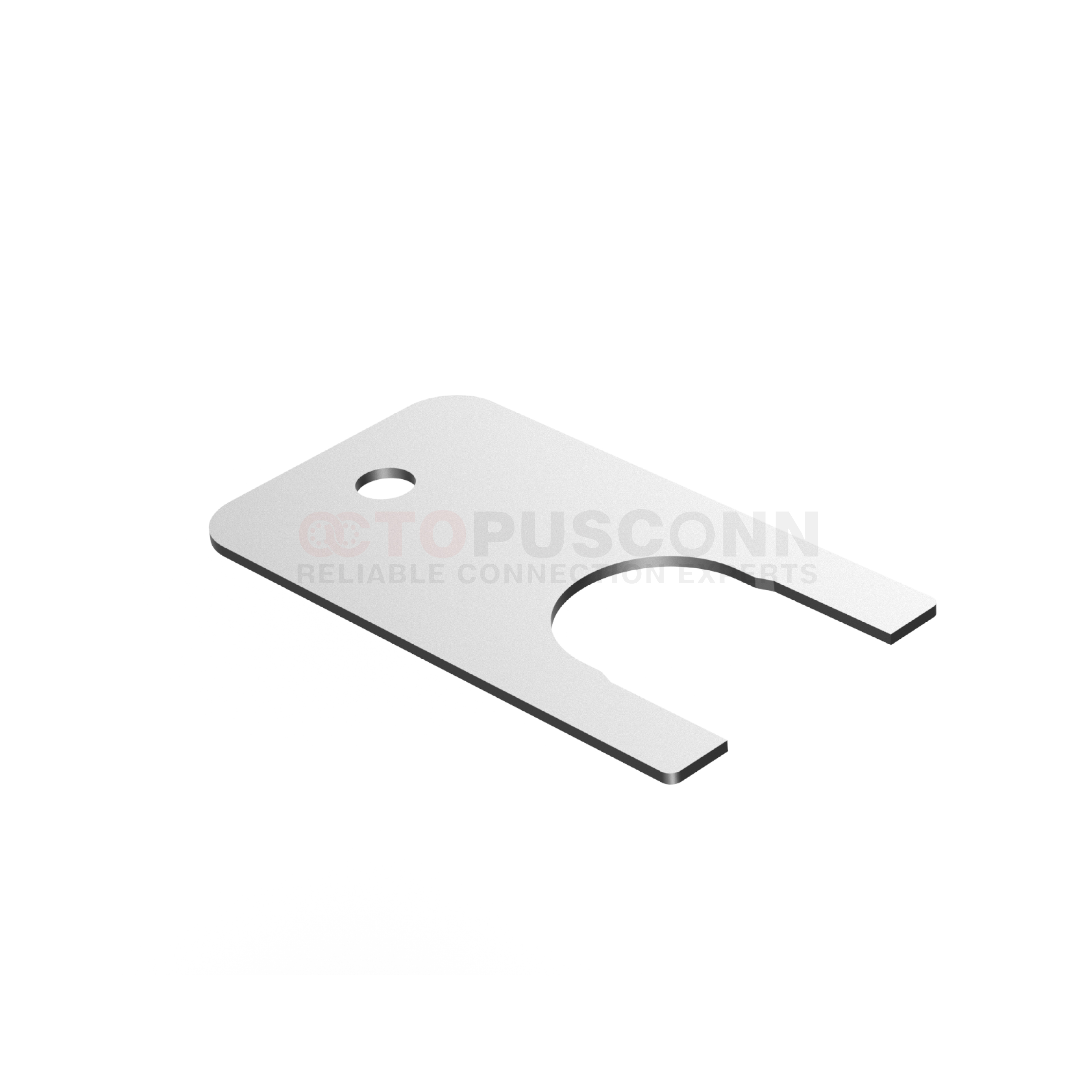

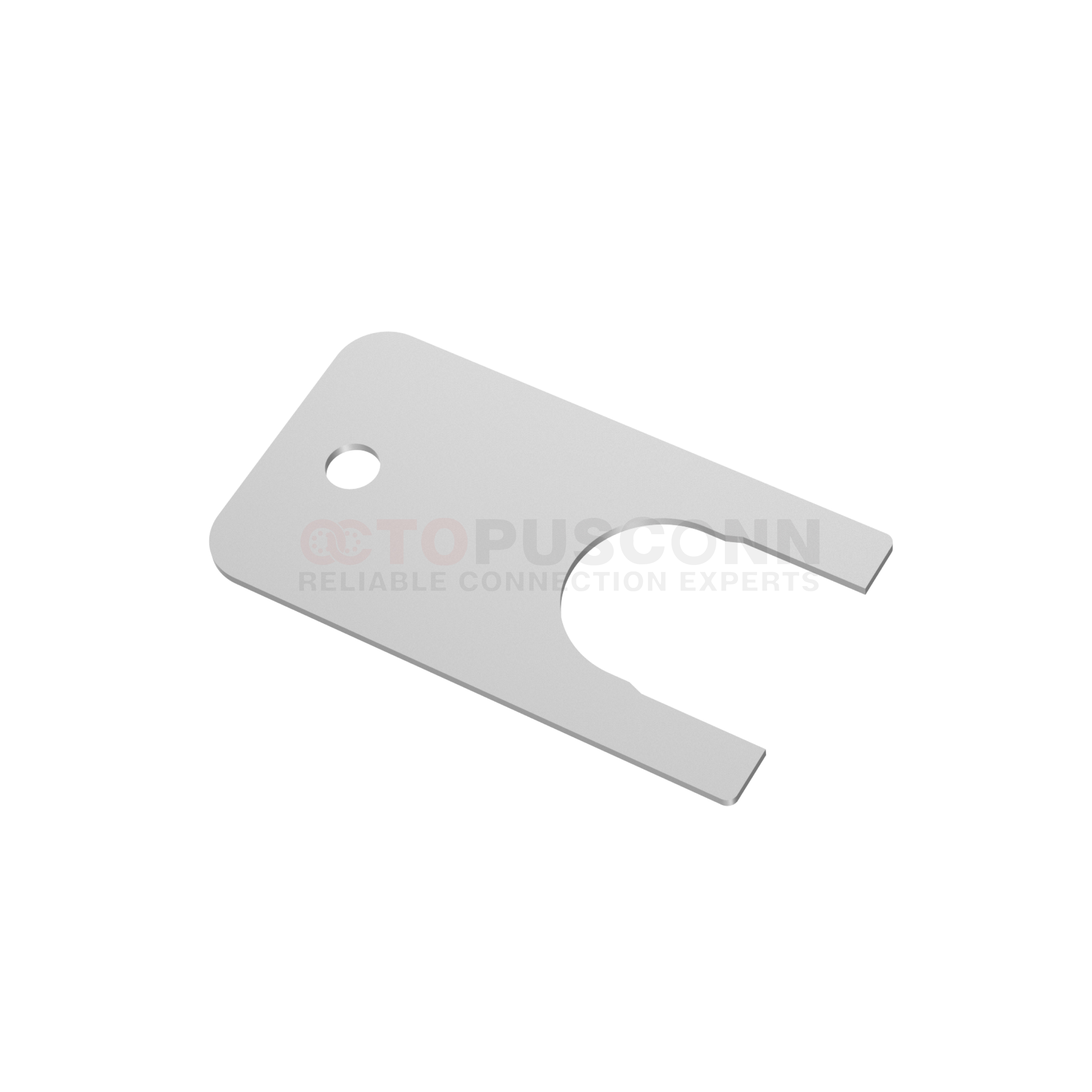

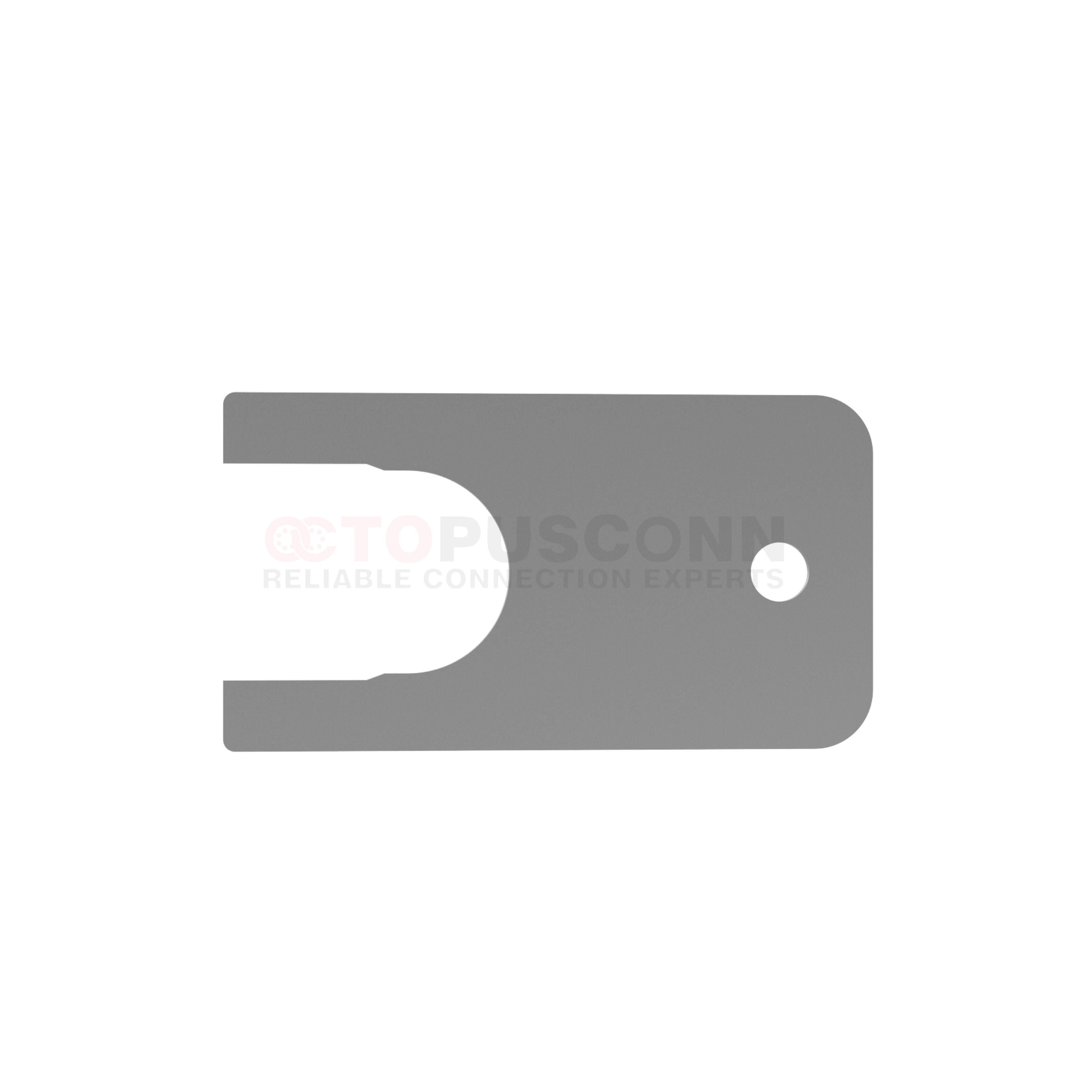

M16 Panel-Mounted Tool With Flat Jaw Type Stainless Steel

M16 Panel-Mounted Tool With Flat Jaw Type Stainless Steel

Serial Code : M16 Product Code : MT16NM002 Product Info :

Material : Stainless Steel

Mounting Type : Panel Mount

Get a Quotation Sample Request

Product Video

M16 Panel Mounting Tool, Flat Jaw Type:
Flat Jaw Design: The jaw adopts a parallel flat clamping structure, forming surface contact with the panel mounting flange or threaded seat of the M16 connector. It distributes force evenly during clamping, preventing deformation of the connector housing due to excessive local pressure. It is compatible with the outer diameter of the M16 connector's 16mm thread specification, with a clamping error of ≤0.1mm. Multi-Functional Compatibility: It can be used with a torque wrench to achieve torque control during M16 connector installation, avoiding thread stripping caused by over-tightening or connection loosening caused by under-tightening.

Product Attributes

Product Type

M16 Circular Connector Installation Tool

Application

M16 Circular Connector Front Panel Mounting M16 Circular Connector Rear Panel Mounting

Code

Regular

Product Specifications

Housing Material

Stainless Steel

Mounting Type

Front Panel Mounting Rear Panel Mounting

Safety Tips

The connector must not be unplugged or plugged in under load. Failure to comply and improper use can cause personal injury.

The connector was developed for application in factory engineering, control and electrical equipment construction.

Users are responsible for checking whether the connector can also be used in other applications.

Connectors used in circuits with dangerous voltages of electric shock can only be installed and used by personnel trained in electrical engineering, or under their supervision, while considering applicable regulations and standards.

Users must take appropriate safety precautions to ensure that the connector does not accidentally disconnect.

Install with moderate force, use special tools to tighten the nuts, avoid excessive force that causes the shell to deform or the pins to bend. Ensure that the plug and socket are fully engaged.

Do not power on when not locked. To prevent arcing due to poor contact, the shell protection grade is IP67 and IP68.

Plug connectors for use in water are not suitable. When used outdoors, the plug connector must be separately protected against corrosion. For further information on IP protection grades, please refer to "Technical Information".
