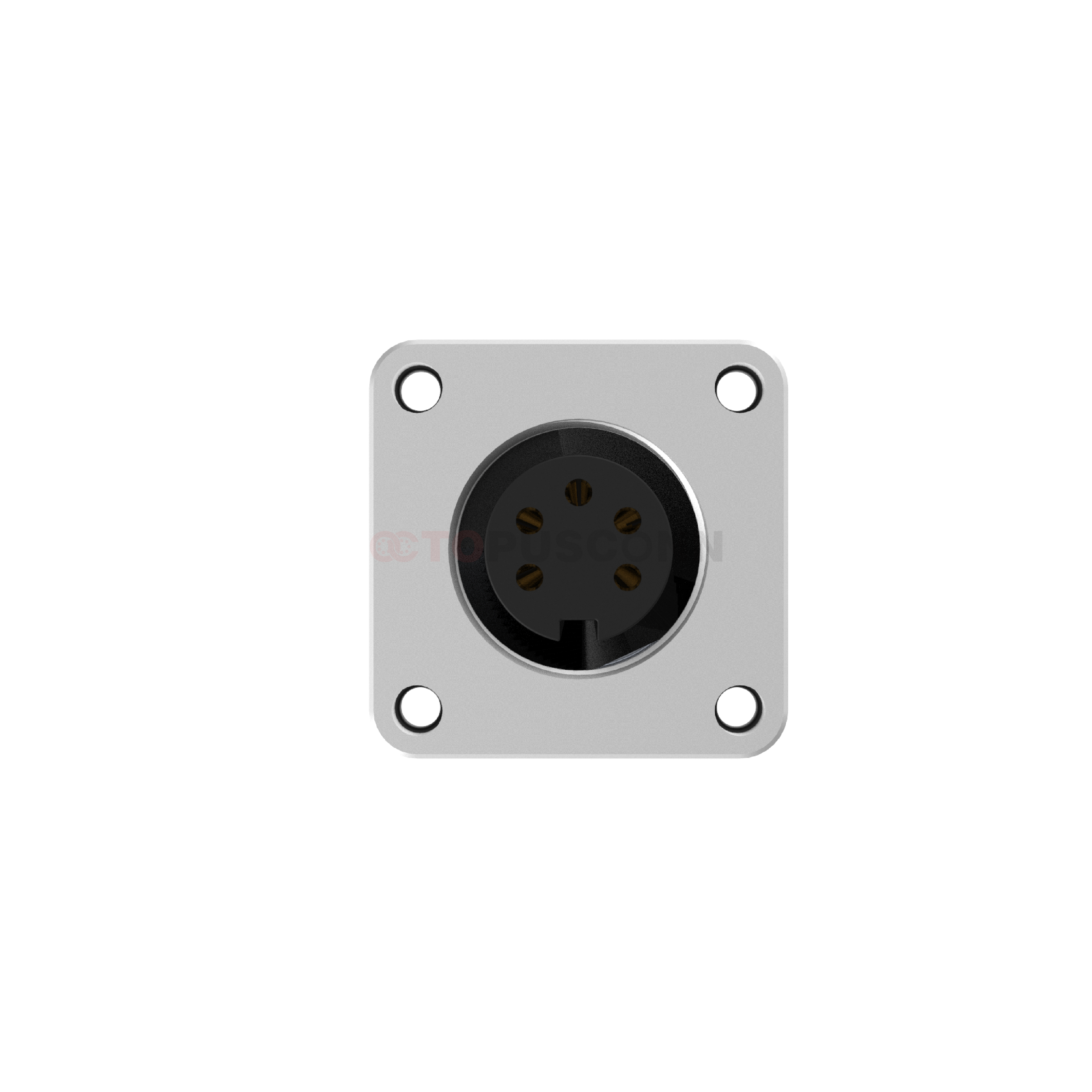

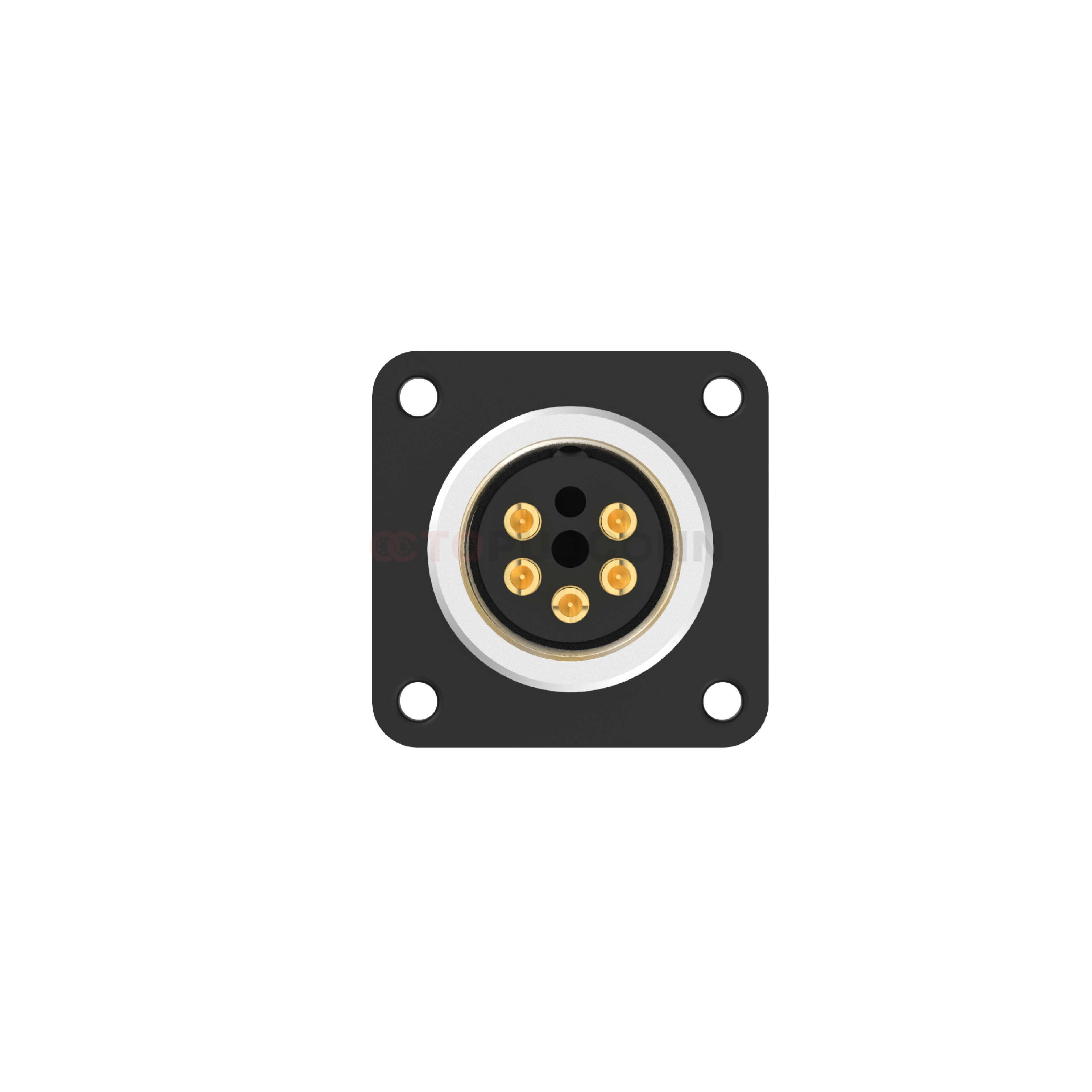

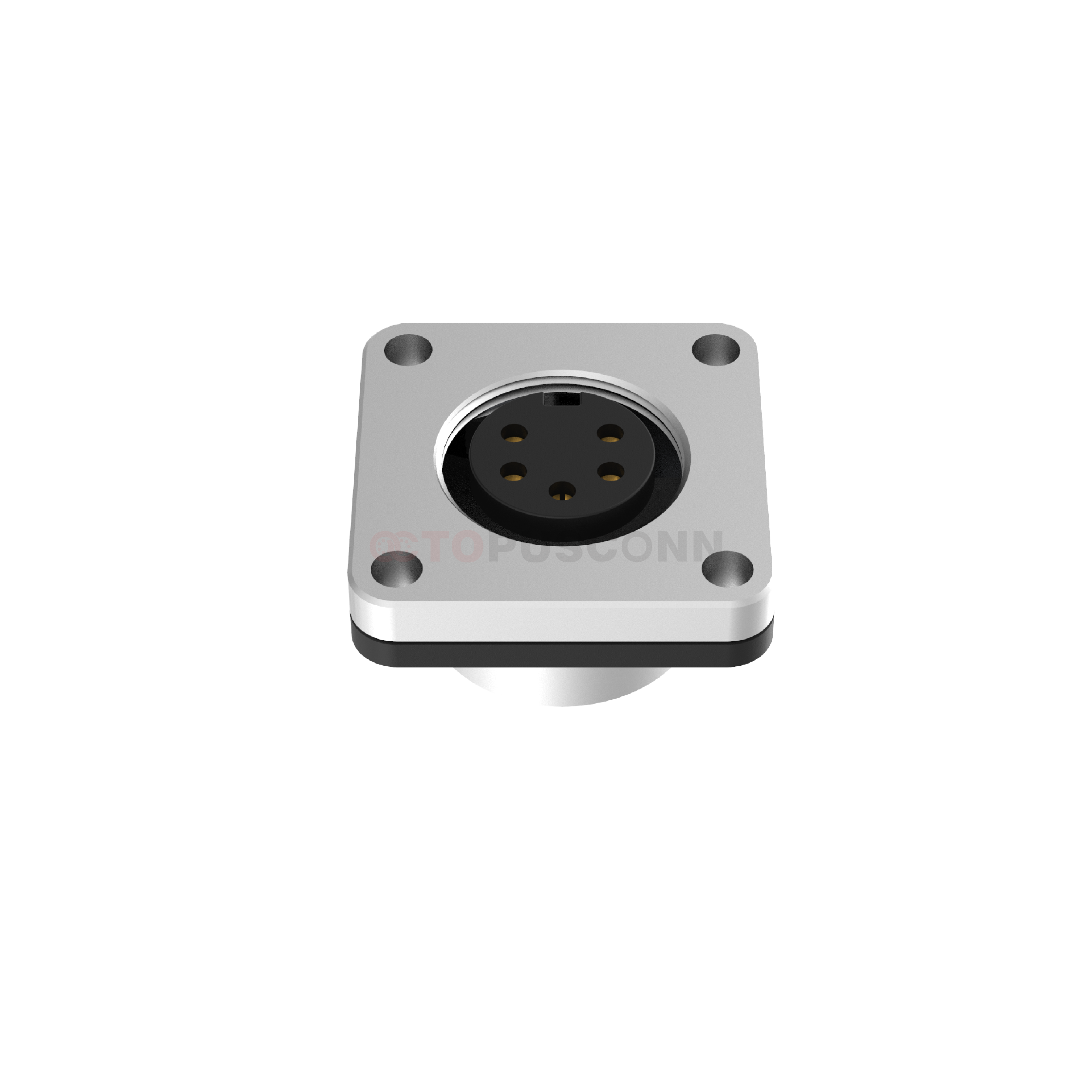

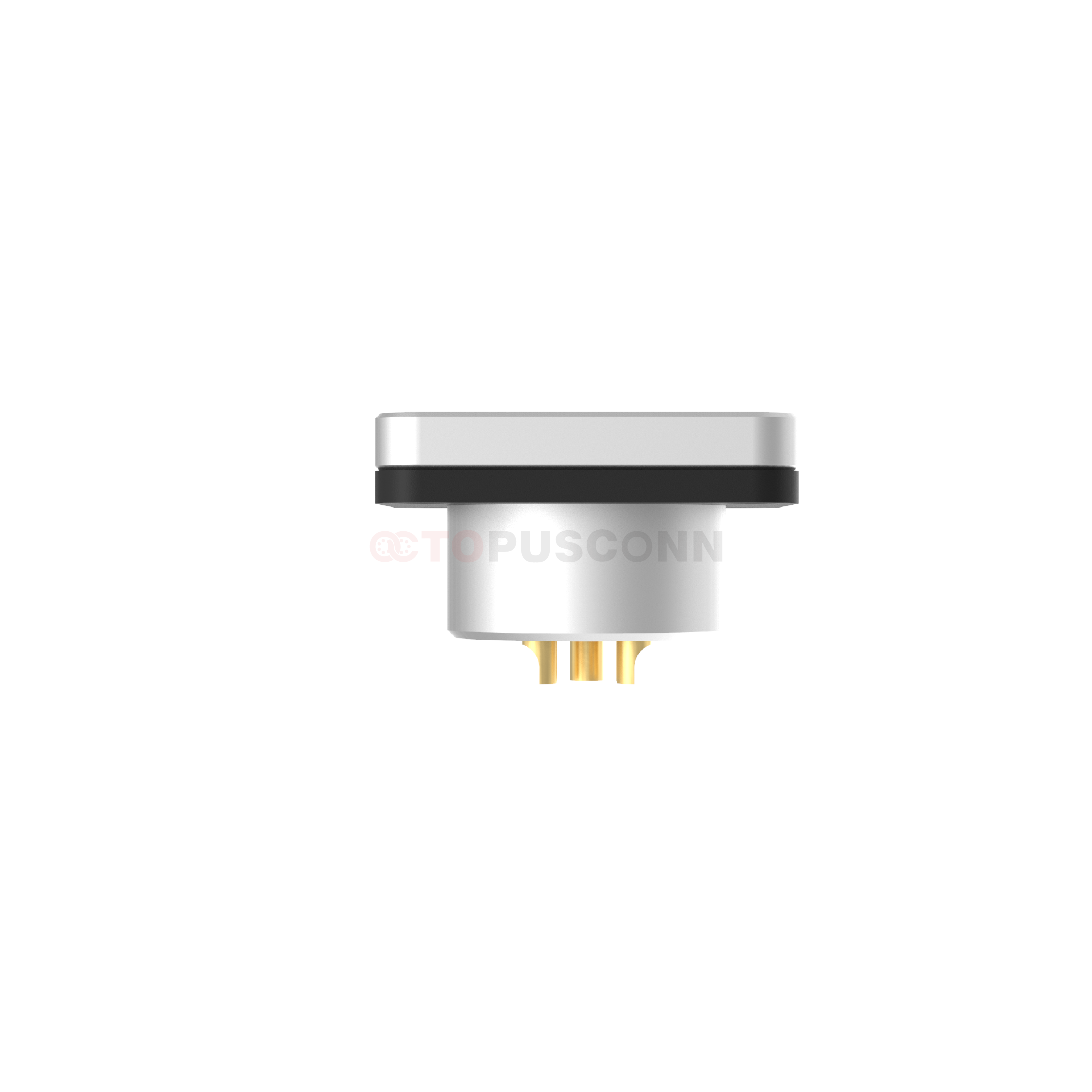

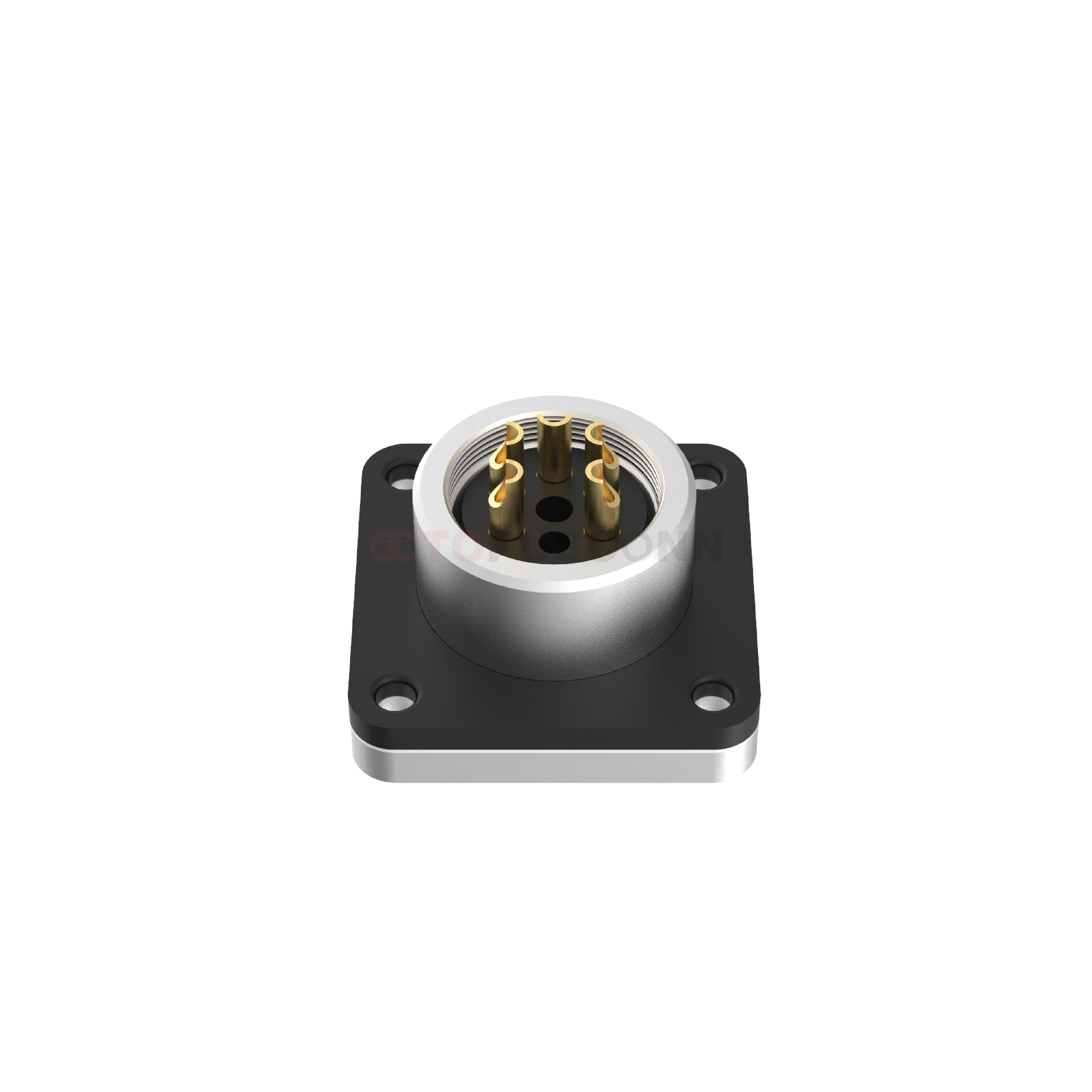

M16 Square Flange Connector 2-24PIN Female Soldered Type

Square Flange Design：
The square flange is provided with four mounting holes, and the connector can be tightly fixed to the equipment panel via bolts. This design enables even distribution of external forces, enhances vibration resistance and impact resistance, and ensures connection stability. Sealing Principle： Sealing rings are usually installed at the fitting position between the flange and the equipment panel, as well as at the joint between the plug and socket of the connector. When the connector is installed or mated, the sealing rings are compressed to fill gaps, thereby achieving an IP67 or higher protection rating and effectively preventing the intrusion of dust, moisture, and other substances.
