Available Pin Counts : 3P, 4P
Type : Male
Wiring Method : Soldering Type
Applications : Power, Signal Transmission

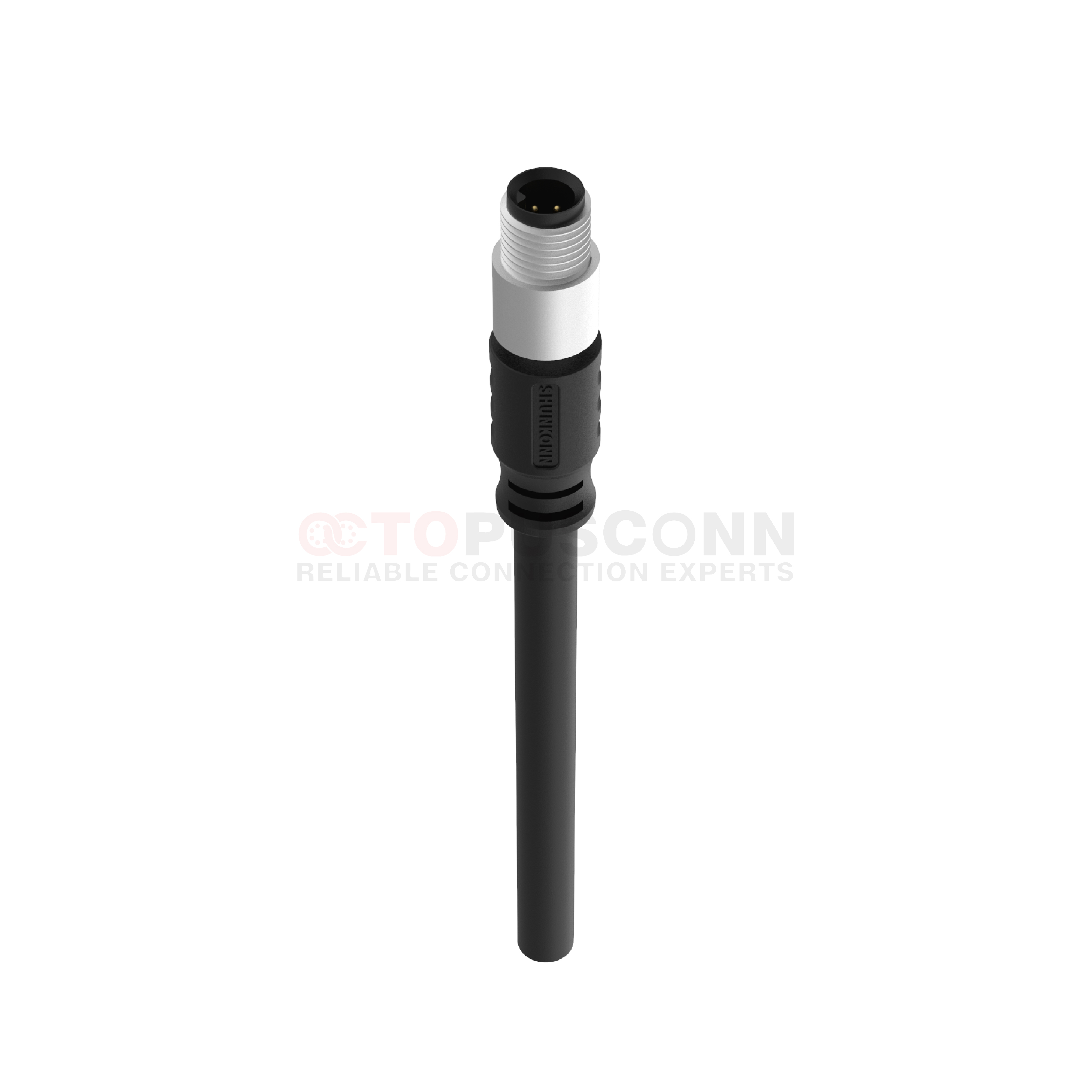

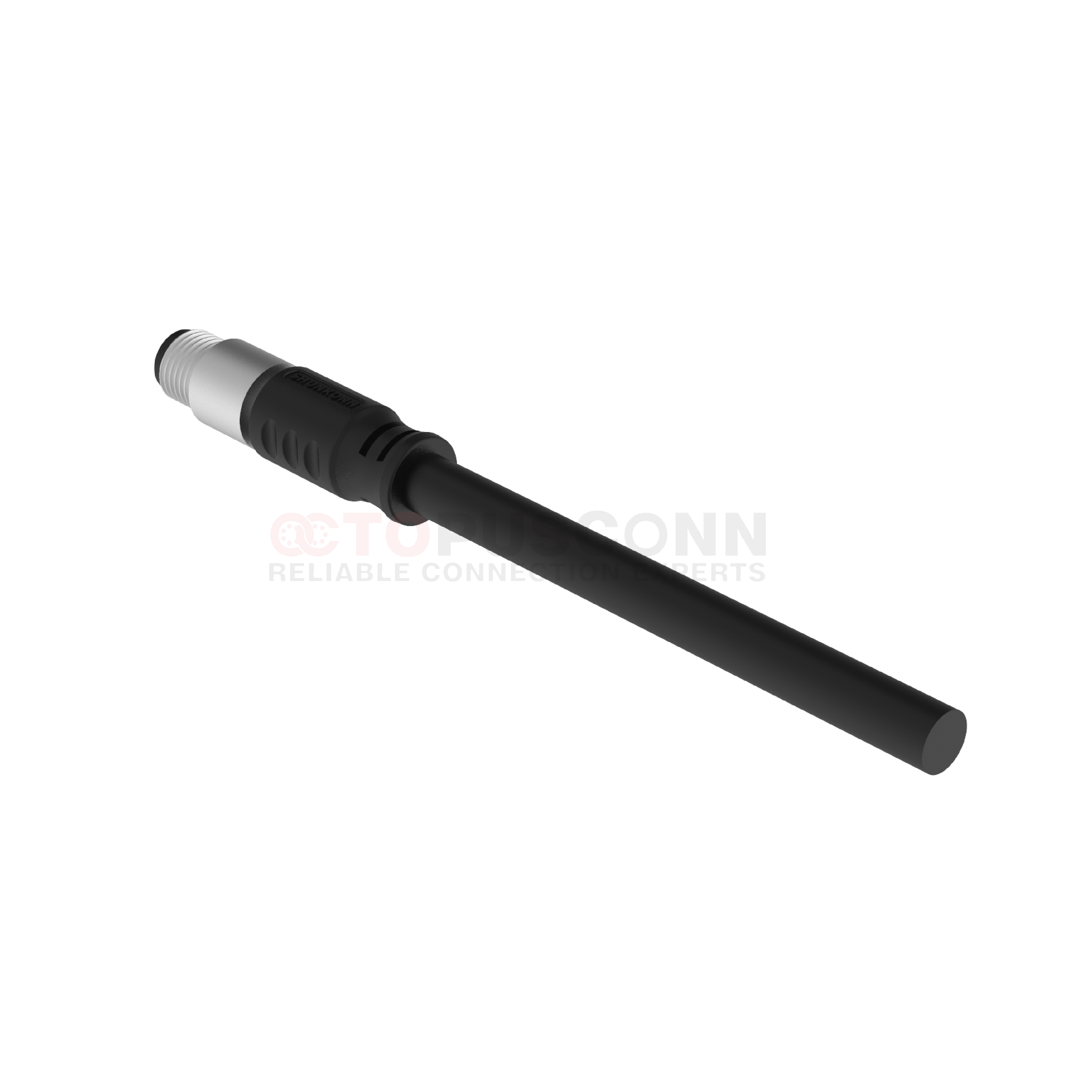

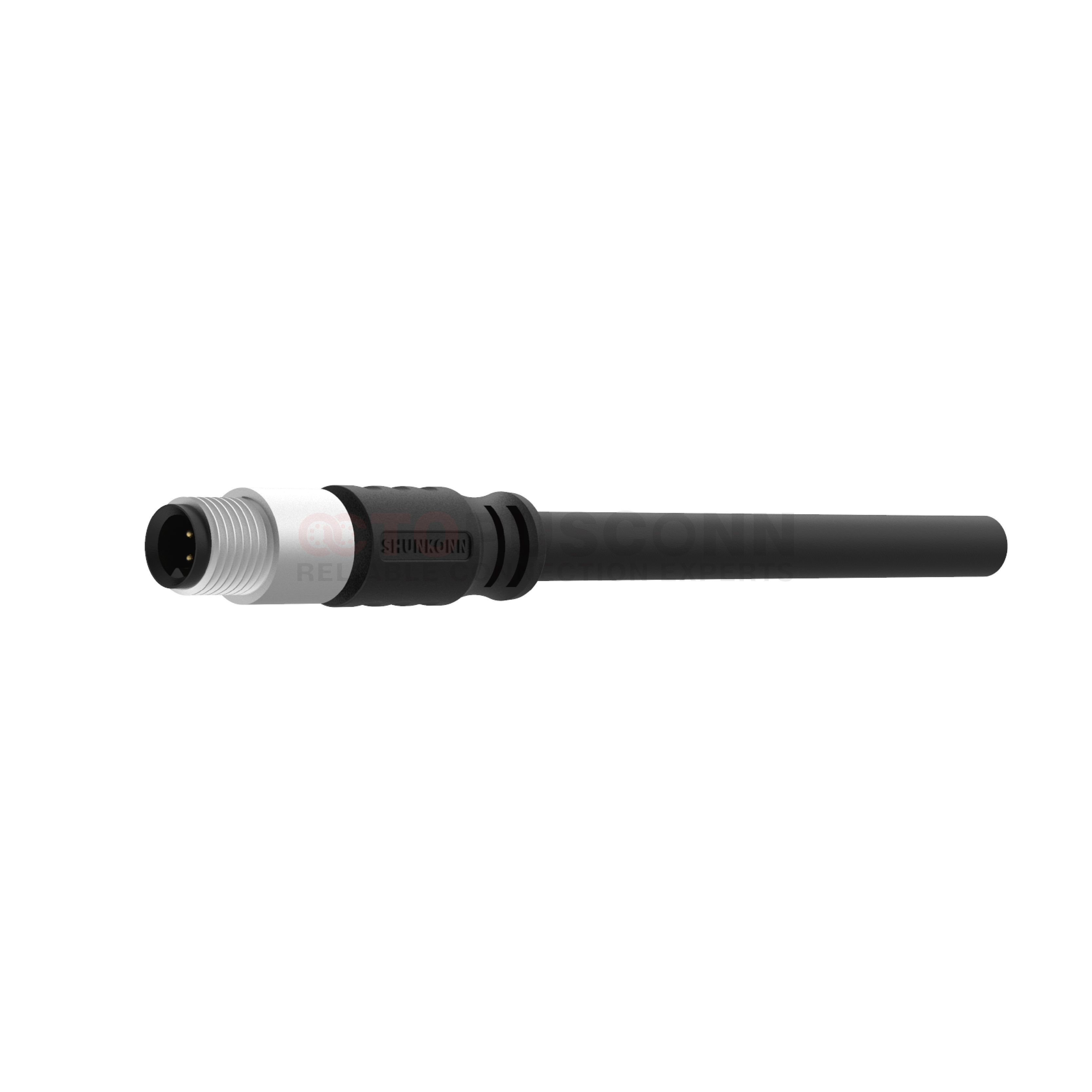

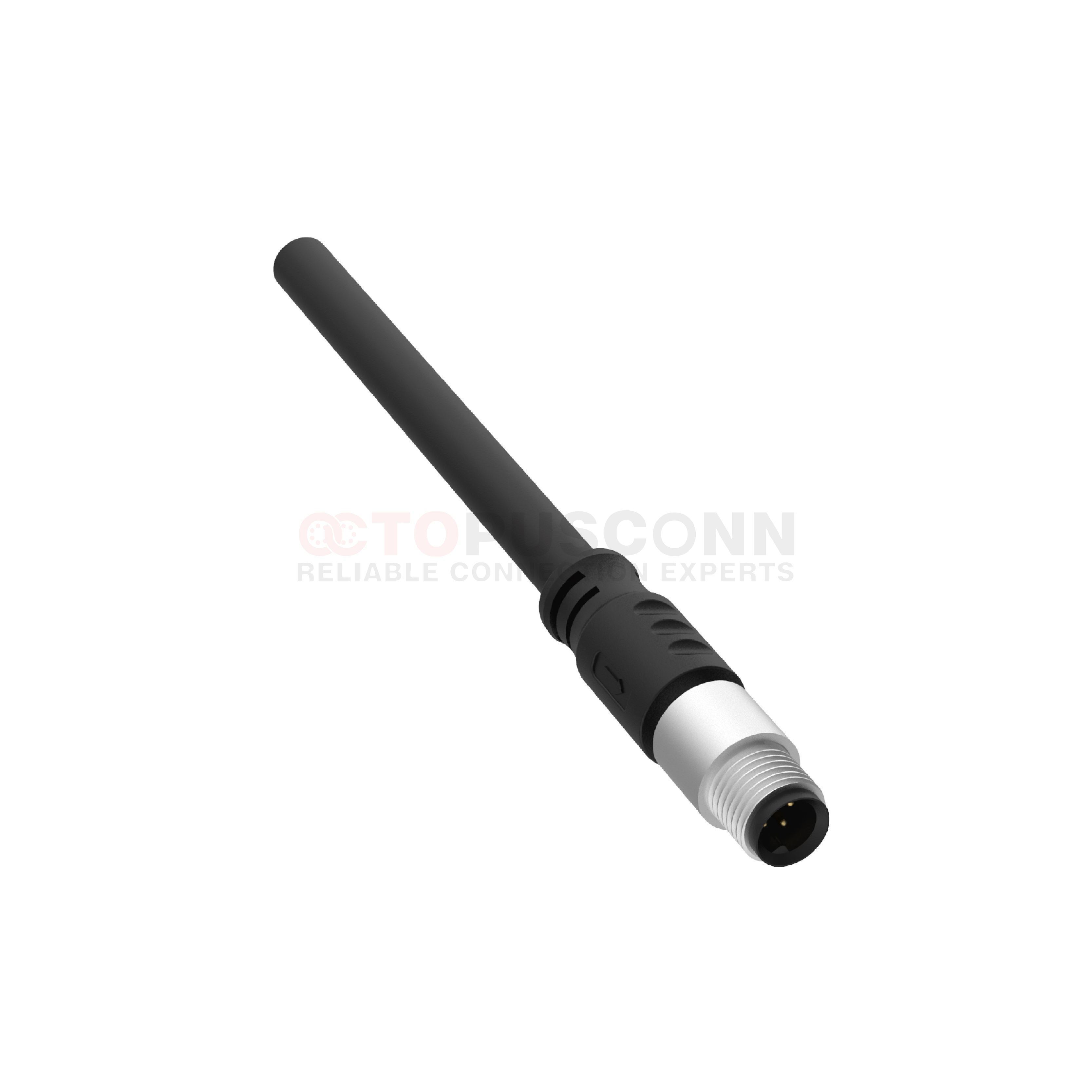

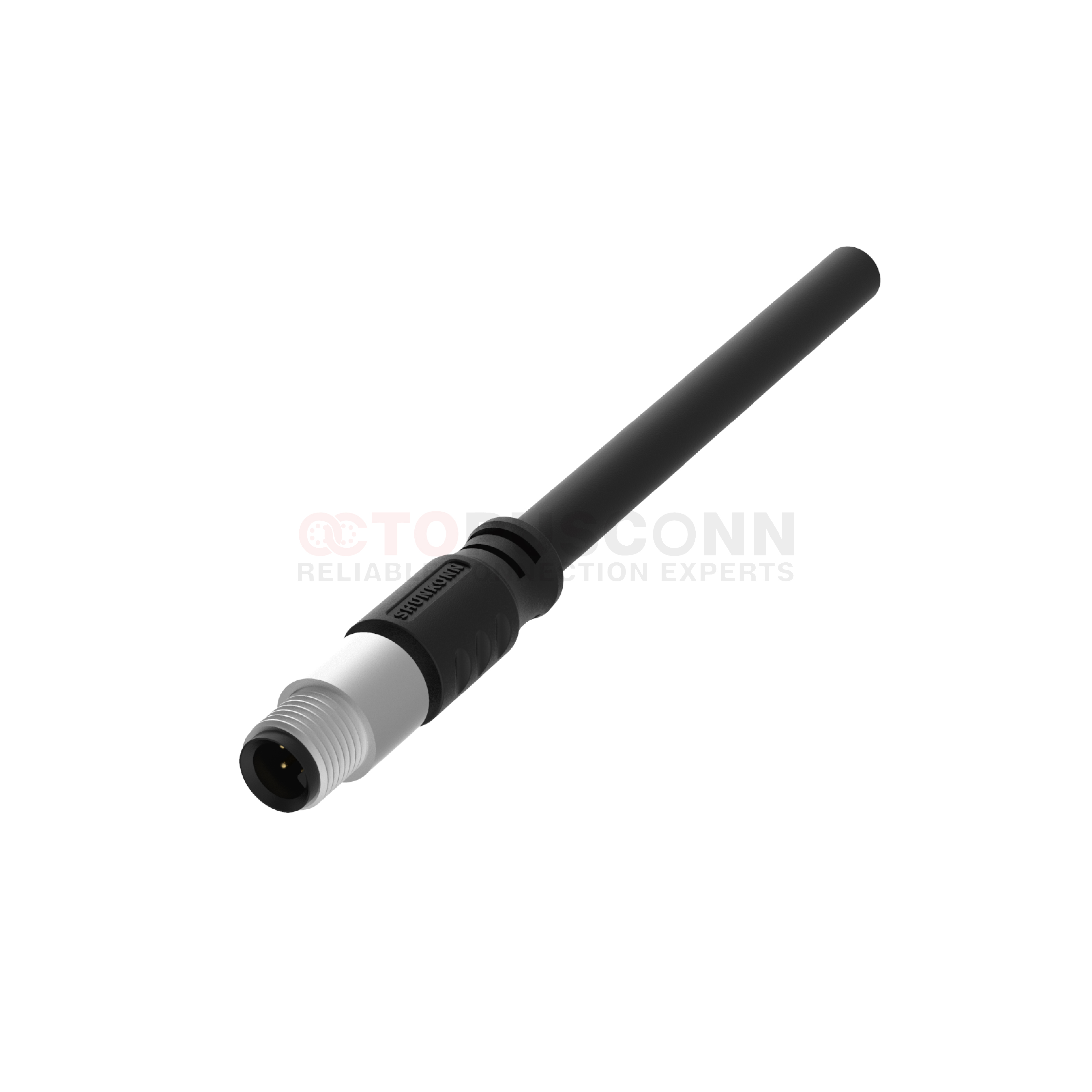

Vertical Overmolded Precast Cable:
Significantly Enhanced Structural Stability The overmolded layer forms a mechanical interlocking structure with the cable and connector, increasing tensile strength by 3-5 times compared to traditional assembled cables. This effectively prevents terminal detachment or poor contact caused by external pulling forces. Vertical conductor arrangement combined with one-piece molding ensures superior signal transmission stability over stranded cables in vibrating environments. Precast molding eliminates on-site welding and assembly steps, enabling direct plug-and-play use and improving installation efficiency by over 60%. Standardized mold production supports mass manufacturing, and the overmolded layer can be prefabricated with mounting detents to prevent cable loosening or displacement.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
|
4
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
| Core | 3 | 4 | Core | 3 | 4 |
| Male |
|
|
Female |
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
