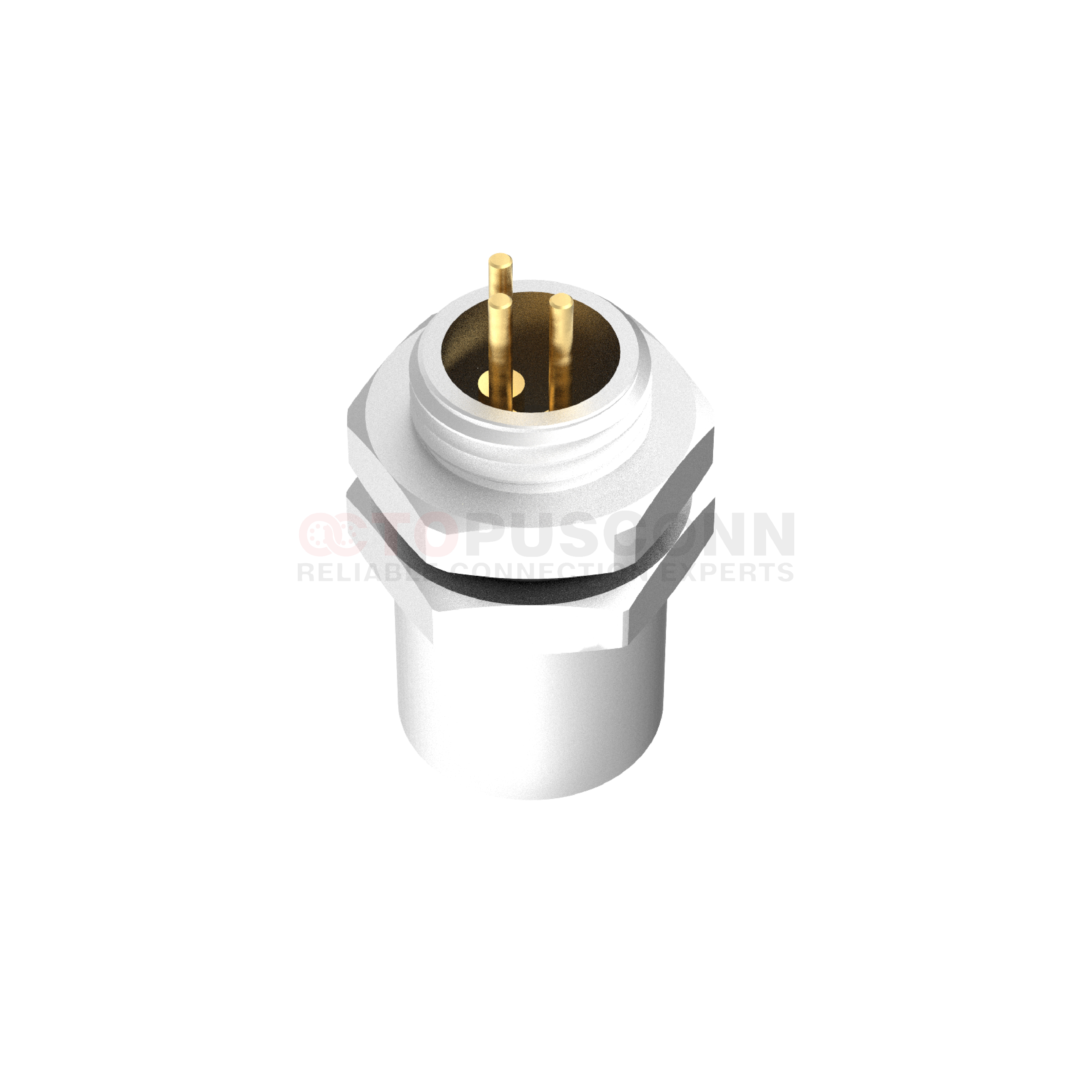

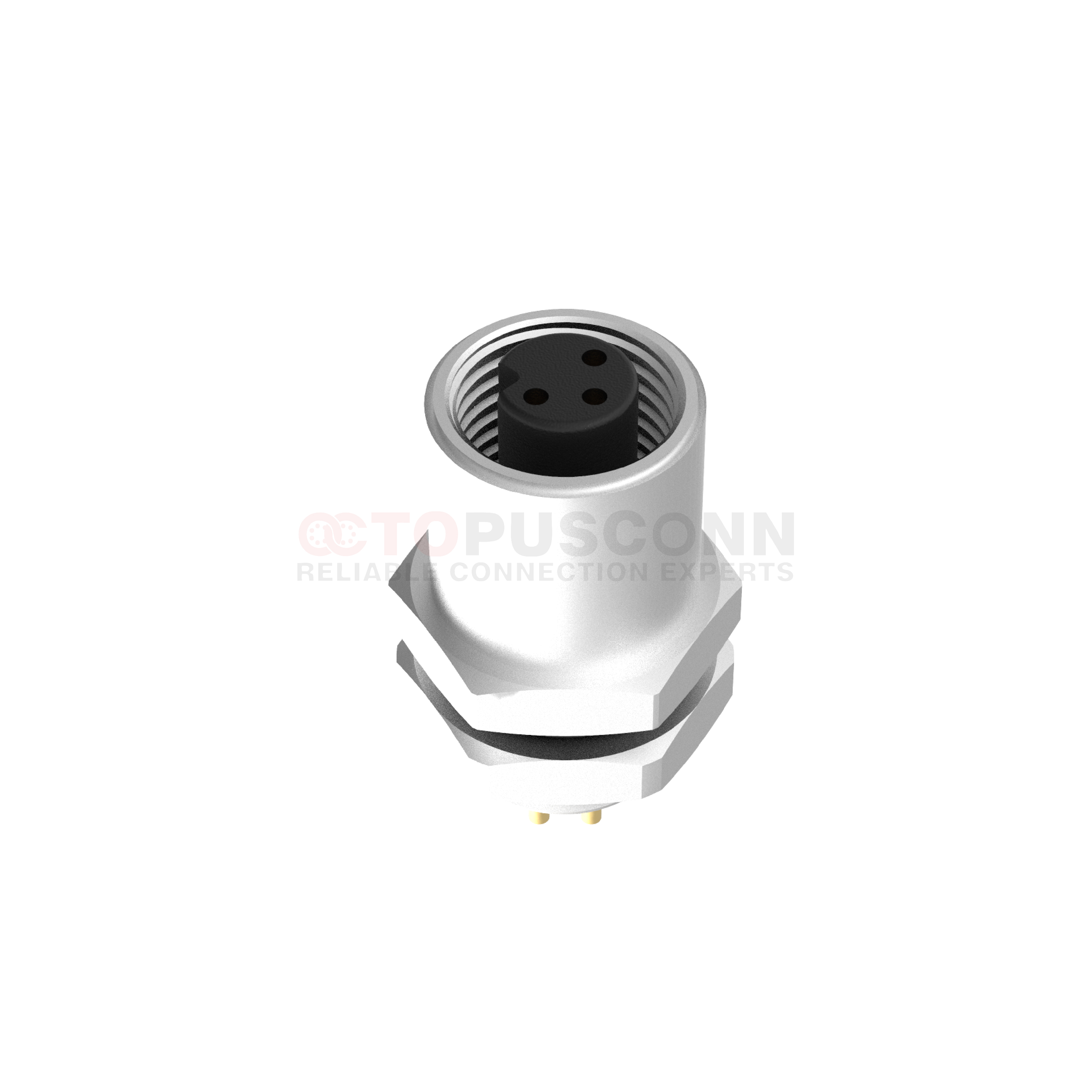

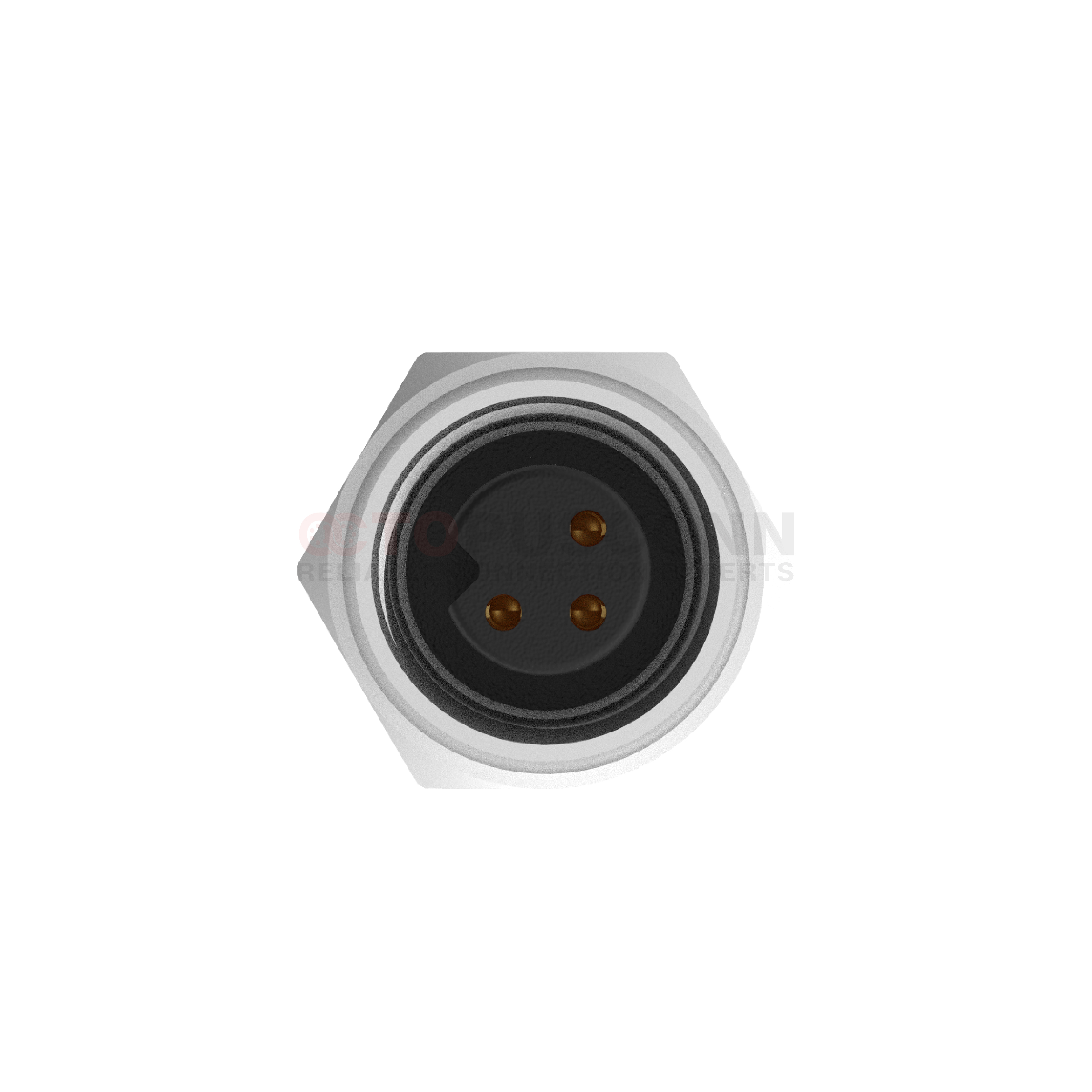

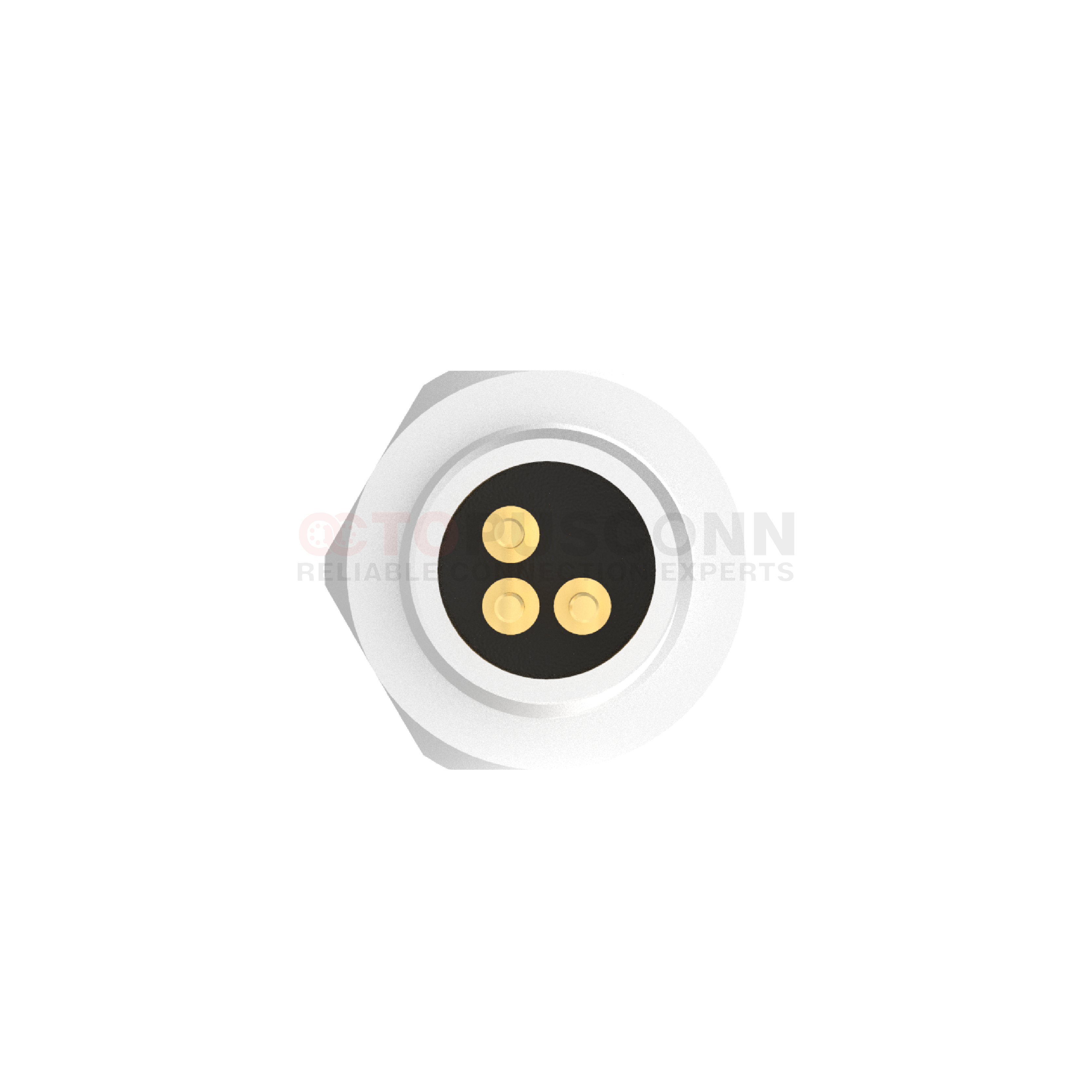

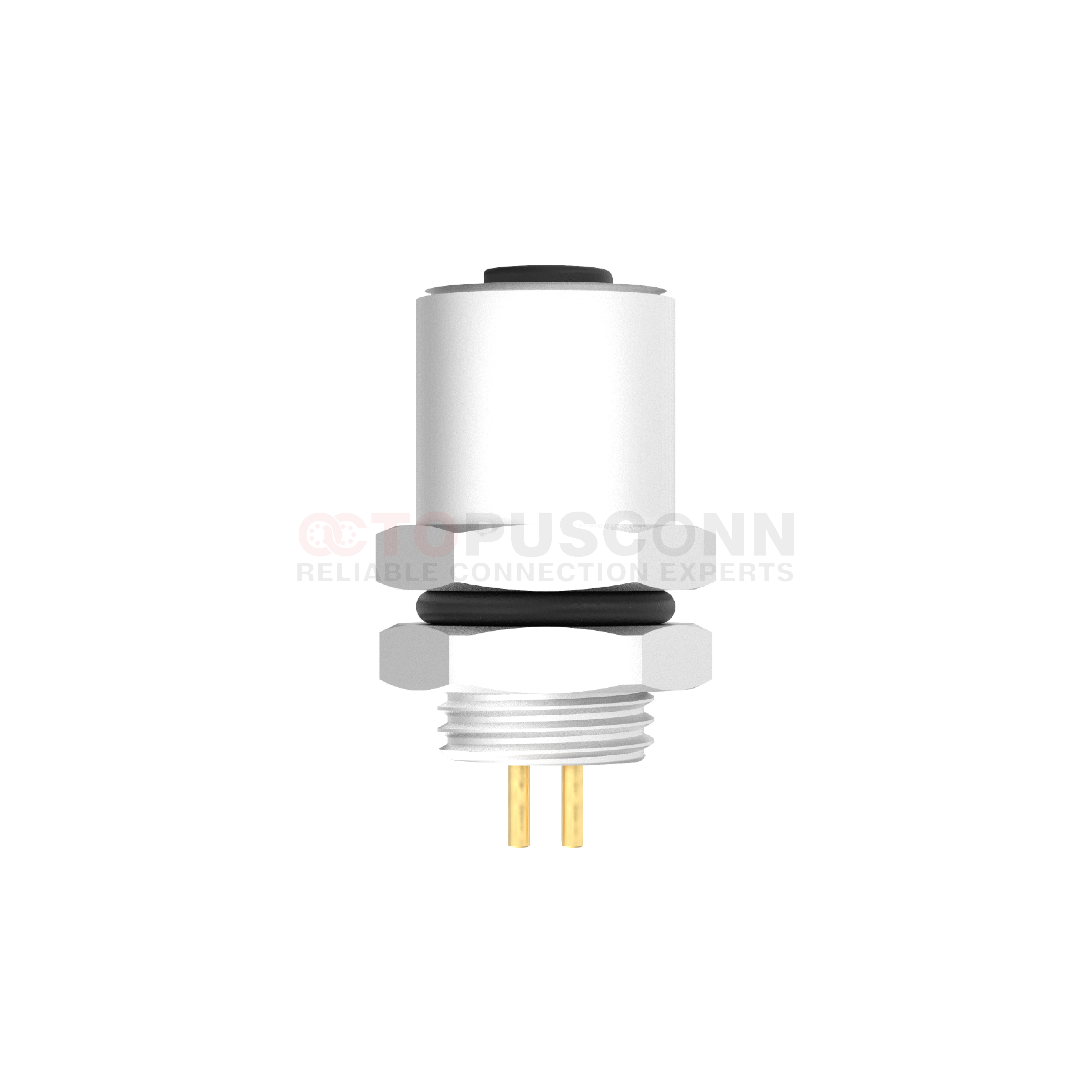

Available Pin Counts : 3P, 4P
Type : Female
Mounting Method : Front Panel Mount
Wiring Method : Board Insertion Type
Applications : Power, Signal Transmission
PCB Mount Press-Fit Type:
Insulator: Primarily fabricated from PA9T material, delivering excellent insulation and mechanical strength to withstand minor impacts and abrasion in industrial scenarios. Contact Terminals: Adopt gold-plated copper, ensuring reliable electrical conductivity while enhancing oxidation resistance and wear resistance for extended service life. Nuts/Screws: Mostly constructed with nickel-plated copper, balancing electrical conductivity and corrosion resistance. Sealing & Fastening Components: Sealing gasket: Resistant to high and low temperatures (-40℃~+85℃) with stable elasticity, ensuring IP67 protection. Locknuts/Fixing screws: Made of nickel-plated copper, featuring a threaded locking design to improve vibration resistance. Excellent Space Adaptability: As one of the most compact models in the M series, it boasts a small footprint and supports straight/right-angle designs, making it particularly suitable for internal layouts of space-constrained equipment such as industrial cameras, sensors, and embedded systems.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
|
4
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
| Core | 3 | 4 | Core | 3 | 4 |
| Male |
|
|
Female |
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
