Available Pin Counts : 3P, 4P

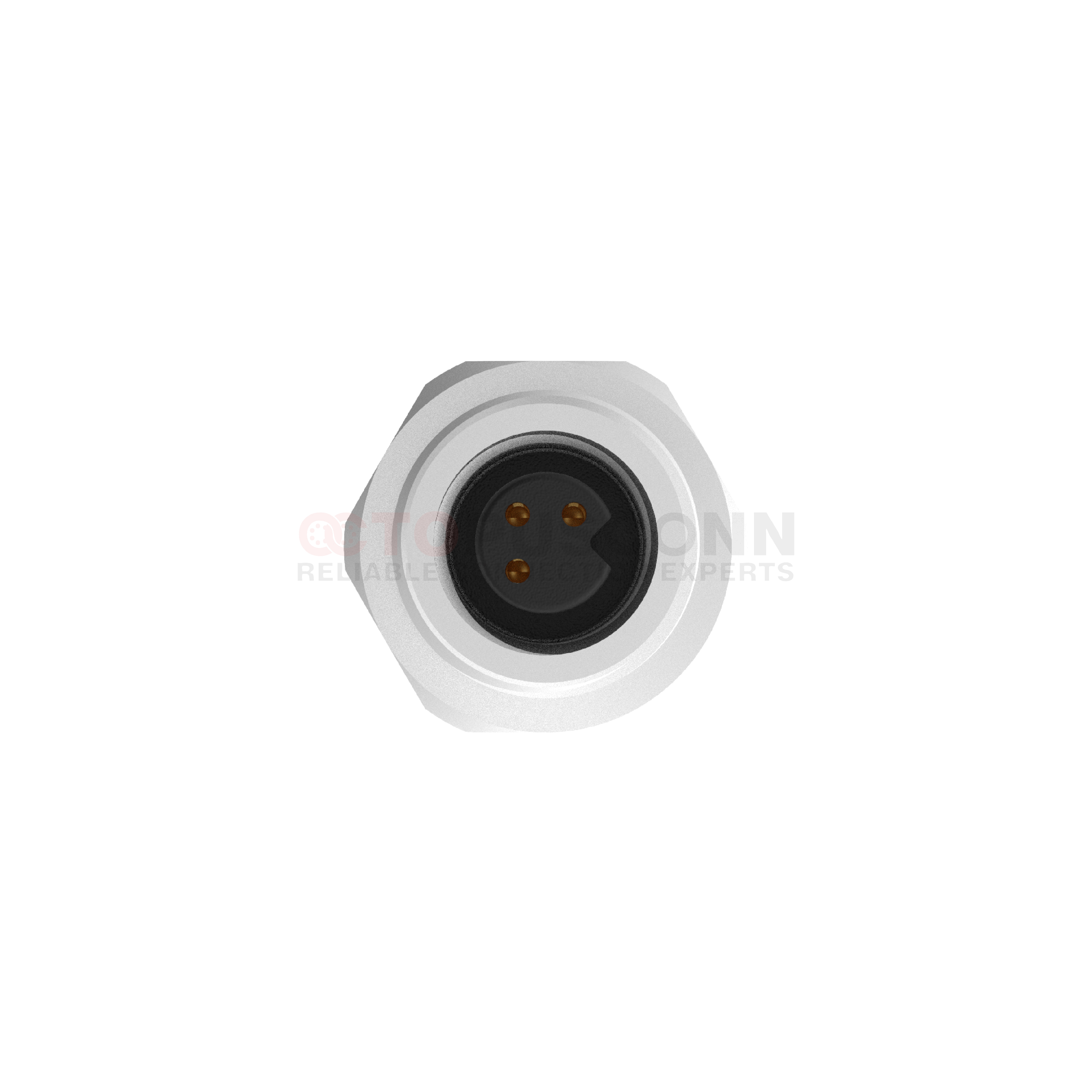

Type : Female

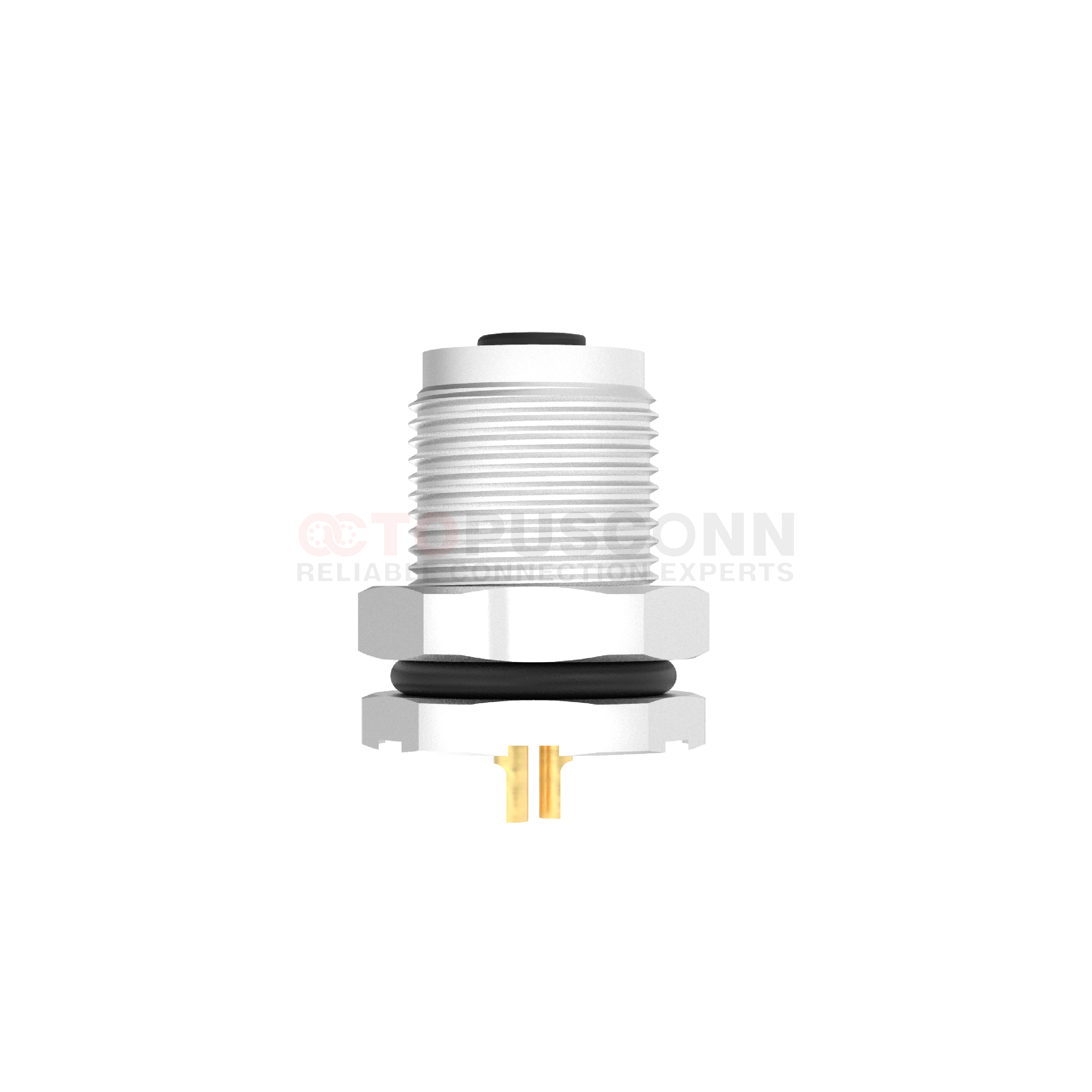

Mounting Method : Rear Panel Mount

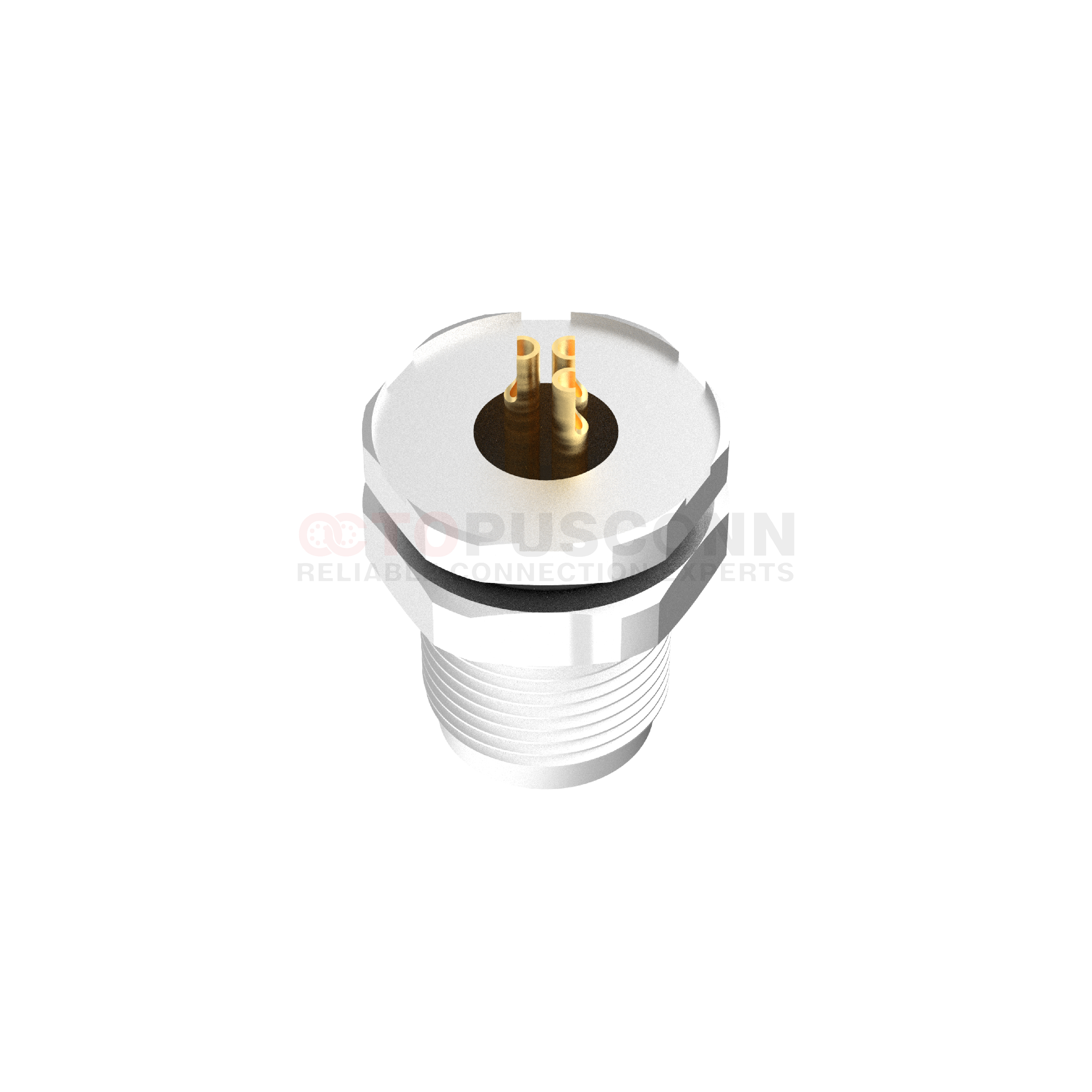

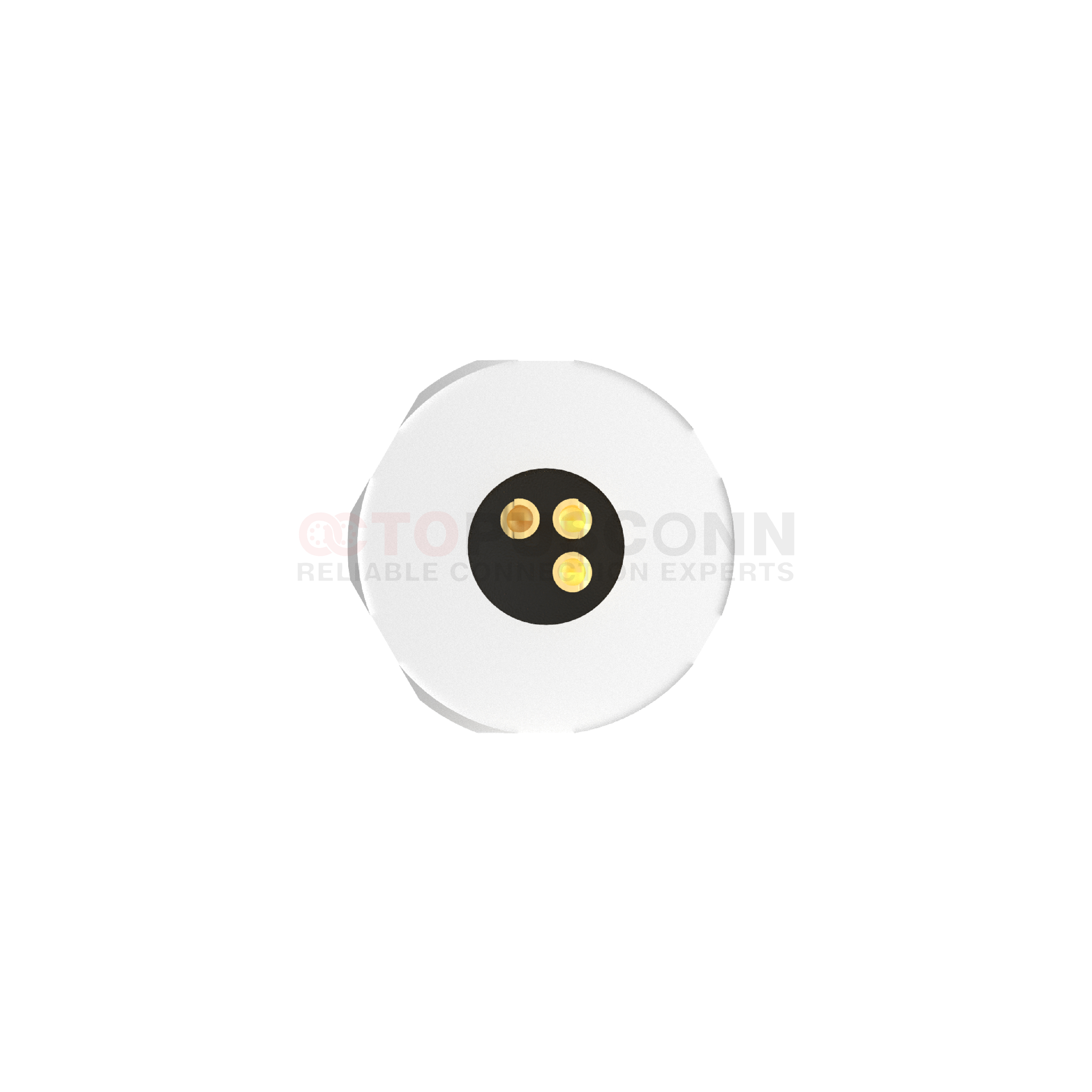

Wiring Method : Soldering Type
Applications : Power, Signal Transmission
Panel Mount Soldering TypeInsulator: Primarily manufactured from PA9T material, it boasts outstanding insulation performance and mechanical strength, and can withstand minor impacts and abrasions in industrial settings.
Contact Terminals: Utilize gold-plated copper, which not only guarantees excellent electrical conductivity but also improves oxidation and wear resistance, thereby extending the service life of the product. Nuts/Screws: Mainly made of nickel-plated copper, this material effectively balances electrical conductivity and corrosion resistance. Sealing Gasket: Integrated into the overall structural design to achieve an IP67 protection rating, making it ideal for harsh environments with high humidity and heavy dust. Misinsertion Prevention & Stable InstallationThe A-coding design enables precise mating with plugs of the same code, preventing equipment malfunctions caused by the misconnection of connectors with different specifications. It adopts rear-locking or panel mount installation methods, combined with screw fixation, ensuring a sturdy structure after installation and resistance to vibration during the operation of industrial equipment. Compact Space AdaptationAs a small-sized circular connector, it features a compact footprint with a typical mounting hole diameter of approximately φ5.1. This makes it particularly suitable for space-constrained installation scenarios, such as industrial automation equipment and precision instruments. Versatile Scenario CompatibilityThe non-shielded design is suitable for conventional industrial environments. The soldering connection method ensures stable connectivity, reduces contact failure issues, and meets the operational requirements of equipment running continuously for long periods.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
3
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
|
4
|
1A
|
60V
|
60V
|
26
|
0.14
|
||
| Core | 3 | 4 | Core | 3 | 4 |
| Male |
|
|
Female |
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
