Available Pin Counts : 3P, 4P, 6P, 8P
Type : Male
Termination Type : Wire Solder Type
Orientation : Straight 180°
Applications : Power, Signal Transmission

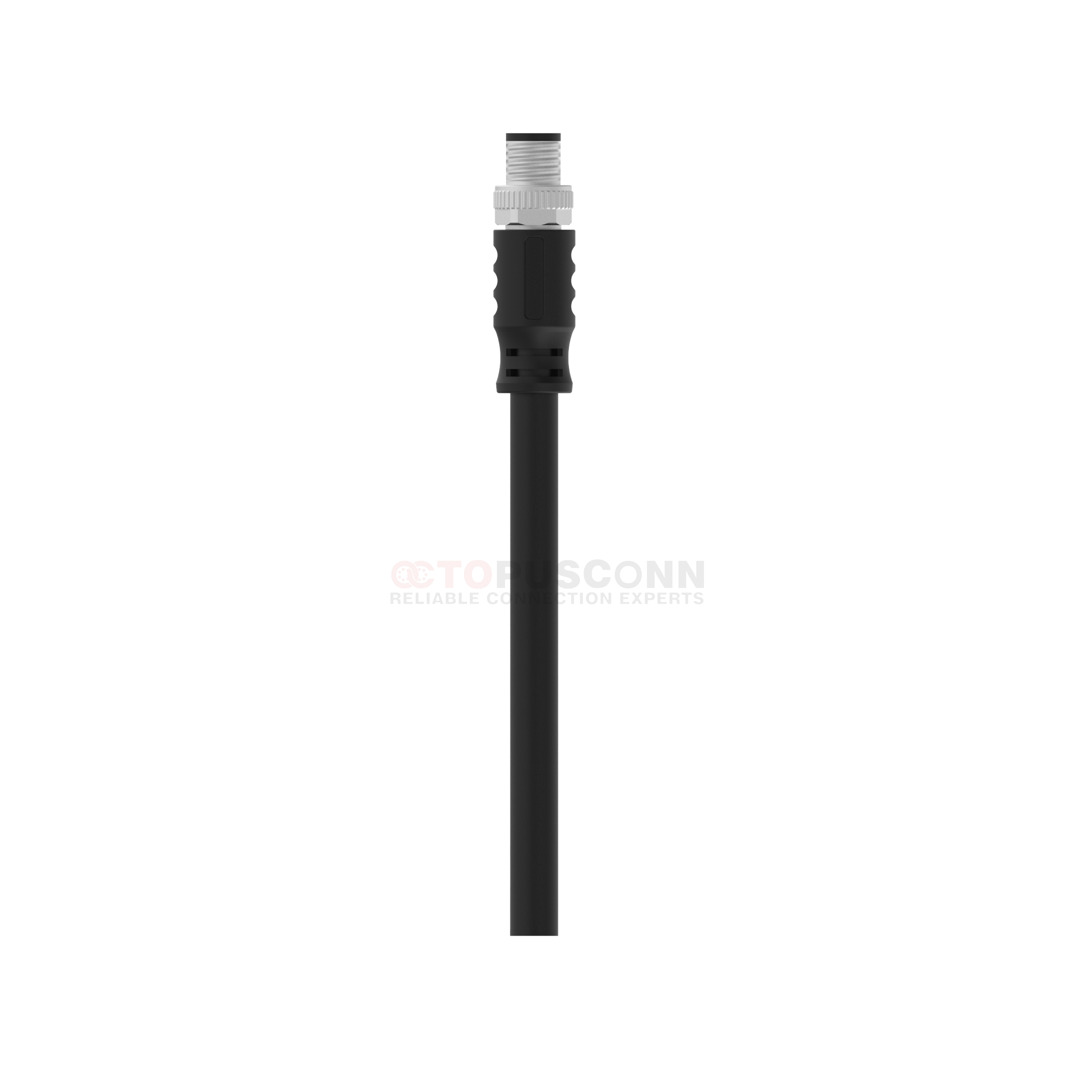

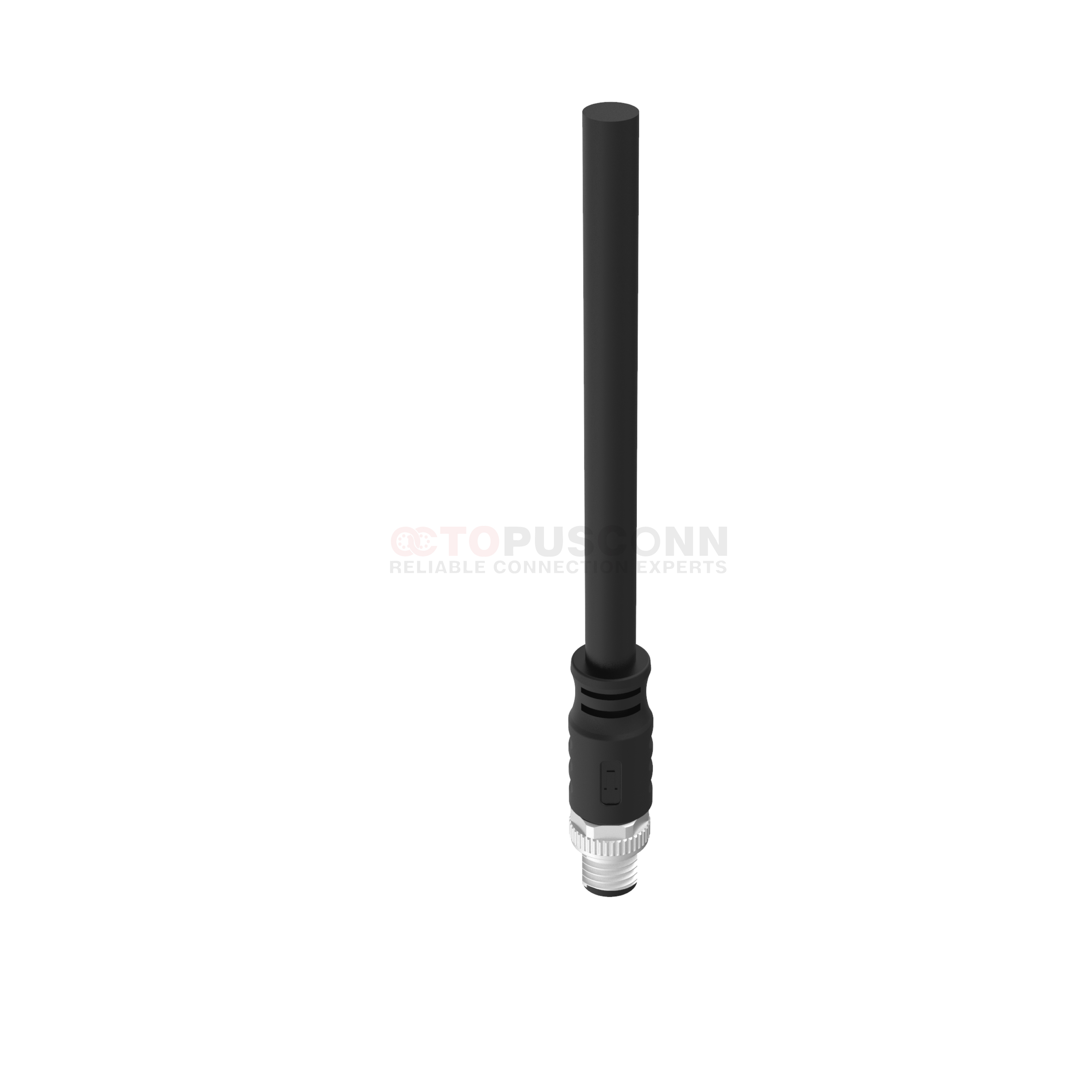

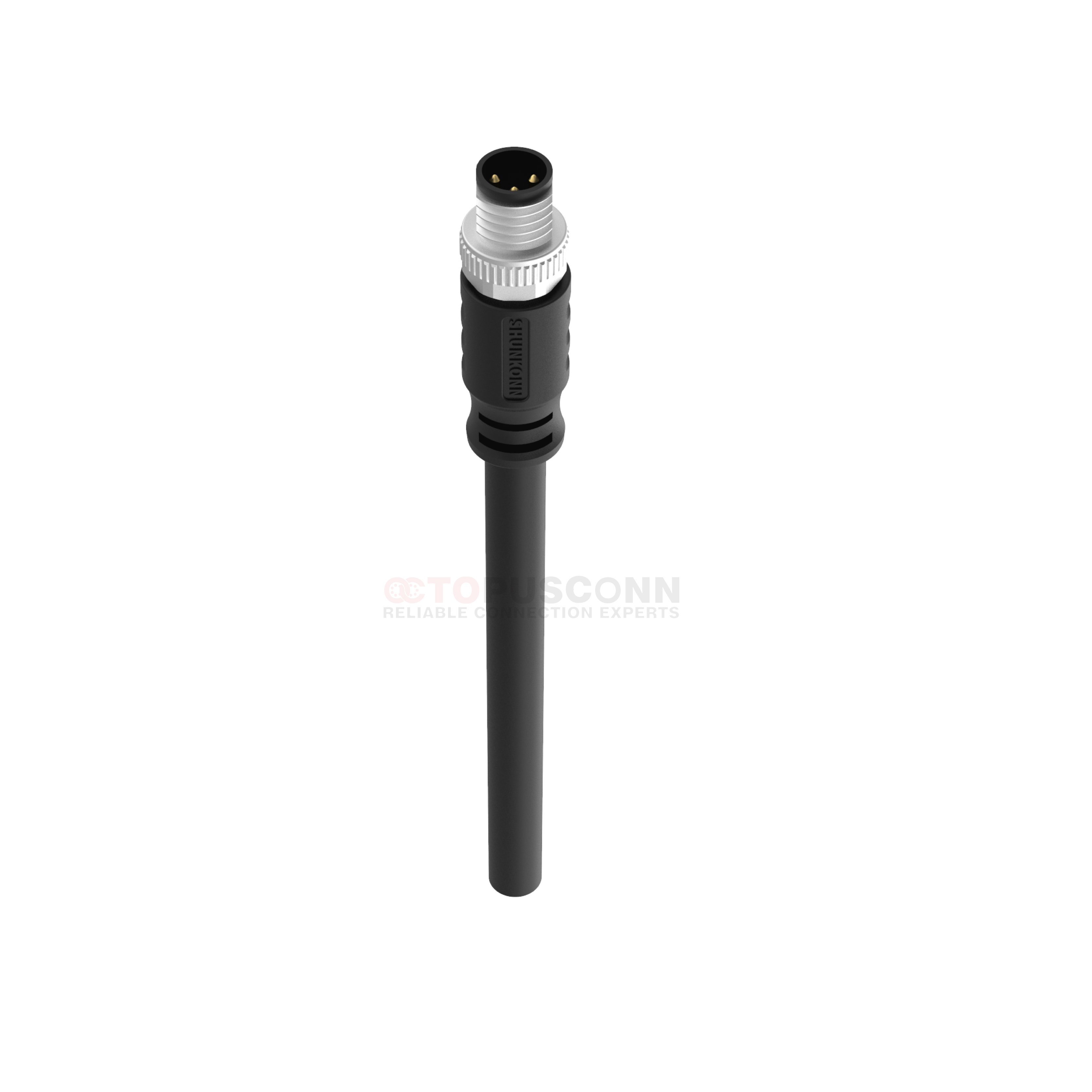

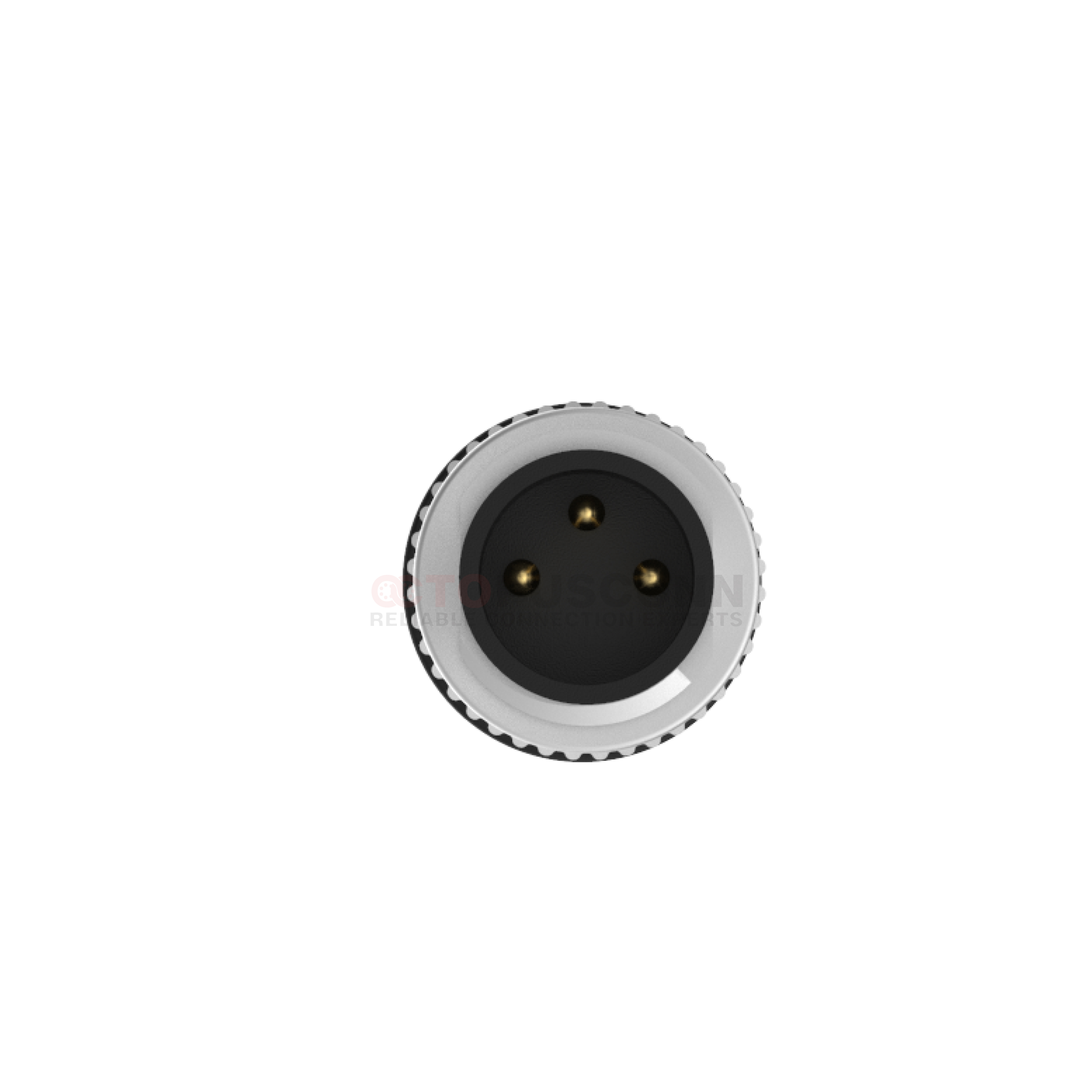

Vertical Overmolded Precast Cable
Protection Class: Typically rated IP67, providing reliable dustproof and waterproof performance for operation in harsh environments.Temperature Range: Sustains stable operation in a constant temperature range of -40℃ to 85℃.High Durability: Nickel-plated brass ensures stable and long-lasting connection performance.Application Fields: Widely applied in industrial automation, industrial machinery, robotics, semiconductor manufacturing, process control systems and other sectors, serving to connect sensors, actuators, controllers and other equipment.Superior Connection Reliability: Compared with crimping and other methods, soldering forms a stable metallurgical bond between wires and contacts, resulting in lower contact resistance and reduced risk of disconnection. It maintains stable electrical connections under harsh working conditions such as vibration and impact, making it ideal for high-frequency motion equipment like robots and conveyor lines.Flexible Installation & Customization: Soldering and overmolding are fully completed before factory shipment. On-site installation only requires thread locking, eliminating the need for additional soldering work. Cable length, core wire color and pin count are all customizable to meet the wiring requirements of different sensors and actuators.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MB08AM-035LSSTXXXXX01
|
3
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MB08AM-045LSSTXXXXX01
|
4
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MB08AM-065LSSTXXXXX01
|
6
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
|
MB08AM-085LSSTXXXXX01
|
8
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
| Core | 3A | 4A | 6A |
| Male |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|
| Core | 3A | 4A | 6A |
| Female |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
