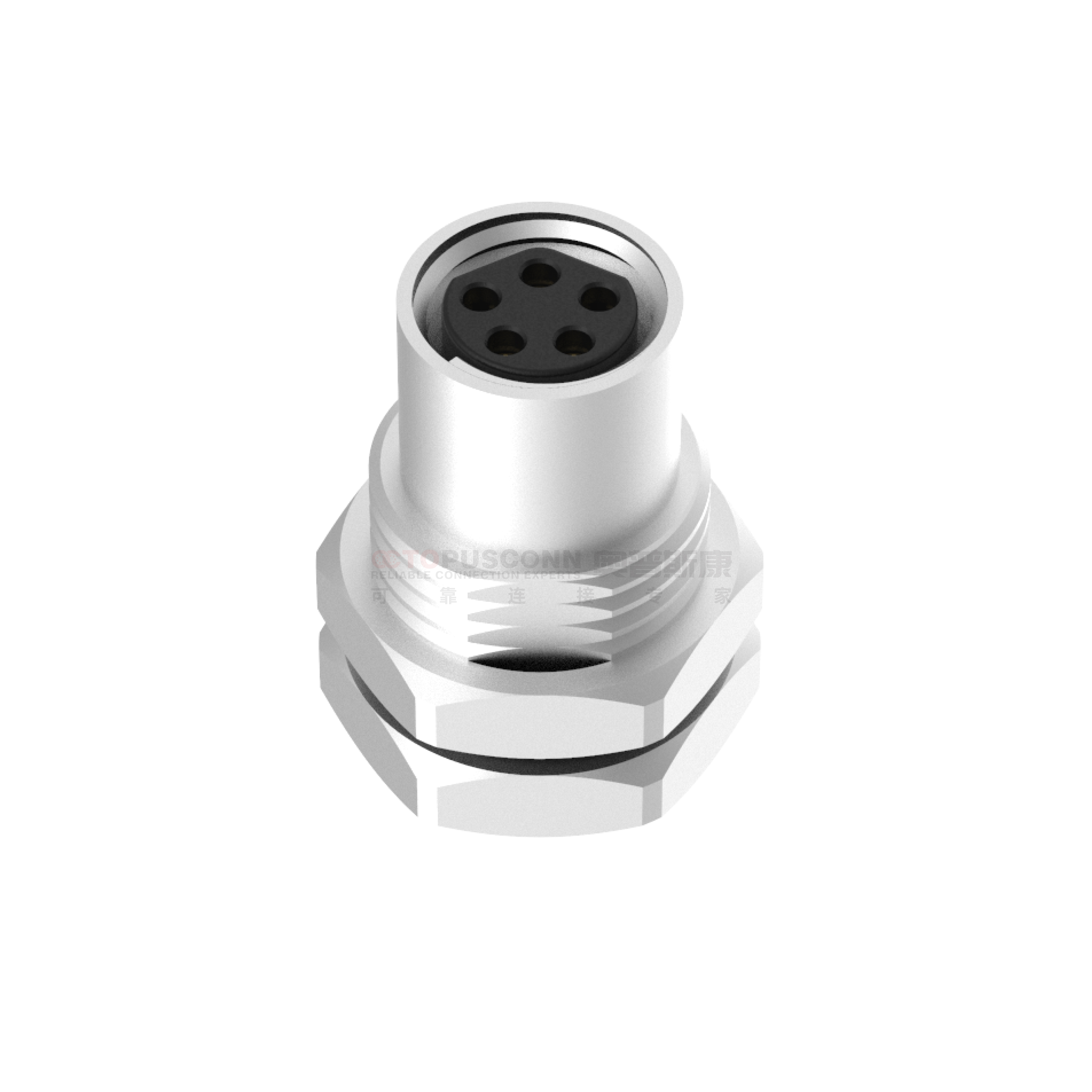

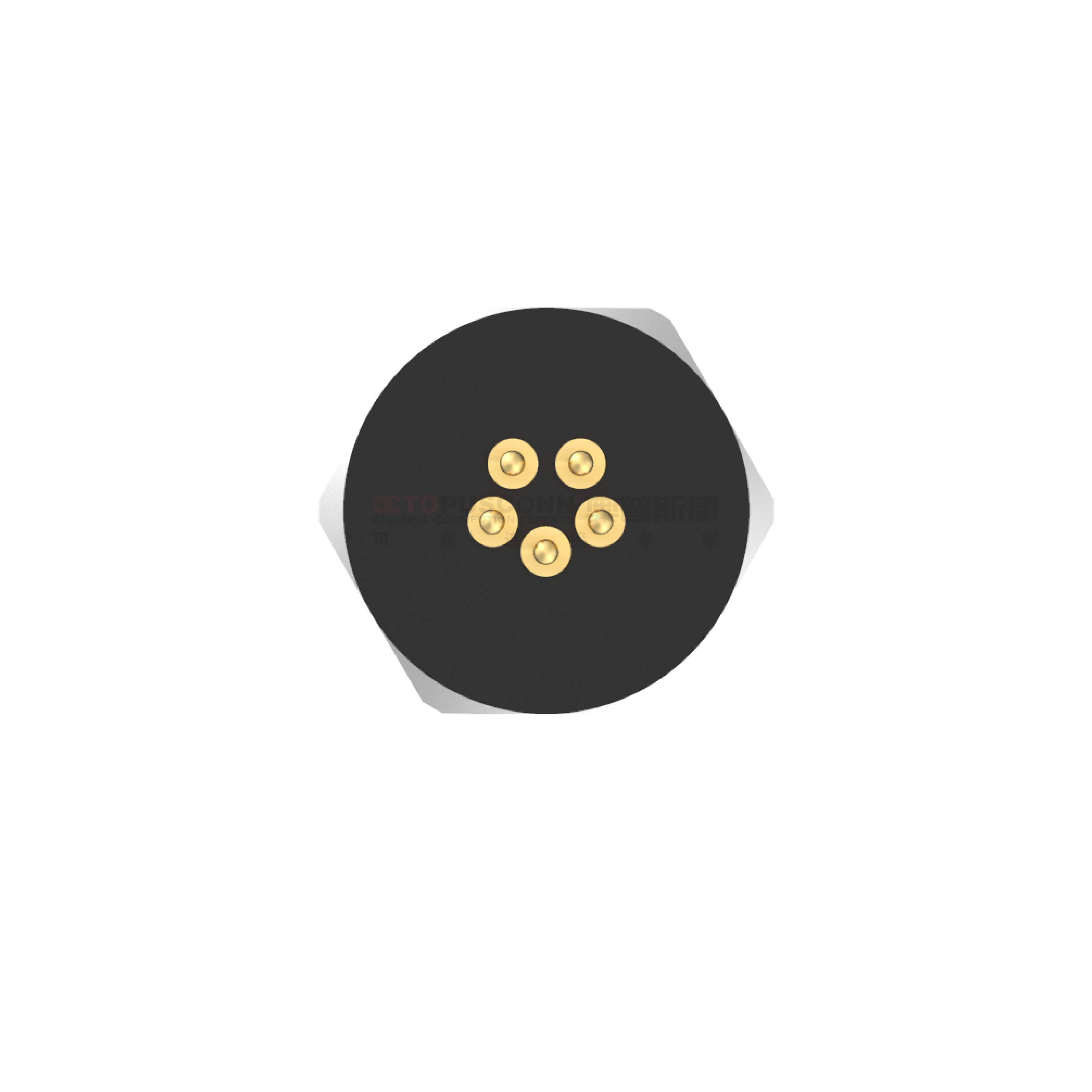

Available Pin Count : 5P
Type : Female
Mounting Method : Plug Plate Type
Applications : Power, Signal

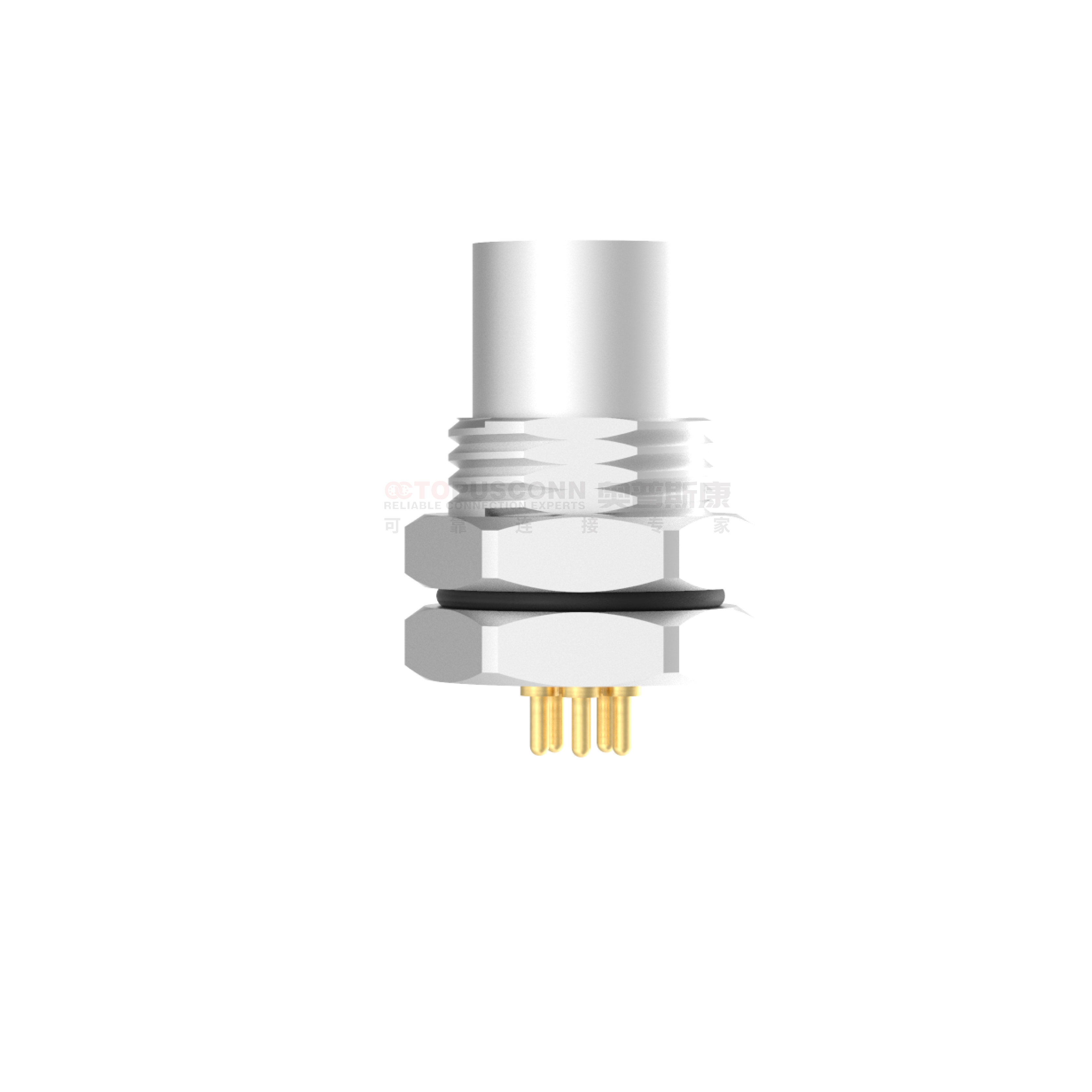

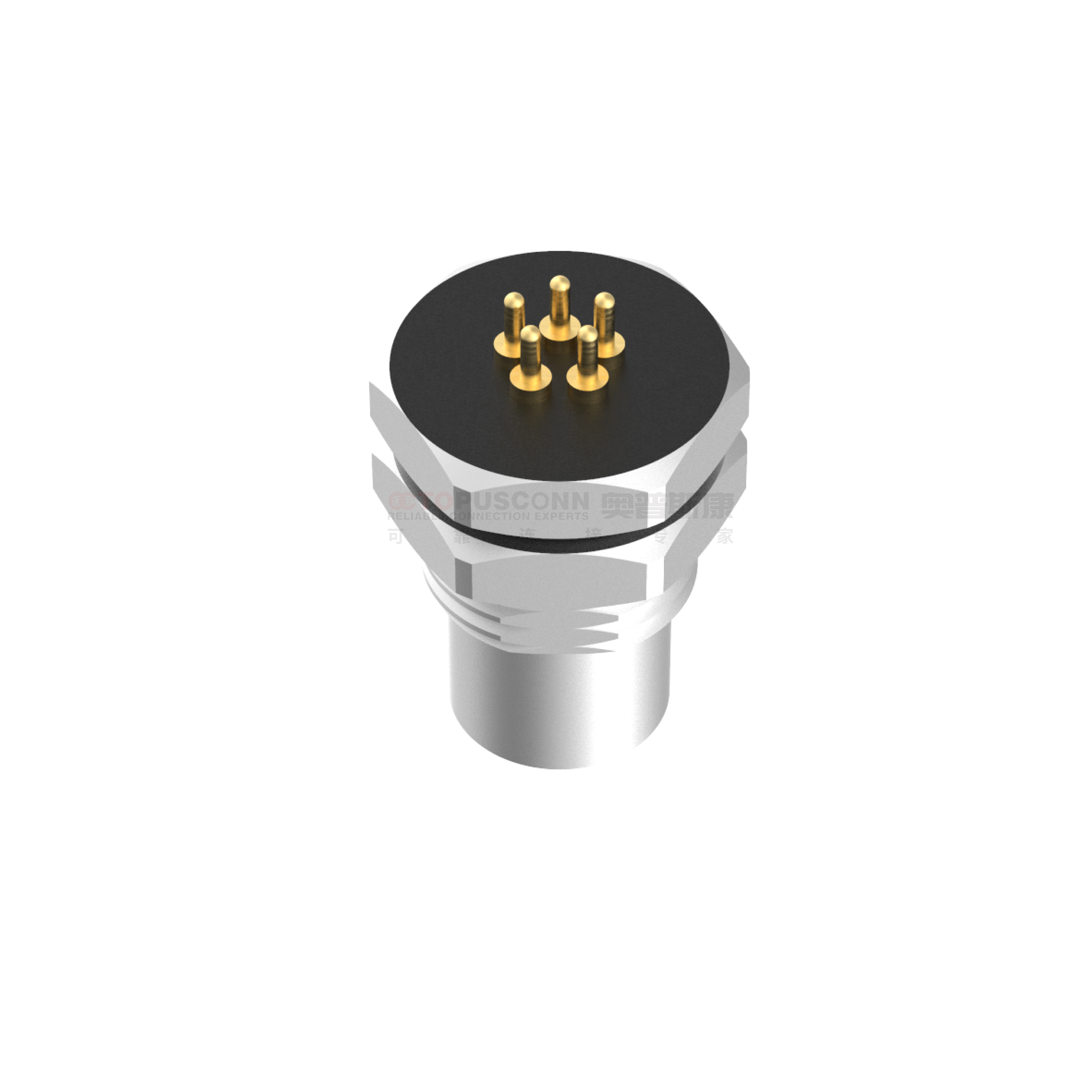

Rear Panel Mount, Through-Hole Type:Fixation and Mounting Structure:The mounting thread is mostly M12-sized, and the connector is fixed via rear panel mounting. A front-panel lock screw is paired to enhance stability. The panel opening size is matched to the corresponding mounting thread, which can prevent loosening caused by equipment vibration.
Material Selection:The contacts are mostly made of copper alloy with gold plating on the surface, ensuring excellent electrical conductivity and corrosion resistance. The shell is mainly made of nickel-plated brass, balancing mechanical strength and oxidation resistance. Environmental and Mechanical Performance:The protection class reaches IP67 in most cases, providing effective dustproof and waterproof performance, and is suitable for dusty and humid industrial environments. The operating temperature range is generally -40℃ ~ 85℃. Wide Range of Applications:It is widely used in factory automation and fieldbus modules, industrial robot joint connections, sorting and conveying equipment for warehouse automation, and motion control drive systems of servo motors and frequency converters. It is also suitable for signal and power transmission between PCB boards and external cables of devices such as micro-sensors and industrial cameras.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MC08BF-05R2LDLNS1601
|
5
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
| Core | 3A | 4A | 6A |
| Male |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|
| Core | 3A | 4A | 6A |
| Female |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
