Available Pin Count : 5P
Type : Male
Mounting Method : Plug PlateType
Applications : Power, Signal

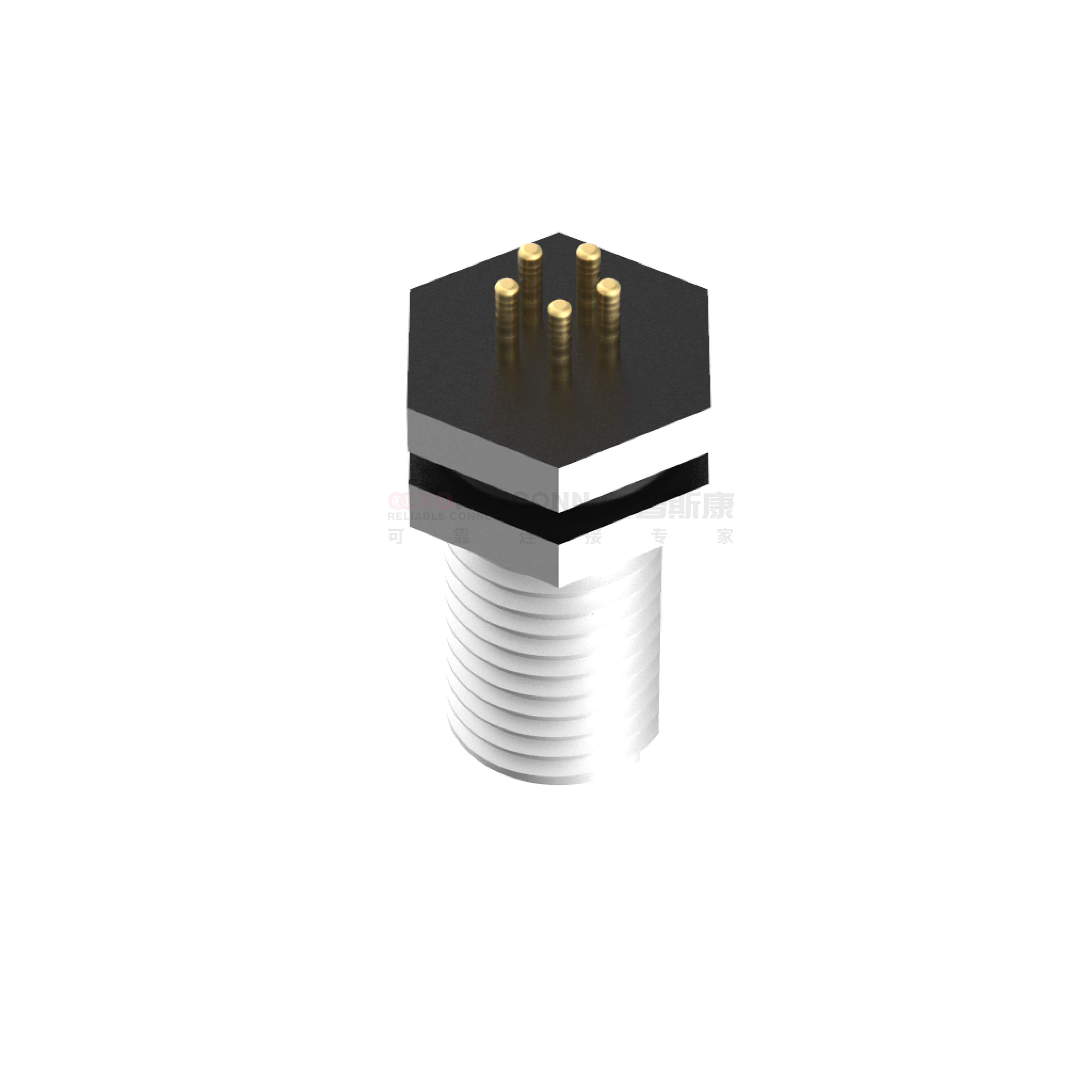

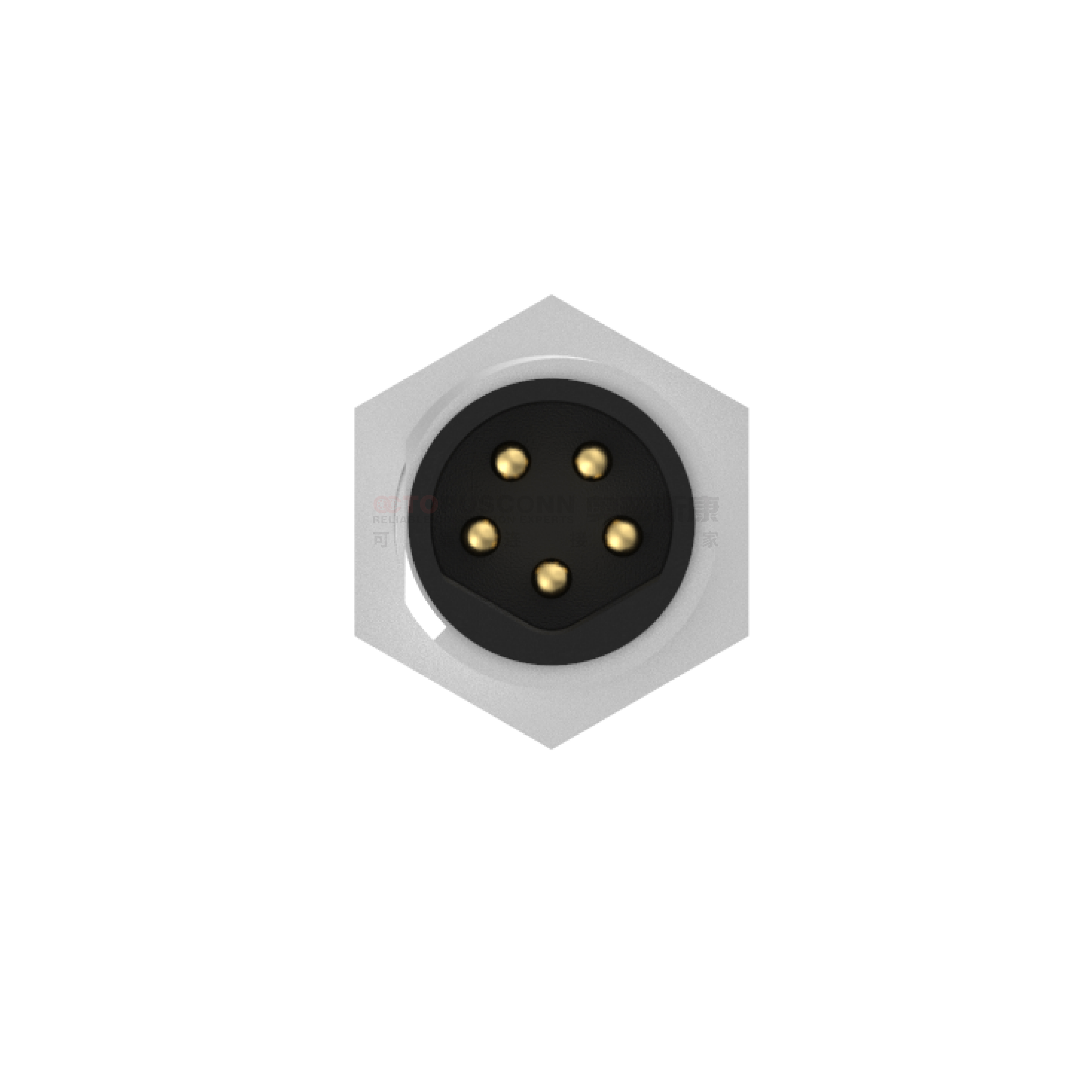

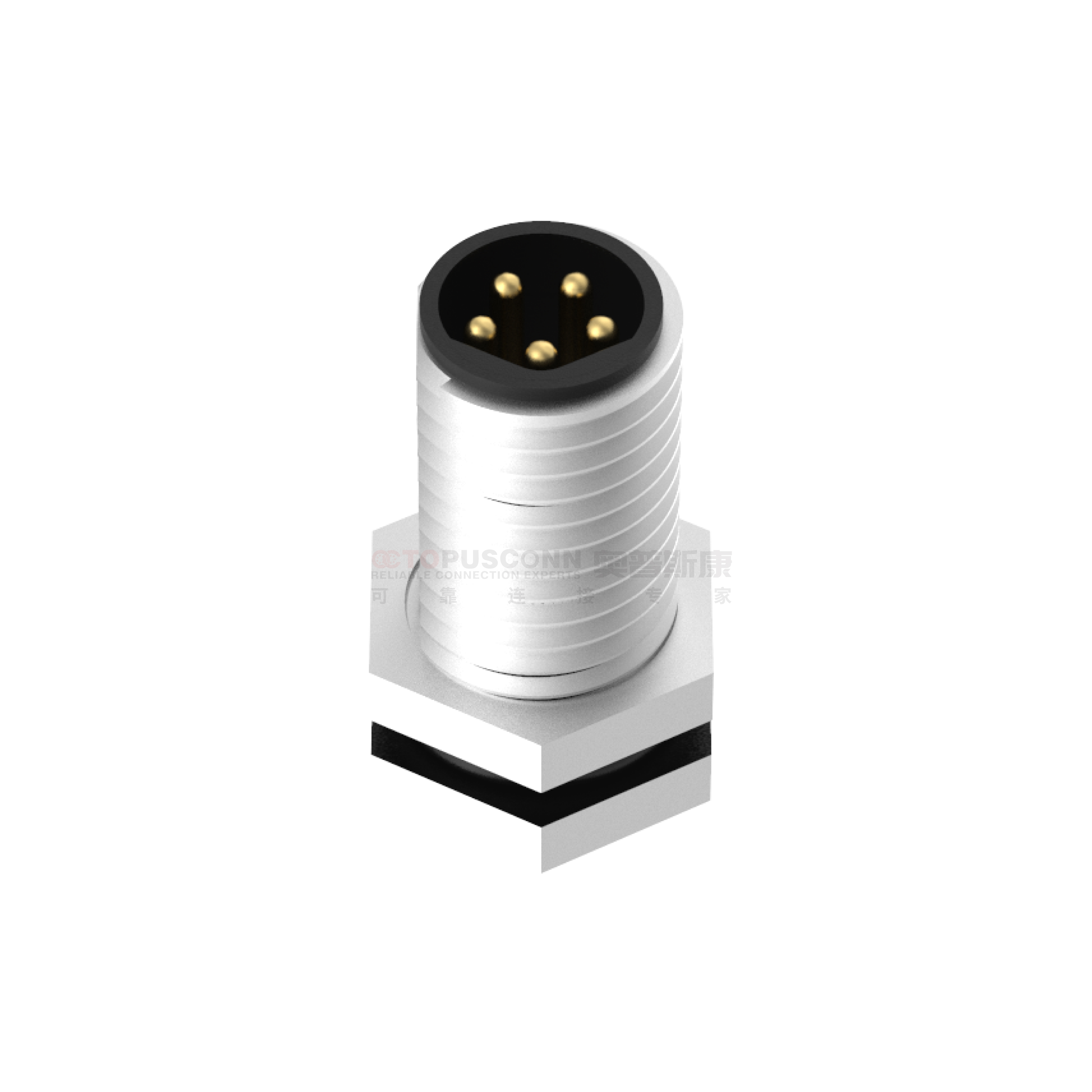

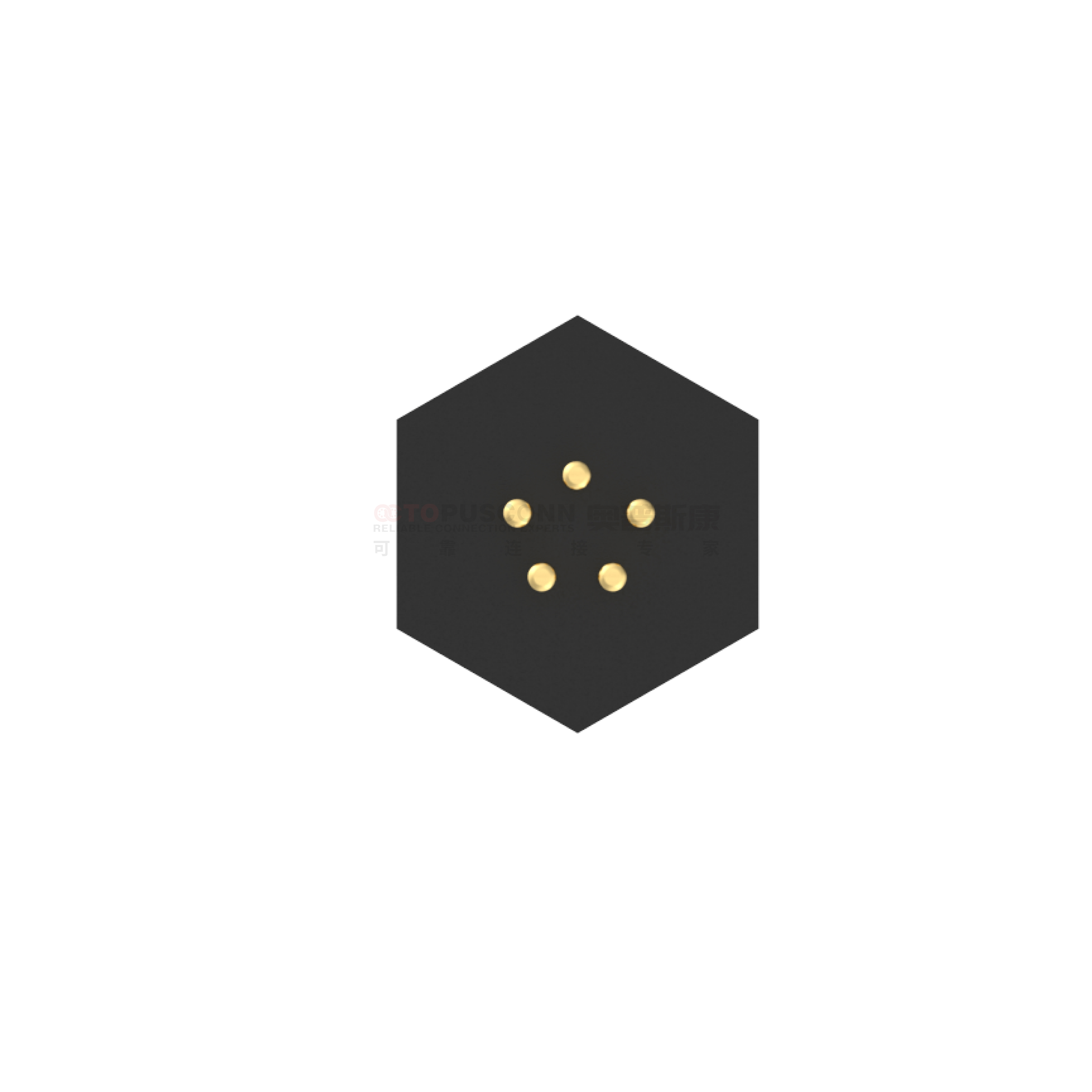

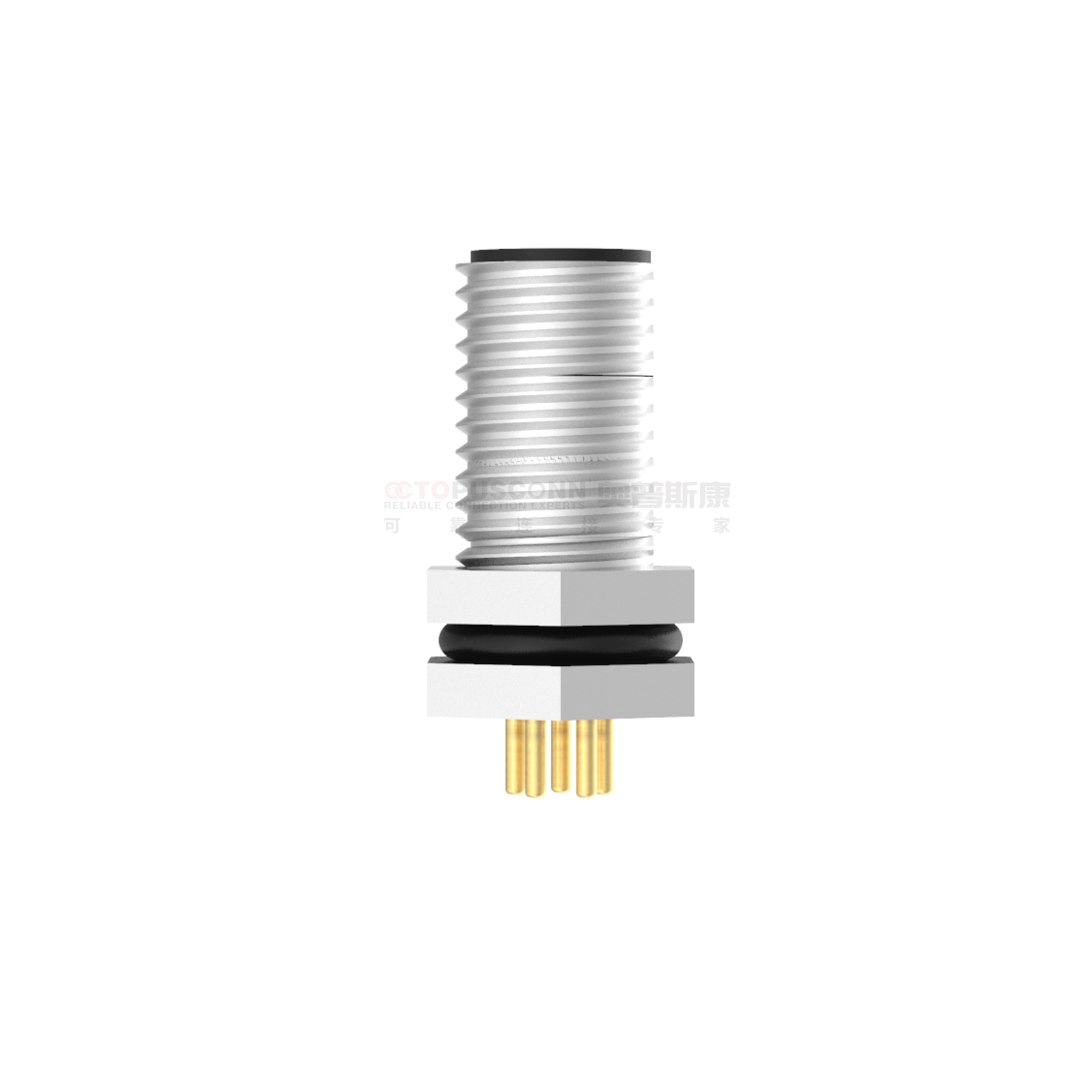

Rear Panel Mount, Through-Hole Type:Fixation and Mounting Structure:The mounting thread is mostly M12-sized. The connector is fixed via rear panel mounting, and paired with front-panel lock screws to enhance stability. The panel opening size is matched to the corresponding mounting thread, which prevents loosening caused by equipment vibration.
Material Selection:The contacts are mainly made of copper alloy with gold-plated surfaces, ensuring excellent electrical conductivity and corrosion resistance. The shell is primarily nickel-plated brass, which balances mechanical strength and oxidation resistance. Environmental and Mechanical Performance:The protection class generally reaches IP67, providing effective dustproof and waterproof performance, and is suitable for dusty and humid industrial environments. The operating temperature range is usually -40℃ ~ 85℃. Wide Application Range:It is widely used in factory automation and fieldbus modules, industrial robot joint connections, sorting and conveying equipment for warehouse automation, as well as motion control drive systems of servo motors and frequency converters. In addition, it is suitable for signal and power transmission between PCB boards and external cables of devices such as microsensors and industrial cameras.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MC08BM-05R2LDLNS1401
|
5
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
| Core | 3A | 4A | 6A |
| Male |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|
| Core | 3A | 4A | 6A |
| Female |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
