Available Pin Counts : 3P, 4P, 6P, 8P
Type : Male
Wiring Method : Screw Type
Applications : Power, Signal Transmission

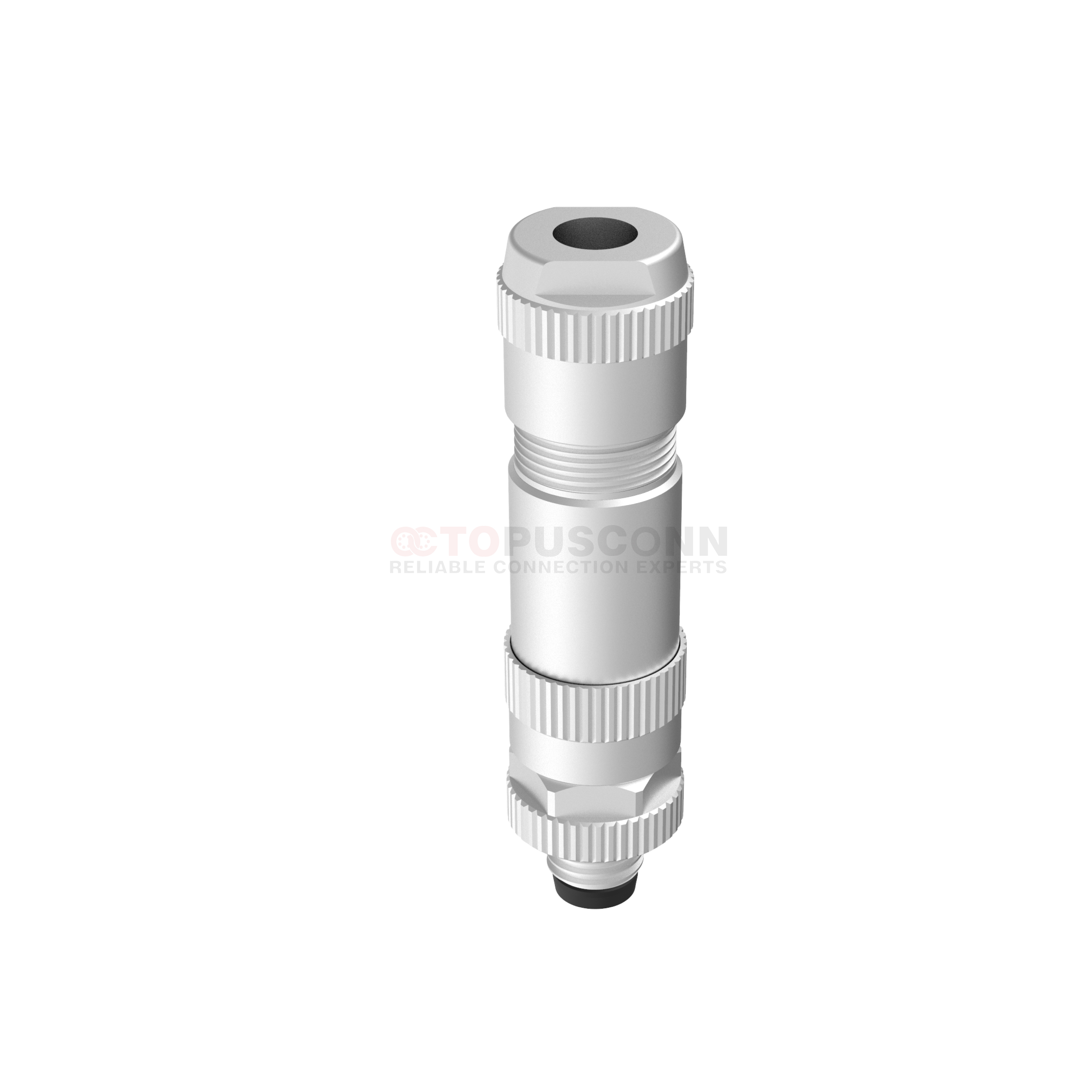

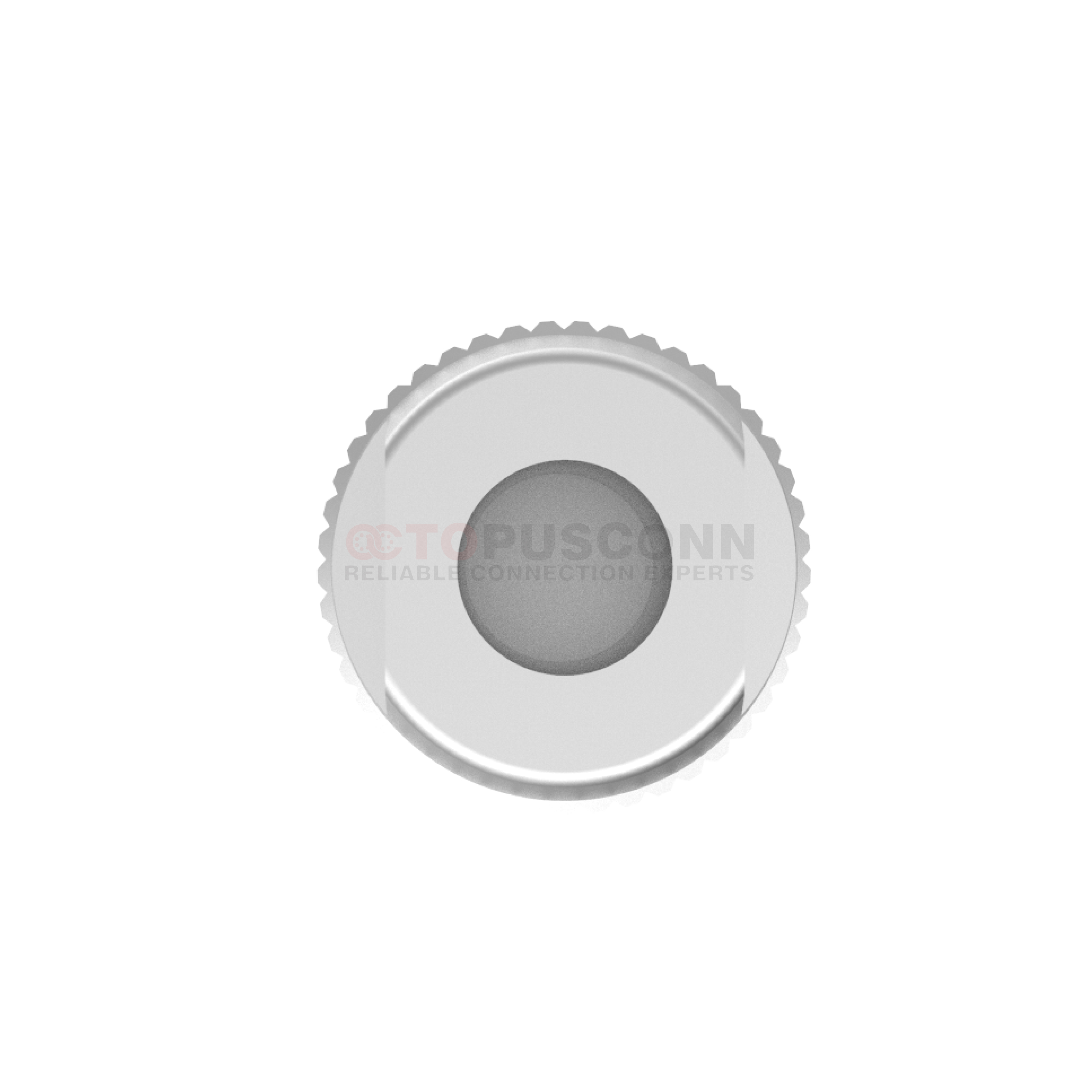

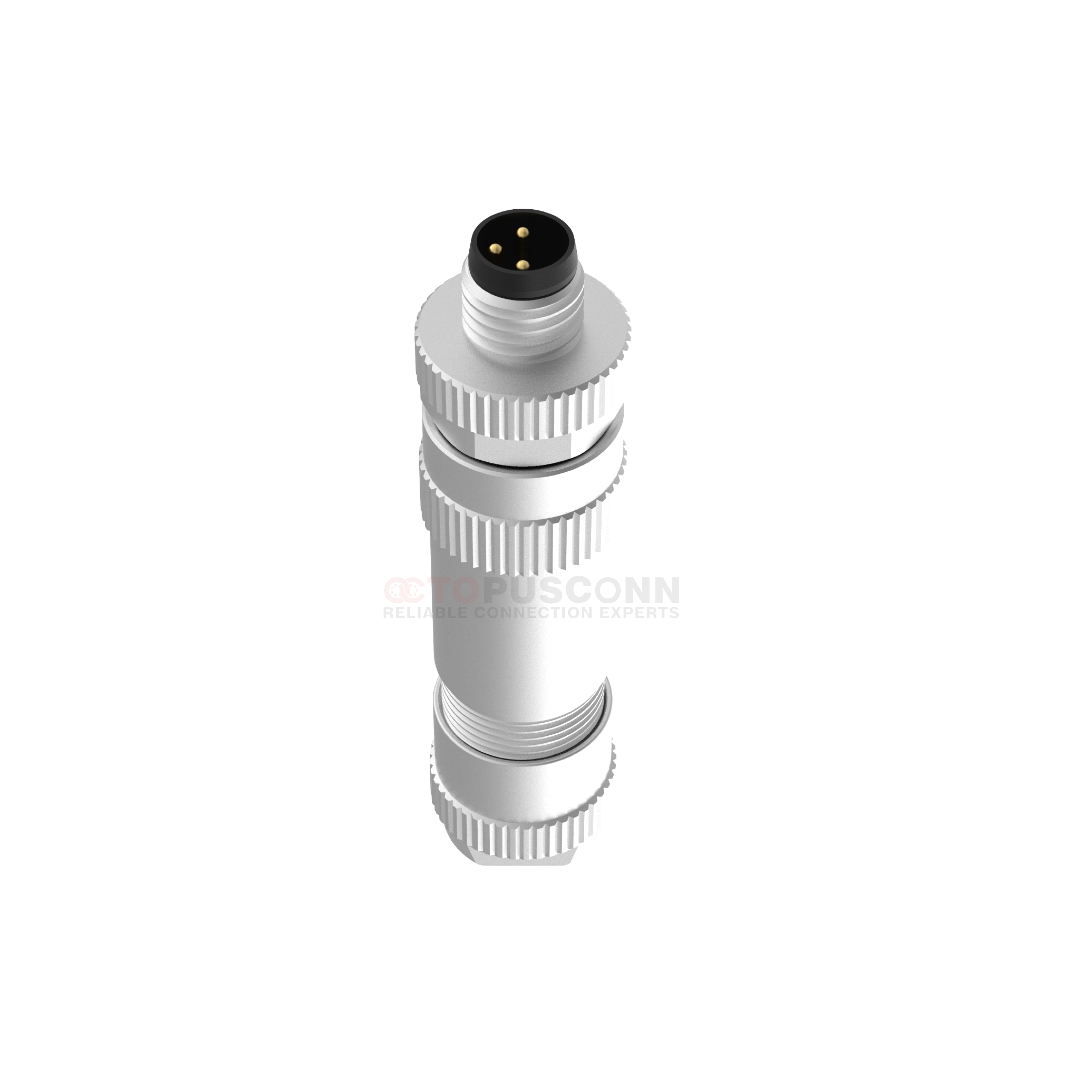

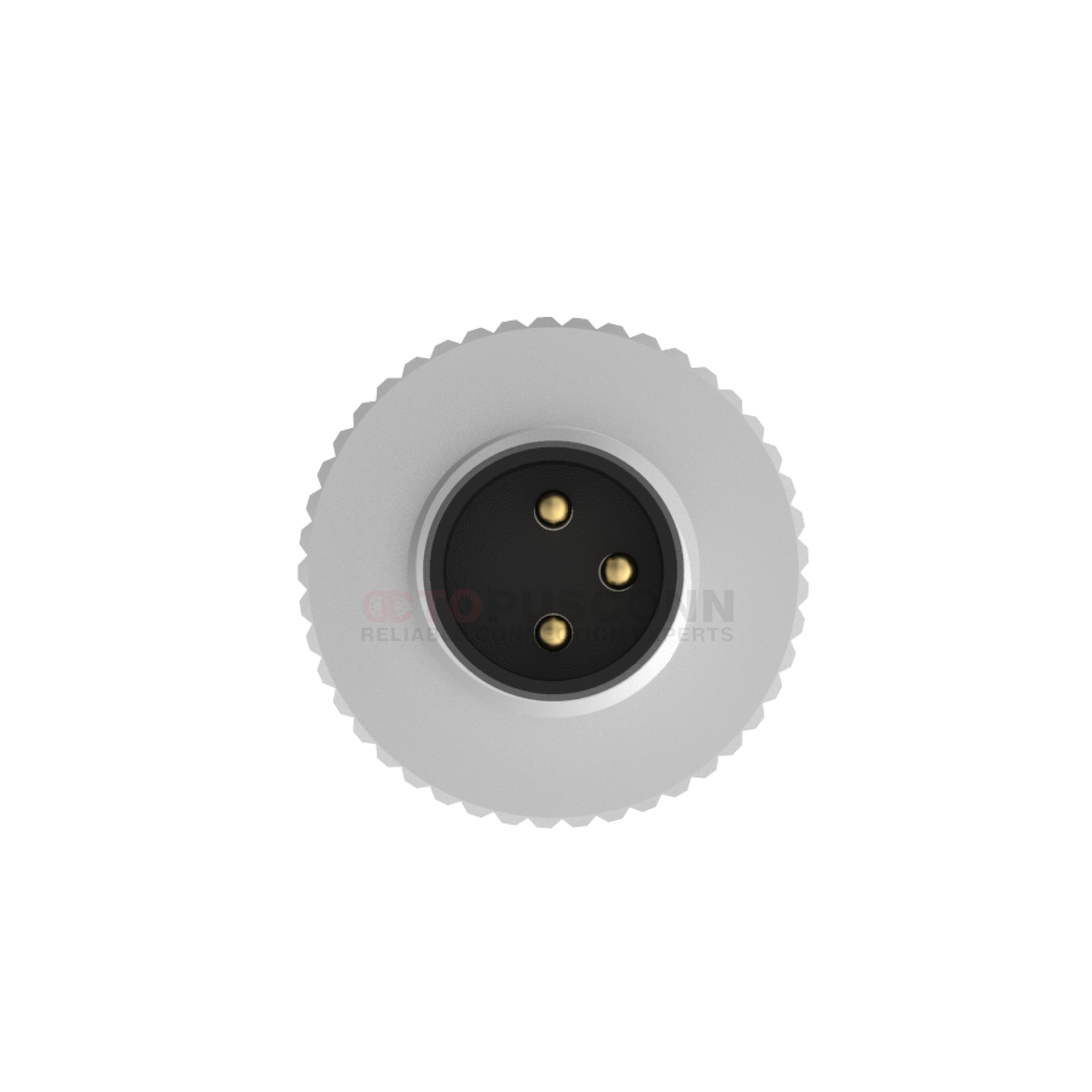

Straight Full-Metal Screw Type
Full-Metal Housing Design: The housing is made of nickel-plated brass, which not only greatly improves mechanical strength but also significantly enhances resistance to impact, abrasion and electromagnetic interference. It is also capable of adapting to harsh environments such as high temperatures and oil contamination. The overall 180° straight design is suitable for straight-line wiring scenarios, saving installation space. Meanwhile, the full-metal assembly process ensures a more compact structure, precise positioning during assembly and strong stability. Coding & Locking Method: It inherits the A-coding design, which can be accurately distinguished from M8 connectors with other codes such as B and D, completely avoiding equipment failures caused by misconnection. The connection adopts screw locking combined with M8 standard threads and metal coupling nuts. After locking, it is not easy to loosen due to equipment vibration, further ensuring connection reliability. Applications: Widely used in harsh industrial scenarios, such as connecting sensors, actuators and PLC control systems in industrial automation; signal transmission of high-precision equipment like industrial cameras and encoders; electrical connection of high-frequency vibration equipment such as machine tools and robots; it can also be applied to special working conditions including high temperature, oil contamination or high-frequency cleaning requirements, such as new energy vehicle production lines and food processing equipment, as well as connection scenarios of some precision instruments sensitive to electromagnetic interference.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MC08AM-03N4LJZSS1401
|
3
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MC08AM-04N4LJZSS1401
|
4
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MC08AM-06N4LJZSS1401
|
6
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
|
MC08AM-08N4LJZSS1401
|
8
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
| Core | 3A | 4A | 6A |
| Male |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|
| Core | 3A | 4A | 6A |
| Female |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
