Available Pin Counts : 3P, 4P, 6P, 8P

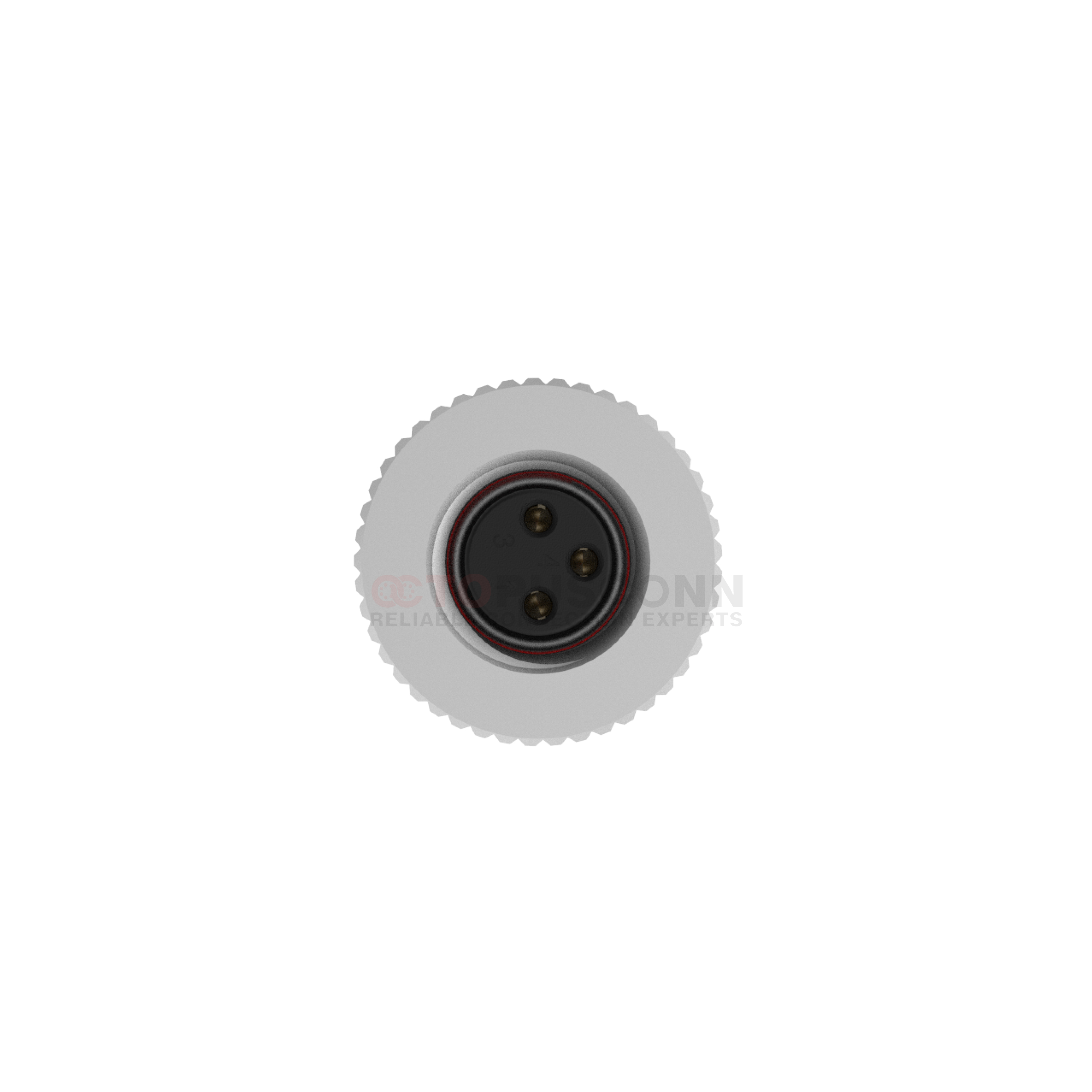

Type : Female
Wiring Method : Screw Type
Applications : Power, Signal Transmission
Straight Full-Metal Screw Type

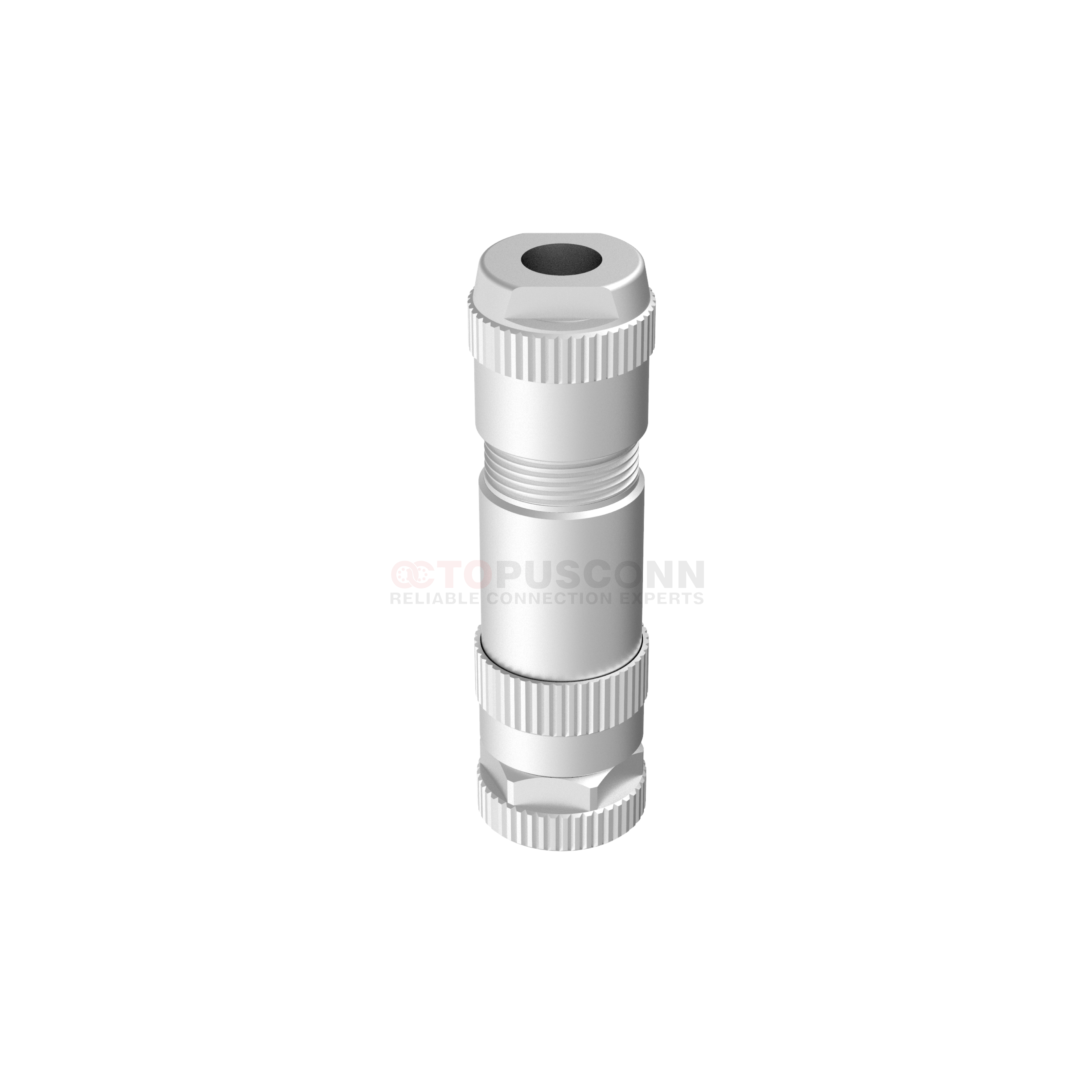

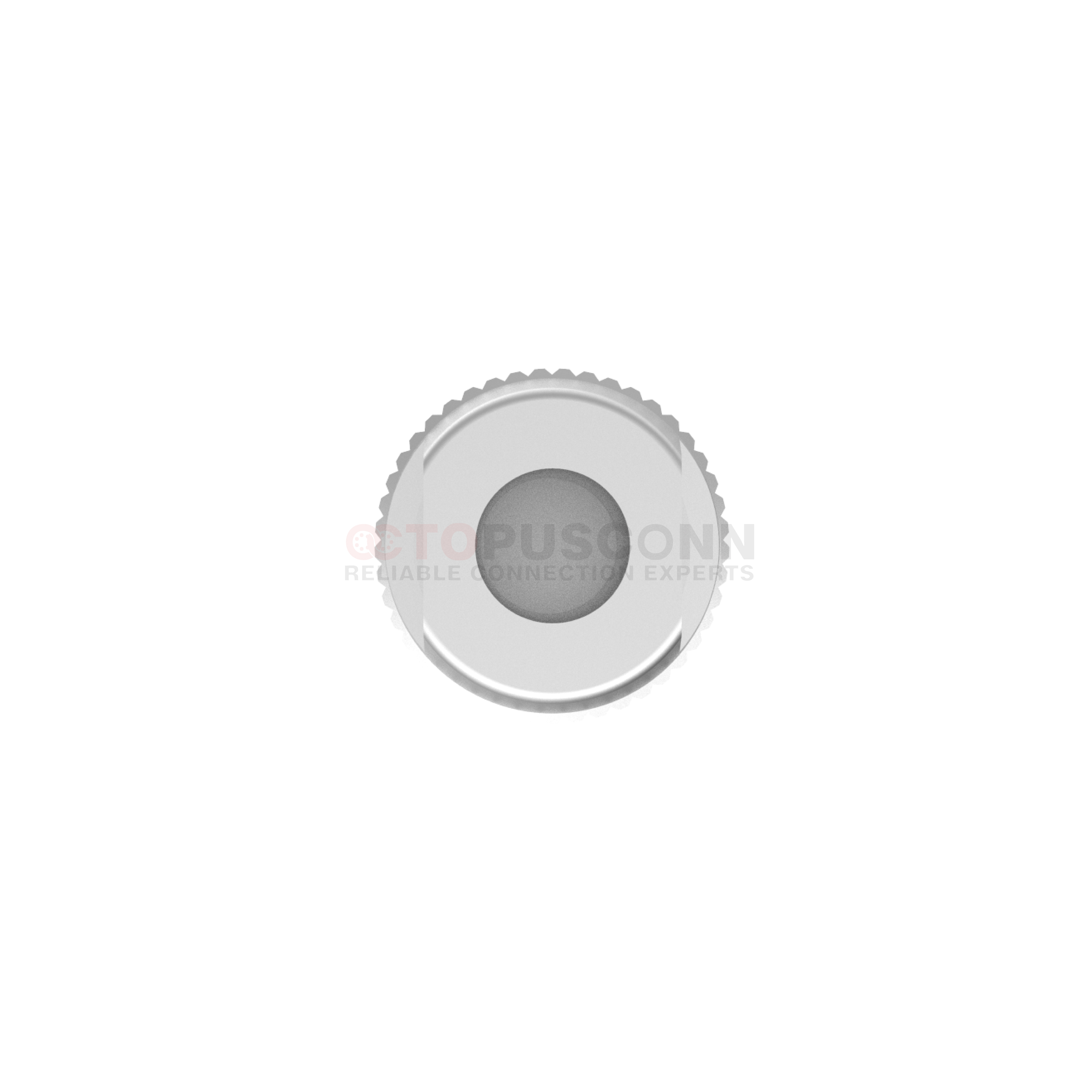

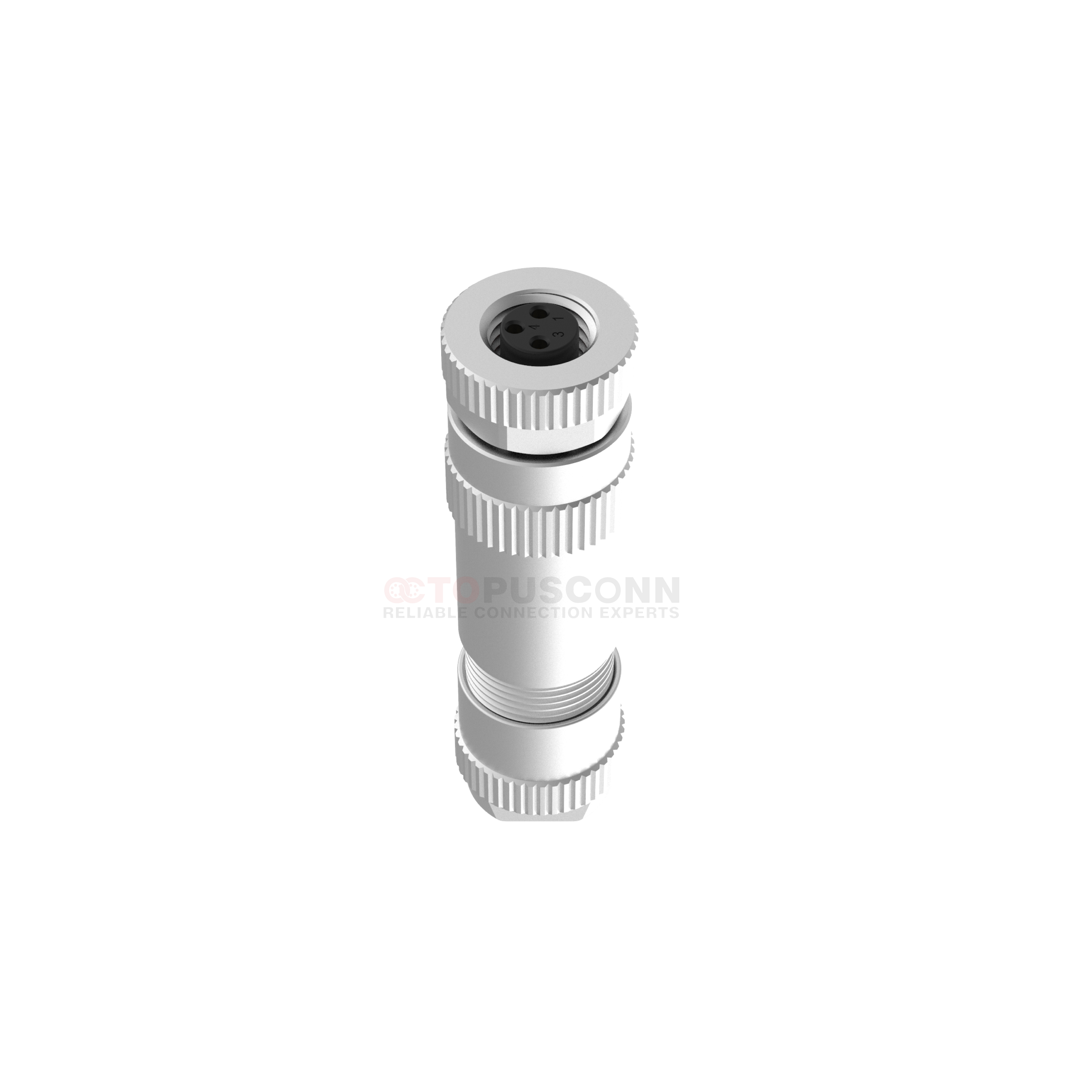

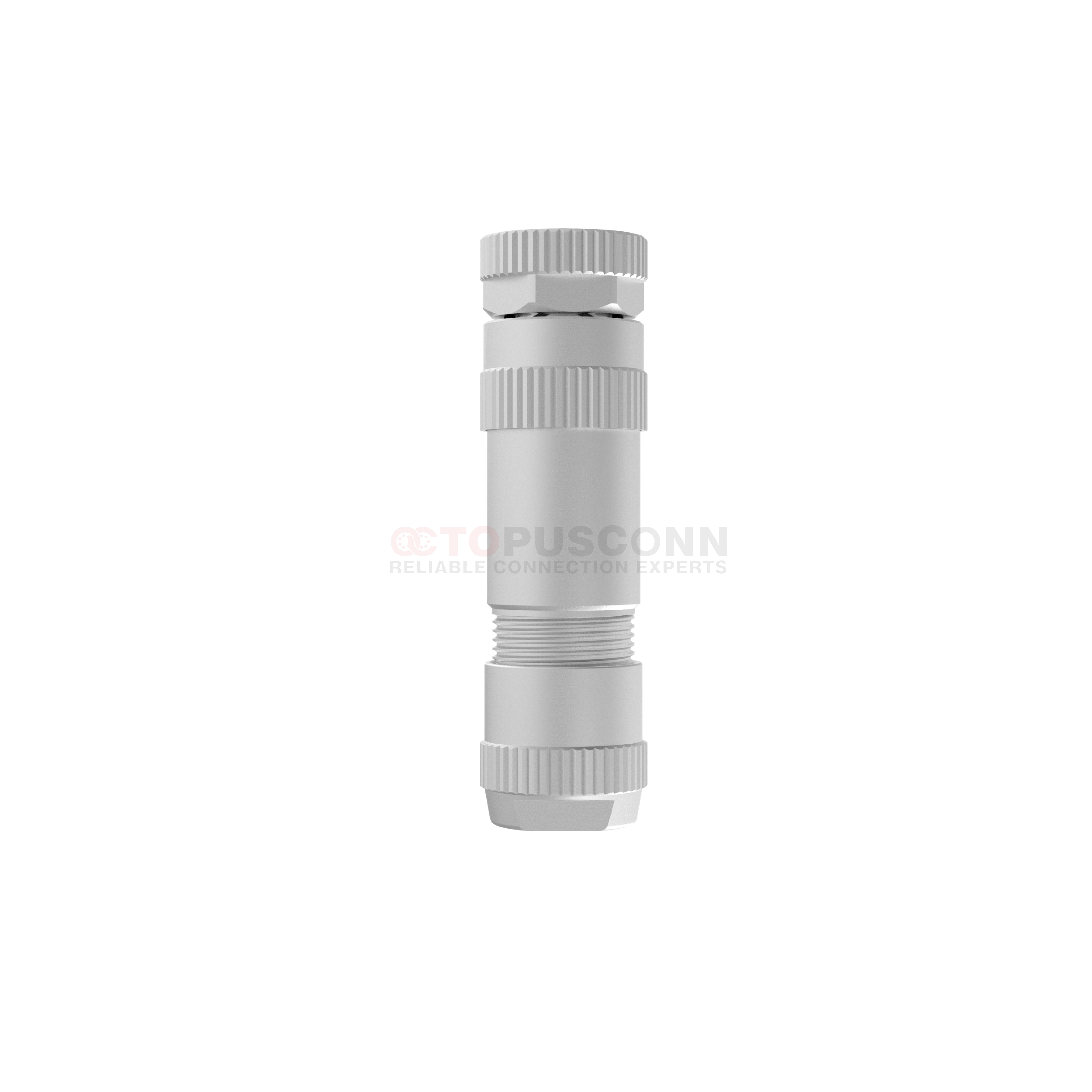

Full-Metal Housing Design: The housing is crafted from nickel-plated brass, which not only substantially boosts mechanical strength but also markedly enhances resistance to impact, abrasion and electromagnetic interference. It is also well-suited to harsh environments such as high-temperature and oil-contaminated settings. With an overall 180° straight design, it is ideal for straight-line wiring applications, saving installation space. Meanwhile, the full-metal assembly process ensures a more compact structure, precise positioning during assembly, and exceptional stability. Coding & Locking Mechanism: It features the proven A-coding design, which allows for precise differentiation from M8 connectors with other coding types such as B and D, completely preventing equipment malfunctions caused by misconnection. The connection adopts a screw-locking mechanism paired with M8 standard threads and metal coupling nuts. Once locked, it is resistant to loosening caused by equipment vibration, further ensuring connection reliability. Applications: Widely used in demanding industrial scenarios, including: Connecting sensors, actuators and PLC control systems in industrial automation; Signal transmission for high-precision equipment such as industrial cameras and encoders; Electrical connection for high-frequency vibration equipment like machine tools and robots; Special working conditions such as new energy vehicle production lines and food processing equipment that involve high temperatures, oil contamination or require frequent cleaning; Connection scenarios for some precision instruments that are sensitive to electromagnetic interference.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
MC08AF-03N4LJZSS1401
|
3
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MC08AF-04N4LJZSS1401
|
4
|
3A
|
60V
|
60V
|
24
|
0.25
|
|
|
MC08AF-06N4LJZSS1401
|
6
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
|
MC08AF-08N4LJZSS1401
|
8
|
1.5A
|
30V
|
30V
|
26
|
0.14
|
|
| Core | 3A | 4A | 6A |
| Male |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
|
| Core | 3A | 4A | 6A |
| Female |
|
|
|
| 8A | 5B | 4D | |
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
