Available Pin Counts : 2P, 3P, 4P, 5P, 6P, 7P, 8P
Type : Female
Orientation : 180° Straight Type
Applications : Power, Signal Transmission

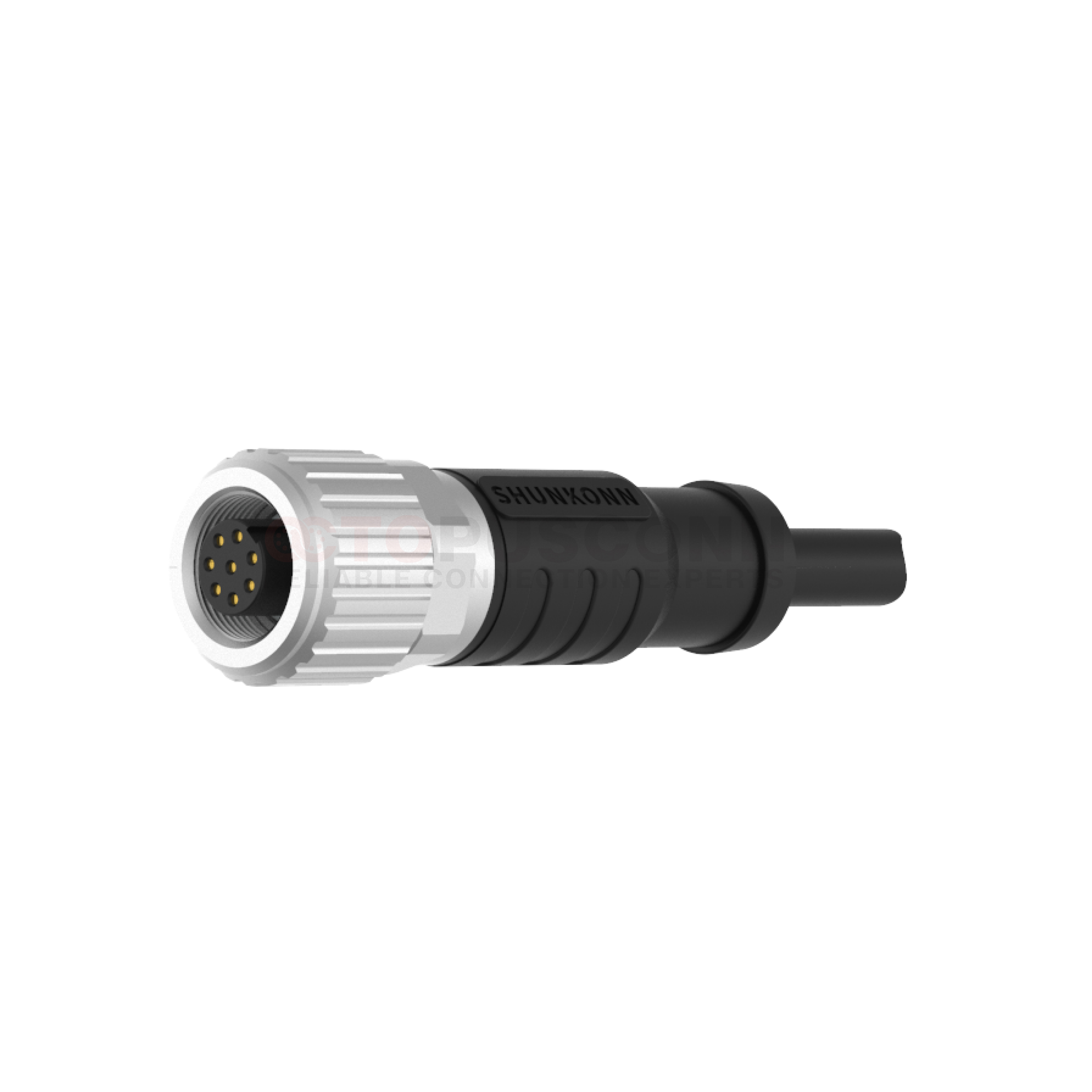

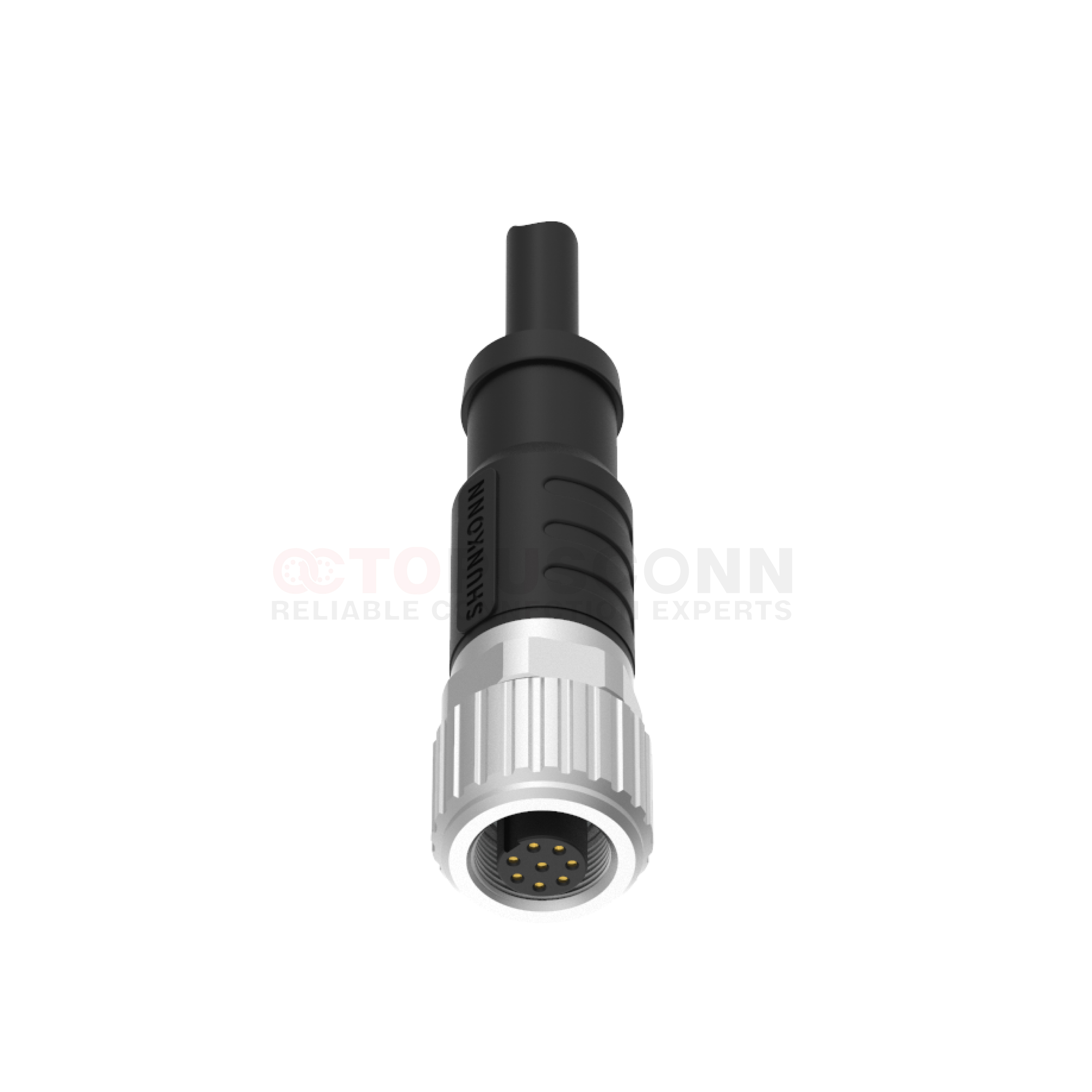

Vertical Overmolded Precast Cable:

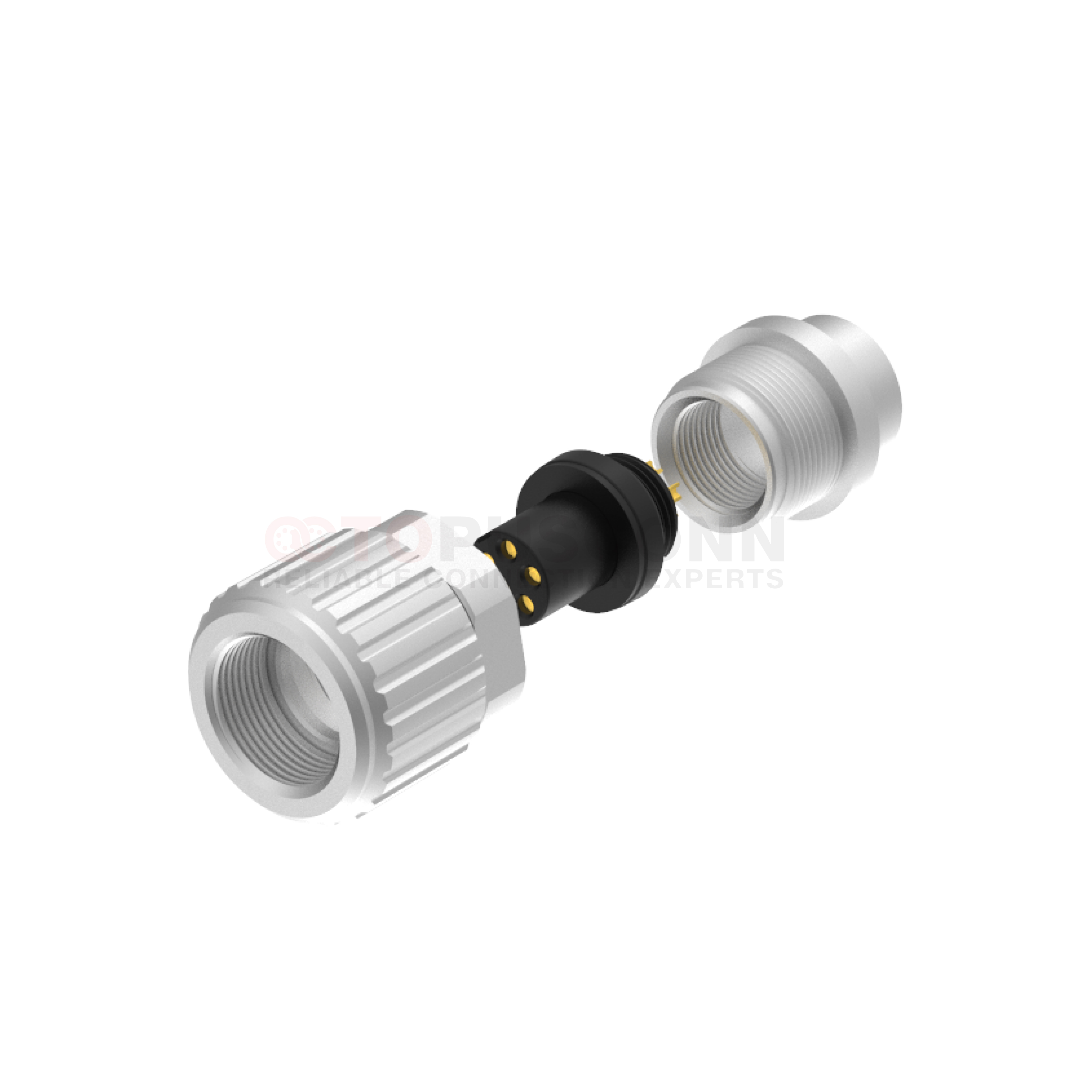

Vertical Integrated Design Featuring an overall vertical straight-head structure, there are no splicing gaps at the junction of the connector and cable. An integral transitional structure is formed through the overmolding process, allowing the cable to extend vertically along the connector's axis, which adapts to the linear wiring requirements of equipment. Threaded Locking Interface The connector end is equipped with an M9-sized threaded locking structure. The coupling nut is made of nickel-plated brass, which fits tightly when rotated and locked, preventing loosening in vibrating environments. Meanwhile, for some models with a shielded design, the threaded ring can achieve shielded connection to reduce electromagnetic interference (EMI). Widely used in industrial automation equipment, automated conveying and packaging equipment, and auxiliary equipment for harsh working conditions.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
2
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
3
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
4
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
5
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
6
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
7
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
8
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
| Core | 2 | 3 | 4 | 5 |
| Male |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
||
| Core | 2 | 3 | 4 | 5 |
| Female |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
