Available Pin Counts : 2P, 3P, 4P, 5P, 6P, 7P, 8P
Type : Female
Mounting Method : Assembled Type
Wiring Method : Soldering Type
Applications : Power, Signal Transmission

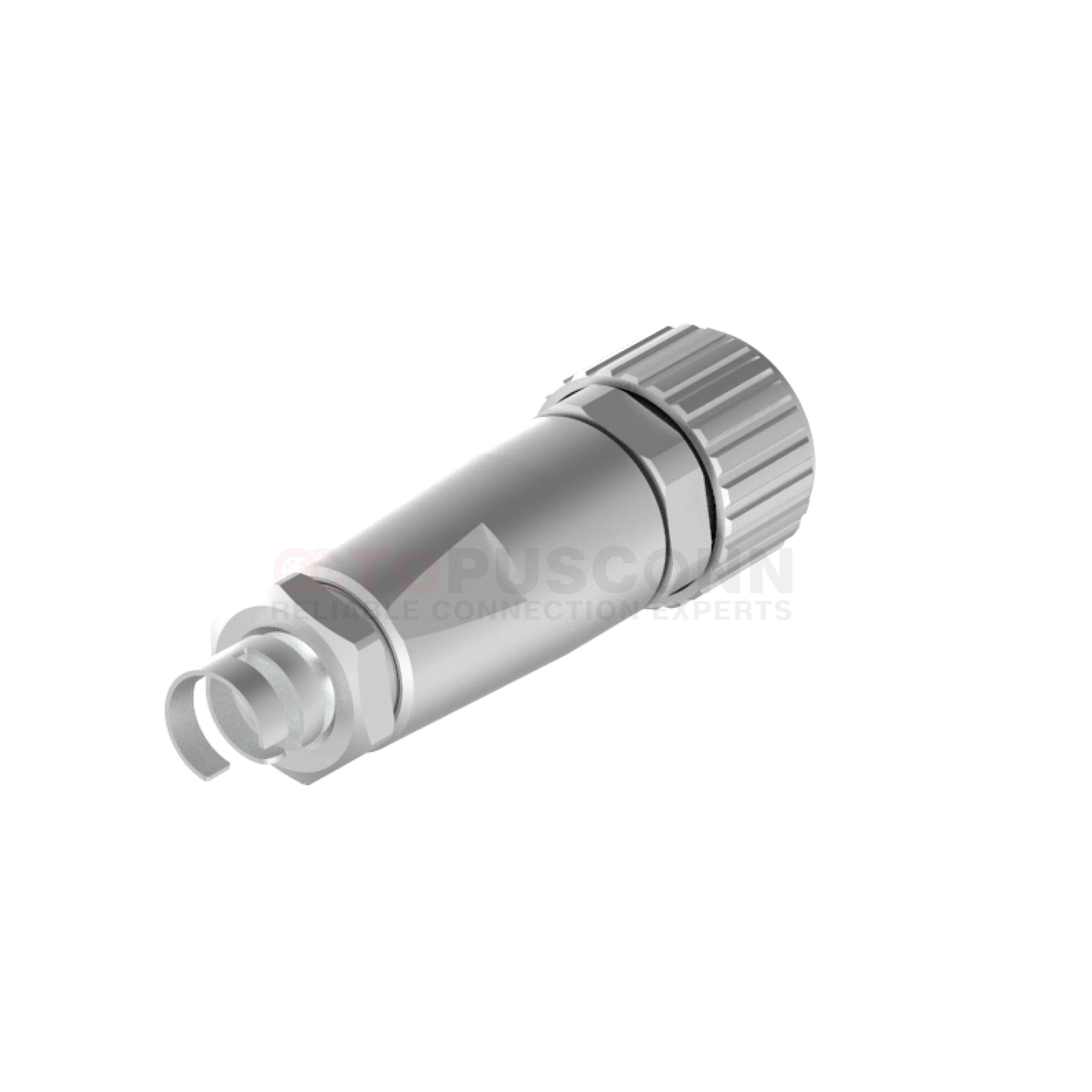

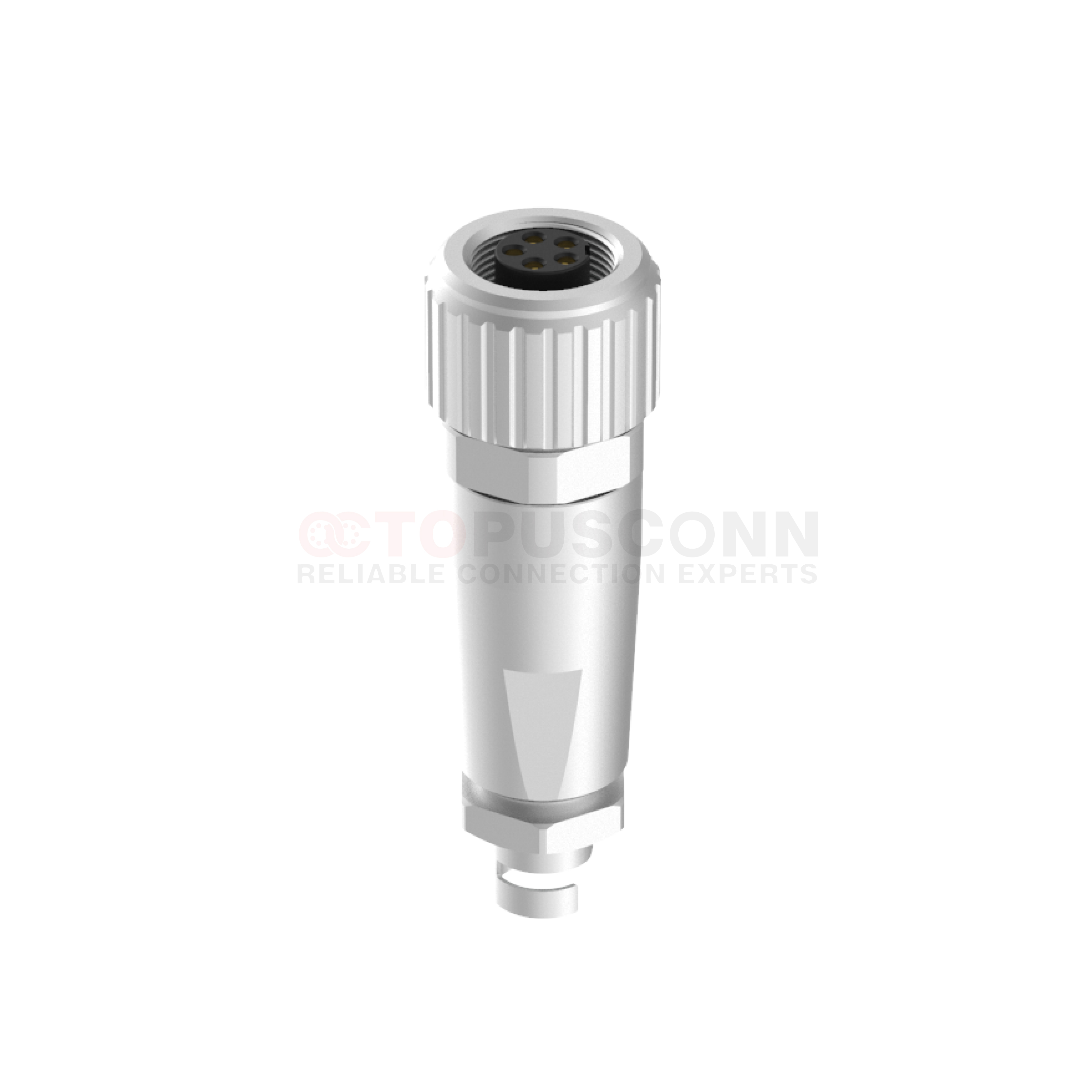

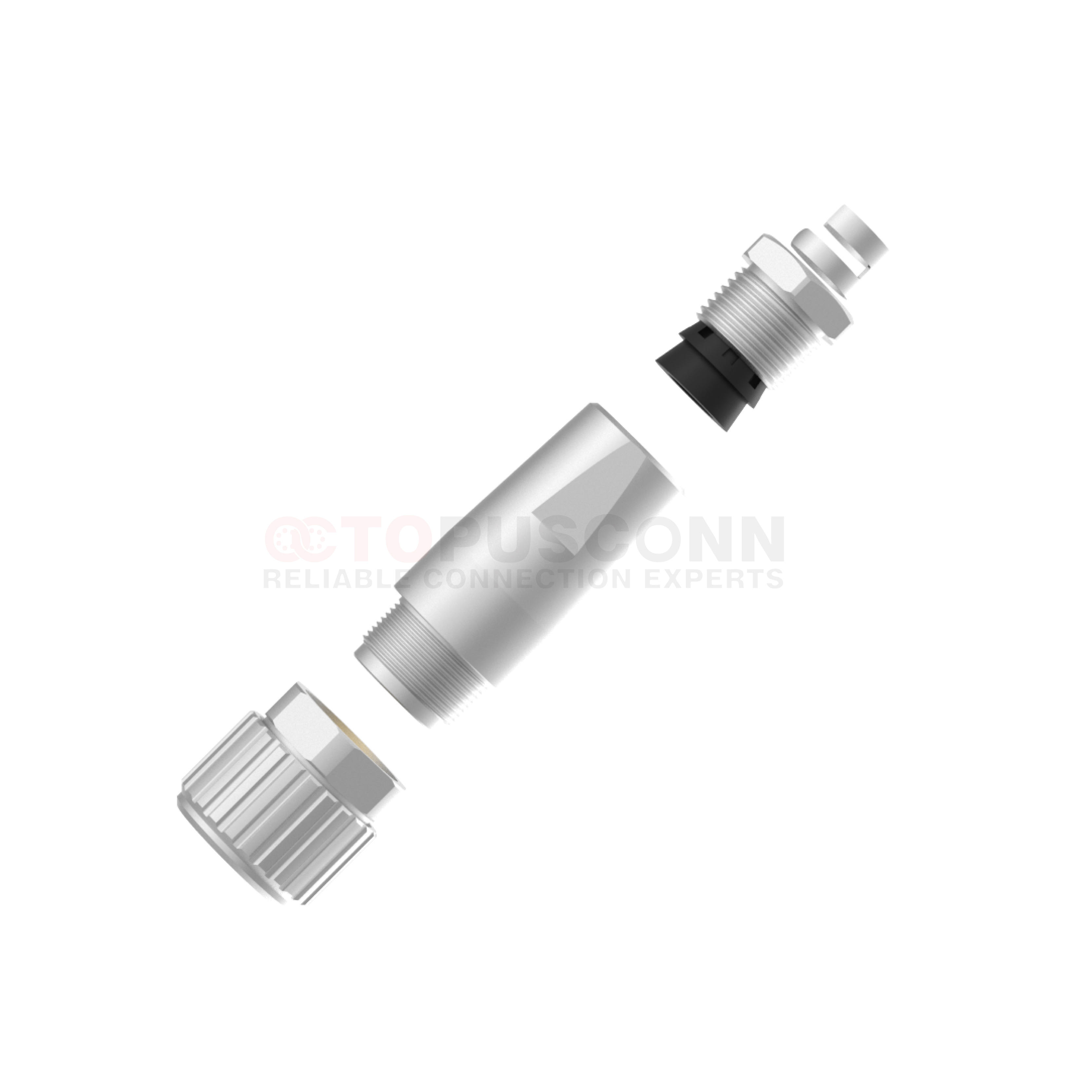

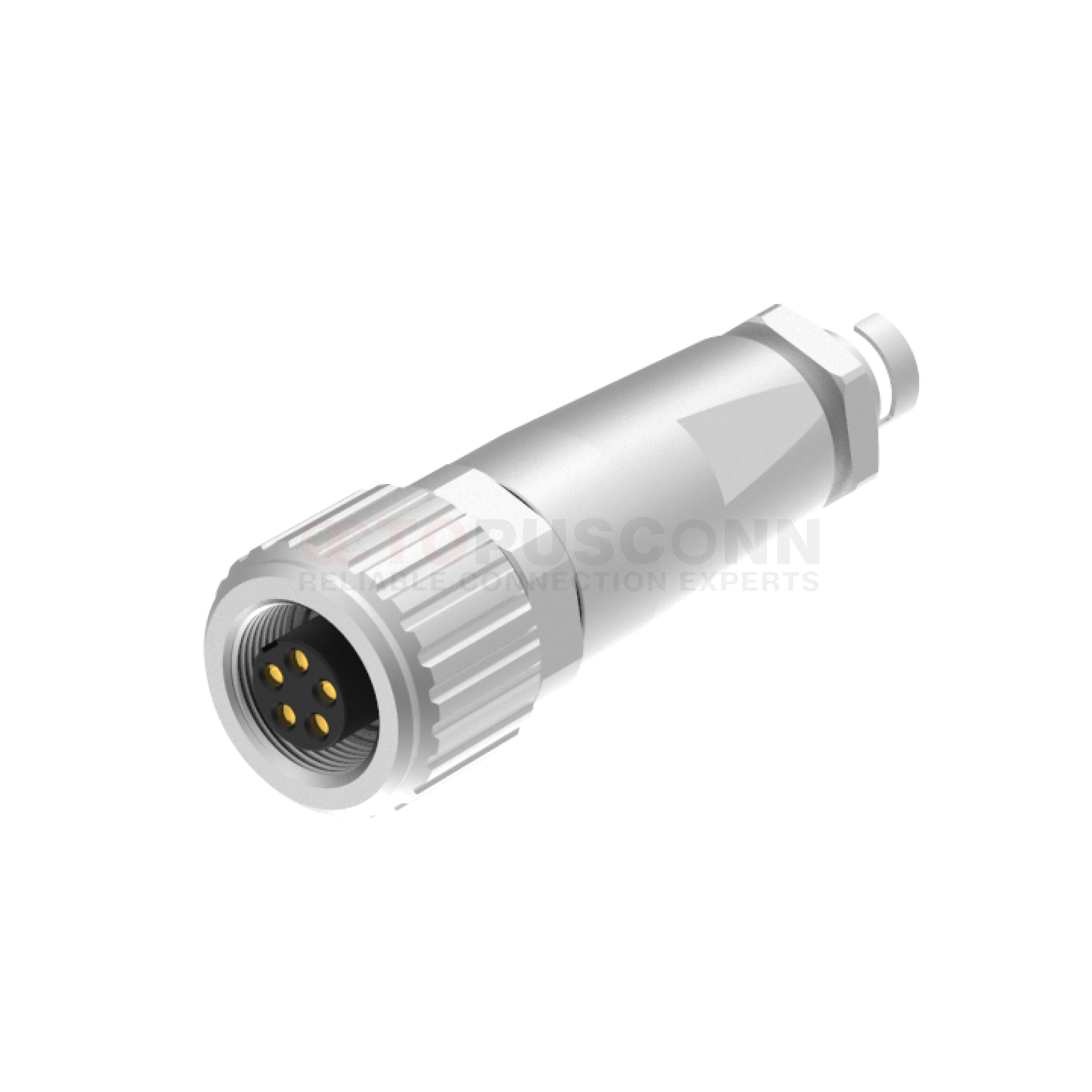

All-Metal Straight Soldered Type:
All-Metal Compact Design Featuring a small circular structure that complies with the compact size standard of the M9 series, the connector adopts an all-metal construction without plastic components. The entire body is crafted from metal, with most surfaces treated with nickel plating. This not only ensures a neat and refined texture but also enhances wear resistance and corrosion resistance. The straight-type plug-in and wiring design allows cables to extend in a straight line, reducing wiring bends and adapting to linear wiring spaces inside equipment. Housing Manufactured entirely from nickel-plated brass: the brass material guarantees the mechanical strength of the housing, while the nickel-plated surface significantly improves corrosion resistance and oxidation resistance, making it suitable for humid and dusty industrial environments. Widely used in industrial automation equipment, robotics and intelligent manufacturing, outdoor equipment, and devices for harsh environments.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
2
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
3
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
4
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
5
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
6
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
7
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
8
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
| Core | 2 | 3 | 4 | 5 |
| Male |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
||
| Core | 2 | 3 | 4 | 5 |
| Female |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
