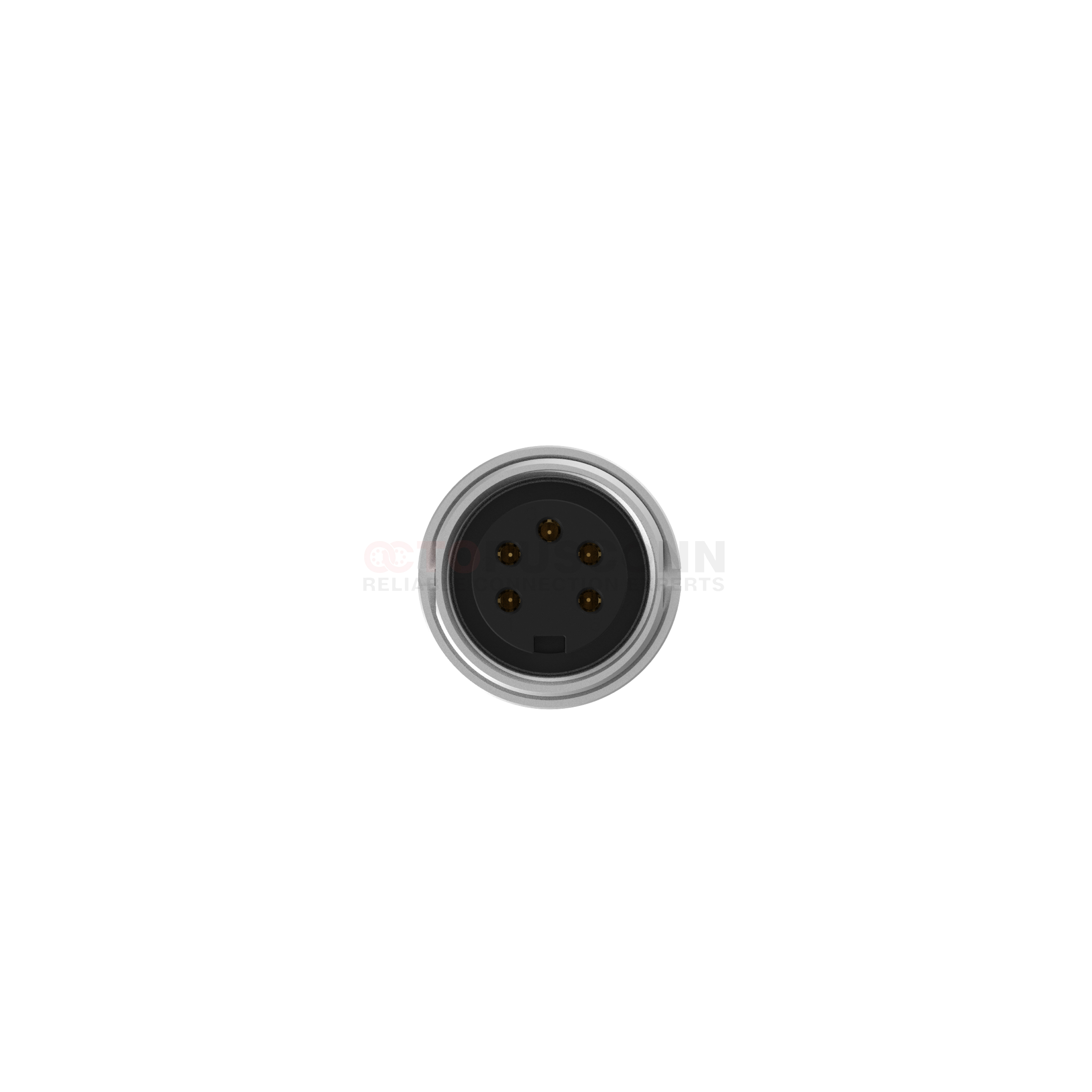

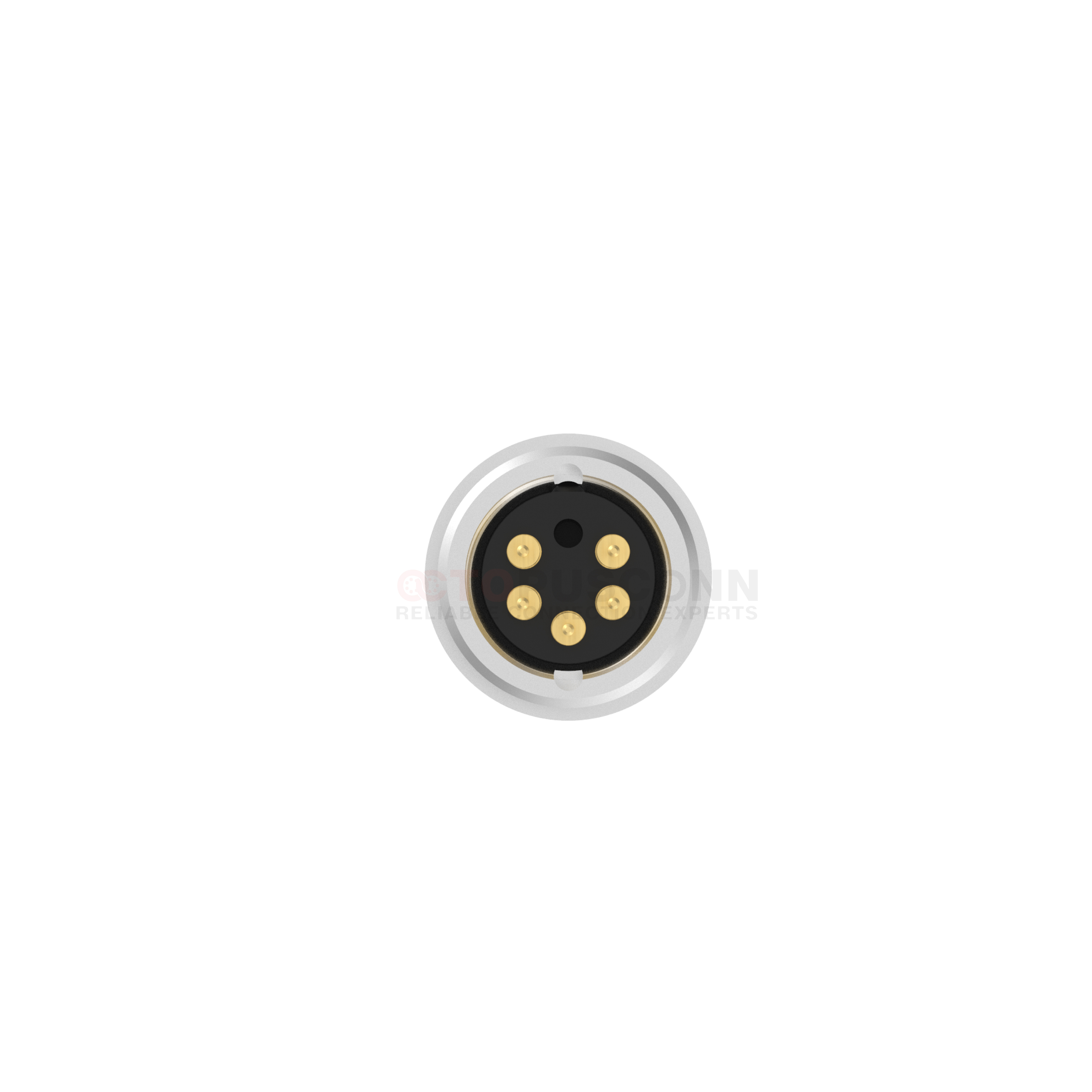

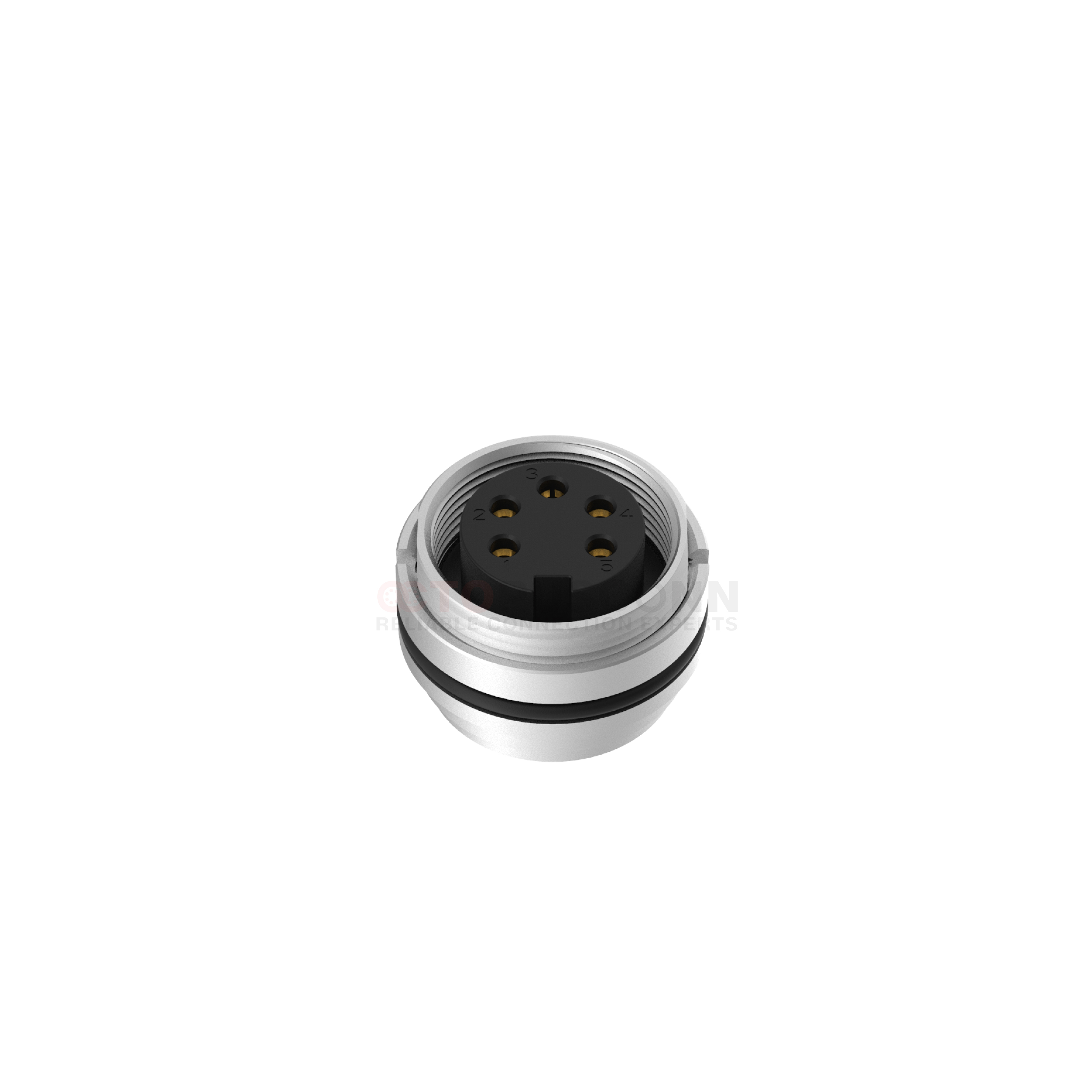

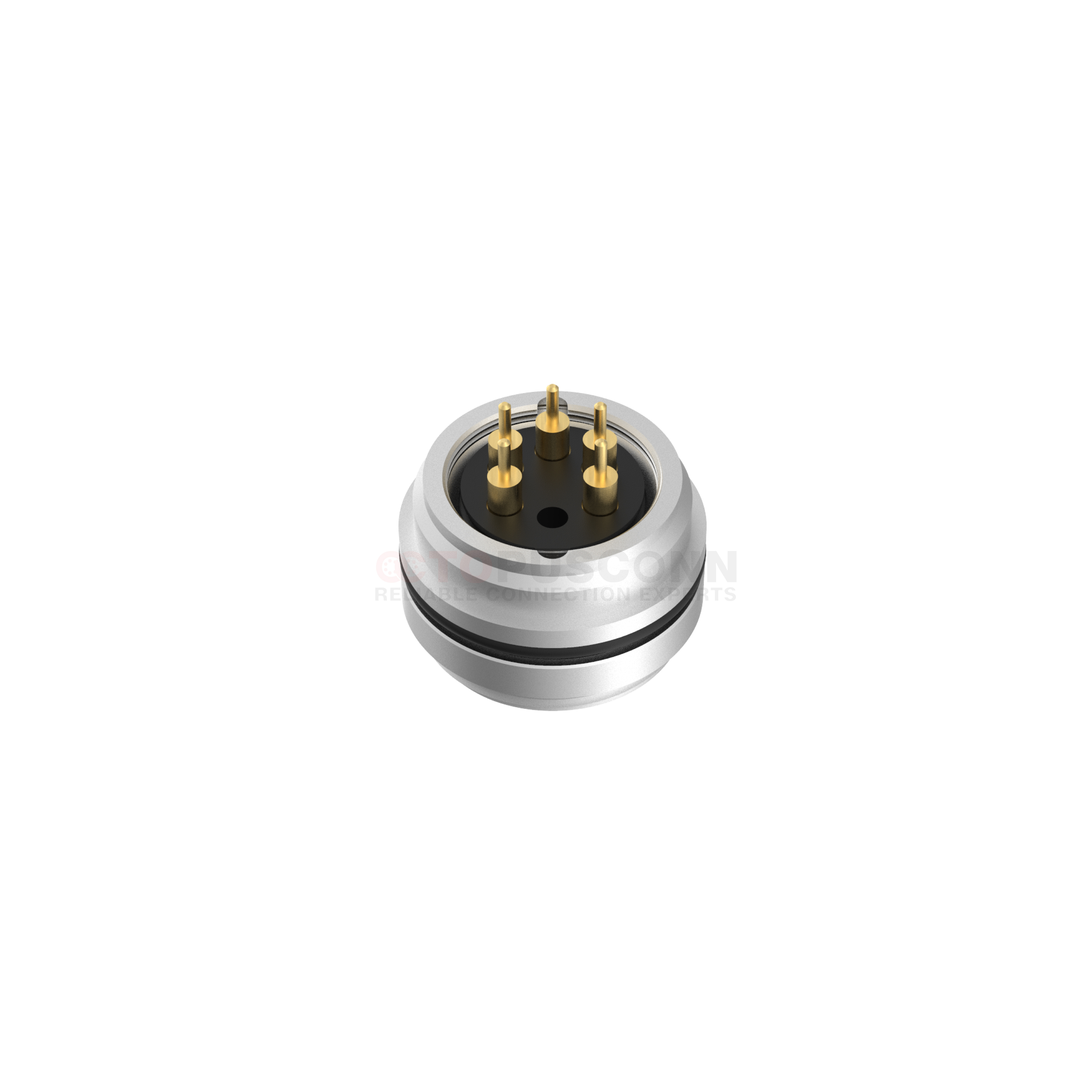

Available Pin Counts : 2P, 3P, 4P, 5P, 6P, 7P, 8P, 12P, 14P, 16P, 19P, 24P
Type : Female
Mounting Type : Plug-in Board
Applications : Power Transmission, Signal Transmission

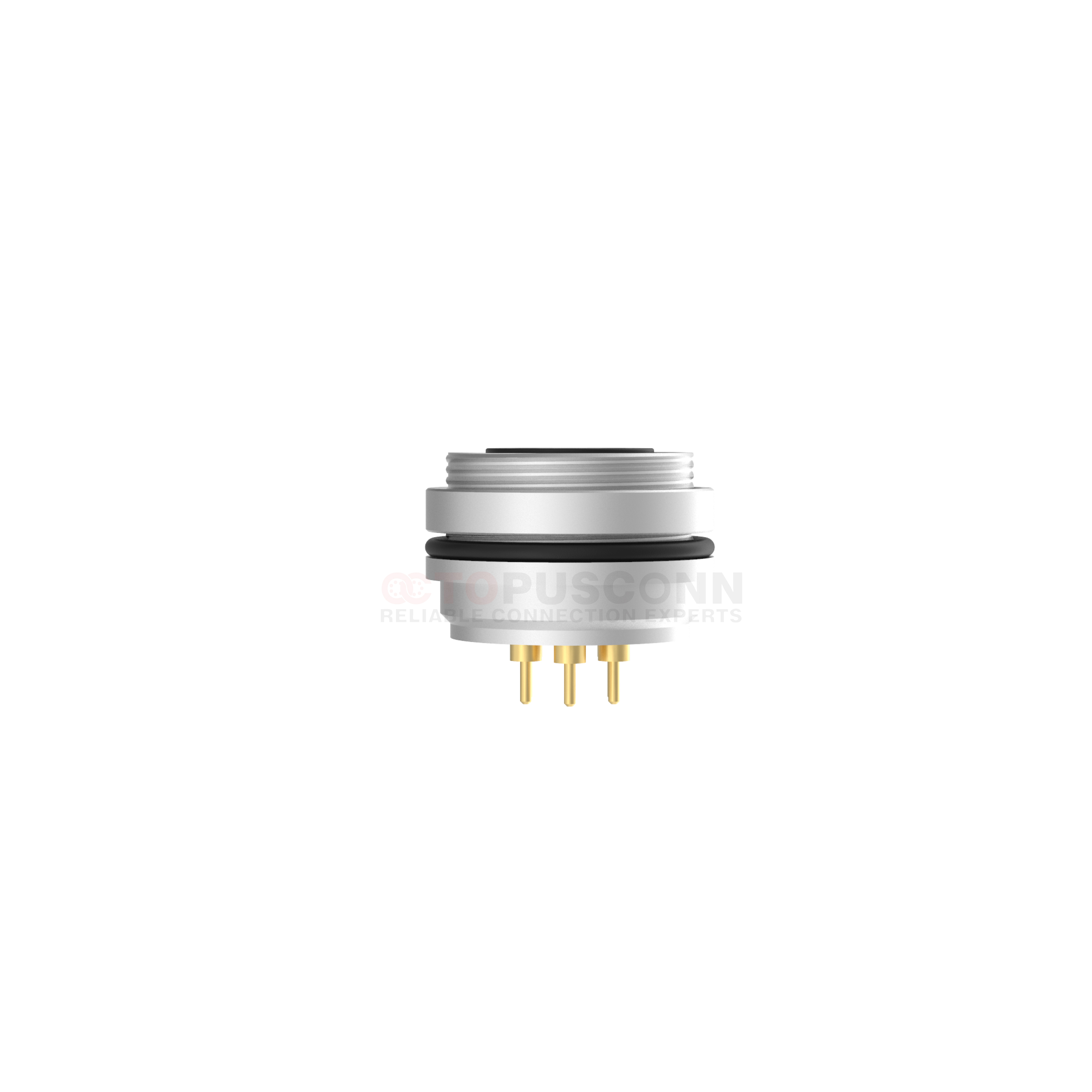

Panel Mount Plug-in Type
Flexible Mounting Methods: Supports two mainstream panel mounting forms, front locking plate and rear locking plate. It is also compatible with direct plug-in soldering on PCB boards, adapting to the panel layouts of different devices and the connection requirements of circuit boards. Compact Design: With a 16mm thread size, it can achieve a pin configuration of 2-24 cores, enabling synchronous transmission of power and signals in the narrow space of equipment. High Protection Level: The conventional protection reaches IP67, featuring dust-proof, water-proof and high-temperature resistant properties. It is suitable for harsh scenarios such as outdoor base stations and military equipment. Wide Temperature Operating Range: It can operate stably in the temperature range of -40℃ to +85℃, meeting the usage requirements of high and low temperature industrial environments.
| Product Model | PIN | Rated Current | Rated Voltage | Wire Gauge / Size | ||
| A/C | D/C | AWG | mm² | |||
| MC16NF-02R2LDLNM401 | 2 | 7A | 250V | 32V | 20 | 0.75 |
| MC16NF-03R2LDLNM401 | 3 | 7A | 250V | 32V | 20 | 0.75 |
| MC16NF-04R2LDLNM401 | 4 | 6A | 250V | 32V | 20 | 0.75 |
| MC16NF-05R2LDLNM401 | 5/5A | 6A | 60V | 32V | 20 | 0.75 |
| MC16NF-06R2LDLNM401 | 6 | 5A | 250V | 32V | 20 | 0.75 |
| MC16NF-07R2LDLNM401 | 7/7A | 5A | 125V | 32V | 20 | 0.75 |
| MC16NF-08R2LDLNM401 | 8 | 5A | 60V | 32V | 20 | 0.75 |
| MC16NF-12R2LDLNM401 | 12 | 3A | 60V | 32V | 24 | 0.25 |
| MC16NF-14R2LDLNM401 | 14/14A | 3A | 30V | 32V | 24 | 0.25 |
| MC16NF-16R2LDLNM401 | 16 | 3A | 30V | 32V | 24 | 0.25 |
| MC16NF-19R2LDLNM401 | 19 | 3A | 30V | 32V | 24 | 0.25 |
| MC16NF-24R2LDLNM401 | 24 | 1A | 30V | 32V | 26 | 0.14 |
| PIN | 2 | 3 | 4 | 5 | PIN | 5A |
| Male |
|
|
|
|
Male |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
||
| PIN | 2 | 3 | 4 | 5 | PIN | 5A |
| Female |
|
|
|
|
Female |
|
| 6 | 7 | 8 | 12 | 7A | ||
|
|
|
|
|
|
||
| 14 | 16 | 19 | 24 | 14A | ||
|
|
|
|
|
|
