Available Pin Counts : 2P, 3P, 4P, 5P, 6P, 7P, 8P
Type : Male
Mounting Method : Soldering Type
Applications : Power, Signal Transmission
Board-Mount Soldered Type

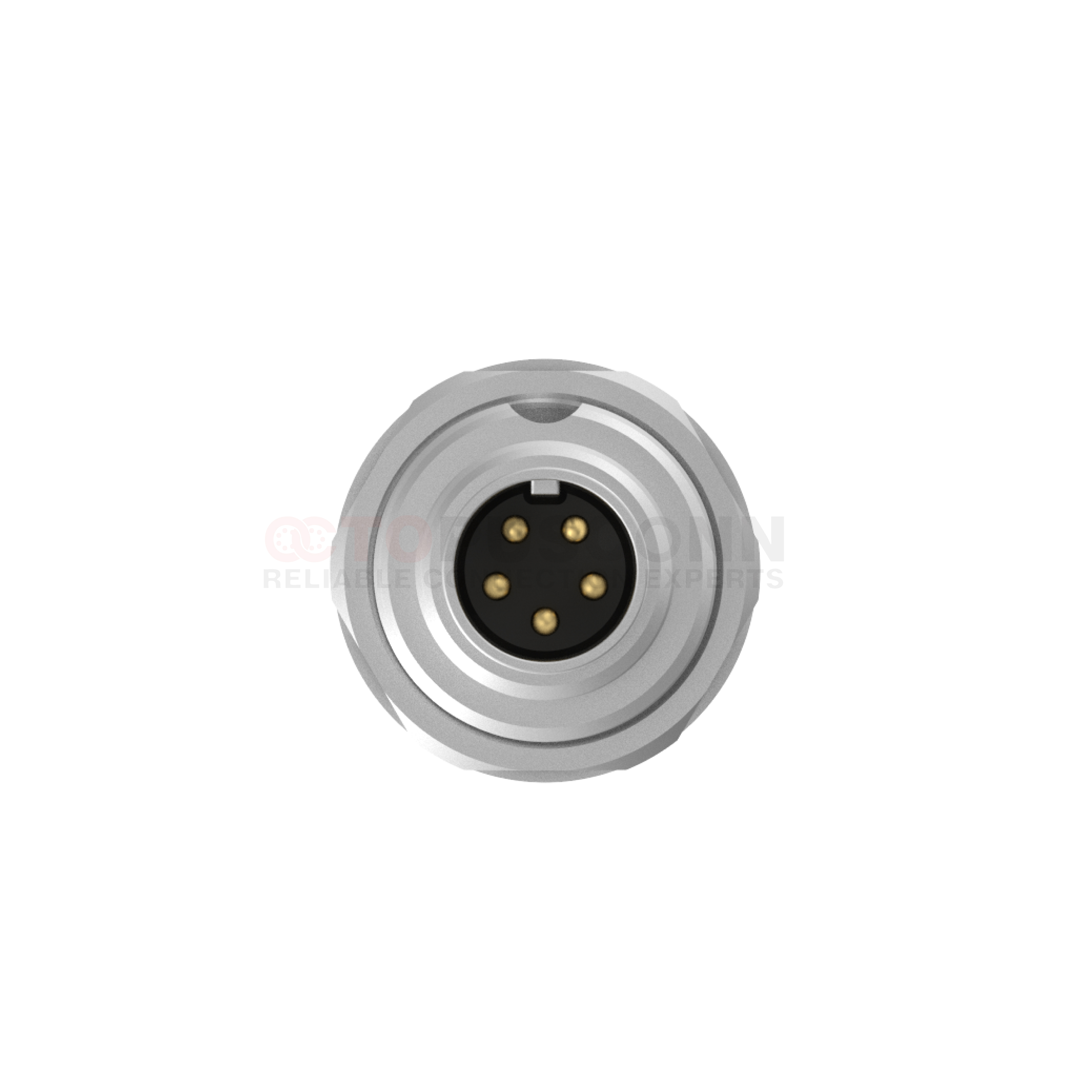

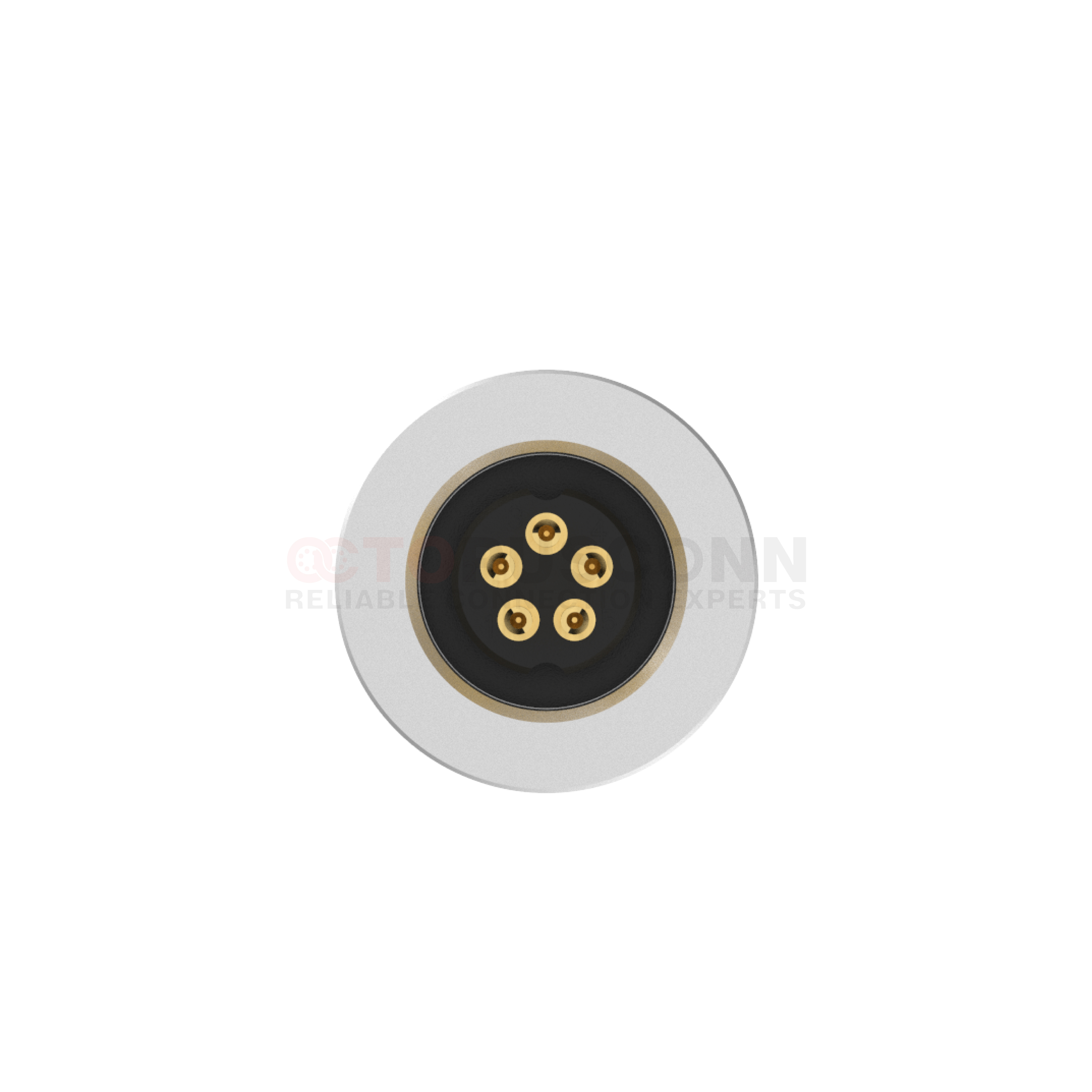

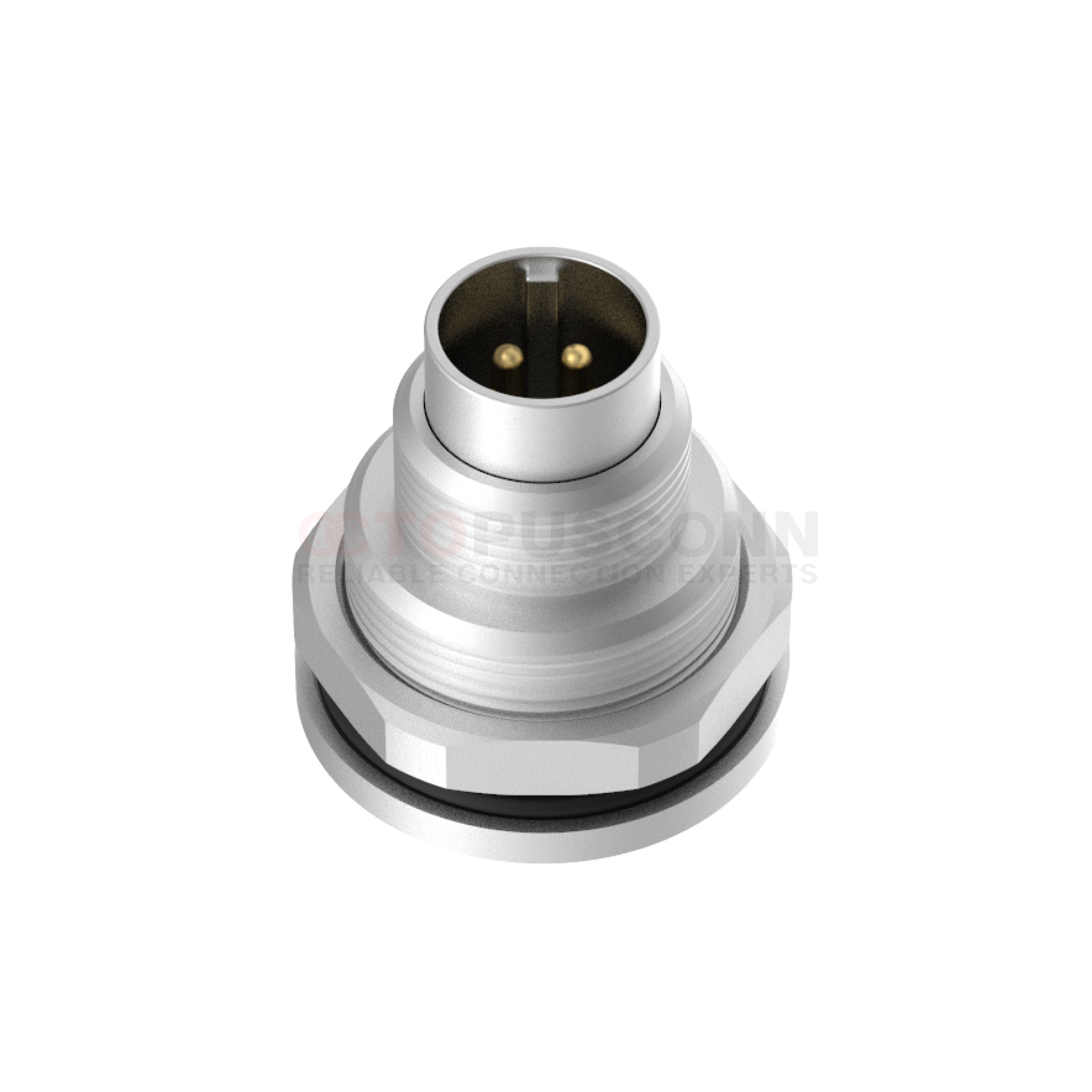

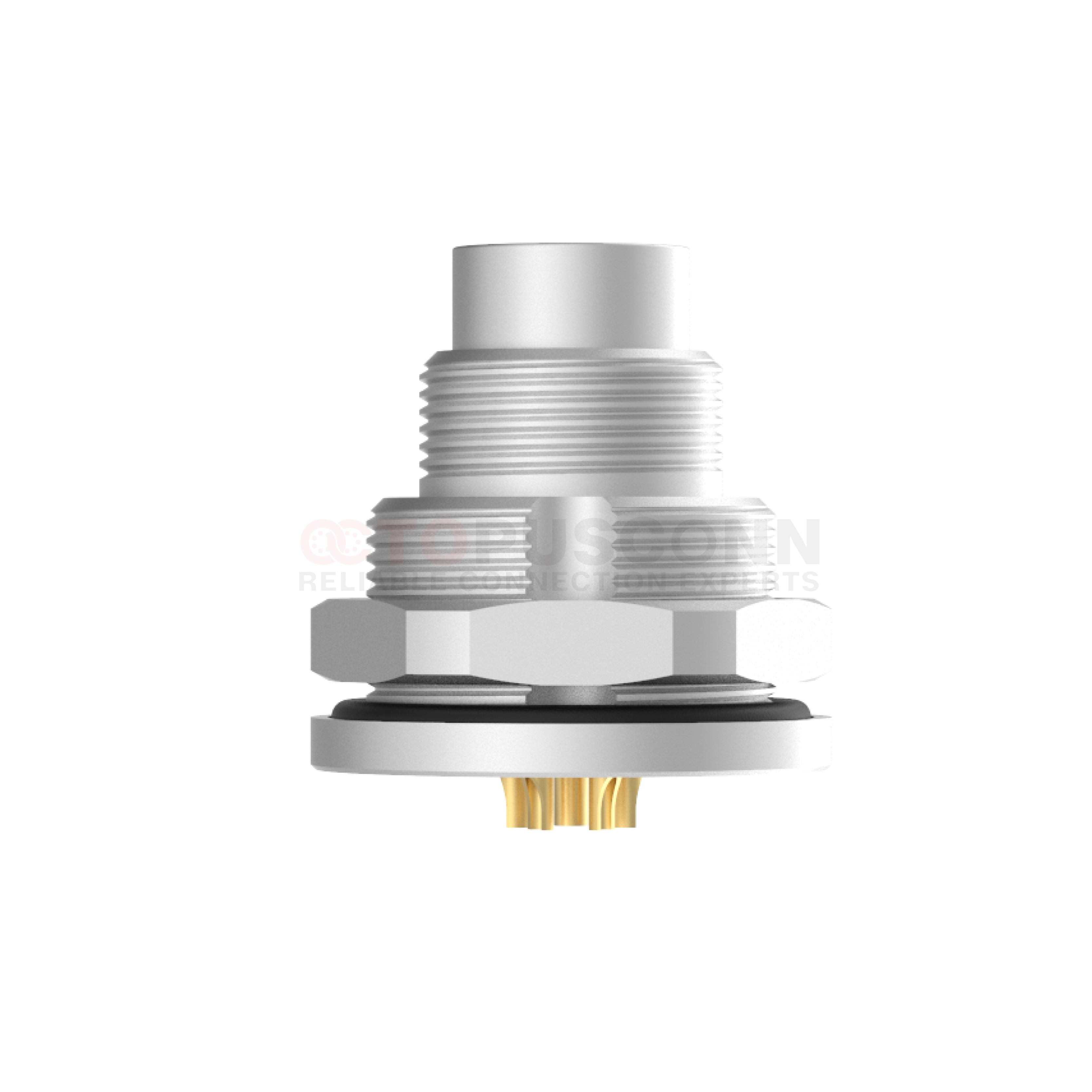

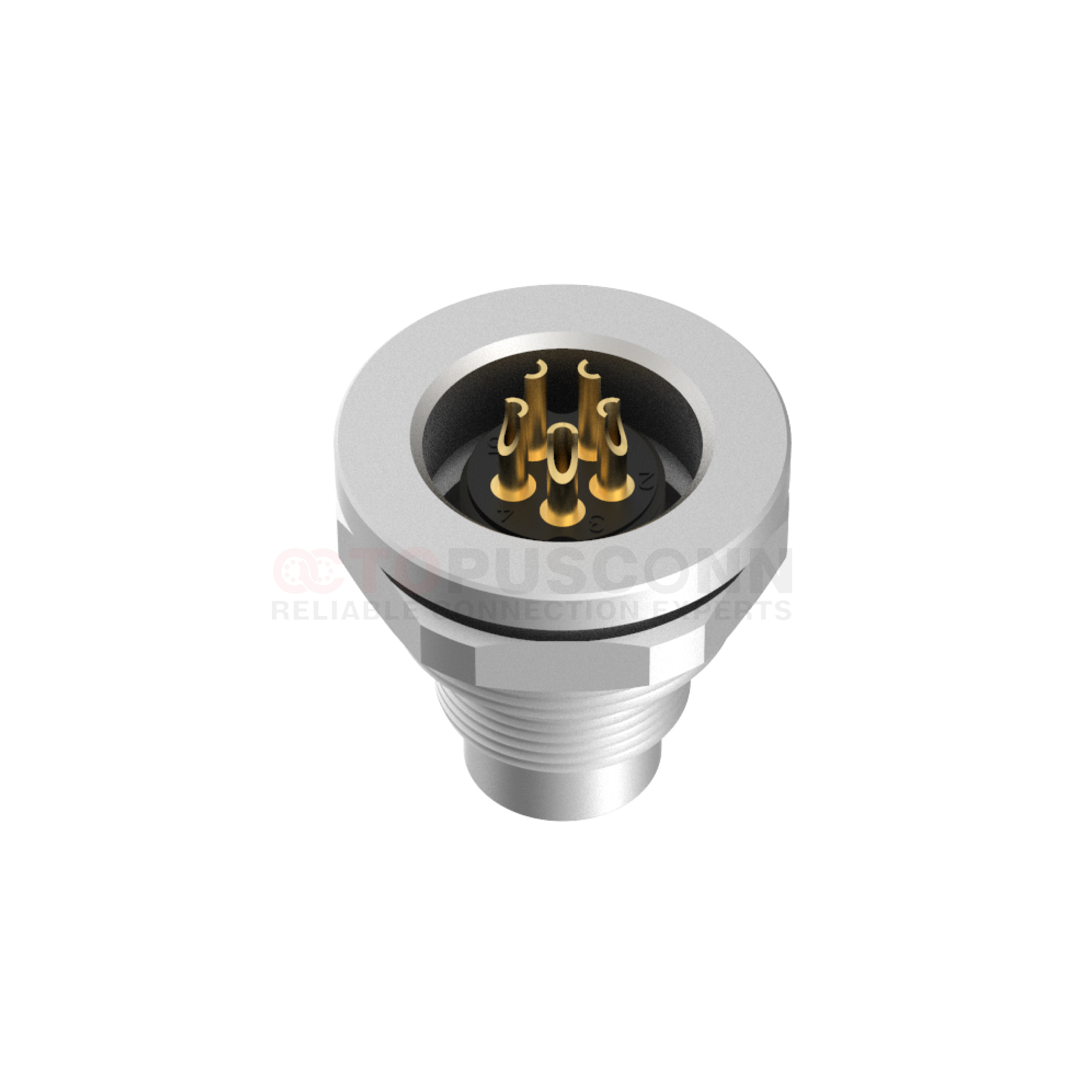

Appearance: With an outer diameter of approximately 9 millimeters, it has a compact cylindrical structure and a small footprint. One end of the connector is equipped with pins or jacks for wire connection, while the other end is generally designed with a threaded structure for locking connection with mating connectors or equipment. Design: It adopts a rear-panel mounting design, which facilitates installation on panels or equipment, saves installation space and allows for easy maintenance. The connection method is wire-soldered type; wires are fixed to the connector via soldering, ensuring excellent electrical connection performance. Meanwhile, it is usually fitted with a threaded locking mechanism, which can effectively prevent the connector from loosening under vibration, impact and other harsh conditions, thus guaranteeing connection reliability. Housing Material: Made of nickel-plated brass, it features good corrosion resistance and mechanical strength, which can protect the internal structure from external environmental factors.
|
Product model
|
Core
|
Rated current
|
Rated voltage
|
Wire gauge / Dimension
|
|||
|
A/C
|
D/C
|
AWG
|
mm²
|
||||
|
2
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
3
|
4A
|
125V
|
125V
|
24
|
0.25
|
||
|
4
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
5
|
3A
|
125V
|
125V
|
24
|
0.25
|
||
|
6
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
7
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
|
8
|
1A
|
125V
|
125V
|
26
|
0.14
|
||
| Core | 2 | 3 | 4 | 5 |
| Male |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
||
| Core | 2 | 3 | 4 | 5 |
| Female |
|
|
|
|
| 6 | 7 | 8 | ||
|
|
|
|
The connector must not be plugged or unplugged under load. Failure to follow the instructions and improper use can result in personal injury.
The development of the connector is aimed at being applied in factory engineering, control and electrical equipment construction. Users are responsible for checking whether the connector can also be used in other applications.
Connectors used in circuits with dangerous voltages that cause electric shock must be installed and used only by personnel who have received training in electrical engineering, or under their supervision, while taking into account the applicable regulations and standards.
Users must take appropriate security measures to ensure that the connectors do not accidentally disconnect.
When installing, apply moderate force and use the special tool to tighten the nuts. Avoid excessive force to prevent the shell from deforming or the pins from bending. Ensure that the plug and socket are fully engaged. Do not power on the device when not locked in place to prevent arc discharge due to poor contact.
The plug connectors with an enclosure protection rating of IP67 and IP68 are not suitable for use in water. When used outdoors, the plug connectors must be protected against corrosion separately. For further information on IP protection ratings, please refer to "Technical Information".
